The Official Dometic CFX Fridge Feed!

Discussion in 'Overland Vehicle Gear' started by DometicOutdoors, May 10, 2018.

Hi Guest, Become a Member to gain access to the Member Forums, Member Map, Member Calendar of Events, and Rally Point overland trip planner! Click this link "Learn More" for more information!
  1. DometicOutdoors

    Location:
    Elkhart, Indiana
    Map
    Hey guys!

    We are looking to see what kind of set ups you guys are running! What are your thoughts on your Dometic fridge? What industry events would you like to see us at? Share with us!

    We would love to see some pictures of your CFX Fridges in action, post below and if you have Instagram tag yourself!

    Here is a link to our Mobile Living Made Easy Portable Fridges if you are unfamiliar: https://www.dometic.com/en-us/us/pro...ectric-coolers


    Photo By: Team4Runner and RuggedPix
    [​IMG]

  2. 1Louder

    1Louder Rank V
    Member

    Location:
    AZ
    Member #:

    1437

    Map
    #2 1Louder, May 12, 2018
    Last edited: May 13, 2018

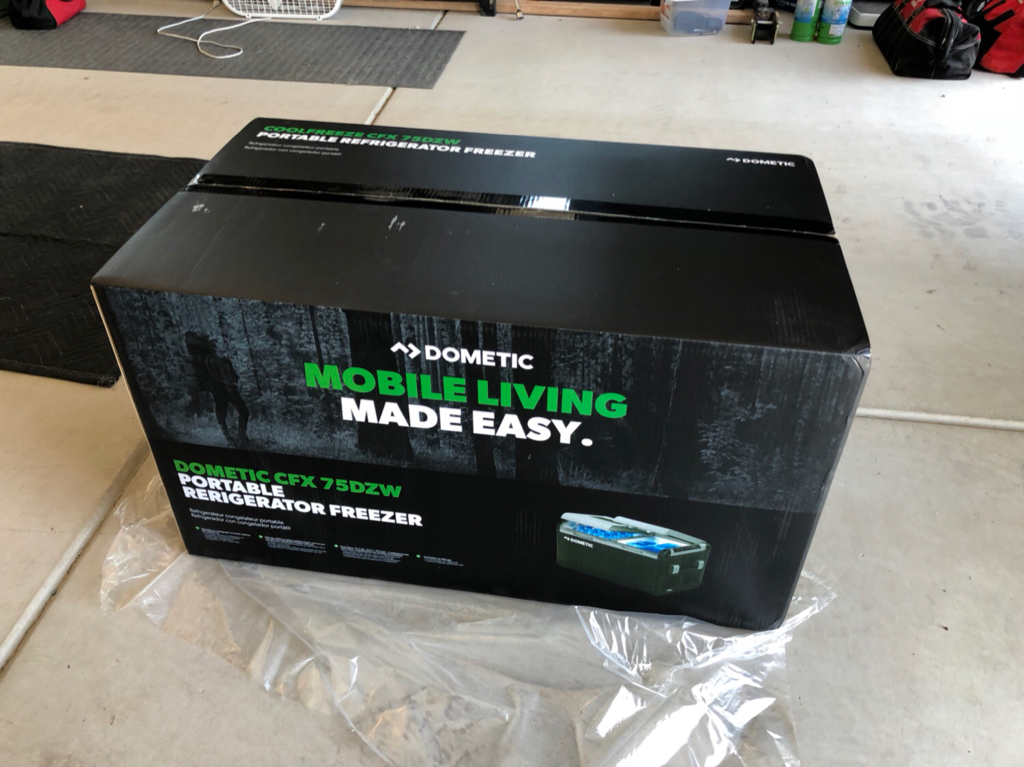

    Just picked up our new CFX-75DZW. It’s going to be great to have a freezer option for long trips. Your Overlanding life will never be the same once you have made the investment in a fridge. This is our 3rd and hopefully final one. We keep upgrading to a larger size.

    This also requires a new platform design for the back of our FJ. When required we will be able to bolt in the 40% seat behind the driver. Otherwise this will be a full width and depth platform for gear and the fridge. I’m working on a modification of our existing smaller fridge slide but may eventually upgrade to the larger one. We will review this fridge next month on 4XOA.com.

    See you in Flagstaff next weekend!

    [​IMG]

    [​IMG]

  3. 1Louder

    1Louder Rank V
    Member

    Location:
    AZ
    Member #:

    1437

    Map
    #3 1Louder, May 13, 2018
    Last edited: May 13, 2018

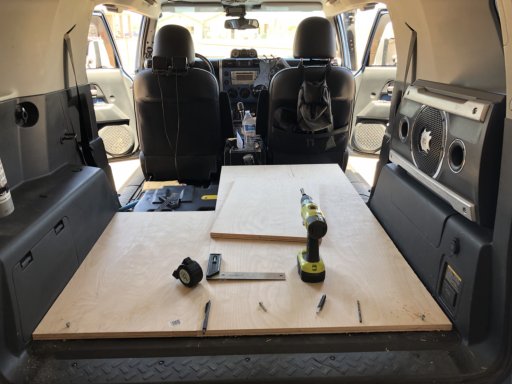

    Part II - Platform build




    Hoping for a deal on a new Dometic slide at the Expo. I did a temporary modification to my old smaller slide so I could at least make access to the fridge easier.

    Once a get a new slide I will remove the platform, install the slide, and then add carpet to it. I made the driver side portion foldable in case I ever need to install the rear 40 seat.

    Luis Merlo and 4wheelspulling like this.
  4. 1Louder

    1Louder Rank V
    Member

    Location:
    AZ
    Member #:

    1437

    Map
    #4 1Louder, May 14, 2018
    Last edited: May 17, 2018
    Doing a little testing in the 4XOA lab with our new Dometic CFX-75DZW.

    After 14 hours with the lab temp around 90 degrees (some call it a garage) the fridge has drawn less than 6.5 amps. For this large of a fridge I think it is performing very well. FB4B7644-B093-4A5F-A158-1BE85480BE9E.jpg

    After 24 hours the fridge drew under 15 amps at 14.61. This is a great result.

    We have the large side set to 36 and the small side set to 20. Currently only filled at about 40% with water bottles.

    When fridges are full with cold items they run more efficiently. Using a temperature gun the inside wall temps are consistent and water bottle temps within 2 degrees of the fridge temp settings.

    We will see what the 24 hour result is. Battery voltage looks low because the fridge was running when the photo was taken. Currently at 12.4 and started at 12.8.

    We did a fridge shootout in late 2016. Check it out at 4XOA.com. Great results on par with the CFX-65DZ we previously reviewed. I will update that article with these numbers once I have tried a couple of other scenarios like fridge/fridge and one side off.

    Add solar to your setup and you can keep your battery happy for a long time off grid.

  5. 1Louder

    1Louder Rank V
    Member

    Location:
    AZ
    Member #:

    1437

    Map

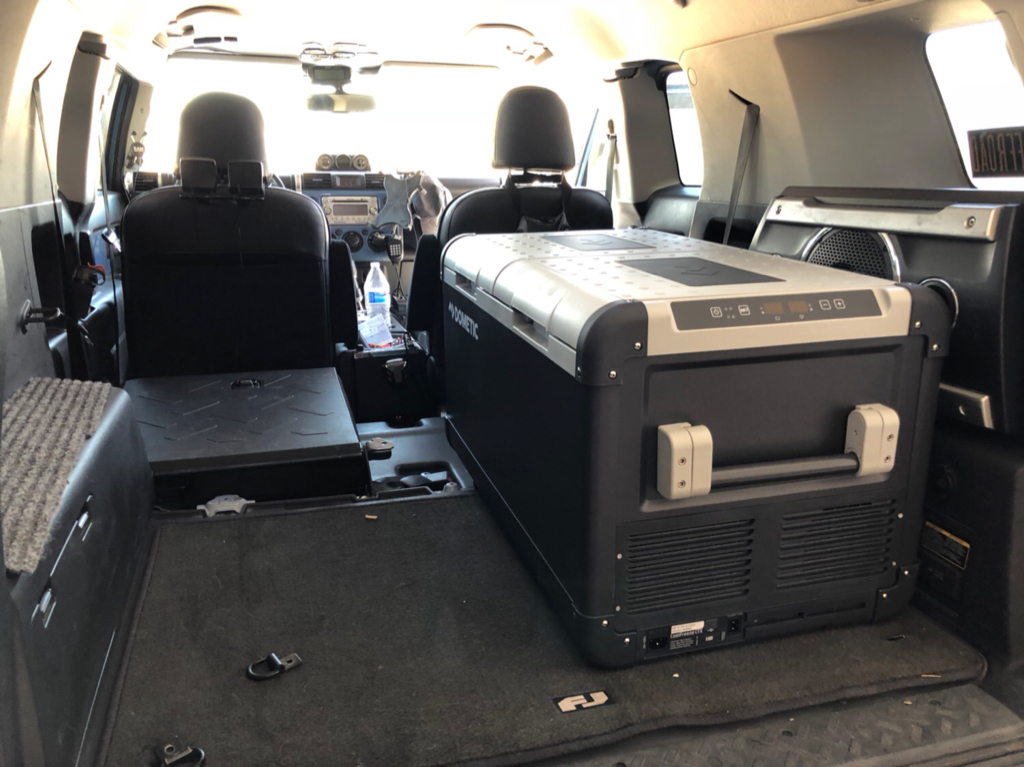

    While recovering from a busy 48 hours at the Expo I decided to finish my platform build. I managed to get the last jumbo slide at the Dometic booth.

    In order to maximize space in the FJ I flipped the fridge and have it venting towards the front can back. This way I would install the slide as far aft as possible. Happy with my work.

    With a little effort the front portion on the driver side can flip over to allow the installation of the rear passenger seat.

    I also added aircraft style cargo tie downs to keep additional gear secure. Out on the trail I’ll use a ratchet strap to keep that gear secure.

    Happy with the fridge and glad to get a good discount on the slide.

    Expo 2018 was great!

    IMG_0948.JPG IMG_0964.JPG IMG_0967.JPG


    Wherever you go, there you are. Sent from my phone.

    Luis Merlo and DometicOutdoors like this.
  6. 4wheelspulling

    4wheelspulling Rank III
    Member

    Location:
    Chelan, WA.
    Member #:

    8452

    Map
    That really looks like a great setup! Living off-grid and also into overlanding, I would love to purchase your largest size fridge/ freezer. No funds now, but I hope to have one someday soon. If you ever need a product tester, I’m available and would enjoy doing that for you! Benz.

    DometicOutdoors likes this.
  7. FJTim

    FJTim Rank III
    Member Supporter +

    Location:
    Everett, WA
    Member #:

    10788

    Map
    Got the 40L installed in the FJ a couple weeks ago. We are leaving next week for 1800 miles through Oregon and it should be a huge help! I love the power consumption and size.

    We are also going to have a booth at the NW Overland Rally for Autel Robotics. So if you're there, come say hi! 20180527_180045.jpeg 20180527_185436.jpeg 20180527_180023.jpeg

    Sent from my SM-G965U using OB Talk mobile app

  8. 4wheelspulling

    4wheelspulling Rank III
    Member

    Location:
    Chelan, WA.
    Member #:

    8452

    Map
    How much would this fridge/ freezer, cover and pull out tray be to purchase together?
    Does this setup use a Danfrost compressor? Benz.

    Luis Merlo and DometicOutdoors like this.
  9. 1Louder

    1Louder Rank V
    Member

    Location:
    AZ
    Member #:

    1437

    Map
    Unless you can find something on sale.
    Fridge is around $1099
    Cover around $65
    Slide around $299

    Dometic makes their own compressors. Not Danfoss but confirm with Dometic!

    Luis Merlo and DometicOutdoors like this.
  10. 4wheelspulling

    4wheelspulling Rank III
    Member

    Location:
    Chelan, WA.
    Member #:

    8452

    Map
    1Louder,
    Thank you for the price information! Sure does look great! Please report back a long term review how it works out and holds up? My guess, it should last and be a great setup for a long long time. I bet it is a game changer in use. Benz.

    Luis Merlo and DometicOutdoors like this.
  11. Overland Vic

    Overland Vic Rank I
    Member

    Location:
    Orange, CA, USA
    Map

    Thank you 1Louder for posting the info on the Dometic 75dzw and the power consumption testing. It looks great! How is your setup doing today? I'm interested in the Dometic 75dzw for it's dual compartment.

  12. chrishesselden

    Location:
    Guelph, ON
    Map
    Overland Vic likes this.
  13. 1Louder

    1Louder Rank V
    Member

    Location:
    AZ
    Member #:

    1437

    Map
    I’m still happy with it. Other than it takes up 1/3 of the space in my FJ. But I knew that before I bought it. I still like having a dedicated freezer compartment.

    Overland Vic likes this.
