What do you do with your 1993 Toyota FZJ80 Land Cruiser once the kids have left the house? You turn it into a “home” and explore as much as possible. Overland Bound Member Ofer Bruhis takes us through every decision made converting his Land Cruiser 80 Series into a (very) tiny home. Read on for all the details!



Words and Photos by Ofer Bruhis



About 25 years ago we bought a family car. A 1993 Toyota FZJ80 Land Cruiser. It served us for 20 years for family camping, and car pooling around town. Now that the 4 kids have left the house, we have no use for it.

Land Cruiser 80 Series

Looking at the low resale value, we decided instead to invest and convert it into a house/camper having all the options of being on/off the road and being independent of lodging and food.

The first issue was to create a reliable overland vehicle, with a robust drive train, a fuel efficient engine and one that could travel over any terrain. This meant we would have to replace the 10 MPG 1FZ-FE gas engine/auto transmission with a 1HDFT (which is a Toyota 24-valve turbo diesel engine mated with an H151 5-speed transmission). This 24 MPG upgrade would allow us a 700-mile range per tank of gas.

Searching for the right engine for the Land Cruiser 80 Series was a long process -we’re talking 2 years. After exhausting eBay and Craigslist, in December 2017 the engine was finally found through the North America Land Cruiser Community (through Facebook). The engine/drivetrain came out of a European HDJ81 Land Cruiser and was sent to Valley Hybrids, a shop in Stockton, California that specializes in diesel engine conversion for Land Cruisers. They replaced most of the external parts, rebuilt the injector pump and injectors, and did all the checks to verify that the engine was in excellent running condition. They also rebuilt the 5-speed transmission. The transfer case was converted to part time 2WD/4WD from all time 4WD in order to get even better milage on the highway. They have done an amazing job. We could have not chosen a better shop.

Land Cruiser 80 Series

Meanwhile, “back at the ranch”, the vehicle was undergoing more changes. The bumpers were upgraded with more rugged units that can accept a winch and a spare tire in the back. (Bumpers by 4x4Labs.) The front seats were refinished with new leather and seat warmers. The two rows of rear seats were removed to allow space for a kitchen and bed.

Land Cruiser 80 Series

The electrical and fuel systems had to be converted to the diesel engine and the transmission hump had to allow for the new manual shifters. The vehicle was then painted with a ‘sand’ color.

Land Cruiser 80 Series

Once the engine was completed at Valley Hybrids, we borrowed a truck and brought it from Stockton to San Jose, CA. On a hot sunny day in July the engine was finally put into the vehicle. Since this engine was designed for this Land Cruiser model in other countries, little metal work modification was required.

The finished job on the drivetrain required testing before the work on the “tiny house” began. The car was driven for 1000 miles. It also required a trip to the CA DMV to change the title of the vehicle from gas to diesel.

Land Cruiser 80 Series
The moment we had been waiting for.

At this point we added a second battery to support the ‘home’ part of the car. It is charged by the alternator when the engine is running and disconnects when the voltage drops below 12.5 VDC when the engine is not running. It connects to a solar panel when the car is parked for extended period of times while using the fridge.

Land Cruiser 80 Series

Tali Hardonag Architects then began the interior design of the vehicle in order to convert it into a “tiny home”.

Land Cruiser 80 Series
Land Cruiser 80 Series
Land Cruiser 80 Series

After a long search, a marine grade fridge/freezer was selected to accommodate the limited space — Webasto BI-41 dual. The advantage of this model is that it has a detached compressor that can be placed up to 6 feet away from the fridge.

The lid for the fridge gave us a bit of a problem. For a $1000 fridge, the quality of the lid is not great. It just sits on the top of the fridge and is made of molded plastic with a sheet of Formaica on top. We figured that securing is a must, so we used removable hinges on the back, and rubber latches in the front. All this had to be integrated into the lid and Corian on top of it all. It was a time consuming task.

Land Cruiser 80 Series

Our search for a sink and faucet zeroed in on a Kohler K-3349–1-NA. We liked it because it’s a sturdy 18 gallon model, small and deep. The faucet will fold in to the well.

The sink was mounted on the frame. It required to be ‘sunk’ in about an inch, so the faucet folds flush with the counter top cover. The drain for the sink was hooked up. The last section is silicon hose and it exits behind the right rear wheel. An extension can be attached if we want the water to flow away from the vehicle. Otherwise we can just use a small bucket.

We had issues with space for the stove. We ended up building a stove from two camping stoves and some machined brass pipe parts. The connection was used from a torch welder and it hooks to a standard Coleman propane tank. The stove was assembled and tested. It requires a wind shield and is designed to fit in a drawer under the fridge when not used. We can pull it back to cook by the tail gate, or remove it completely and place it on the counter top for cooking in wet or cold weather.

Land Cruiser 80 Series
Land Cruiser 80 Series

We used an old Corian slab to build the countertop. It took a long time to get everything accurate, but once assembled it looked great. The material was easy to work with and the glue lines are almost invisible.

Land Cruiser 80 Series

The SkyCart aluminum drawers (6061-T6 0.1″ thick) were powder coated with Navy Gray (Cardinal GR-01) by Moises Finishing in San Jose. We installed the drawers with soft close glides. The bottom drawer is a bit lower to allow taller pots to fit in. The finished panels for the drawers were installed using 100% silicone to glue them. We hope it will hold.

Also, all the sheet metal inside was covered with noise dampening sticky material.

Land Cruiser 80 Series

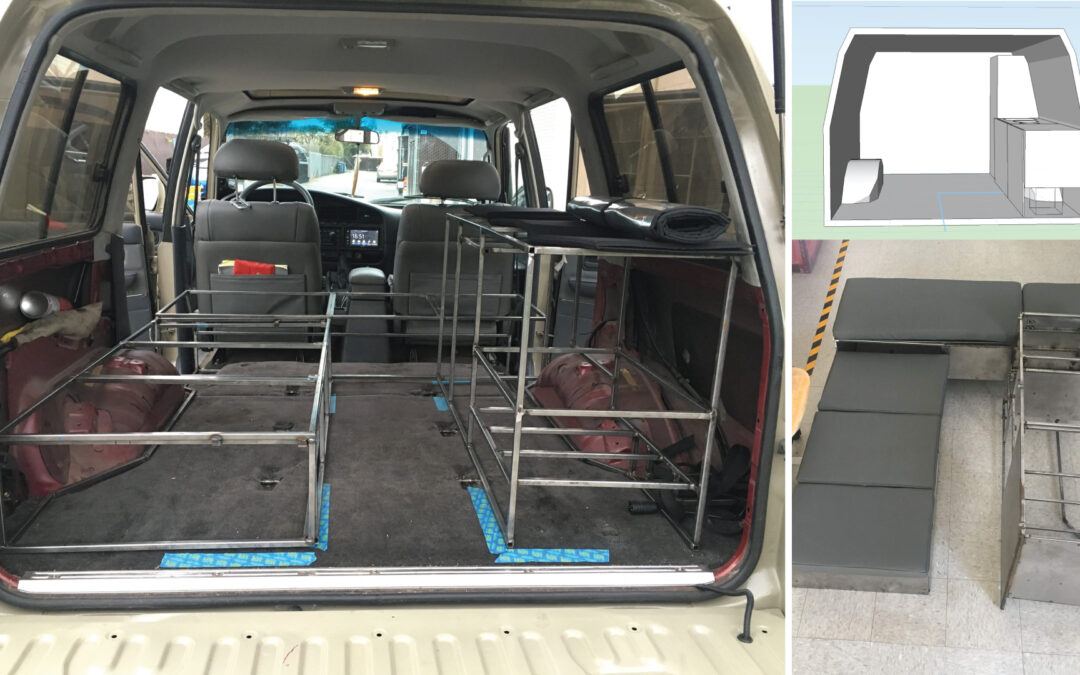

The lower side of the bed is a bench that has a slider part that opens to a twin bed. The bench will have 3 cushions so that passengers will be able to sit on a bench seat in the back. They will have leather on top to match the front seats. The bench also has a storage area underneath.

Land Cruiser 80 Series
Each section is removable.

We used latches to lock it in place. We also installed a back cushion for the bench, that is removable and used as the part of the mattress that covers the slider part of the bed.

These 3 frames attach to each other and to the vehicle itself with screws. They are not permanent, and can always be removed.

The storage compartment is behind the front seats with 3 aluminum lids that hinge. The two hatches on the driver side and center have 2″ cushions and also serve as the upper part of the bed.

Land Cruiser 80 Series

The rear tail gate has food grade stainless steel plates with latches so that we can store all the recovery gear. It is a bit heavy, so when opening it, care must be taken.

Water tanks are 8″ PVC schedule 40 with caps. Each tank provides 30 liters of water. One of the tanks holds hot water. (It heats 9 gallons to 150F in 18 minutes when the engine is running and warm.).

A circulating pump with a thermostat runs the water through a heat exchange unit with the radiator coolant. The compressor will pressurize the tank so that water ‘climbs’ to the faucet and shower. Ha, yes, the shower… The exterior shower unit is a Bullfinch shower head. The unit is well made, and very compact. The shower head plugs in and has the handle integrated into it.

We used 3/8″ copper pipe for the water system. Most used compression fitting, except in a few places that used a silicon hose with clamp to relieve the stress of the vibrations.

 The original pump that we chose was not self priming, so we chose a different pump. We used an old Prius battery to run the pump. (Yes. A Prius battery in a Land Cruiser 80 Series.)

Land Cruiser 80 Series

Also, the electrical panel (has a) solar panel controller, 110 VAC Converter panel, main switch panel, thermostat controller, 110V plug and fuse box. A main disconnect was added as well. The 110VAC 1KW converter was mounted inside the wheel well to save space.

We added rock sliders and new Old Man Emu suspension from Cruiser Outfitters. for the Land Cruiser 80 Series. The suspension is a bit stiffer because of all the expected load we are planning to add to the car. The roof rack is made by Prinsu Design in Idaho. It easily mounts on the vehicle and spreads the weight. Very well designed! The ARB awning was installed with custom made brackets.

Land Cruiser 80 Series

The air system was installed with an ARB compressor and a 1 Gallon air tank. A pressure reducer was required for the air system that pushes the water up out of the tanks to the faucet and shower head. We are fighting gravity all our lives.

The heat exchange was mounted above the transfer case. There was just enough space for it. Silicon hoses to the radiator water. Rigid copper for the drinking/shower water.

So the setup for the three modes of the car — drive, cook, sleep are below:

Land Cruiser 80 Series

And at this point the vehicle was ready for the first test. An 8000 mile trip to Alaska!
