Light tower conversion build

Edy Coyote said:
Love what you've done. I really like repurposed stuff like this. I just converted an old arrow board trailer they use in construction into a ATV trailer. There's a lot of opportunity for relatively inexpensive gear with a little ingenuity.
Click to expand...

I love doing it my way. Anybody can just go buy something. It takes a special mindset to be able to fabricate and keep an open mind. It also helps that I'm cheap, why buy when I can make something for significantly cheaper. Just picked up some steel for my roof rack. Hopefully I dont butcher it too bad. Going into the build with no plan. Just a big pile of steel.

  • Like
Reactions: rghbsn

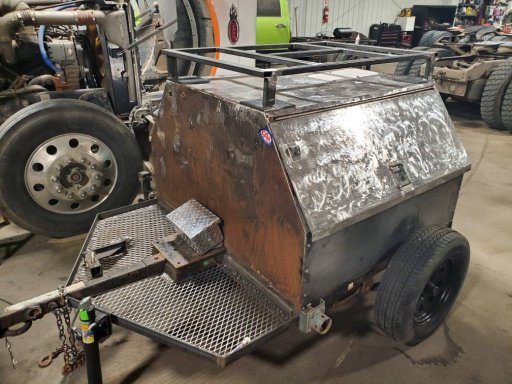

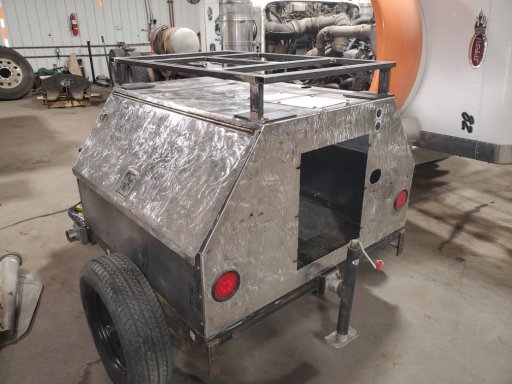

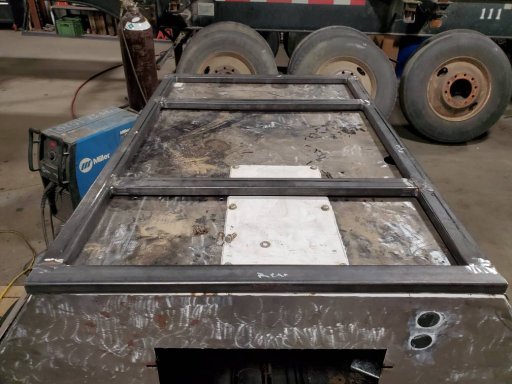

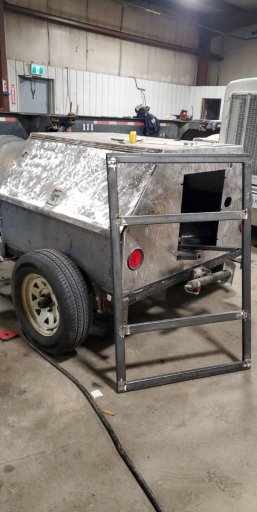

Spent some time building a roof rack last night. Also got the skid/floorpan sealed & bolted down in place. Hoping to find time tomorrow to build a riser for the rack. 20190831_011804.jpegSnapchat-1548563183.jpeg20190830_233911.jpeg

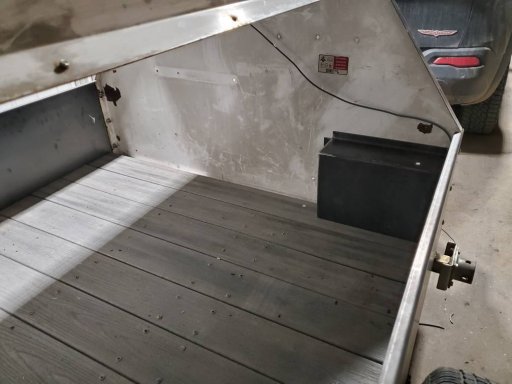

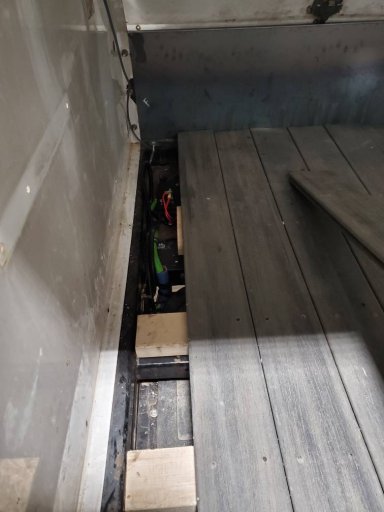

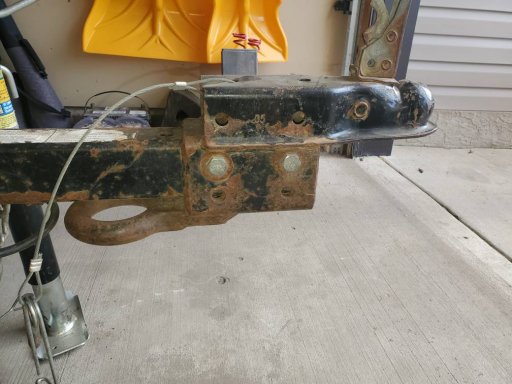

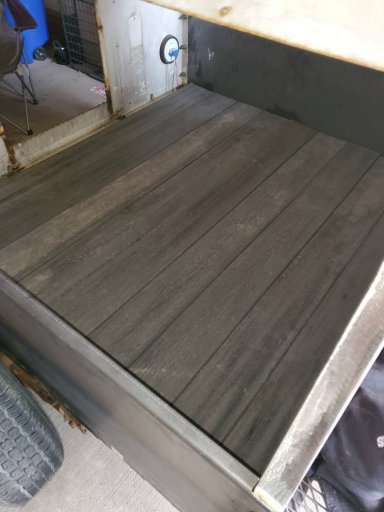

Floor is in, I ended up keeping the 2 end boards easily removable for wiring. I've also had alot of questions about my hitch so here it is. 20190917_191358.jpeg20190916_180549.jpeg

This is pretty neat. Looks to be set up as a mini cargo trailer. Maybe you can use that rear opening for a massive kitchen slide-out.

  • Like
Reactions: Schwaan

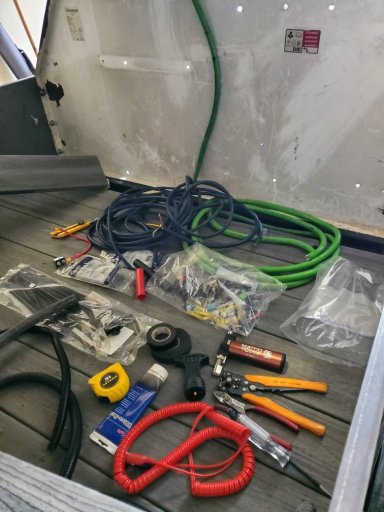

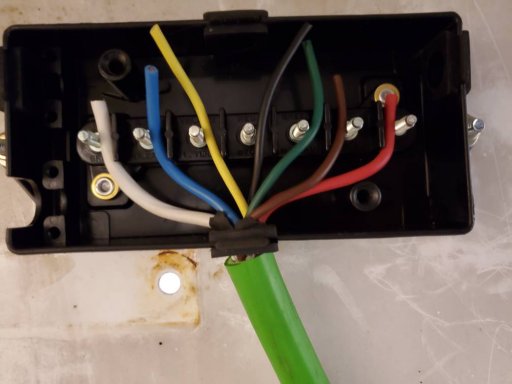

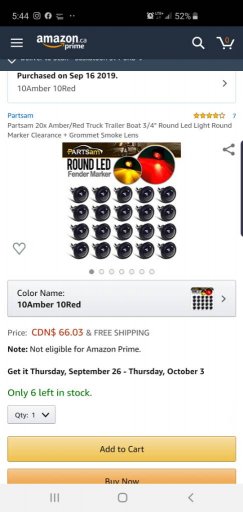

Amazon order came in with my flush mount led pods, dome lights, but still waiting on my smoked penny lights. Found some nice heavy gauge 7 wire that I'll run for primary power. I'll end up moving my junction box to under the floor for cleanliness. Let the fun times begin. 20190918_212443.jpeg20190919_173643.jpegScreenshot_20190919-174423_Amazon%20Shopping.jpeg


Attachments

  • 20190919_173643~2.jpeg
    94.7 KB · Views: 31
  • 20190919_173643~2.jpeg
    94.7 KB · Views: 30

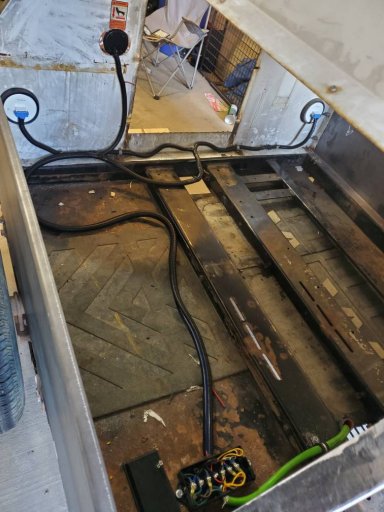

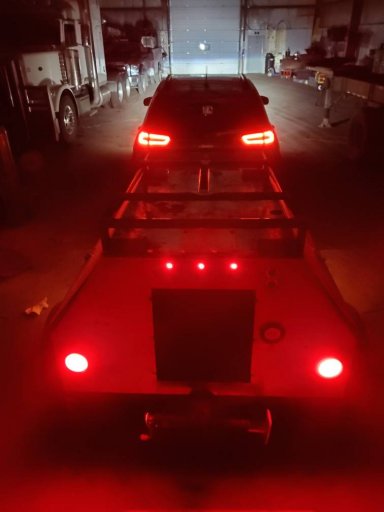

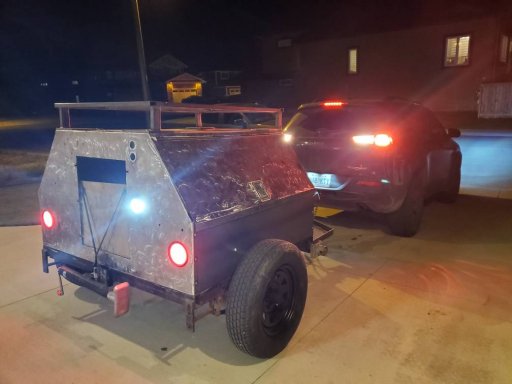

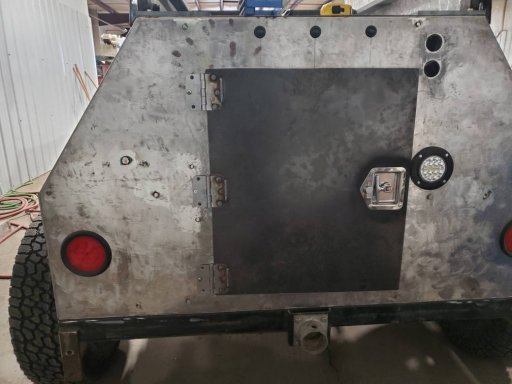

Main harness is installed. Ran all the wiring underneath the floor. I'll clean it up after I install all my marker lights. Reverse light dam near fit perfectly in an old existing hole. 20190921_153134.jpeg20190921_154447.jpeg

  • Like
Reactions: RoarinRow
I love it when a guy who works in a commercial truck shop does wiring !!!!
Best of products, excellent execution, probably more affordable than anything from an RV center.

Great build, looks incredibly functional. oh Canada !!

  • Like
Reactions: Schwaan
Billiebob said:
I love it when a guy who works in a commercial truck shop does wiring !!!!
Best of products, excellent execution, probably more affordable than anything from an RV center.

Great build, looks incredibly functional. oh Canada !!
Click to expand...
Shhh, I didnt pay anything for the entire electrical system. After several years, you tend to acquire alot of random usable products.

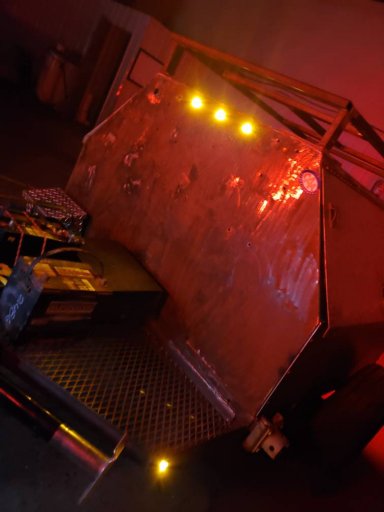

Still need a few more lights. Aux lights to mount to the rack and rear marker lights will be installed to the fenders, as well as a dome light with door switches. Built myself a switch box that I'll start wiring. Sitting at just under $1000 cad, and countless hours invested. 20190925_203244.jpeg20190925_203307.jpeg20190925_203533.jpeg20190925_203650.jpeg

  • Like
Reactions: MazeVX
