What is the last thing you bought and plan to buy?

Magic Mike said:
No 315/70/17 is equal to like 34.8 and 285 are like 33.4
Click to expand...

You guys are both very close!

So, here’s an easy way to figure out overall tire diameter:

The first number, in this case, is 315. 315 is referring to the actual WIDTH of the tire, measured in millimeters. Many think it’s referencing diameter, but it’s not.

The second number, 70, is actually an aspect ratio, in percentages, of the width of the tire. The 70 aspect ratio is the SIDEWALL HEIGHT of the tire. Now remember, there’s two sidewall heights, the height between your wheel and the ground, and the height from the top of the wheel to top of tire.

To convert to inches, divide the 315 by 25.4(25.4mm’s to an inch), and you get 12.4”. That’s the width of the tire.

Now the sidewall height is the 70 aspect ratio so take 12.4 x .70 and you get 8.68”. Remember, two sidewall heights so multiply 8.68 x 2 and you get 17.36”.

Now all you need to do to get TOTAL overall diameter is add in the wheel diameter, 17 in this case, and you end up with 34.36”!

Kind of easy? Lol I learned that years ago with performance cars when you were always trying to go with bigger wheels and lower profile tires, but still keep overall diameter the same. It’s definitely very helpful!

  • Like
Reactions: Nomadik Nova and Magic Mike
sabjku said:
You guys are both very close!

So, here’s an easy way to figure out overall tire diameter:

The first number, in this case, is 315. 315 is referring to the actual WIDTH of the tire, measured in millimeters. Many think it’s referencing diameter, but it’s not.

The second number, 70, is actually an aspect ratio, in percentages, of the width of the tire. The 70 aspect ratio is the SIDEWALL HEIGHT of the tire. Now remember, there’s two sidewall heights, the height between your wheel and the ground, and the height from the top of the wheel to top of tire.

To convert to inches, divide the 315 by 25.4(25.4mm’s to an inch), and you get 12.4”. That’s the width of the tire.

Now the sidewall height is the 70 aspect ratio so take 12.4 x .70 and you get 8.68”. Remember, two sidewall heights so multiply 8.68 x 2 and you get 17.36”.

Now all you need to do to get TOTAL overall diameter is add in the wheel diameter, 17 in this case, and you end up with 34.36”!

Kind of easy? Lol I learned that years ago with performance cars when you were always trying to go with bigger wheels and lower profile tires, but still keep overall diameter the same. It’s definitely very helpful!
Click to expand...
You are very right. I use to know all that stuff when I was building and racing cars. 50 years has taken it's toll on my memory. Now I just roll a tire up to the car and say yep that's it , or nope it aint a gonna work. Th
TOMITOMATO said:
Why can’t I post any pictures here?
Click to expand...
I don't see a member number on your profile. It looks like you met the requirement for the number of posts
ank you
sabjku said:

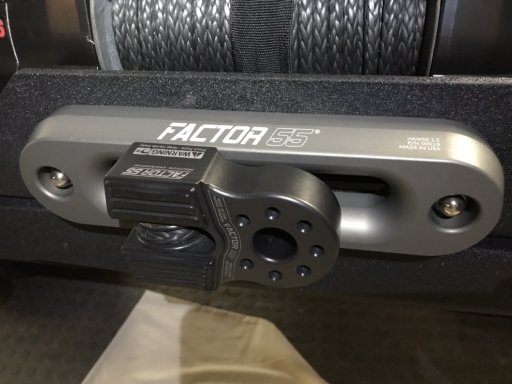

Replaced my Warn fairlead with one from Factor 55. Much nicer quality, and looks better, for whatever that’s worth[emoji16]

View attachment 102891

View attachment 102892
Click to expand...
slick looking !

  • Like
Reactions: sabjku
TOMITOMATO said:
Why can’t I post any pictures here?
Click to expand...
It may have something to do with your member number is not showing. I don't know if that is something you have to do or they have to do. All I know is that I couldn't post pictures till my number showed up. OB make mistakes too. I'm still trying to learn how the site works so your not alone.

  • Like
Reactions: sabjku
sabjku said:
You guys are both very close!

So, here’s an easy way to figure out overall tire diameter:

The first number, in this case, is 315. 315 is referring to the actual WIDTH of the tire, measured in millimeters. Many think it’s referencing diameter, but it’s not.

The second number, 70, is actually an aspect ratio, in percentages, of the width of the tire. The 70 aspect ratio is the SIDEWALL HEIGHT of the tire. Now remember, there’s two sidewall heights, the height between your wheel and the ground, and the height from the top of the wheel to top of tire.

To convert to inches, divide the 315 by 25.4(25.4mm’s to an inch), and you get 12.4”. That’s the width of the tire.

Now the sidewall height is the 70 aspect ratio so take 12.4 x .70 and you get 8.68”. Remember, two sidewall heights so multiply 8.68 x 2 and you get 17.36”.

Now all you need to do to get TOTAL overall diameter is add in the wheel diameter, 17 in this case, and you end up with 34.36”!

Kind of easy? Lol I learned that years ago with performance cars when you were always trying to go with bigger wheels and lower profile tires, but still keep overall diameter the same. It’s definitely very helpful!
Click to expand...

Great explanation

  • Like
Reactions: Nomadik Nova and sabjku
cisco_nh said:
Just purchased Metalcloak rocker rail in black powder coat finsih. Due to arrive on 6/18!
Next purchase will more than likely be the GAIA 5 year premium service. Then a fridge/freezer, power inverter, tent....lol. The list goes on and on an on.
Click to expand...
Yes and it's habit forming too. Get out there where you can and add on when you can. It's all okay

TOMITOMATO said:
Upgrade how? Buy More stickers? Hahah
I’m slowly giving up on them I email 3 times already and no response
Click to expand...
I contacted OB and told them about your problem. They answered me and said they would straighten out your problem. Hope it truly does...lanlubber

  • Like
Reactions: TOMITOMATO and RoarinRow
