Zach's CO Jeep Build (2012 JKUR)

  • Guest, You can choose a light or dark theme that works best for you with the "Style Chooser" botton at the very bottom left of this page!

CO_Jeep_Zach

Rank 0

Traveler II

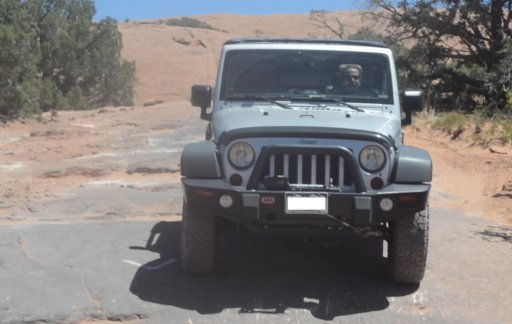

I bought this Jeep a little over 3 years ago with 74k. It now has 187k miles after 2.5 years of 140-160 mile round trip commutes. This is what I'm starting with:
89591

Bumpers: ARB Front/Rear
Recovery: 10k Smittybilt, 3 Ton Chain Hoist, 20k tow strap
Armor: I forget the name but the previous owner put an actual belly skid on and barely used it from the looks of it. I have used it extensively.
Performance: PO installed a CAI and I put in a Traildash because I had a CTS in my Ram CTD and like the functionality it gives.

Where I'm Going:
Step 1: Routine Maintenance:
- Right now I am throwing a P06DD Code and am still trying to figure it out.
- Tomorrow: New Spark Plugs, Serpentine Belt, Check all pulleys, check steering joints, clean air filter.

Step 2: Leg Day
This Jeep has impressed me off road but it would be a shame to hold her back by keeping her stock. There are three options I'm looking at:
1: 2.5" Lift (Teraflex, RK, or build my own)
2: 3-3.5" Lift (Same Options)
3: No Lift and Flat Fenders

Goal is to fit 35s without rubbing and keep it somewhat low. My biggest issue with going to flat fenders is I think it will look really weird with the ARB bumper up front. If I build my own kit, I will be using mainly Rock Krawler components but adding a few other non-compromise parts. If I go with a kit, I will be adding said parts along with it.

Step 3: Storage
The JKU has a large cargo area but I've never liked the lack of organization. I'm thinking a two drawer side by side system. I'm pretty handy and have all the tools so I will be making it myself. I'm thinking up even with the wheel wells with tie downs on top.

I will try to keep this updated as much as possible but it may be somewhat slow and choppy with work and operating on the wife's approval for purchases. Any input from other more experienced builders is welcome.

  • Like
Reactions: Marman

CO_Jeep_Zach

Rank 0

Traveler II

That sounds like a lot going on. Keep up the updates, I'd like to see how it turns out.
I can't wait to get it done. I got half of the spark plugs in and will finish tomorrow. Ordered wheels this morning and will probably order springs, trackbars, and control arms this week. The goal is to have the lift installed by the end of April.

  • Like
Reactions: Jeepjk16

Jeepjk16

Rank V
Member

Enthusiast I

1,487
Panhandle FL, USA
Member #

16758

and some more money to keep feeding the beast LOL! I still want to lift our Jeep, 35's, drive trains, steering stabilizer, suspension, rear tire mount, roof rack, rooftop tent, among other things to get out there and camp. This is all new for us, but hopefully we'll have pictures out there on the back roads with smiles and stories to tell!


CO_Jeep_Zach

Rank 0

Traveler II

Well the build is on hold for the time being. After I replaced plugs and belt the brakes acted like abs was active. So she's going into the shop.


CO_Jeep_Zach

Rank 0

Traveler II

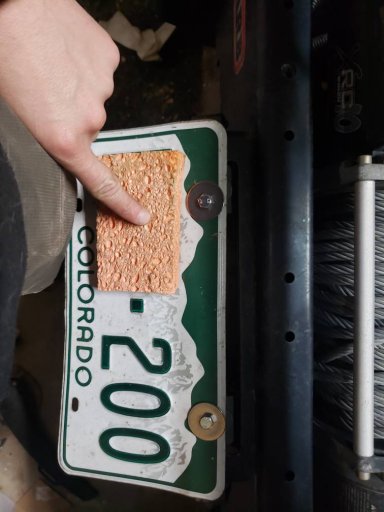

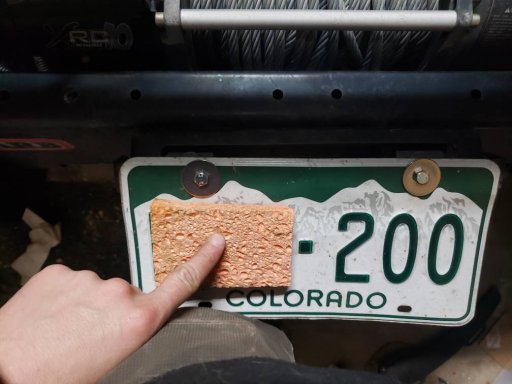

Got the Jeep back. It was just a vaccum line knocked loose. Also had the transmission serviced. Back to the weekend, the spark plugs I pulled were way overdue. I checked gap on a few and they were all .060ish when spec is 040. Serpintine belt was cracking so I'm glad I replaced it. Last thing I did was reaffix the tag up front. It got into a fight with a rock in moab and almost got pulled completely off. Some new bolts and a fender washer fixed that.


Attachments

  • Like
Reactions: Marman
