Willys Overland Build

[harv3589]

We bought our jeep February of 2015 and didn't get much done to it that year due to building the trailer. But this year we made a lot of progress on it. Still a few things to do but we are almost there.

The day we brought it home!

View attachment 4197



[O.Dfj]

I love the willys jk's. Jeep comes up with some cool ideas.

Sent from my LGMS631 using Overland Bound Talk mobile app



[harv3589]

Started out with a 1.5" Teraflex levelling kit and put an ARB stubby bumper with a Superwinch 9500 Tigershark SR winch.

View attachment 4234

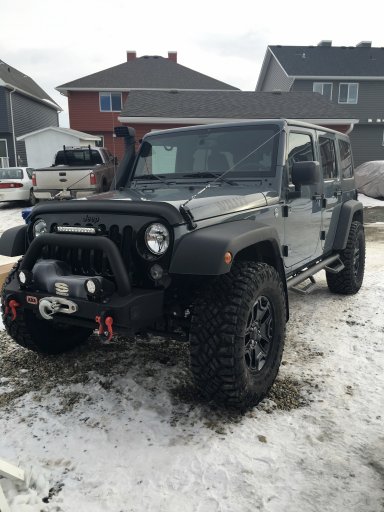

This last winter I swapped out the factory tires for 35" Duratrac tires, added limb risers, AEV snorkel.

Did try the N-Fab side steps but they ended up being changed out.

View attachment 4235

Installed Bushwacker flat fenders...

View attachment 4236



[harv3589]

Changed out the superwinch hawse fair lead and hook to a Factor 55 fair lead and a Warn winch hook.

View attachment 4239

Added a precleaner to the snorkel...

View attachment 4240

Ordered up a pile of parts including new lift....

View attachment 4241

New LOD shorty bumper installed, 3 gallon Rotopax cans mounted along with Hi Lift jack on bumper. Lights are still sitting in my shed waiting to be installed...

View attachment 4242

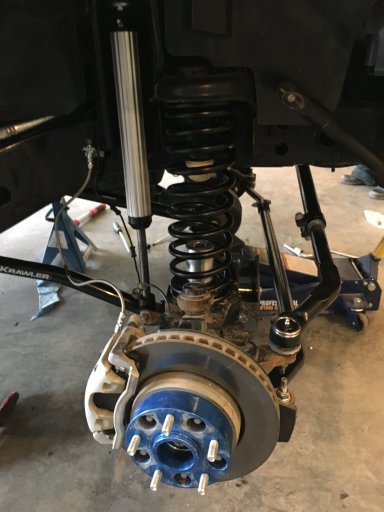

Now it was time for the lift install...3.5" Rock Krawler X Factor lift with Prodigy shocks. Also installed Yeti flip drag link and HD tie rod. While doing we also put in Synergy track bar brackets and sector shaft brace. Also an Adams front drive shaft.

View attachment 4243

View attachment 4244

After the lift...

View attachment 4245



[harv3589]

Fox stabilizer and Synergy clamp added...

View attachment 4246



[harv3589]

I made up some removeable mud flap brackets for the rear...still have to do the front ones...worked out nicely and I'm sure it will make the other drivers happy that are behind me.

View attachment 4247

LOD sliders installed and the N-Fab ones are history....the LOD ones are so nice and heavy duty.

Also scored a brand new premium soft top for next to nothing on the local for sale ads!

View attachment 4248

View attachment 4250

Teraflex brackets installed for the JKS quick disconnects I'm running. Helps get them up and out of the way and keeps them secure.

View attachment 4249

ARB breather extension kit...works nicely but took a bit to get it installed. The line is really small diameter and doesn't place nice with the nipples on the diffs. Extended both front, rear and transmission breather lines.

View attachment 4251



[harv3589]

My wife out testing the flex on her jeep...

View attachment 4253



[harv3589]

View attachment 4254



[harv3589]

Another set of lights from Inspired Engineering added to front bumper. Outer ones are the fog/daytime running lights and the inner ones are a spot light like the ones up at the windshield.

View attachment 4255



[harv3589]

Radio rack added to put CB on...again that needs to be done yet...sitting in my pile of jeep parts in my shed. Just need the time to get done.

View attachment 4256

First time going topless! Dogs loved it!

View attachment 4257



[harv3589]

The last edition to the jeep...looks really good IMO

View attachment 4258



[hardtrailz]

Those JKs do quite well. Nice group of mods you have done to it!



[Winterpeg]

That's a sharp looking jeep!



[Overland-Indiana]

Very cool!



[Daniel Etter]

Nice build! Looks like it has great articulation and travel with the new suspension and the fenders!


Sent from my iPhone using Overland Bound Talk



[harv3589]

Thanks for the great comments! I tried to put a lot of thought and planning into this build. My wife loves it and it's her daily driver as well.


Sent from my iPhone using Overland Bound Talk



[harv3589]

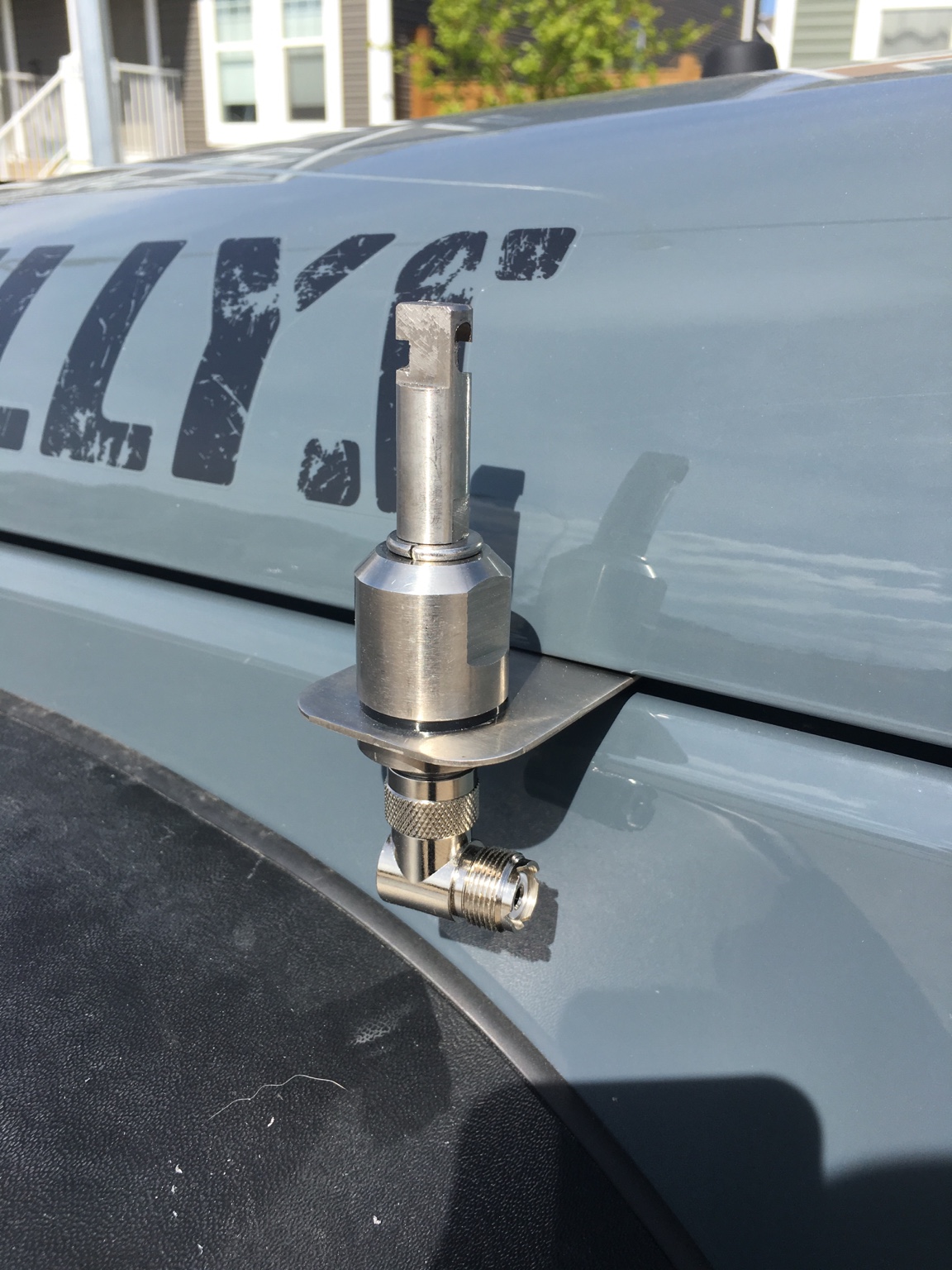

Installed the mount yesterday for the CB antenna...hope to get the install done today.

Sent from my iPhone using Overland Bound Talk



[Trowbocop]

Nice build! Ain't a bad rig for the wife, I'm sure she loves it!


Sent from my iPhone using Overland Bound Talk



[BUGOUT_JK_USMC]

Really nice set up. My question is what the exact reason for the breather hoses?


Sent from my iPhone using Overland Bound Talk



[harv3589]

Really nice set up. My question is what the exact reason for the breather hoses?


Sent from my iPhone using Overland Bound Talk

They have been extended to prevent any water from getting into the diffs...the transmission one was already in the engine compartment but I just moved it so that its in the same spot as the others.
