What is a good external ham antenna for BaoFeng handeld?

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

emmanuelb

Rank II
Member
OB1

Contributor II

309
San Jose, CA, USA
First Name
Emmanuel
Last Name
B
Member #

25892

During my last trip I got way too much static while in the car, have have a BaoFeng BF-F8HP handled. What would be a good external antenna to mount on the roof rack?

And does the coax cable length will impact negatively the quality of transmission?

Thanks


KF0APA

Rank V
Benefactor
Member
OB1

Traveler II

1,557
Lebanon, MO, USA
First Name
Greg
Last Name
Bryson
Member #

26589

Ham Callsign
KF0APA
I have this one mounted on my Yukon with a lip mount on the hood. You'll also need a n adapter to go from the Pl-259 to the correct connection for your radio.


old_man

Rank V
Member
Supporter

Member III

2,827
Loveland, Colorado
First Name
Tom
Last Name
Houston
Member #

8300

Ham Callsign
WØNUT
There are losses with any coax cable. The better the quality and match, the less the loss. Even with the loss, the antenna gain will more than make up for it.

I would run RG316 coax. The antenna above looks good. Ideally, mount it to a good grounded bracket , ideally mount it in the center of the rack.

  • Like
Reactions: emmanuelb

Road

Not into ranks, titles or points.
Member

Advocate III

3,379
On the road in North America
First Name
Road
Last Name
.
Member #

6589

I bought the 21-Inch Magnetic Mount VHF/UHF (144/430Mhz) Antenna for BTECH and BaoFeng Radios, though not sure that link leads directly to it anymore.

You can search amzn for "Authentic Genuine Nagoya UT-308UV 21-Inch Magnetic Mount VHF/UHF (144/430Mhz) Antenna SMA-Female for BTECH and BaoFeng Radios"

Also really handy is the
BL-5 Battery Eliminator that allows you to supply power to the BF-F8 and UV-5R series BaoFeng radios directly from your car when needed, and the Extended True Capacity Battery when away from the vehicle.

edit:

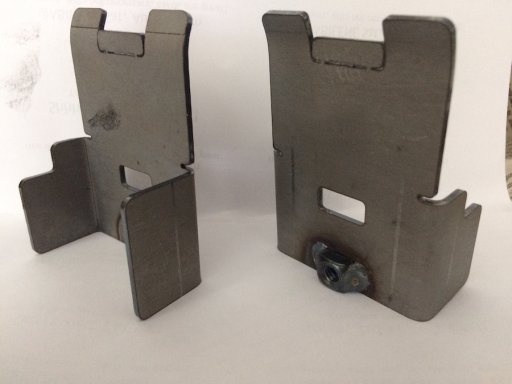

There was a guy on expeditionportal that was making and selling these brackets for Baofeng radios a while back, for installing on your dash or wherever:


No idea if he still is, though if I run across them again I'll try to remember to update this post or add another.

I have the two in this image, and it fits the radio nicely, though have never really used them, or the radios (I have two), antenna, and accessories. To be honest, just never really needed them, as I usually wander solo and have other coms for emergencies.

.

Last edited:

BCNP4runner

Rank V
Member

Off-Road Ranger I

1,680
Los Alamos, New Mexico, USA
First Name
Jeff
Last Name
K
Member #

20371

Ham Callsign
KI5FGO / WRFH471
During my last trip I got way too much static while in the car, have have a BaoFeng BF-F8HP handled. What would be a good external antenna to mount on the roof rack?

And does the coax cable length will impact negatively the quality of transmission?

Thanks
I paired my BF-F8HP with a magmount Diamond MR77SMA and I was pretty happy with the results.

Be aware that whatever you buy, you'll also need an SMA-to-SMA adapter too (the BF's idea of an appropriate antenna-jack connector is the opposite gender from the rest of the world). These are easiest to find in small sets, typically for ~$10

  • Like
Reactions: emmanuelb

Pathfinder I

During my last trip I got way too much static while in the car, have have a BaoFeng BF-F8HP handled. What would be a good external antenna to mount on the roof rack?

And does the coax cable length will impact negatively the quality of transmission?

Thanks
I put a 15.6" Nagoya NA-771 antenna on mine, no static and good range, still portable.

  • Like
Reactions: Nivar3

Road

Not into ranks, titles or points.
Member

Advocate III

3,379
On the road in North America
First Name
Road
Last Name
.
Member #

6589

For those who are interested in Baofeng radios, I'm selling my Baofeng Handheld with a bunch of extras; all brand new, never used or installed, except for the antenna.

Listed here.


TahoePPV

Rank VI
Member

Influencer II

3,450
Buda, TX, USA
First Name
Rex
Last Name
Drake
Member #

19540

Ham Callsign
KI5GH
A cable will be anywhere from 12 to 17 feet, and no big deal.

style of antenna will depend where you can mount it and what overhead obstacles you may encounter. I change mine depending on the Trip and terrain.

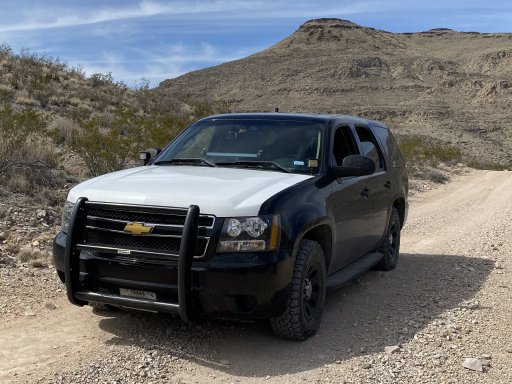

The center roof antenna in the first pic broke due to parking garages. It was a dual band vhf/uhf piece.

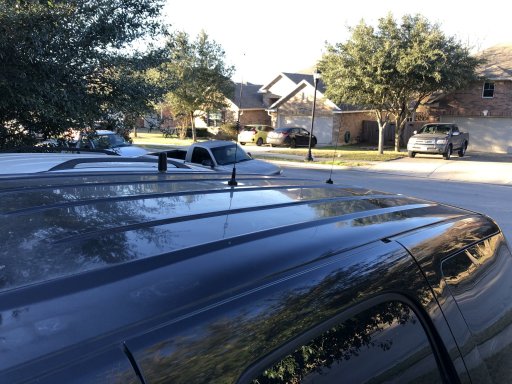

the second pic shows my current setup. The short stubby on the right is also a dual band, and gets used for gmrs as well. The SWR was acceptable for both uses. The center roof antenna is a quarter wave vhf whip. The rear antenna is for 10 meters and can double for cb.

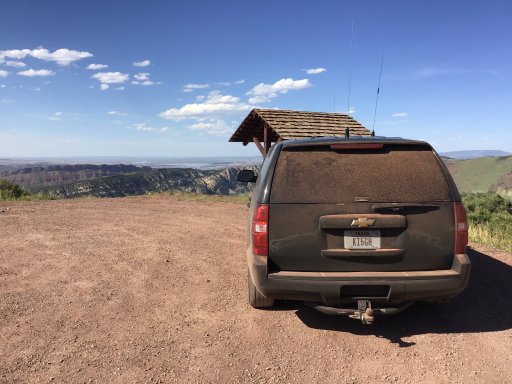

last pic was a road trip to Utah and Wyoming. Wide open terrain and long distances to reach anyone, so the stubby was changed out.

5F507FA6-1340-42B0-ABF6-C031FEB61E74.jpeg224AD8A1-BE14-4426-9B4E-F0A3AC8118AE.jpegCC5F0788-8F3A-447F-A4CB-4367078803A8.jpeg
