All,

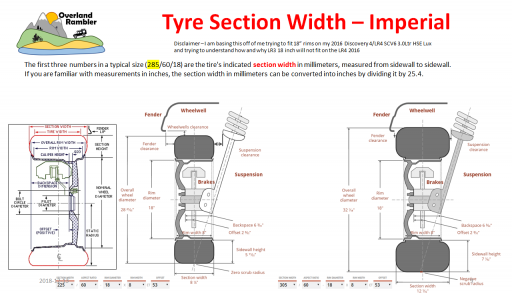

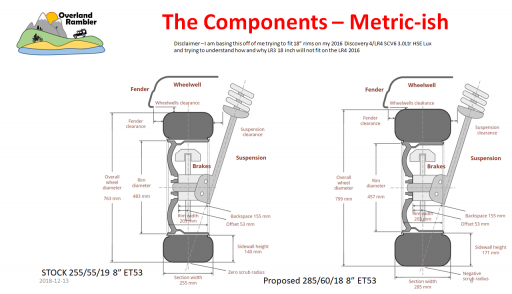

I have put this together as I was having issues with tyre and wheel sizes for the Land Rover LR4 and couldn't understand why the LR3 18" ET53 couldn't fit my LR4 when the 19" ET53 wheel is the same size offset. Well after all of this I understand more about offset and the wheels but i still can not understand why the LR3 ET53 can not fit the LR4. What i need is the picture of the wheel stamp markings on the back of the wheel to understand more.

However the LR4 Lift kit from Johnsonrods will allow me to lift the vehicle and allow me to fit 18" PD1881 IN OFFSET - ET44 TO SUIT THE LR 4 DISCOVERY and from what I see in the chart I will not have to do any modifications.

wheel1.png wheel2.png wheel3.png wheel4.png wheel5.png wheel6.png wheel7.png wheel8.png wheel9.png wheel10.png wheel11.png wheel12.png wheel13.png wheel14.png wheel15.png wheel16.png wheel17.png wheel18.png wheel19.png wheel20.png

Last edited:

Fozzy325

Rank VI
Member

Traveler I

3,857
Calgary, AB, Canada
Member #

15226

All,
I have put this together as I was having issues with tyre and wheel sizes for the Land Rover LR4 and couldn't understand why the LR3 18" ET53 couldn't fit my LR4 when the 19" ET53 wheel is the same size offset. Well after all of this I understand more about offset and the wheels but i still can not understand why the LR3 ET53 can not fit the LR4. What i need is the picture of the wheel stamp markings on the back of the wheel to understand more.

However the LR4 Lift kit from Johnsonrods will allow me to lift the vehicle and allow me to fit 18" PD1881 IN OFFSET - ET44 TO SUIT THE LR 4 DISCOVERY and from what I see in the chart I will not have to do any modifications.

View attachment 79093 View attachment 79094 View attachment 79095 View attachment 79096 View attachment 79097 View attachment 79098 View attachment 79099 View attachment 79100 View attachment 79101 View attachment 79102 View attachment 79103 View attachment 79104 View attachment 79105 View attachment 79106 View attachment 79107 View attachment 79108 View attachment 79109 View attachment 79110 View attachment 79111 View attachment 79112
Is it possible to get some feedback.


grubworm

Rank V

Pathfinder I

2,586
Louisiana, USA
First Name
mike
Last Name
c
Member #

17464

I see this is an old post with zero replies so I wanted to say thank you for the time you spent on this. I recently got new tires and they are metric so I was having to figure out what they are in inches and your post explained a lot. Also my kids and their friends are talking about wheels with offset and this also covered that. Good info...
