My 2015 Toyota 4Runner build

[Jeepinit]

Mine arrive tomorrow! Full transparency! I bought most of your set up because of our discussions! Love your rig!



[Magic Mike]

Mine arrive tomorrow! Full transparency! I bought most of your set up because of our discussions! Love your rig!

Very nice, they are a great product and super easy to install



[Magic Mike]

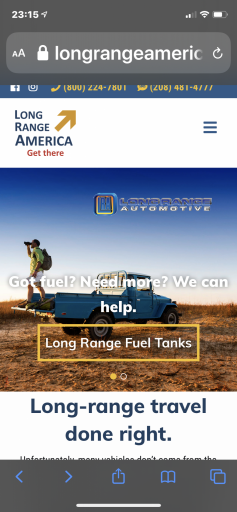

Well here comes the newest mod for my girl.... Put our deposit on a 24 gallon "Long Range America" auxiliary fuel tank and it will be here in September. This will give us a total of 47 gallons in the two fuel tank and 10 gallons in Gerry cans. With this amount of available fuel I'm estimating about a 600 miles cruising range!!!

Stand by for the finished product....



[Magic Mike]

All of you have been watching my build and I thank you for your compliments and encouragement. Here is where we sit in her progress:

• Demello full three hoop front winch bumper
• Brute Force Fabrication dual swingout rear bumper
• California Fabrication rock sliders
• RCI Metalworks 3/16th steel Skid Package
• SDHQ wheel sensor skids
• BF Goodrich KO2 315/70/R17
• Black Rhino Armory wheels
• Toytec Boss 2.5 inch suspension lift
• California Fabrication rear lower adjustable control arms
• California Fabrication rear upper adjustable control arms
• California Fabrication adjustable Pan hard bar
• Custom Overland Design Adjustable Sway bar end links
• OME 998 980lb rear coil springs
• ARB front air locker
• ARB rear air locker
• ARB dual 12V compressor
• Revolution 4:88 re-gearing
• ARB Stainless steel air lines
• FJ Cruiser Transfer case swap modification
  • SPOD Eight circuit HD accessory management system
  • DIY dual battery system
  • Die Hard Gold group 31 55 amp hour AGM battery
  • Redarc BCDC 1225 DC to DC charger
  • National Luna dual battery monitor
  • KC Hi Lites Gravity Pro6 50” light bar
  • KC Hi Lites dual flex ditch lights (gen1)
  • KC Hi Lites C2 scene lights
  • KC Hi Lites 28” rear chase bar
  • DV8 30” bumper light bar
  • DV8 LED fog light pods
  • Frontrunner Outfitters full length rack w/ wind damper
  • Trailworx custom light bar mounts
  • Yaesu FTM 400XDR 50 watt dual band ham radio
  • Yaesu FT 70DR handheld radios
  • Cobra XXXX 40 channel Citizens band radio
  • Garmin InReach Explorer +
  • Diamond xxxxxx ham radio antenna
  • Fire Stik citizens band radio antenna
  • IPAD II W/ Gaia GPS
  • Boss Strong Box Overland drawer system
  • Container store bins for dry goods & clothing storage
  • SMITTYBILT XCR 9,500 LB electric winch, W/ synthetic line
  • Factor 55 flat link
  • Factor 55 fair lead
  • Maxx Traxx recovery boards
  • Ironman USA full recovery kit
  • Power Tank 10 LB CO2 tank
  • Hi Lift Jack W/ Agency 6 Mega mount
  • Tepui Ayer II roof top tent W/upgraded mattress
  • ARB 63 quart refrigerator / freezer
  • DIY ARB tilt fridge slider
  • Frontrunner 10 gallon floorboard water storage tank
  • Quick Pitch rack mounted shower stall
  • Long Range America 24-gallon auxiliary fuel tank



[Jeepinit]

Holy crap! Sweet!!!!



[Jeepinit]

I watched a couple videos on the tank with the first going into Lifestyle Overland’s Rig. Who will do the install? It looks complex.



[Magic Mike]

I watched a couple videos on the tank with the first going into Lifestyle Overland’s Rig. Who will do the install? It looks complex.

A guy in Stockton, they deliver the tank to him and then he does the install



[Magic Mike]

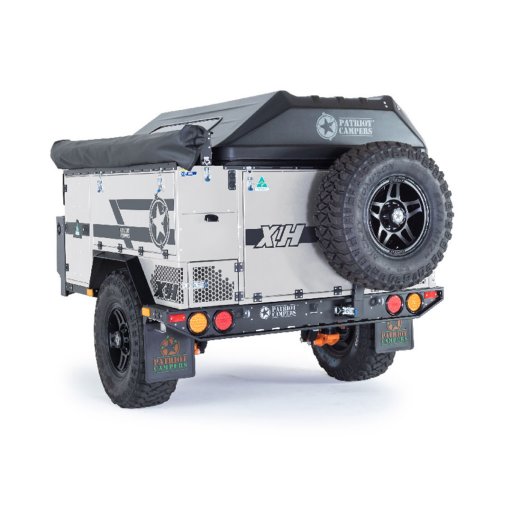

Well everyone say hello to the newest addition to our setup! Yes we did a thing, put a deposit in today and it will be here in October!!!



[rho]

that trailer looks awesome! Are you moving the tent to the trailer and getting it off of the roof?



[Magic Mike]

that trailer looks awesome! Are you moving the tent to the trailer and getting it off of the roof?

Trailer comes with it's own hard top RTT (tent). Then we'll remove the tent from the truck, that will dump 85-90 lbs from the 4Runner.



[Magic Mike]

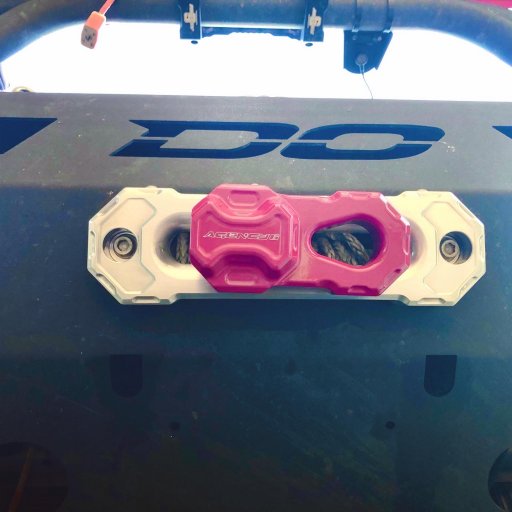

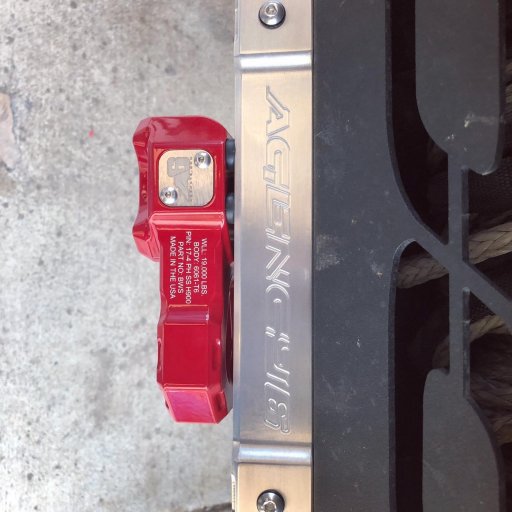

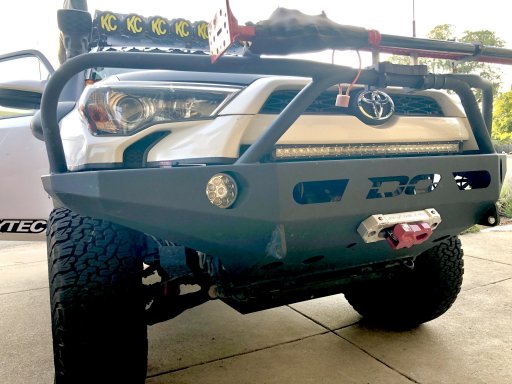

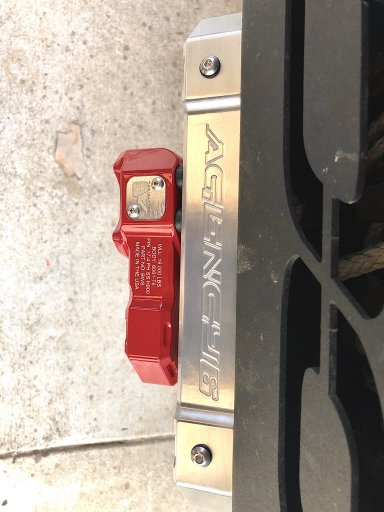

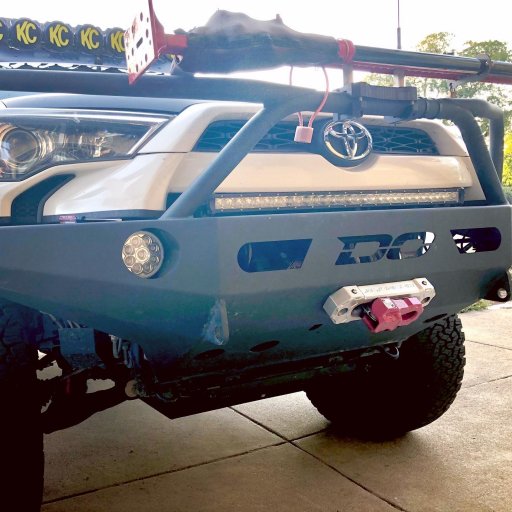

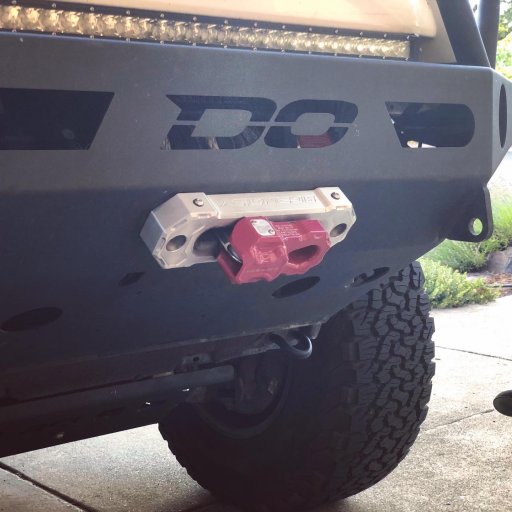

Out with the old and in with the new awesomeness. @Agency6 fair lead, with pre drilled spots for Go Pro mounts and they're brand new winch link. Actual name is forthcoming.

All Agency6 Llc products are manufactured here in Roseville, California. They're products extremely durable, very nice looking and reasonably priced. Check out they're full line of products at www.agency6.com.



[Magic Mike]

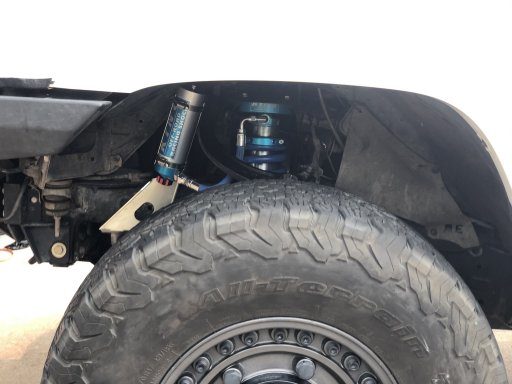

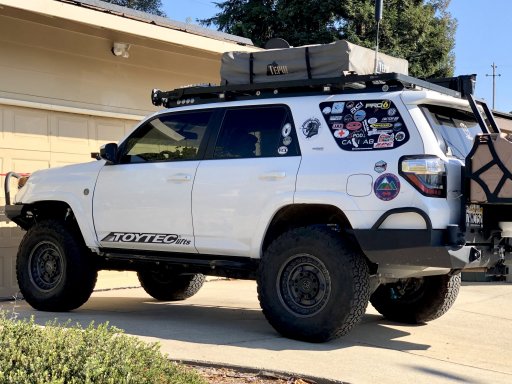

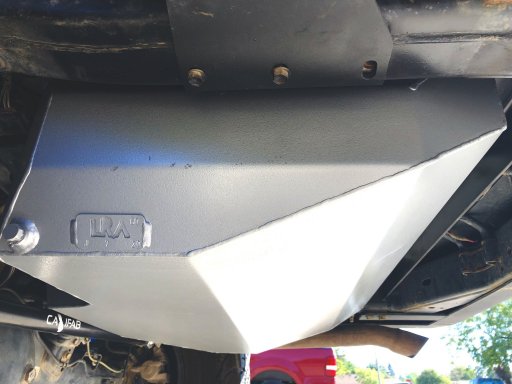

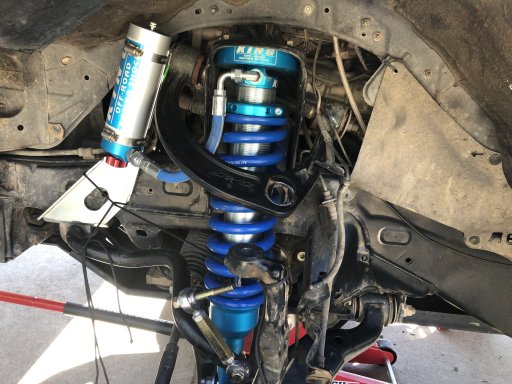

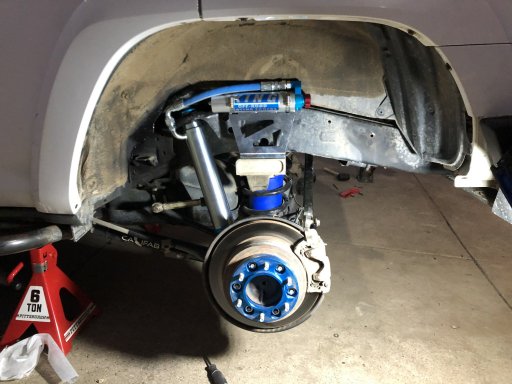

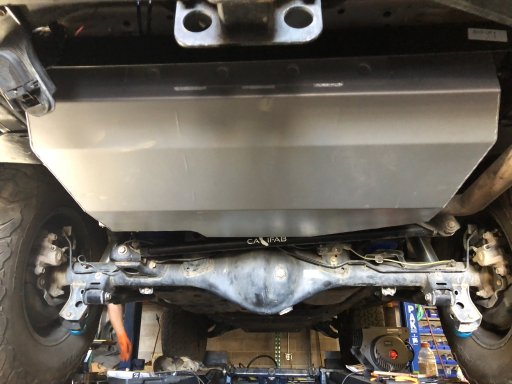

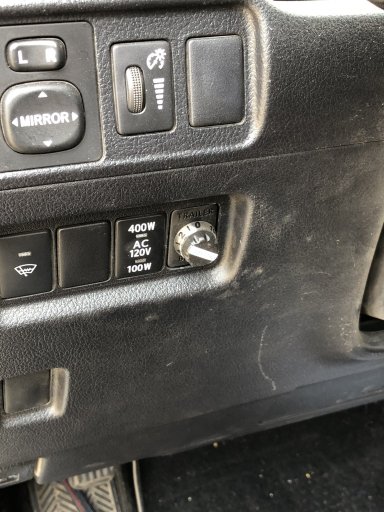

Few small additions to our girl, I installed a full set of adjustable Kings, a Redarc Tow Pro Elite tow controller, a WeBoost RV OTR fleet cell extender and a Long Range America 24 gallon auxiliary fuel tank...



[HappyOurOverlanding]

Few small additions to our girl, I installed a full set of adjustable Kings, a Redarc Tow Pro Elite tow controller, a WeBoost RV OTR fleet cell extender and a Long Range America 24 gallon auxiliary fuel tank...View attachment 172126View attachment 172127View attachment 172128View attachment 172129View attachment 172130View attachment 172131View attachment 172132View attachment 172139View attachment 172140View attachment 172141

You are soooo ready for your year long overlanding trip.



[Magic Mike]

You are soooo ready for your year long overlanding trip.

Yeah I think you are right my friend. The only other thing, suspension wise I'll probably have to address is the lower control arms! Due to my girls current weight, probably need to replace the OEM LCA's for something stronger.... Going to try and figure out how I can get into a set of Total Chaos expedition series LCA's.... Although $2,200.00 ouch, but better to spend the money and change them rather than have them break out on the road and have to replace them out there.

Oh and I want to upgrade to a big break kit, again due to her weight.



[Aeroscout]

Wow, incredible build!



[Magic Mike]

Wow, incredible build!

Thank you I didn't climb into the rabbit hole, I fell into it!!!



[Icculus]

Amazing build. I love it. Also love seeing all the different ways people take 4runner's, so capable and my vehicle of choice. Awesome score on the patriot camper. They are definitely cream of the crop. I think personally I'm looking at the off grid expedition for the off road tear drop but the patriots are sick. Oh and its been over a year since the post so I'm sure you have found already that the trans/transfer/front diff breathers are already extended into the engine bay.



[Magic Mike]

Amazing build. I love it. Also love seeing all the different ways people take 4runner's, so capable and my vehicle of choice. Awesome score on the patriot camper. They are definitely cream of the crop. I think personally I'm looking at the off grid expedition for the off road tear drop but the patriots are sick. Oh and its been over a year since the post so I'm sure you have found already that the trans/transfer/front diff breathers are already extended into the engine bay.

Yeah the rear diff breather was done a long time ago, but still need to do the front, trans and T-case... Those are actually already located fairly high in engine bay but I do want to extend them a little more.

The wife and I are going to be transitioning to a full time life on the road, in 10 months, 17 day, 21 hours and 36 minutes (But who's counting). When we decided on the retirement plan we started building our rig and researching trailers. While at Expo last year we were able to actually put our hands on a lot of trailers and in the end our short list came down to the Patriot Camper and the Turtle Back Expedition. After seeing them in the flesh, so to say hands down we liked the Patriot Camper better.

I liked the lower center of gravity much better, it had way more storage space and being that this will be our home for the 5 years or more lets face it "We're going to be comfortable."

Thanks for the compliments on my girl..



[Magic Mike]

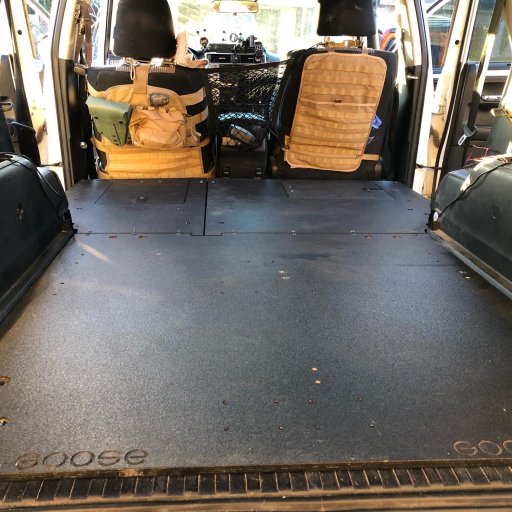

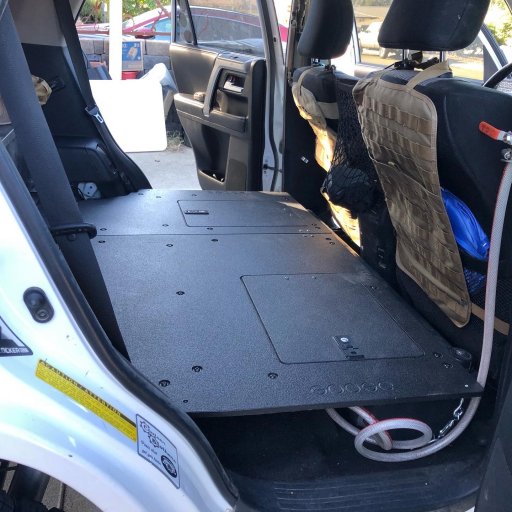

A few more waited new mods; Picked up a Goose Gear plate system and 100% rear seat delete, made my own DIY fridge/freezer cord saver, a Step22 Hi Lift jack cover and last not least Black Rhino (Reno) bead locks!!! Let me know what everyone thinks!

Bead lock install photo's coming soon.



[Magic Mike]

Baby got some new shoes.... Toyo Open Country RT's / 315/70/R17's / Rig and Trailer
