I am about ready to take my led roof light bar off. It works ok for close up area, but it still is very washed out light and still spills a little light on the hood , even though its mounted back and low to the roof. Its just a 100watt single row bar. Nothing crazy.

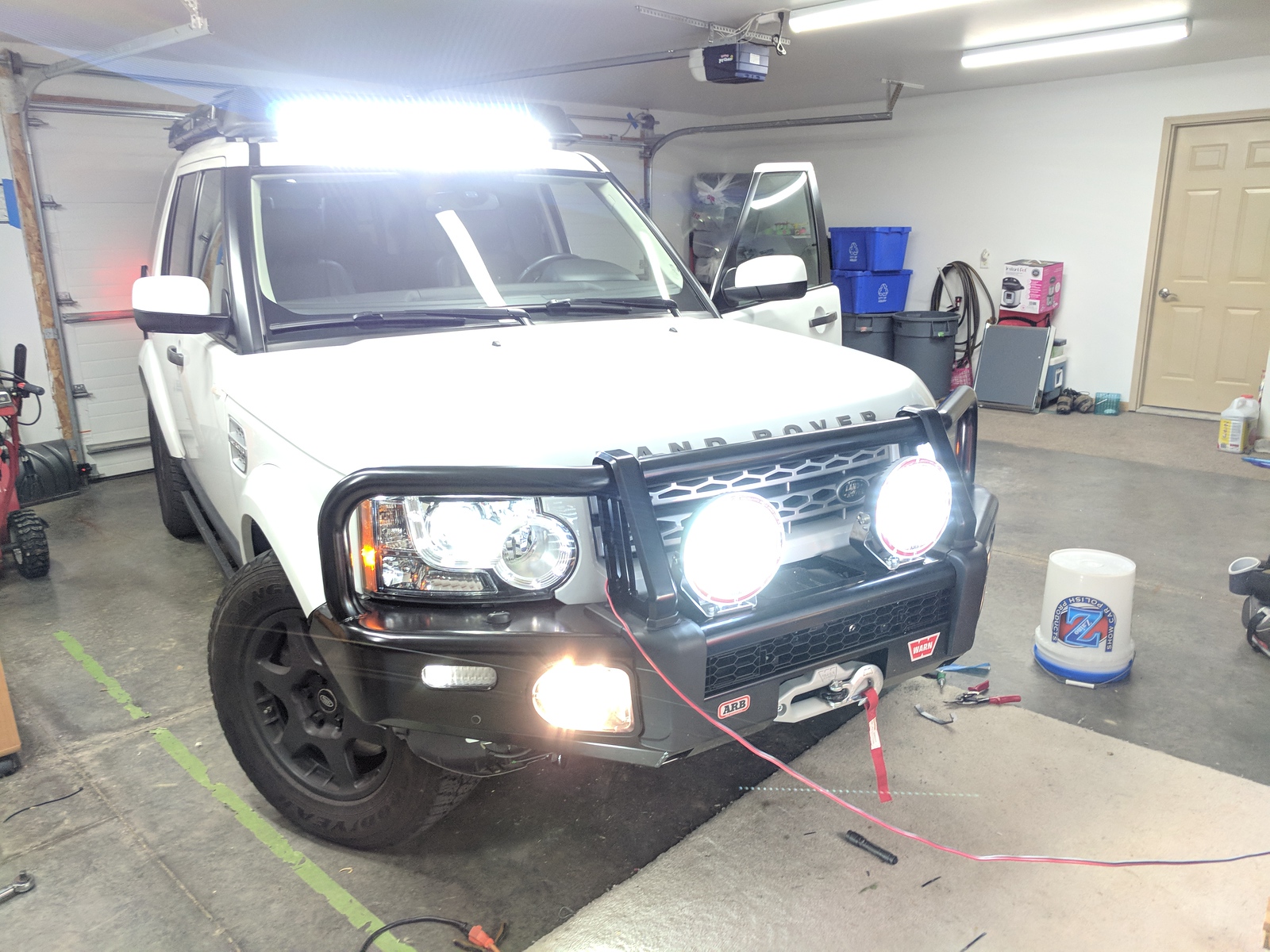

The best light for actual moving vehicle use, is my ARB Intensity lights. 8.7" They are very focused light and don't spill off to the side much. I have the wired up with my high beams on a relay. I don't have any great shots of the light on the road, but they give me a good half mile or more of useable light. They are pretty crazy bright. The stock HID projectors are not bad though, so I don't normally need these unless its really dark or i want to see EVERYTHING.

The left one is the spot, with a ~10 degree beam and the right one is pointed to the right a little and is a 20 degree beam pattern. Means I don't fully blind people down the road if I have them on, the normal headlight brights might a little, but the super bright spots are focused down the road on my side. (I avoid using them with oncoming traffic though. The beam is very focused, but just too bright to risk it)



Wawa Skittletits

Local Expert East Region USA
Staff member
Launch Member
Member

Expedition Master I

5,079
Wilkes-Barre, PA, USA
First Name
Drew
Last Name
Hawley
Member #

1537

Ham/GMRS Callsign
WRBZ674
Service Branch
USN veteran
A lot to talk about in this thread...

The original issue posted was not being able to see in tall grass. The only way to do improve that is lights mounted higher but with that said ditch lights are called that for a reason. I see waaaay too many people with them forward facing and that simply is not their intended use, as the OP learned.

I always advise against blocking airflow to any portion of the radiator. This has become increasingly important with the prevalence of automatic transmissions. We load up our vehicles, take them on difficult terrain, and in most cases we're completely unaware to the amount of heat we build up in the sensitive transmission.

Lights on the roof are fantastic if you can address the issue of glare. Matte black vinyl on the hood is a good option as is mounting the lights low and further back to shade the windshield/hood. Then theres glare shields you can buy or make yourself to shade the windshield/hood.

Lastly.. quality lights are worth it for any application and more isn't necessarily better. The right lights in the right locations eliminate the need for more lights... which frees up money for better lights.

When I bought my 2017 Wrangler, it came with LED headlights standard from the factory. The 2012 Wrangler I traded in had halogen head lights. Damn what a difference and made me wish I had put LEDs in my 2012 after I bought it. they're brighter, I get greater distance of light and I don't have to strain my eyes driving at night while watching for elk, deer, humans, etc on the side of the road.

I would for sure look into swapping LED headlights in to your vehicle if they are available. I will never go back to the old style of headlights again.
Had you put LEDs in the headlights of your 2012 I can assure you of two things. First being that you'd annoy the hell out of anybody coming your way at night. I can spot a similar thinking Jeep a mile away simply by the glare. The second being that you'd be better off with quality retrofit lights. I know stock halogen jeep headlights are awful but we all have to drive at night.

Retrofit LED's in forward lighting look bright but their performance, in one respect or another, is just awful. Their glare and awful throw is a well known thing and then theres the 'shadows' because of the design everyone uses. Projector housings can make up for a lot of it but reflector housings are just an ignorant train wreck. The difference between your 12 and 17 is that your 17 was designed and built to use LED lighting and your 12 wasn't. I love LED lighting and swapped my first bulbs 18 years ago but unless you're rebuilding your headlights to fully utilize LED forward lighting you and everyone around you is better off without.
