Cheap mounts for my FJ Cruiser

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!

Cully74

Rank V
Member

Advocate III

1,836
Franklin, Tennessee
Member #

9821

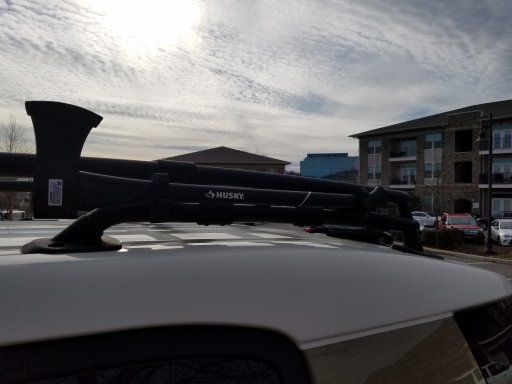

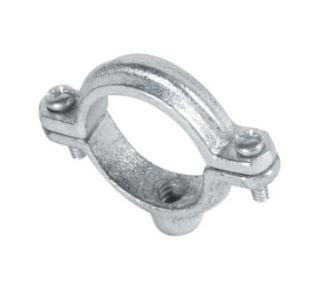

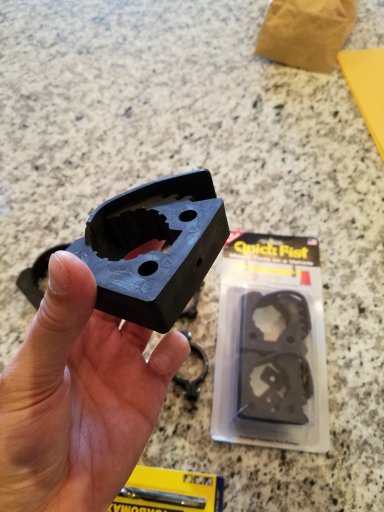

I took some split ring clamps that they use for hanging pipes, Plasti-Dipped them black (actually my cousin did that part), and attached some Quick Fist tool mounts to them. The hangers just happened to be the size needed to clamp around the FJ's stock roof rack tubing (the vertical parts of the roof rack). I'm not sure of the clamp size because they were given to me, but I'm sure it wouldn't be difficult to figure out what you need. I do know the clamps are only $1.50 online. I went to the local hardware store, found the screws with the correct thread to attach the Quick Fists to the clamps (3/8th x 3/4th hex bolts medium thread), some #10-24 nuts to secure the pipe clamps, used a 3/4" drill bit to make the holes in the Quick Fists a little bigger so the hex bolts would fit through, and poof.........tool mounts for roof rack. As an added bonus, the Plasti-Dip eliminates the possibility of rattling on the roof rack:
clamp.JPG 1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg


theBROFESSOR

Rank VI
Member

Advocate III

3,689
Conway, Arkansas
Member #

8306

I saw those the other day when I was walking through Lowe's and wondered if they would work. I like the fact that you were able to use the down slides on the roof rack. Very handy. I will have to go and try some of these out! Thank you for sharing!


Cully74

Rank V
Member

Advocate III

1,836
Franklin, Tennessee
Member #

9821

I saw those the other day when I was walking through Lowe's and wondered if they would work. I like the fact that you were able to use the down slides on the roof rack. Very handy. I will have to go and try some of these out! Thank you for sharing!
Similar instructions are actually on the back of the Quick Fists packages. It even shows a hi lift mounted with them.


Bam

Rank V
Benefactor
Member

Benefactor

2,203
Oregon City, OR
First Name
Cameron
Last Name
Hensch
Member #

16149

Love this. What's the likelihood that the hatchet or other accessories are going to come off when on heavy trails? I'm not too familiar with those mounts.


Captain Chaos

Rank VI
Member

Advocate II

2,779
Liberty Lake, WA, USA
First Name
Mark
Last Name
Gilmer
Member #

3821

Ham Callsign
KI7TFB
Love this. What's the likelihood that the hatchet or other accessories are going to come off when on heavy trails? I'm not too familiar with those mounts.
I have Quick Fist mounts holding in several locations between my Jeep and trailer. I’ve never had one come loose.


Cully74

Rank V
Member

Advocate III

1,836
Franklin, Tennessee
Member #

9821

Love this. What's the likelihood that the hatchet or other accessories are going to come off when on heavy trails? I'm not too familiar with those mounts.
Never had that happen, but I have been known to wrap a bungie around the axe and the roof rack just in case.

  • Like
Reactions: Bam
