I installed the arb fridge wiring kit for my indel b fridge then noticed that the DC socket that comes with it is different than the 12v plug on the end of the indel B DC cord. Anyone have a solution for this or does anyone know if the ARB DC cord if I ordered it would fit into the indel b fridge?


4xFar Adventures

Rank VI
Founder 500
Member

Benefactor

4,826
San Francisco,CA
First Name
Brenton
Last Name
Corns
Member #

0070

Pictures? Mainly of the Indel B plug. The ARB socket should be standard. Their plug for the fridge does have a twist to lock end and should still fit. My ARB plugs into a Blue Sea socket. They should all work with each other.

  • Like
Reactions: Runamok

Runamok

Rank III
Member

Off-Road Ranger I

614
Gainesville, Florida
Member #

1692

Ham Callsign
KN4NWP
The first pic is the DC plug into the indel b, second pic is the indel b 12v plug it also comes with a red plastic tip thing, third pic is the arb socket that comes with the wiring kit.


Attachments

Winterpeg

CDN Prairie Ambassador
Staff member
Member

Influencer II

3,278
Winnipeg, MB
Member #

2861

My ARB wiring loom came with both ends... the standard DC "lighter" socket style and the one that is compatible with their fridges... are you sure you don't have that end kicking around somewhere still from when you got the package?


Winterpeg

CDN Prairie Ambassador
Staff member
Member

Influencer II

3,278
Winnipeg, MB
Member #

2861

Too bad your fridge doesn't have that connector... it's great.
I would contact ARB and get the other connector. That little end unscrews and the "normal" type can replace it easily.

I'll dig around and see if I can find mine.....


Winterpeg

CDN Prairie Ambassador
Staff member
Member

Influencer II

3,278
Winnipeg, MB
Member #

2861

Here it is.... I might be able to find mine tomorrow.....



Oh wait... that's for the male connector!..... you need the female one. Hmmmmm.

I wonder if you can open it up and detach that piece???


Winterpeg

CDN Prairie Ambassador
Staff member
Member

Influencer II

3,278
Winnipeg, MB
Member #

2861

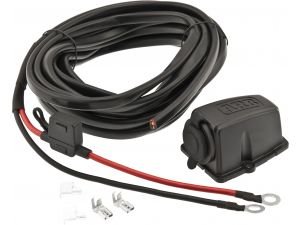

I was just wondering if you could open up that section and connect a normal female connector there... You may have the flush mount rather than this one below but the internals will be the same.


Runamok

Rank III
Member

Off-Road Ranger I

614
Gainesville, Florida
Member #

1692

Ham Callsign
KN4NWP
Update . I took a chance and ordered the arb fridge D.C. Cord and it works! It's a little longer at the plug into the fridge so does not plug in flush all the way but it seems tight enough and I have had no oroblems with it


Sent from my iPad using OB Talk

  • Like
Reactions: drumber and empty80

drumber

Rank I
Founder 500
Member

Contributor II

271
San Francisco
First Name
Scott
Last Name
Healy
Member #

0026

Thanks for posting this! I got a deal on one of the Black Forest versions on the Indel B TB31. I just ordered the ARB wiring kit and DC plug. This will be a major win if it all works out.
