2001 Dakota QC Diesel

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

Motohead1

Rank III

Traveler I

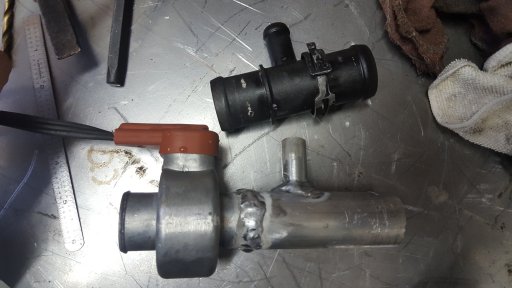

So found a few spare moments to throw the front diff back in and noticed a little bit of coolant weeping from an outlet connection next to the kats heater I just put in a few weeks ago. So that sucked up most of my time but now its solid and eliminated a short hose some plastic and a couple hose clamps. 20181201_142841.jpg

  • Like
Reactions: Ubiety and Tinker

Motohead1

Rank III

Traveler I

Well front diff got put in last week but had to wait for my driveshaft that finally showed up today. 20181203_124434.jpg


Well worth the wait as the stock shaft had a junk factory CV end on the tcase side and this new one is u joints on both ends. 20181214_161220.jpg

Finally Its 3wd once again!


I would have found a dirt road on the way home but I didnt want to get the bed dirty. Ill try it out tomorrow though.20181213_173249.jpg


Motohead1

Rank III

Traveler I

Oil cooler install or I should say re-install. This time I used a nice Earls thermostatic 150F sandwich plate with -10 AN lines running to the radiator. Ports were for factory auto trans cooler but it works great helps heat the coolant up quicker and keeps the oil alive a bit longer between changes. Also adds an extra quart to the oil system.


Motohead1

Rank III

Traveler I

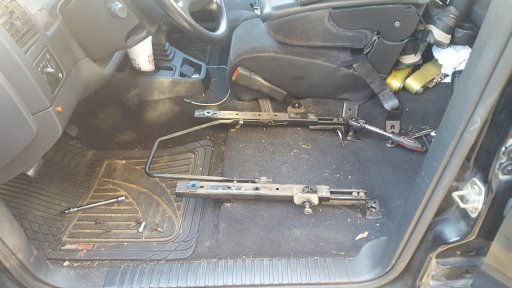

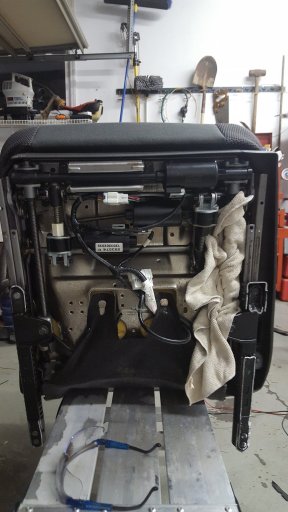

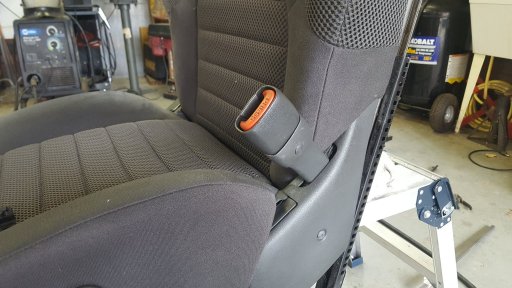

Its time for the best mod on the planet for any 2nd gen dakota. After 285K miles the drivers seat , that was uncomfortable junk even when new I suspect, was completely shot. It was bad. A 20 min drive would leave you in pain. So I found a fresh victim in the junk yard. A 2011 pathfinder with 6way power and only 80k on the clock. Took me a solid day to fab it up being about 3 inches wider but man its like a new truck!

1572309738591.jpeg20191024_193141.jpg20191025_103342.jpg20191025_103541.jpg20191026_162033.jpg20191024_180357.jpg


Also found one of these so when I get tired of replacing ball joints every 10k miles and have some freetime its going in. 20190730_151527.jpg


4wheelspulling

Rank VI
Member

Member III

3,065
Chelan, WA.
First Name
Vance
Last Name
Myers
Member #

8452

I know when I replaced the front seats in my Jeep Cherokee, it made a huge difference in driving comfort. I found some leather seats out of a ZJ. One of the best mods to my Jeep! Vance.


Motohead1

Rank III

Traveler I

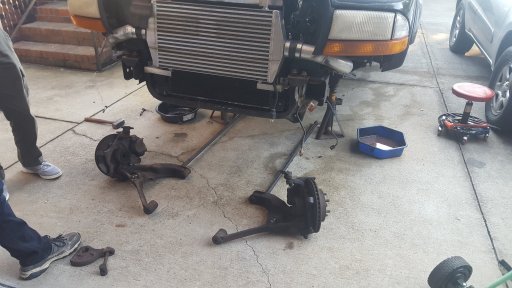

So after using all my free time on other stuff it was time to replace ball joints again. This time im using a plasma torch. Im sure these ball joints will last much longer and I hope to have it linked in a few weeks. First hurtle is trans crossmember. Looking like a 3 link is doable but I dont want it to sit too high. We shall see.



Motohead1

Rank III

Traveler I

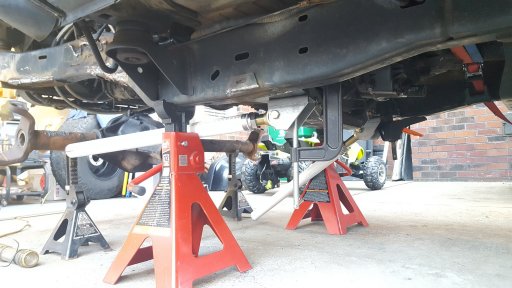

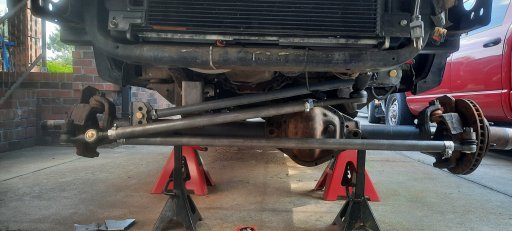

Links are figured out now. I have should have atleast 4 inches of up travel.20201205_165112.jpg



This mock up 33.9 inch tire has some room to spare so a tall 34 or 35 should be doable.

Next is steering box. I have a few options. My biggest hurdle is racing the cold.

  • Like
Reactions: Tinker and Ubiety

Ubiety

NorthWest Region Member Rep Seattle WA
Member

Educator I

5,048
Sammamish, Washington, USA
First Name
Greg
Last Name
E
Member #

6193

A
I wasent going to put a custom bumper on this thing but I need to increase the intercooler size and I would like it out front to make it more efficient and give it some more clearance. So today I fired up the old amazon CAD program and made some templates. There are absolutely zero affordable options out there for an old dakota that i could find anyway. Luckaly I have a fab buddy of mine that will cut out all my CAD pieces and hopefully I can get this done before summer hits again. One great thing about this dakota is the stock bumper can be removed and installed in less than 5 min so I can work on this a little at a time whenever I find time.



Amazon CAD. Wondered what the heck that was until I saw the pics. Awesome.
Great build!

  • Like
Reactions: Motohead1

Motohead1

Rank III

Traveler I

Slight update coilovers are in but waiting on a new plasma cutter to arrive as mine released all its smoke the one day I had some time to fab. Everything you see just tacked for now. Slow progress but I caint complain. God is good! Happy mothers day!20210508_165513.jpg20210508_171447.jpg20210508_171741.jpg
