Hi-Lift. I also carry a nylon axle strap. Short strap with a D-ring on each end for strapping a vehicle to a trailer, but I use it to lift a wheel. I thread the strap thru the rim and tie the D-rings together now I can lift the wheel up to put rocks, logs, etc under the tire.

  • Like
Reactions: Jim SoG

Anak

Rank V
Launch Member

Member III

2,741
Sandy Eggo
Newbie question: A big ol' 20 ton seems like overkill. It is the dimensions of the respective rigs (e.g., lift heights), better-safe-than-sorry philosophy or am I missing something?
The 20 ton probably is overkill. Its one advantage is the larger footprint, hence better stability. That could be someone's justification.

Mine I picked up cheap at a swap meet and the dually seemed the most appropriate vehicle in which to place it. Way too big for the XJ.


old_man

Rank V
Launch Member

Member III

2,827
Loveland, Colorado
First Name
Tom
Last Name
Houston
Member #

8300

Ham/GMRS Callsign
WØNUT Extra
The 20 ton probably is overkill. Its one advantage is the larger footprint, hence better stability. That could be someone's justification.

Mine I picked up cheap at a swap meet and the dually seemed the most appropriate vehicle in which to place it. Way too big for the XJ.
As the tonnage goes up, so does the height. Most 20 ton will are bigger and reach higher than a 12 ton. I just carry some 2x12x12 wood blocks.

  • Like
Reactions: GhostCat

MMc

Rank V

Influencer II

1,749
San Dimas, Ca.
First Name
Mike
Last Name
McMullen
Member #

18647

This is what I'm working with as well though lookin at bottle jack upgrade in coming week or two.

Newbie question: A big ol' 20 ton seems like overkill. It is the dimensions of the respective rigs (e.g., lift heights), better-safe-than-sorry philosophy or am I missing something?

For my stock '21 JT Rubicon I need to clear ~15" (so maybe an 8 or 10 ton) but otherwise, I'm not actually intending to lift that kind of weigh. Anything else I should be considering as I explore bottle jacks?
I have a Ram 2500 4 door long bed 4X4 Starts at 8800# before my gear. 4 plus ton to start before my gear. The 20 ton is taller also.


Jim SoG

Forums Manager
Staff member
Moderator
Member
Investor

Educator I

10,890
Reno, Nevada, United States
First Name
Jim
Last Name
Bro
Member #

12989

Service Branch
USAF DAV
Hi-Lift. I also carry a nylon axle strap. Short strap with a D-ring on each end for strapping a vehicle to a trailer, but I use it to lift a wheel. I thread the strap thru the rim and tie the D-rings together now I can lift the wheel up to put rocks, logs, etc under the tire.
Got a pic or link for this double d ring strap? Don't think I seen one of those.....

Great idea, gonna find me one,

Jim


rtexpeditions

Rank V
Launch Member

Advocate II

2,315
Hobart, Tasmania, Australia
First Name
Randall
Last Name
Treloyn
Member #

5615

Ham/GMRS Callsign
VK7VWK
My OEM half scissor jack is kind of useless, so carry a bottle jack. I also carry some blocks of 6" x 2" hardwood timber that I can use to spread the load on uneven ground or use to level the vehicle when camping.
I have a high lift but it's not really suitable for the new vehicle, so I'm thinking of an air/exhaust jack (bag) for recovery purposes.


NotGumby

Local Expert Germany
Member
Investor

Influencer II

3,682
Frankfurt, Germany
First Name
Rick
Last Name
Vinnie
Member #

2380

Service Branch
Army Veteran 11B 54E
In my Land Cruiser Prado J150 (think Lexus 460/470 in the U.S. market) , with no lift, I carry a Takla air jack, and have the factory bottle jack with a few planks of wood and GoTreads to place under the jack.


Nickel

Rank III
Member

Pathfinder II

845
San Diego, CA, USA
First Name
Steve
Last Name
Jones
Member #

28940

How many of you carry a jack stand (or two) when offroading or overlanding to support the vehicle once it is jacked up?


Desert Runner

Rank VII
Launch Member

Expedition Master III

8,507
Southern Nevada
First Name
Jerold
Last Name
F.
Member #

14991

Ham/GMRS Callsign
/GMRS=WREA307
HF Floor jack for my lifted 05 Sierra. But considering bottle jack and accessories for it when out of trail. Interested to see what others are using.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

I like having options and do not like being limited, as each has it's place, My OEM lives in it's stock backseat storage slot, I have had a Hi-Lift for years and have added accessories to make it more versatile. It allows options like a Manuel winch, wheel lift separate from a bumper lift etc. I do not take it everywhere I go. The last purchase was a 6 ton bottle jack for my 2500 HD (9000 lb + when loaded ). It's capacity should be ample, and it's size is small enough to be easily stowed. To make it more versatile, I plan to get a axle support cradle which should fit the trucks frame also. This increases safety and when combined with a automotive jack stand allows some peace of mind if working around and under your rig. For most scenarios, the OEM and bottle jack will cover most needs.

footlogo.pngThis allows use on round sliders and bar work and is a attachment to a Hi Lift I have some photos on my Instagram @Desertrunner_ LVOBLogo-Gold_Outlined_100x.png


Attachments

  • Like
Reactions: smritte

Nickel

Rank III
Member

Pathfinder II

845
San Diego, CA, USA
First Name
Steve
Last Name
Jones
Member #

28940

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

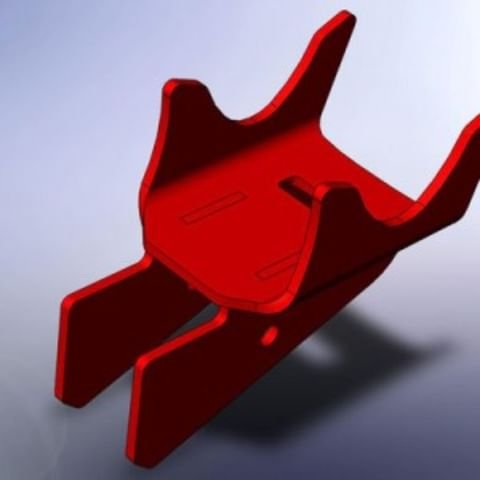

View attachment 242153This allows use on round sliders and bar work and is a attachment to a Hi Lift I have some photos on my Instagram @Desertrunner_ LVView attachment 242156
I've sent @Dessertrunner_LV a few messages asking him if he makes an axle cradle that fits a 3rd Gen Tacoma stock bottle jack, but no response. The website also comes up a little funky. Anyone know if he is still in business?


Nickel

Rank III
Member

Pathfinder II

845
San Diego, CA, USA
First Name
Steve
Last Name
Jones
Member #

28940

Naw. I just use my tire under the axle, two stacked if I'm doing something sketchy.
How many tires do you have? I'm picturing I am likely to be replacing a tire on the trail, so I need the spare handy to put on when I remove the flat?


smritte

Rank V
Launch Member

Member III

2,827
Ontario California
First Name
Scott
Last Name
SMR
Member #

8846

Ham/GMRS Callsign
KO6BI
Flat replacement normally zero. I'll drive on the flat tire to get to a level area, if I cant, throw the spare under the diff until I get the flat off then swap that. Anything else the spare + the wheel I had to remove, or two spares (taking someone else's) .
Most of the sketchy work I've had to do, involved hard core rocks where you cant get the footprint flat to use any type of jack stand. Picture needing to swap out two broken front axles in a non flat area. Two tires stacked under the front axle.

For the most part, I just want to keep the axle from hitting the ground if the jack falls over. You have three wheels firmly planted for stability, it shouldn't fall over. This is why I lift by the axle, not the frame for flats. On one occasion, I had to swap out springs on a rig. Now the frame is high and suspension drooping. If I remember we stacked three tires under the frame.

All of my hardcore stuff was done in a group so we had access to extra tires if needed. In the early days, no one made real good parts. It wasn't uncommon to do major repairs. Unless a jackstand has a large flat base, your just going to sink it in soft ground. I carry a steel plate for my jacks because of this.


Desert Runner

Rank VII
Launch Member

Expedition Master III

8,507
Southern Nevada
First Name
Jerold
Last Name
F.
Member #

14991

Ham/GMRS Callsign
/GMRS=WREA307
I've sent @Dessertrunner_LV a few messages asking him if he makes an axle cradle that fits a Amazon 3rd Gen Tacoma stock bottle jack, but no response. The website also comes up a little funky. Anyone know if he is still in business?
-----------------------------------------------------------------------------------y---------------------------------------------------------------------------------------------------------------------------------
My apologies, as I have not seen your sent MSG's. I have not made any bottle jack cradles, but have toyed with the idea, as those offered for sale are way, way overpriced for what is offered both in labor costs and material costs. The main obstacle for me being I do not weld. I found a few offered on the internet, 1 offered by Amazon,. but all costly. If you have access to a welder, you could build a couple for various applications.

PS.....Safe jack offers 1 for a 6 ton at $50, E-bay for $54.99 etc

Last edited:

Nickel

Rank III
Member

Pathfinder II

845
San Diego, CA, USA
First Name
Steve
Last Name
Jones
Member #

28940

-----------------------------------------------------------------------------------y---------------------------------------------------------------------------------------------------------------------------------
My apologies, as I have not seen your sent MSG's. I have not made any bottle jack cradles, but have toyed with the idea, as those offered for sale are way, way overpriced for what is offered both in labor costs and material costs. The main obstacle for me being I do not weld. I found a few offered on the internet, 1 offered by Amazon,. but all costly. If you have access to a welder, you could build a couple for various applications.

PS.....Safe jack offers 1 for a 6 ton at $50, E-bay for $54.99 etc
Thanks Dessert Runner. I am leaning towards the safejack options and buying a 6-ton or higher bottle jack separately as the jacks seem to be to one item they sell that is not made by them, just private labeled and then jacked up (pun intended) from other similiar models.

The Tacoma OEM mechanical jack actually has a pretty good top height of about 19" so I was hoping to find an axle cradle that fit that, but seems no one makes them. I think in this thread someone said they inquired with safejacks about making one and they said not interested. Which I totally understand.

Thanks for the reply. FYI the message I sent was thru instagram.


Desert Runner

Rank VII
Launch Member

Expedition Master III

8,507
Southern Nevada
First Name
Jerold
Last Name
F.
Member #

14991

Ham/GMRS Callsign
/GMRS=WREA307
Thanks Dessert Runner. I am leaning towards the safejack options and buying a 6-ton or higher bottle jack separately as the jacks seem to be to one item they sell that is not made by them, just private labeled and then jacked up (pun intended) from other similiar models.

The Tacoma OEM mechanical jack actually has a pretty good top height of about 19" so I was hoping to find an axle cradle that fit that, but seems no one makes them. I think in this thread someone said they inquired with safejacks about making one and they said not interested. Which I totally understand.

Thanks for the reply. FYI the message I sent was thru instagram.
I didnt mention that I have the Hi- Lyft jack base, so I can use that with a bottle jack, or use a set of X-bull recovery boards as a support base. I also have a small (thick) wood base for helping support a jack stand. They do not take up much room.


tjZ06

Rank V
Launch Member

Advocate I

2,268
Las Vegas/Palo Alto
First Name
mynameisntallowed
Last Name
Adams
Member #

20043

I go with a Safe Jack - 4WD, Outdoor,Off road, 4X4 accessories and products. kit. Kinda spendy, but IMHO a bottle jack with a really good saddle and some extensions like Safe Jack provides is about the best/only way to lift my rigs on the trail. Both my solid axle swapped Silverado and my WJ are tall (D'max on 37"s, WJ on 35"s), flexy and pretty heavy. Lifting under the axle out near the tire that needs changed is far and away the best strategy vs. lifting the chassis (or unibody in the WJ's case) and having to lift through all of the droop. For other repairs where I would need to lift from the chassis/body the bottle jack still works and with the extensions I can maximize the available travel (the biggest downside of a bottle jack).

-TJ


Nickel

Rank III
Member

Pathfinder II

845
San Diego, CA, USA
First Name
Steve
Last Name
Jones
Member #

28940

I didnt mention that I have the Hi- Lyft jack base, so I can use that with a bottle jack, or use a set of X-bull recovery boards as a support base. I also have a small (thick) wood base for helping support a jack stand. They do not take up much room.
I just ordered the 6-ton jack starter kit from safe jacks. I went ahead and bit the bullet as I didn't want to risk buying a 3rd party bottle jack where perhaps the safejack accessories didn't quite fit. I keep 2 pieces of about 8" 2x8" pieces of wood that I can stack for stability and height. Considering a hi-lift jack base for extra support and to have the safety stabilizer channel on it as well.

Do you know how much height the hi-lift base adds? They are pretty good about giving the other dimensions but I cannot find anywhere that says how much height is added! I'm estimating it adds about 3".


Nickel

Rank III
Member

Pathfinder II

845
San Diego, CA, USA
First Name
Steve
Last Name
Jones
Member #

28940

Got the safejack 6-ton starter package. Seems legit, except for the very short jack-handle, lever. What do people use to make it longer? Wil an extension handle bought off of amazon be compatible? Even safejack doesn't sell an extension for it,
