I just picked up a M101A1 trailer- It's being sandblasted and painted as we speak- Anybody have one? Let's start seeing mods, pics? Etc What have you guys done thats cool to these bad boys?
M101A1- Anybody got one? Pics? mods?
- Thread starter Erin Tetro
- Start date
I thought there were at least 2 in the trailer build area
nice score, but thats a wide & huge trailer for a JK as depicted in your avatar
nice score, but thats a wide & huge trailer for a JK as depicted in your avatar
Thanks- you might be thinking the 1101- This one sits perfect behind the JK and pulls awesome- The heavy axle and military tires will be replaced so it will be lighter and drop an inch or so in height- I'll start my thread with the rebuld as soon as its back from sandblaster.
Enthusiast III
Love the tent rack! I need something like that set up for my m101a2!
Enthusiast III

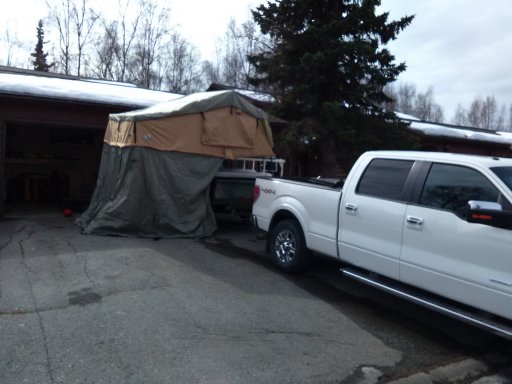

I built it for my truck but ended up getting a trailer here is the link when I built it https://overlandbound.com/forums/threads/2013-f150-xlt-build.3162/ upright are 2x2x14ga angle is 3"X 3/16 thick and my table bars are 1-1/2x1-1/2x14ga the angle of the uprights is 65 degrees
Thank you! I've been looking for an excuse to learn how to weld!
Enthusiast III
Your bulb numbers will be 1156 and 97 you will need two of each
On the tongue of the trailer at the junction box for the wireing you are looking for three tags 22-461, 22-460, and 21
22-461 is left stop/signal yellow
22-460 is right stop/signal green
21 is running/taillight brown
Screw white wire to frame for ground
Influencer I
- 3,038
- First Name
- Dave
- Last Name
- Stockslager
- Member #
-
2951
- Ham/GMRS Callsign
- KM6ZGS

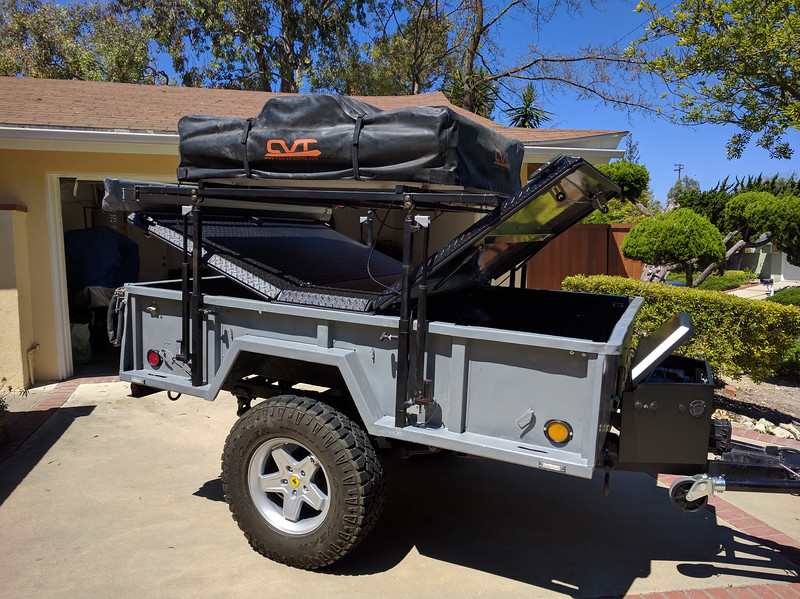

I've got one to tow behind my JK. My build thread is over on Expedition Portal, too many pages to recreate here but it has a little bit of everything including the electric lift for the RTT rack.
http://www.expeditionportal.com/forum/threads/131919-Dstock-s-M101A1-build-or-the-reality-I-needed-a-new-project!
http://www.expeditionportal.com/forum/threads/131919-Dstock-s-M101A1-build-or-the-reality-I-needed-a-new-project!
Last edited:
Coming late to the game, here is the link to my M101A1, had an M1101 for a short period of time, way too big.
First pic is my 03 LC, 3 in OME lift, Nitto ridge grapplers, super quiet.
Have a few more things to do, looking at an axle and tires to match with brakes?
https://photos.app.goo.gl/Z8ezWP6Wggu9aMx33
First pic is my 03 LC, 3 in OME lift, Nitto ridge grapplers, super quiet.
Have a few more things to do, looking at an axle and tires to match with brakes?
https://photos.app.goo.gl/Z8ezWP6Wggu9aMx33
Influencer I
- 3,038
- First Name
- Dave
- Last Name
- Stockslager
- Member #
-
2951
- Ham/GMRS Callsign
- KM6ZGS
Looks good! While some you say you don't need them, I am really glad I went with electric brakes on my new axle. It's a big load off my Jeep and to be able to modulate the trailer brakes separately over obstacles which is a great advantage.

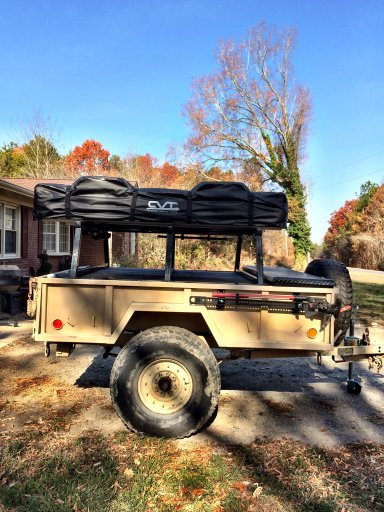

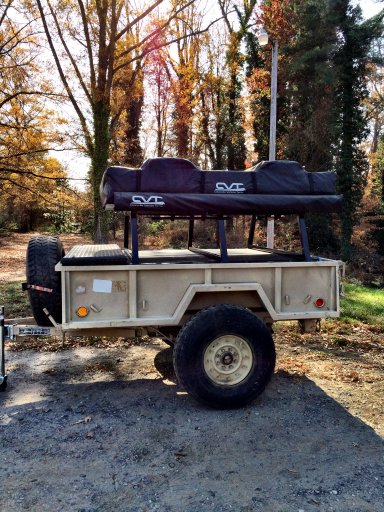

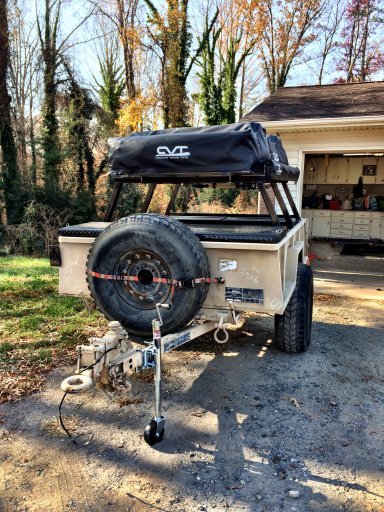

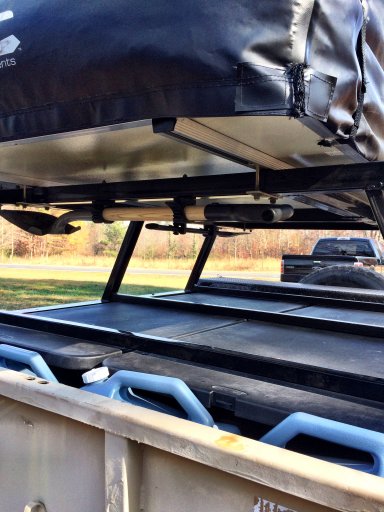

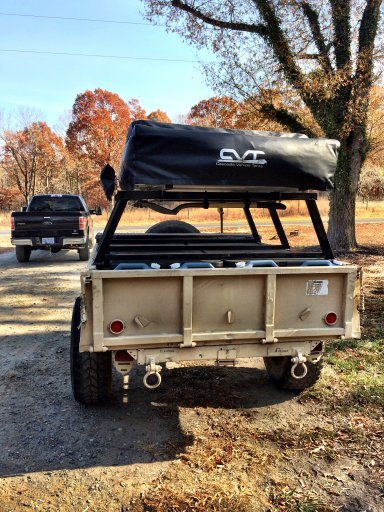

I'm finally making some progress on my trailer build, M101A2 with a Tuff Stuff Overland RTT. Had a local fab guy weld me up an aluminum rack (I haven't ventured out from steel in my welding yet), and I have just about completed a homemade tonneau cover. 1" aluminum square tubing and 1" blue foam board sandwiched in between two FRP panels. Already converted it to 12v, changed out the hitch for a 2" ball, and replaced all the lights with LED bulbs.
Attachments
Contributor III

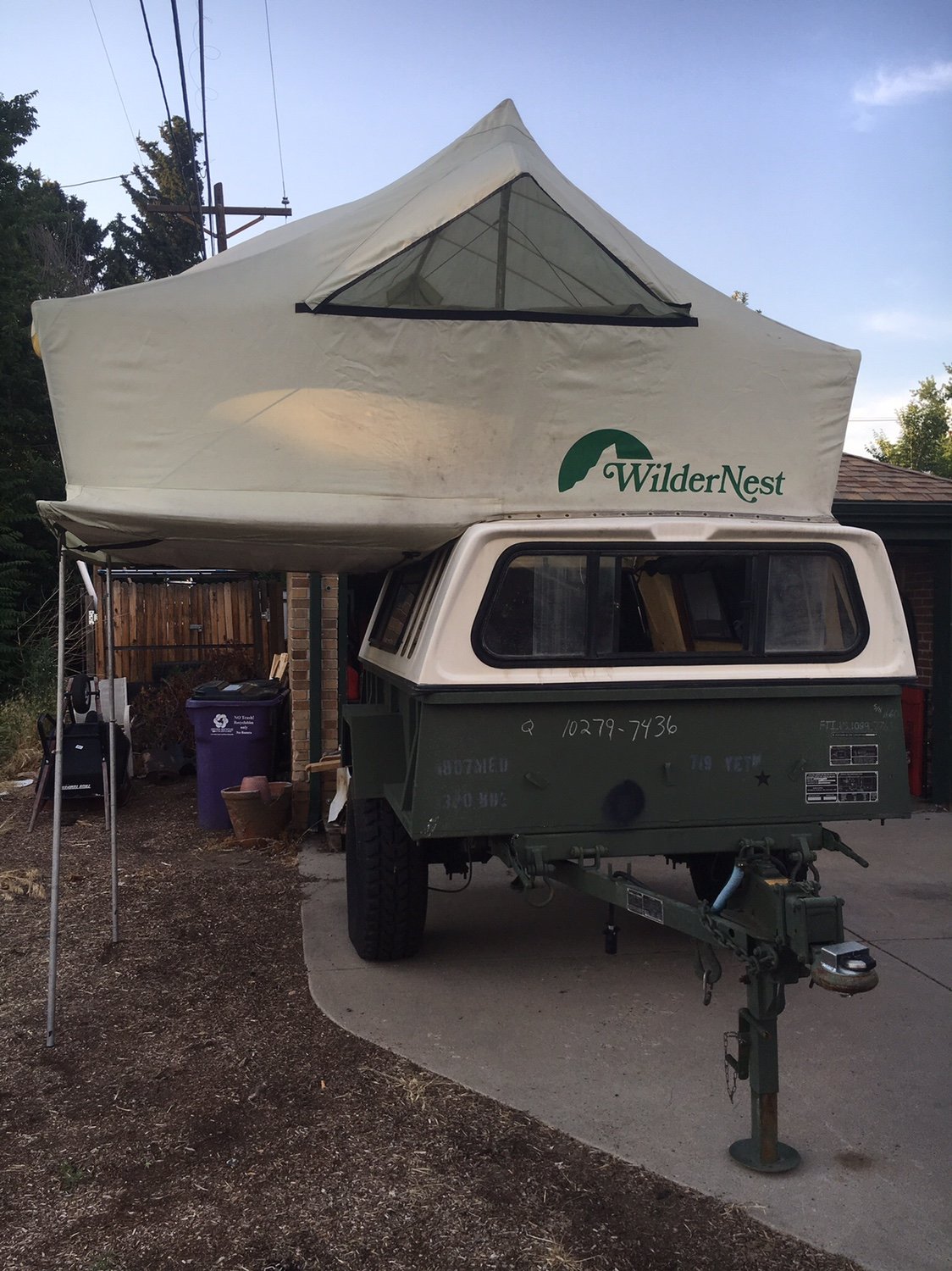

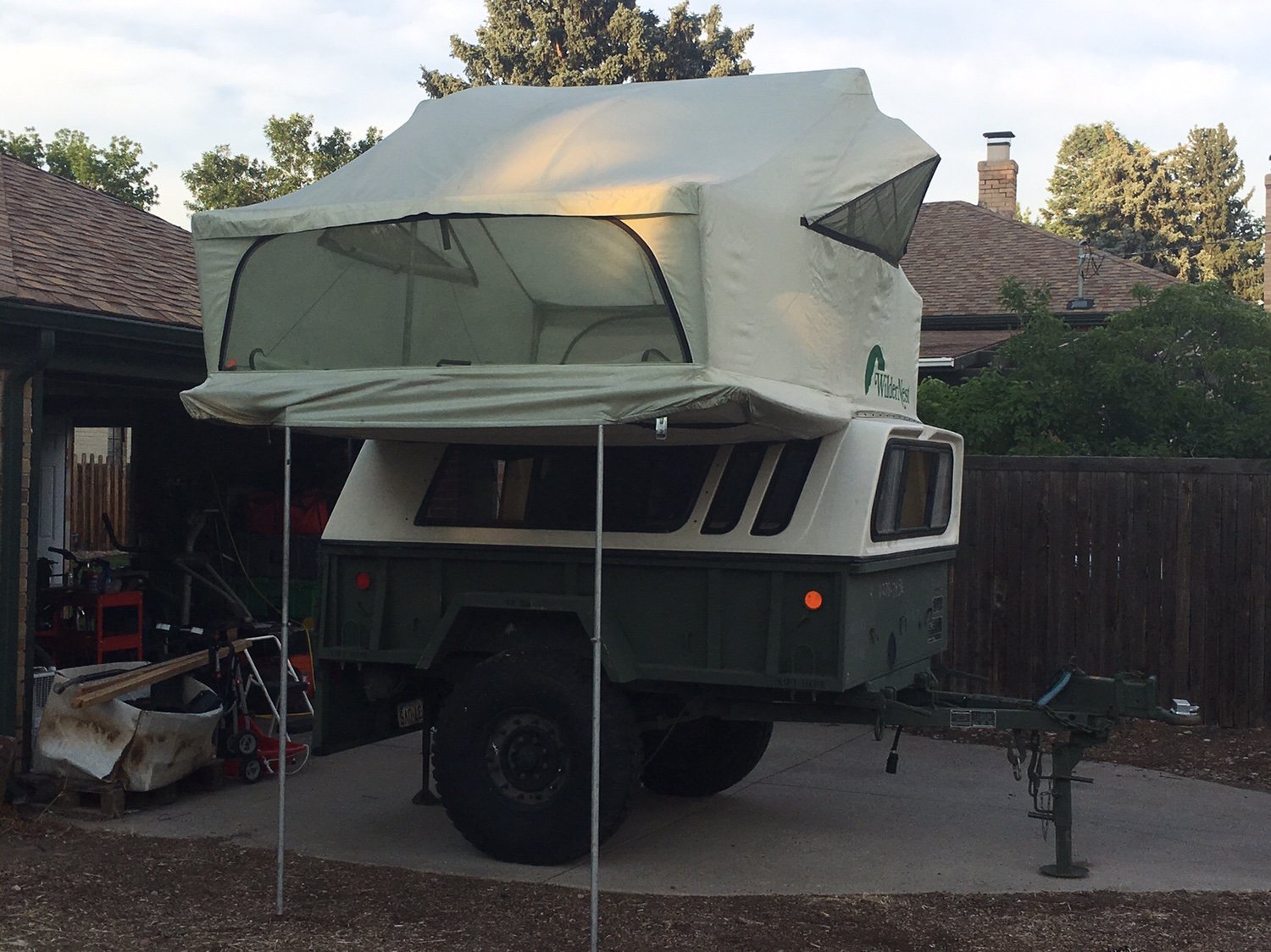

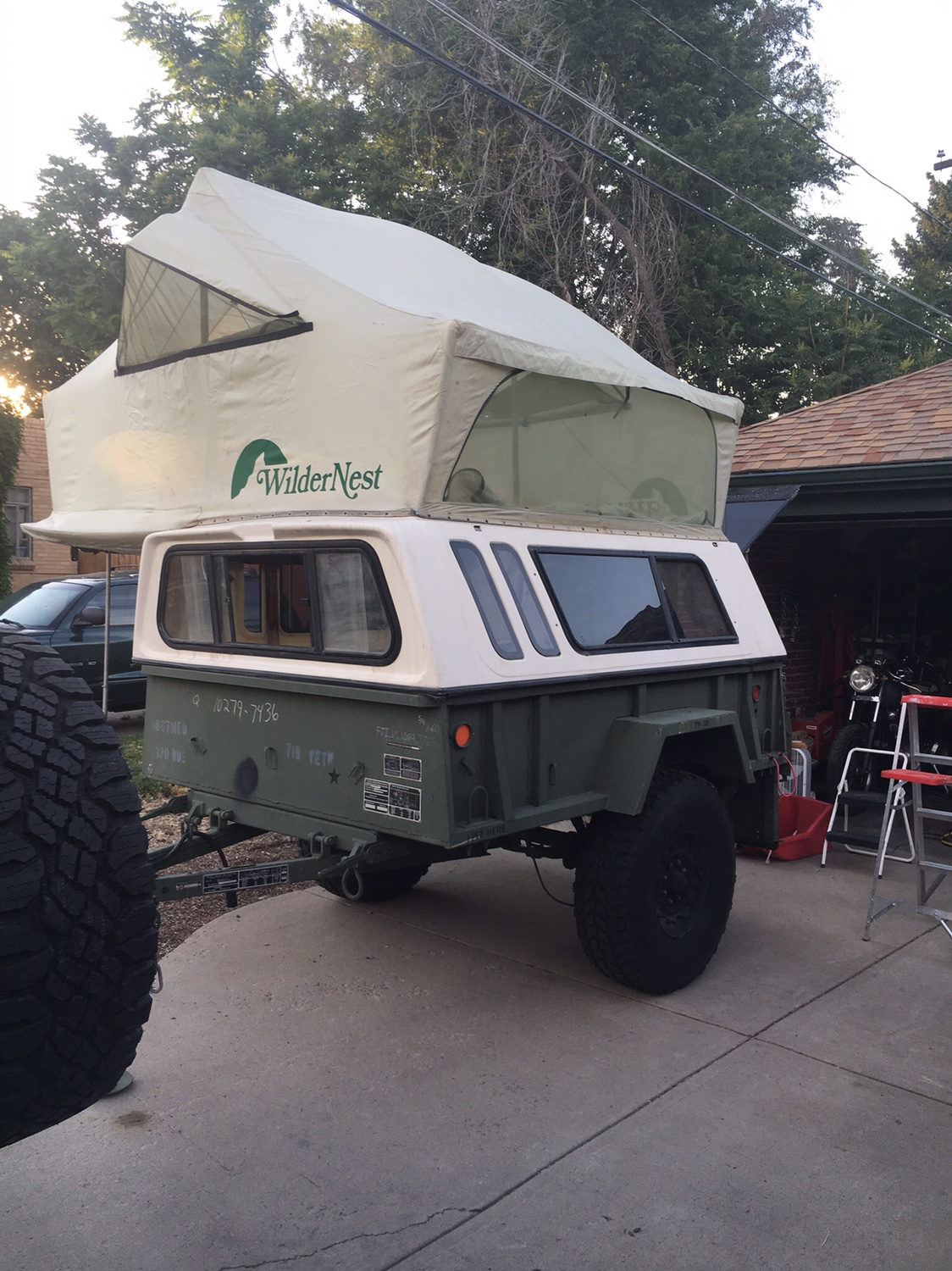

He is my M101A3 with a Wildernest cap. The project stalled when my back went out. I’m between surgeries right now, but hope to get back to it very very soon.
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Advocate III
That's pretty interesting, how the tent snaps to the truck cap. You gain access to the tent from inside the trailer, goes straight up and in? I don't see any other way to get in from outside. Interesting set up!He is my M101A3 with a Wildernest cap. The project stalled when my back went out. I’m between surgeries right now, but hope to get back to it very very soon.
Sent from my iPhone using Tapatalk
Contributor III

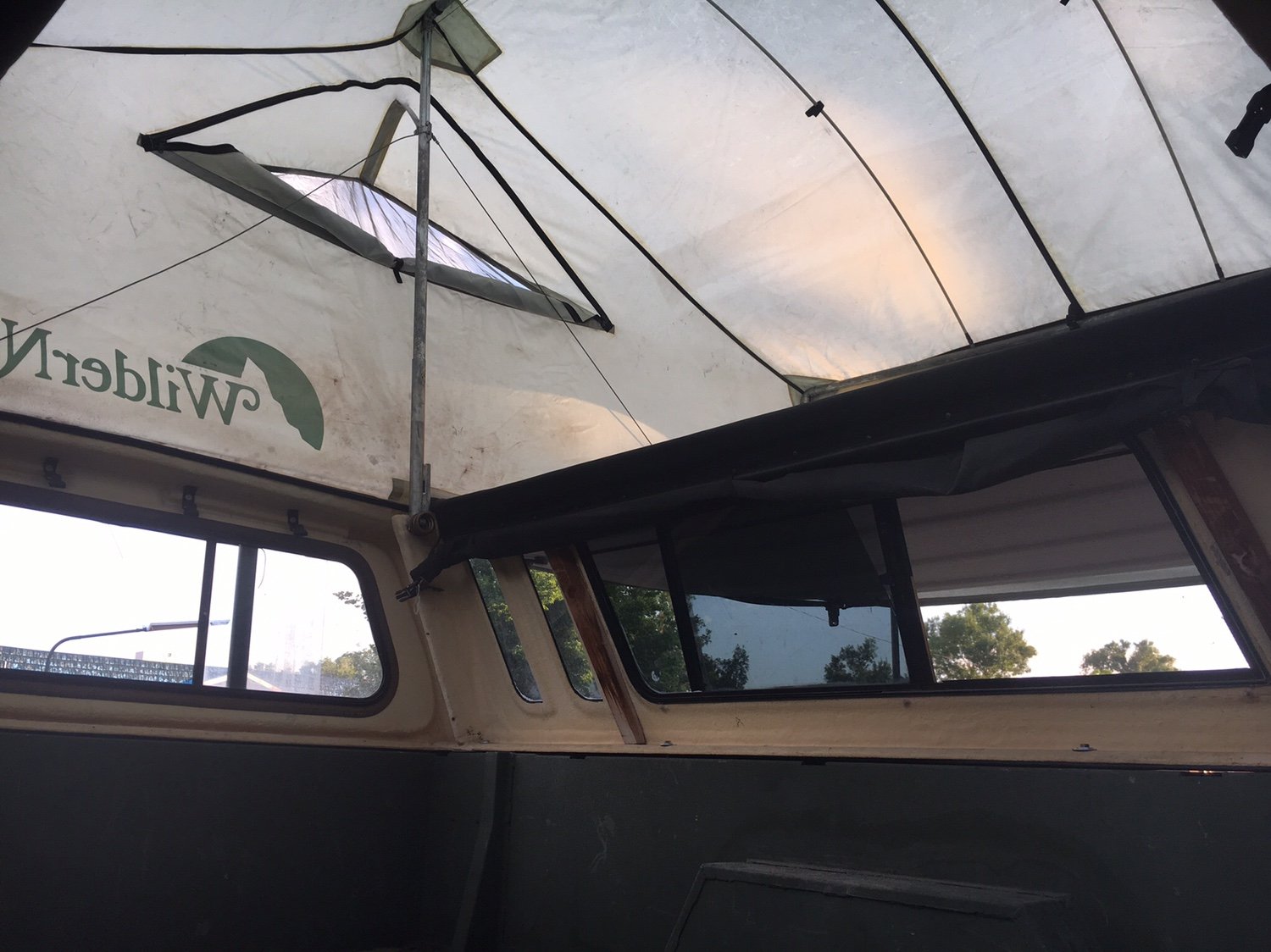

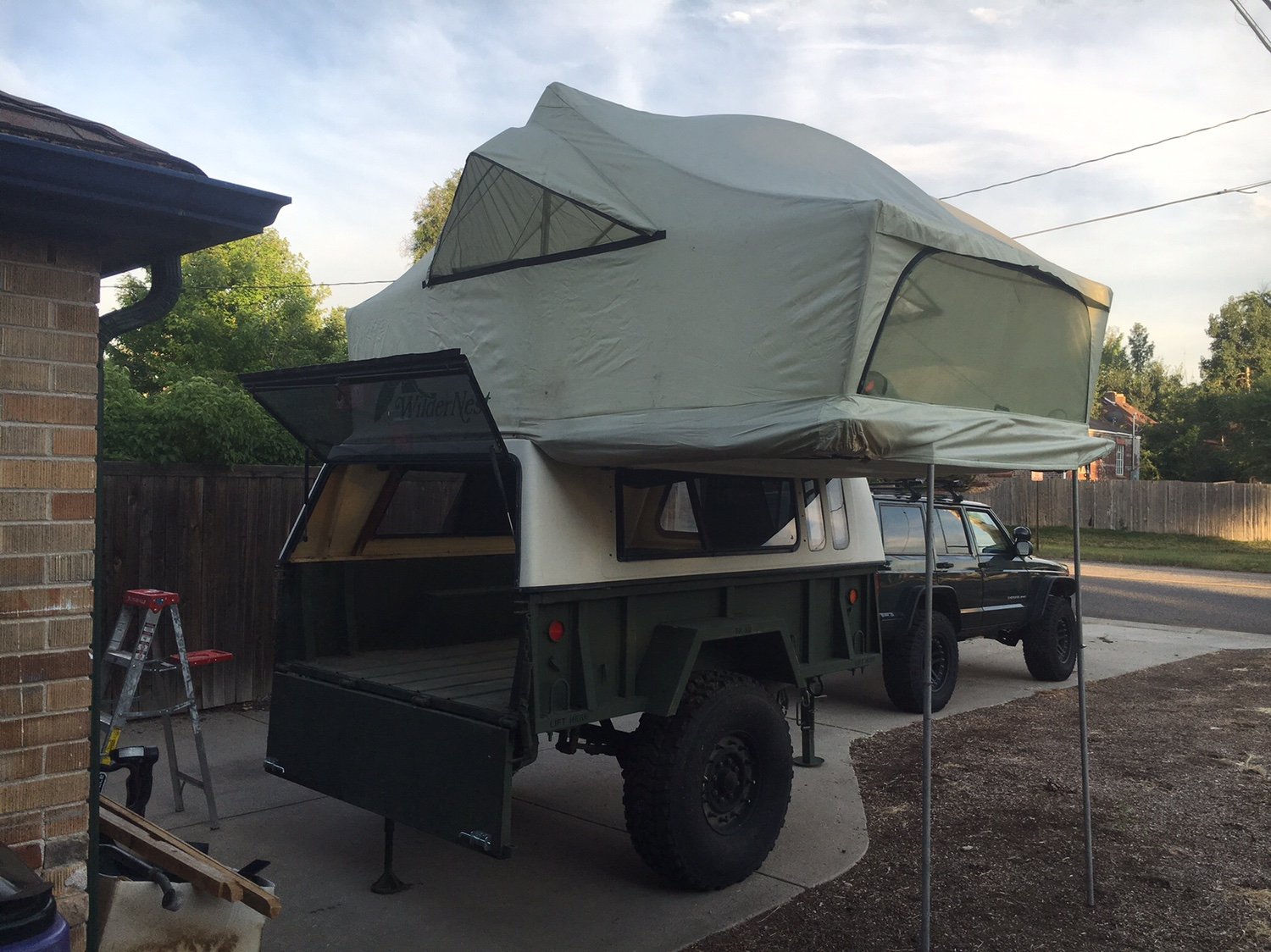

The top of the cap flips open. More than 8’ head room at the peak.
Sent from my iPhone using Tapatalk
Advocate III
First one I've seen like that, though looks like the style has been around awhile. Thanks for the add'l image!The top of the cap flips open. More than 8’ head room at the peak.
Sent from my iPhone using Tapatalk
Contributor III

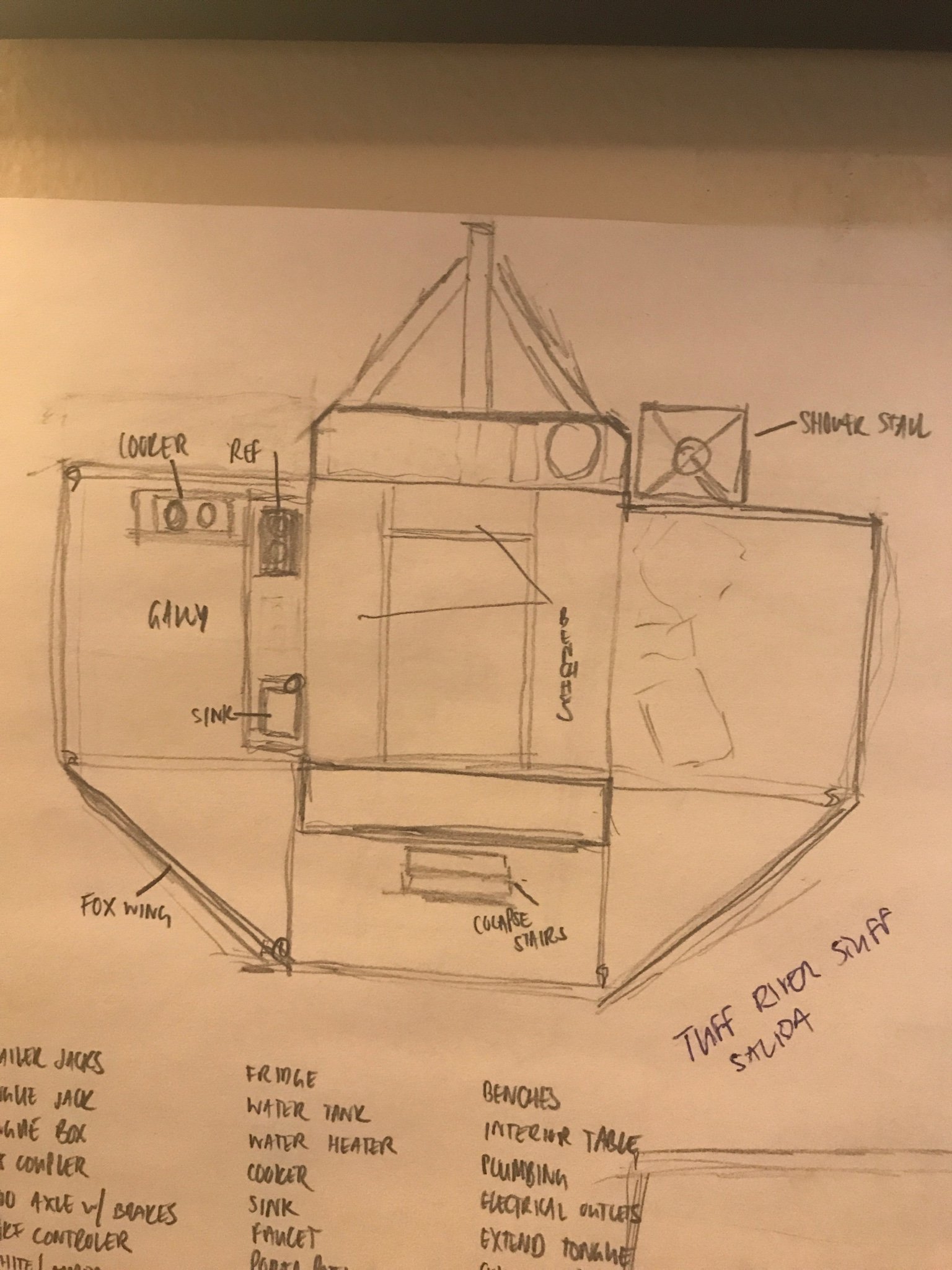

It is an old design. The Wildernest company was based out of Boulder, CO but went out of business in the 90’s as I understand it. As soon as the doctors tell me I can get back to my life, it will be getting a full build out to include axle with electric brakes and matching pattern to my XJ. Here is a pic of the plan.
