Airing down tires.

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

Meta6981

Rank VI
Member

Influencer II

3,065
Dewey, AZ
Member #

1248

Hey all, i knownone day I will want to.do this. I juat dont have any data to go off of. Such as how low psi can i go and still have pavement worthy tires? Also i know most off roaders have 16's or 17's. I have 18's and not sire how that will effect what can or cannot be done. Any imput from.the experianced?


O.Dfj

Rank VI
Member

Influencer III

3,689
Foothill Farms
Member #

1466

I go down to about 20 psi with my 18s sometimes lower if i need to. I works fine, just realize you have a shorter sidewall so some times my rims find rocks they wouldnt if i had 16s or 17s.


Meta6981

Rank VI
Member

Influencer II

3,065
Dewey, AZ
Member #

1248

I go down to about 20 psi with my 18s sometimes lower if i need to. I works fine, just realize you have a shorter sidewall so some times my rims find rocks they wouldnt if i had 16s or 17s.
Cool thanks, also why i got steel rims for that set.


O.Dfj

Rank VI
Member

Influencer III

3,689
Foothill Farms
Member #

1466

Also dont drive that far aired down on pavement not good for tires a few miles should be fine, but aired down tires build a lot of heat and it can cause your tire to fail

  • Like
Reactions: Flip and SLO Rob

Lifestyle Overland

Rank VI
Founder 500
Member
Supporter

Navigator I

4,226
On the Road
Member #

0102

Here's my response from another related thread here:
Deflating for comfortable ride

I had the opportunity to speak with an individual (who shall remain nameless) within the BFG corporation. This particular gentleman was an engineer who helped develop a lot of the tires we run today. He told me (officially) that he can not condone running their tires at a lower PSI than recommended. However, (unofficially) he confirmed that running at a lower PSIunder the right circumstances would not degrade the integrity of the tire itself.
That being said; there are several factors to consider when selecting a proper PSI... this was some of his input on the subject:

1) Wheel size versus overall tire size.

So how much meat (rubber) do you have between the rim and the rock you're about to hit? If you're running 15" wheels with 35 or 37 inch tires you can go down in the 10 PSI range with no issues. If you're trying to run 18" wheels then 20 PSI is probably as low as you want to go if there's a chance you'll tag a rock. The reason for this is you can actually damage the interior of your tire if you were to pinch the tire between a rock and the rim. This type of damage will go unnoticed until you either remove the tire, or have a blowout...

2) Speed.

The rate at which the tire deforms and reforms can have an adverse affect on the sidewall as well. If you're running 55 MPH down a paved road to a trail head at 18 PSI you're generating a ton of heat due to the constant deforming and reforming of the tire footprint. It doesn't take long to do irreparable damage to a tire under these conditions (which is also hidden to the user). Consider airing up even if it's just a short run down a hard surface at speed.

3) Surface.

This factor goes hand-in-hand with speed. The type of surface you're running on can make all the difference on PSI selection. For example, if you're running on sand, the surface itself is helping support the integrity of the tire since it is also deforming to accept the footprint of the tire. You can typically run much lower PSI on sand due to this fact. Rocky trails at slow speeds are also good candidates for lower PSI since you want more deformation to avoid a puncture or cut. Gravel roads would be a bit less forgiving especially if they are hard packed. Consider a medium range PSI.

4) Aggressiveness of steer.

Basically this means; how hard will you been cutting the wheel at speed? You can run 2-5 PSI in sand... in a straight line. If you plan on doing donuts then you're probably going to blow a bead... and possibly roll your rig if you're carrying enough speed. Same for rock crawling, if you're at an extremely low PSI and try to cut hard while in a bind, you're likely to blow the bead.

The final decision on PSI is really up to you. It's your rig, so experiment with different settings until you find those sweet spots for your unit's wheels-to-tire size ratio and final weight. I highly recommend investing in some quality deflators (Stuan or ARB) and a 100% duty rated air compressor (Dual compressor ARB unit is incredible) to save a lot of headache and time. Also, get a quality air pressure gauge... that free one from NAPA ain't no good! (After tons of research I got a digital craftsman unit from amazon)

And if you do blow a bead... try a heavy duty ratchet strap (kept in the tool kit) for wrapping around the tire while re-seating.

Here are my typical PSI settings for our 2014 4Runner running BFG KO's in 275/70R17 Load Range E:

Every day travel: 40 PSI front 42 PSI rear (45 PSI in rear if loaded)

Highway between trails: 30-32 PSI (Used this in Colorado since our route had highways in between trail heads)

Gravel Roads: 20 PSI (24 PSI in rear if loaded)

Rocky Trails: 16 PSI (18 in rear if loaded)

Sand: 14 PSI (18 PSI in rear if loaded)

E

expeditionnorth

Guest
from several tire training seminars we were told airing down only sells tires so they let the myths exist

when you air down you are basically closing the tire gap between the tread which defeats the whole purpose of the tread in the first place

I'll shut up before I start a debate


maktruk

Rank V
Member

Pathfinder I

2,741
95046
Member #

0912

from several tire training seminars we were told airing down only sells tires so they let the myths exist

when you air down you are basically closing the tire gap between the tread which defeats the whole purpose of the tread in the first place

I'll shut up before I start a debate
You are also widening the contact patch. More contact = more traction.

Also, a tire that conforms a bit more to obstacles is less likely to puncture than a fully aired up tire.

Someone done steered you wrong.


maktruk

Rank V
Member

Pathfinder I

2,741
95046
Member #

0912

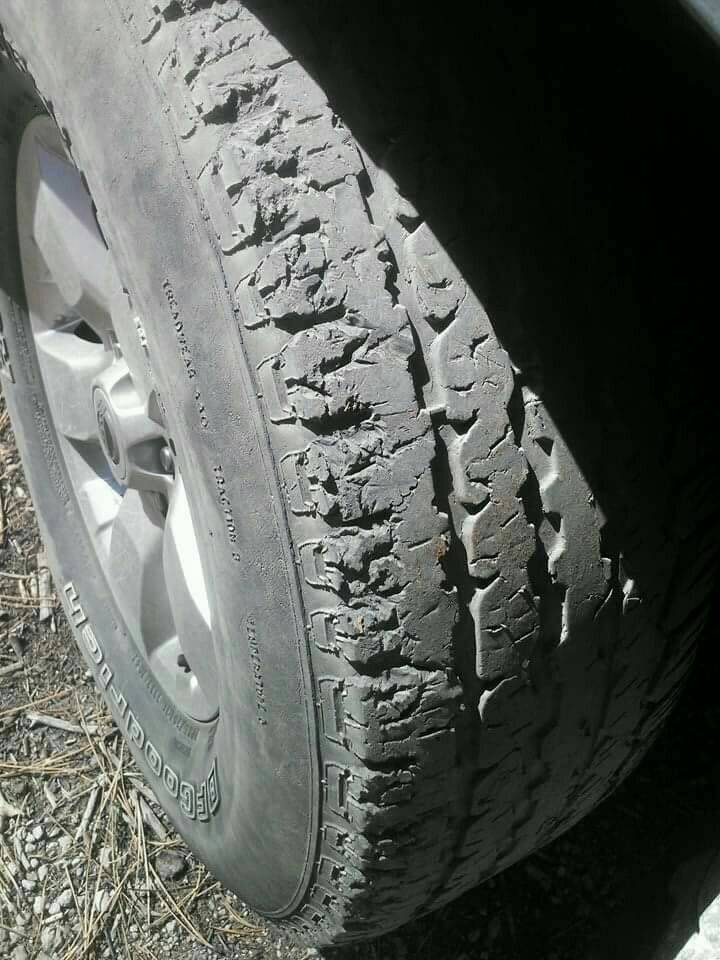

Here's one of my tires after my first trip to the high Sierras 10 years ago. Keep in mind, I grew up wheeling forest trails, so airing down wasn't a big "thing"

Now, I run like 16-18 psi religiously, lol



Lifestyle Overland

Rank VI
Founder 500
Member
Supporter

Navigator I

4,226
On the Road
Member #

0102

from several tire training seminars we were told airing down only sells tires so they let the myths exist

when you air down you are basically closing the tire gap between the tread which defeats the whole purpose of the tread in the first place

I'll shut up before I start a debate
It sounds like you may have received some bad information. You should try airing down next time you're out... I love watching the looks on people's faces when they do it for the first time. It's soooo much better on your backside, and your equipment overall; not to mention the traction benefits.

  • Like
Reactions: Winterpeg and O.Dfj

Winterpeg

CDN Prairie Ambassador
Staff member
Member

Influencer II

3,278
Winnipeg, MB
Member #

2861

It sounds like you may have received some bad information. You should try airing down next time you're out... I love watching the looks on people's faces when they do it for the first time. It's soooo much better on your backside, and your equipment overall; not to mention the traction benefits.
No kidding eh? I've seen some pretty wide eyes and big smiles when I showed them the benefits of airing down.

Oh and here's my tire... pretty damn sure that if it was aired up when I was wheeling in those sharp rocks I would have had a sliced sidewall.

Notice all the cuts near the white portion and the deep cut all the way into my tread.

(almost time for new tires... this is now my spare)

  • Like
Reactions: Lifestyle Overland

Mademan925

Rank V
Member

Pathfinder I

2,055
discovery bay, ca 94505
Member #

1069

Ive seen several flats from people not airing down and the traction when crawling without airing down is terrible. Also the ride is so much smoother with aired down tires. Totally worth it. I usually go down to 20 for overlanding/fireroad stuff. I go to 15 for offroadng.

  • Like
Reactions: Lifestyle Overland

Meta6981

Rank VI
Member

Influencer II

3,065
Dewey, AZ
Member #

1248

I think the key lesson learned here is don't air down too much. When I had my 20's on my teeth rattled after minor off reading. The 18s much nicer than those.


Meta6981

Rank VI
Member

Influencer II

3,065
Dewey, AZ
Member #

1248

I am going to do a testing run in August at hollister hills. They have an air station at the ranger station. I should be able to experiment a bit. I think I a, going to run at 25 psi first and then go from there. Orem specs for my rig are 36 up front and 40 in rears.


O.Dfj

Rank VI
Member

Influencer III

3,689
Foothill Farms
Member #

1466

I am going to do a testing run in August at hollister hills. They have an air station at the ranger station. I should be able to experiment a bit. I think I a, going to run at 25 psi first and then go from there. Orem specs for my rig are 36 up front and 40 in rears.
Thats cool play around with it every truck is different. My cousin aired down to 15 psi on his pick up i aired down to 20 to get the same effect. The more you play with it the more you will know what psi works for your rig.


MarkW

Rank V
Member

Advocate II

2,566
Member #

773

From my first time ever wheeling I have aired down. The big eye opener was one day when we found a place to play for a bit by surprise. We were only planning on being there for a very short time so I didn't air down. I kept trying this climb and just couldn't make so I aired down to 20psi and just walked right up it. Whenever the plan is to wheel unlike that situation, I always air down and usually to 10psi if not a little lower. I am running 35" tires on 16" rims but they are dual bead locks so I can safely go that low. Before the bead locks I would go to 15-20 psi depending on the situation.

  • Like
Reactions: Winterpeg

Chris Zawacki

Rank III
Member

Advocate II

628
Leesburg, VA
Member #

1933

Here's my response from another related thread here:
Deflating for comfortable ride

I had the opportunity to speak with an individual (who shall remain nameless) within the BFG corporation. This particular gentleman was an engineer who helped develop a lot of the tires we run today. He told me (officially) that he can not condone running their tires at a lower PSI than recommended. However, (unofficially) he confirmed that running at a lower PSIunder the right circumstances would not degrade the integrity of the tire itself.
That being said; there are several factors to consider when selecting a proper PSI... this was some of his input on the subject:

1) Wheel size versus overall tire size.

So how much meat (rubber) do you have between the rim and the rock you're about to hit? If you're running 15" wheels with 35 or 37 inch tires you can go down in the 10 PSI range with no issues. If you're trying to run 18" wheels then 20 PSI is probably as low as you want to go if there's a chance you'll tag a rock. The reason for this is you can actually damage the interior of your tire if you were to pinch the tire between a rock and the rim. This type of damage will go unnoticed until you either remove the tire, or have a blowout...

2) Speed.

The rate at which the tire deforms and reforms can have an adverse affect on the sidewall as well. If you're running 55 MPH down a paved road to a trail head at 18 PSI you're generating a ton of heat due to the constant deforming and reforming of the tire footprint. It doesn't take long to do irreparable damage to a tire under these conditions (which is also hidden to the user). Consider airing up even if it's just a short run down a hard surface at speed.

3) Surface.

This factor goes hand-in-hand with speed. The type of surface you're running on can make all the difference on PSI selection. For example, if you're running on sand, the surface itself is helping support the integrity of the tire since it is also deforming to accept the footprint of the tire. You can typically run much lower PSI on sand due to this fact. Rocky trails at slow speeds are also good candidates for lower PSI since you want more deformation to avoid a puncture or cut. Gravel roads would be a bit less forgiving especially if they are hard packed. Consider a medium range PSI.

4) Aggressiveness of steer.

Basically this means; how hard will you been cutting the wheel at speed? You can run 2-5 PSI in sand... in a straight line. If you plan on doing donuts then you're probably going to blow a bead... and possibly roll your rig if you're carrying enough speed. Same for rock crawling, if you're at an extremely low PSI and try to cut hard while in a bind, you're likely to blow the bead.

The final decision on PSI is really up to you. It's your rig, so experiment with different settings until you find those sweet spots for your unit's wheels-to-tire size ratio and final weight. I highly recommend investing in some quality deflators (Stuan or ARB) and a 100% duty rated air compressor (Dual compressor ARB unit is incredible) to save a lot of headache and time. Also, get a quality air pressure gauge... that free one from NAPA ain't no good! (After tons of research I got a digital craftsman unit from amazon)

And if you do blow a bead... try a heavy duty ratchet strap (kept in the tool kit) for wrapping around the tire while re-seating.

Here are my typical PSI settings for our 2014 4Runner running BFG KO's in 275/70R17 Load Range E:

Every day travel: 40 PSI front 42 PSI rear (45 PSI in rear if loaded)

Highway between trails: 30-32 PSI (Used this in Colorado since our route had highways in between trail heads)

Gravel Roads: 20 PSI (24 PSI in rear if loaded)

Rocky Trails: 16 PSI (18 in rear if loaded)

Sand: 14 PSI (18 PSI in rear if loaded)

Perfect response IMO, great work!
