Hi All,

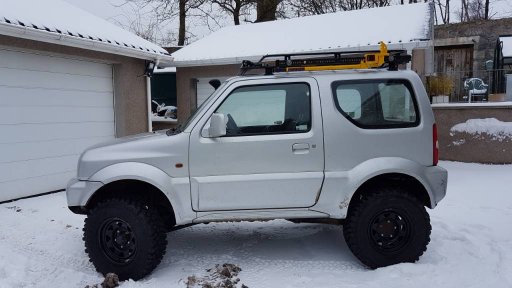

Recently I purchased an 04 Suzuki Jimny for my first proper 4WD overland vehicle. I use this as a daily at the moment but I do use two other cars. I instantly fell in love with the Jimny and couldn't wait to start modifying.
Not quite sure where to start but here we go.
This little Suzuki had quite a perky little M13A 1.3L DOHC 82bhp Petrol engine (I say had, because its no longer perky) and a proper 4WD system with 5 speed manual gearbox and a HI-LO transfer case with 2H (RWD), 4H and 4L.
The best thing about this particular Jimny was that i bought it late 2017 with only 29,000 miles on the clock and it has very little rust. Where I come from in the UK, rust is a big problem for any car but especially Jimny's which seem to lack in the underside corrosion protection of other vehicles.
The build so far consists of;
Recently I purchased an 04 Suzuki Jimny for my first proper 4WD overland vehicle. I use this as a daily at the moment but I do use two other cars. I instantly fell in love with the Jimny and couldn't wait to start modifying.
Not quite sure where to start but here we go.
This little Suzuki had quite a perky little M13A 1.3L DOHC 82bhp Petrol engine (I say had, because its no longer perky) and a proper 4WD system with 5 speed manual gearbox and a HI-LO transfer case with 2H (RWD), 4H and 4L.
The best thing about this particular Jimny was that i bought it late 2017 with only 29,000 miles on the clock and it has very little rust. Where I come from in the UK, rust is a big problem for any car but especially Jimny's which seem to lack in the underside corrosion protection of other vehicles.
The build so far consists of;
- 4" Lift kit with heavy duty radius arms and adjustable pan hard rods;
- Adjustable AVO shocks;
- heavy duty springs;
- Polyurethane bushes all round;
- Rough Country steering damper;
- JimnyBits roof rack;

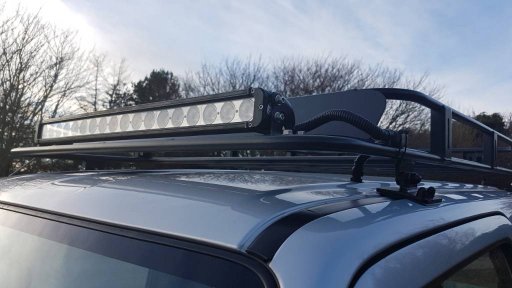

- WOW LED 180W front light bar with flood and spot;
- WOW LED 2 x 24W rear flood lights;
- Dual battery system with split charge;
- 30 x 9.5 x 15" Malatesta Kobra M/T tyres;
- 15" steel rims;
- CRT ONE mini CB radio;
- Custom factory size stainless steel exhaust;
- JimnyBits Snorkel.
- M16A Liana engine (04-07) conversion;
- Front and rear steel bumpers with spare wheel carrier;
- Internal drawer type storage system;
- ????
