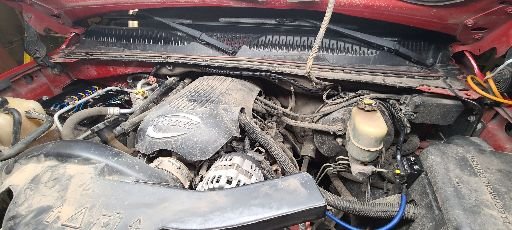

Done!!! I decided to take apart what I had originally built due to wanting more ease of use. (Original build included in pics)

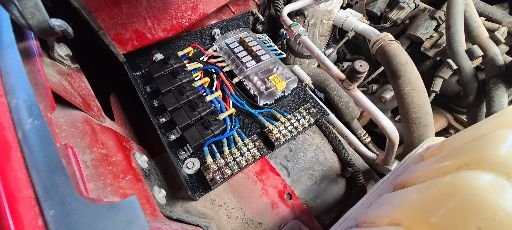

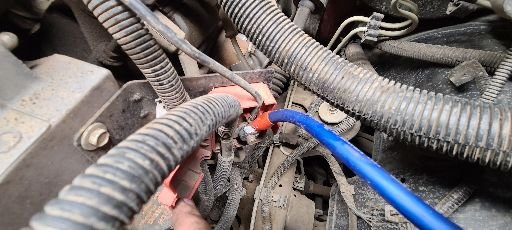

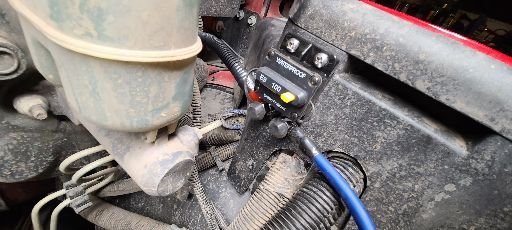

This weekend's...2nd...build is a fuse/relay panel. It consists of a 4awg cable from the + terminal of the battery to a 100amp "breaker" (not a fuse). Then from the breaker to the fuse panel. From the fuse panel to the relays and finally to the bus bar. GREAT NEWS!!! I did NOT burn down my vehicle in the process . It works great!
Well....it's dark out now, I don't want to upset my neighbors with any more power tool noises and frankly, I am exhausted. Between re-configuring the panel, taking a HAM radio class yesterday and today AND doing the install I am fried. More to come on this build shortly.
This weekend's...2nd...build is a fuse/relay panel. It consists of a 4awg cable from the + terminal of the battery to a 100amp "breaker" (not a fuse). Then from the breaker to the fuse panel. From the fuse panel to the relays and finally to the bus bar. GREAT NEWS!!! I did NOT burn down my vehicle in the process . It works great!
Well....it's dark out now, I don't want to upset my neighbors with any more power tool noises and frankly, I am exhausted. Between re-configuring the panel, taking a HAM radio class yesterday and today AND doing the install I am fried. More to come on this build shortly.
