Must a fridge be hard-wired in?

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

KAC

Rank V
Member

Off-Road Ranger I

2,903
Hunt Valley, Cockeysville, MD, USA
Member #

16933

Ham Callsign
KB3TYX
I would love to get a fridge to put in my Cherokee. However, I don’t want to do the work to hard-wire it in because I’m going to be upgrading vehicles in the near future.

Is there any particular one where the amperage is low enough that I can just use a plug in my Cherokee?


JeepGuy91

Rank I
Member

Contributor II

271
Rochester, MN, USA
First Name
Alex
Last Name
L
Member #

16640

I would love to get a fridge to put in my Cherokee. However, I don’t want to do the work to hard-wire it in because I’m going to be upgrading vehicles in the near future.

Is there any particular one where the amperage is low enough that I can just use a plug in my Cherokee?
I believe most of them are totally fine to run off a 12v plug. I had an old XJ Cherokee and ran a 12v extension cord from the front to the cargo area in the back and ran my dometic that way just fine. I brought 4 quarts of specialty ice cream all the way from Ithaca, NY to Louisville, KY for my wife with that set up. The ice cream was rock solid upon arrival.


egilbe

Rank II
Member

Contributor III

357
Biddeford, Maine, USA
First Name
Earl
Last Name
Gilbert
Member #

22993

Ham Callsign
GMRS: WRFT263, HAM:
I run my fridge from the 12v plug. It won't run the battery down because the truck disconnects all power after 30 minutes. That results in other problems that are only partially resolved with a goalzero yeti 200x.

It's a work in progress.

  • Like
Reactions: KAC and El-Dracho

grubworm

Rank V
Member

Member I

1,858
Thibodaux, LA, USA
First Name
grub
Last Name
worm
Member #

17464

most of the 12vdc units will have a starting amp draw of around 8-10amps then when running, drop down to 2-4 amps...so i'm pretty sure your cherokee has a 15a fuse for the power outlet so you are good to go

  • Like
Reactions: KAC and El-Dracho

Alanymarce

Rank II

Enthusiast II

298
Colombia
We run ours off the vehicle power - it has a 12V option and a mains power option - you can plug into either and it handles it. This means that if we are at home (as we are at present, more or less) we can take the refrigerator out. It automatically shuts down once the battery power has drained to a predetermined cut-off point. Lasts a couple of days if it's not too hot, a day in hot climates, although we usually drive often eanough that this isn;t an issue. If you camp somewhere for a week in a hot climate you'll need another power source - solar panels for example.

  • Like
Reactions: KAC and El-Dracho

El-Dracho

Mid Europe Member Rep Germany
Member
Supporter

Member III

3,653
Lampertheim, Germany
First Name
Bjoern
Last Name
Eldracher
Member #

20111

Ham Callsign
DO3BE
I´m pretty sure that will work with a stock 12V socket in a rig. I guess, it is best to take a look at the manufacturer's specifications. As others have already said, I would make sure that the fridge does not drain the starter battery. Maybe you can use a battery monitor which cuts off when the current gets to a low level. Sometimes the fridges already have something like that.

However, I have had bad experiences with 12 volt sockets in the vehicle, especially when it gets a bit rough on trails. To the fact that the plugs are sometimes not properly seated in the socket (a lot depends on the quality) and a bad connection is not only stupid but can also be dangerous. So better keep an eye on that.

If I use a plug and a socket then I like to use one that can be firmly connected. I solved this for my fridge with an ARB socket and the appropriate plug. Both can be screwed together and that works very well for years now.

  • Like
Reactions: KAC and Alex Brame

jeepers29

Rank V
Member

Enthusiast III

1,721
Georgetown, TX, USA
Member #

16977

I know with the Jeep JK's, that the 12v plug in the rear, the wire is not big enough and the frig will not keep the temp steady when the jeep is turned off. The ARB wiring harness is a much larger gauge for this reason. Since going to the arb harness, my frig works much better when the jeep is off.


cecald

Rank 0

Contributor I

I know with the Jeep JK's, that the 12v plug in the rear, the wire is not big enough and the frig will not keep the temp steady when the jeep is turned off. The ARB wiring harness is a much larger gauge for this reason. Since going to the arb harness, my frig works much better when the jeep is off.
What’s the “arb wiring harness”? Is that something sold by arb that replaces the stock 12v plug in your Jeep?


Drmiller100

Rank 0

Contributor I

30
Boise ID
First Name
Doug
Last Name
Miller
Ham Callsign
Ke7ixe
Every connection loses power. Cigarette lighters are horrible. Run it awhile and feel the heat.
It is also a double whammy. It loses power to heat, and the fridge has to run longer as it has less power.
The direct connection with 12 gauge or bigger wires +fused of course,+ makes your battery last longer

  • Like
Reactions: KAC

Drmiller100

Rank 0

Contributor I

30
Boise ID
First Name
Doug
Last Name
Miller
Ham Callsign
Ke7ixe
Also, the alternator makes basically unlimited power when the engine is running. When the engine is off is when it counts

  • Like
Reactions: KAC

SRN

Rank 0

Contributor I

60
Salt Lake City, UT
First Name
Stephen
Last Name
Nielson
The uncomplicated answer is, yes. Nearly all vehicle fridges from an Edgestar to a National Luna will run fine off of a standard 12v vehicle power outlet (aka cigarette lighter). Generally, the biggest downside to not running a dedicated line for the fridge is that most manufacturer installed outlets only run when the vehicle is on. When you get your new vehicle and run a new line, follow the advise people have given about bigger gauge wire, etc, etc for better efficiency. But running the fridge off an existing 12v outlet is just fine.

  • Like
Reactions: KAC

RoverXventures

Rank IV
Member
Supporter

Influencer III

1,308
Monterey, CA, USA
First Name
JEANPAUL
Last Name
DEROUIN
Member #

20133

I also run mine off a 12v plug, I had the plug changed to be constantly hot. That being said, my fridge knows when it has drawn to much power from the battery and will go into limp mode, to protect it

  • Like
Reactions: KAC

Viking1204

Rank V
Mod Team
Member

Pathfinder I

1,798
Fort Walton Beach, FL
First Name
Scott
Last Name
S
Member #

17968

That's why a lot of vehicles have 12V plugs now, not so much for cigarette lighters anymore. I run mine off the 12V plug on my center console in my F-150 and it works great! Get you a good energy efficient fridge and give it a try!

  • Like
Reactions: KAC

GirlGoneRoad

Rank I
Member

Member I

203
San Diego, CA, USA
First Name
Tina
Last Name
Edwards
Member #

22093

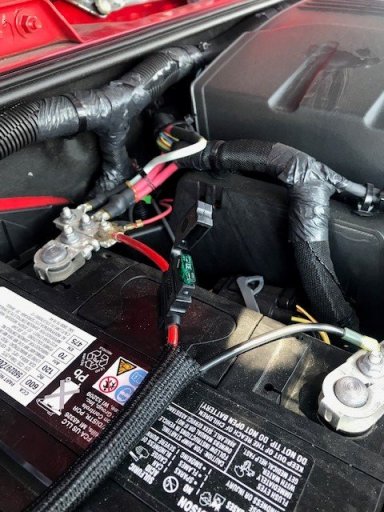

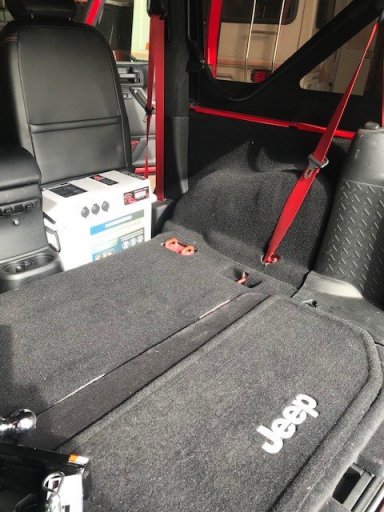

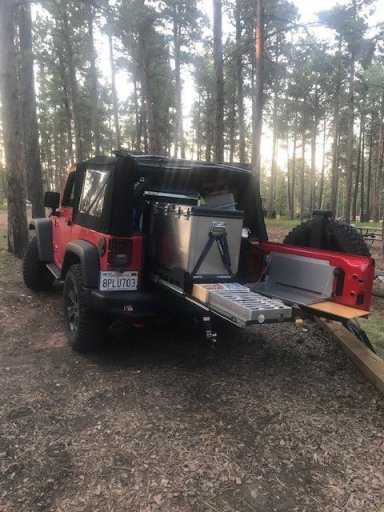

I know you said you didn't want a permanent solution, however, you are wanting to power a fridge. If you are constantly driving, or you don't care about stability it temperature at night when it would drain your battery when not moving, then 12v or works. I did a lithium battery with an amstrong plug attached to the battery to charge which would run the fridge for 4 days without additional charging. I also had an solar panel with an Armstrong plug to charge when camping. My fridge was a SnoMaster which is awesome. The lithium battery and housing box can be moved to another vehicle very easily. The nice thing is that it powers everything and charges all your gear that needs a charge. Wanted to share an alternative for using on board 12v.


Attachments

RoarinRow

Rank V
Member

Influencer I

2,301
Elk Grove, CA, USA
First Name
Rolando
Last Name
Nispiros
Member #

17011

Ham Callsign
KN6JJS
I know you said you didn't want a permanent solution, however, you are wanting to power a fridge. If you are constantly driving, or you don't care about stability it temperature at night when it would drain your battery when not moving, then 12v or works. I did a lithium battery with an amstrong plug attached to the battery to charge which would run the fridge for 4 days without additional charging. I also had an solar panel with an Armstrong plug to charge when camping. My fridge was a SnoMaster which is awesome. The lithium battery and housing box can be moved to another vehicle very easily. The nice thing is that it powers everything and charges all your gear that needs a charge. Wanted to share an alternative for using on board 12v.
Nice setup! That is one serious battery and fridge for sure!
