Gmrs swr check.

Grantnr

Rank VI
Launch Member

Trail Blazer I

4,731
San Leon, TX, USA
First Name
Nick
Last Name
Grant
Member #

11391

Ham/GMRS Callsign
WRBK748
Service Branch
USMC

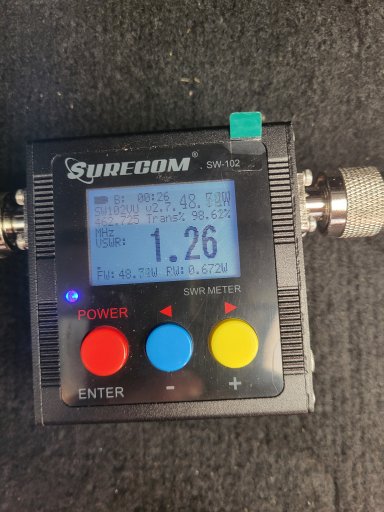

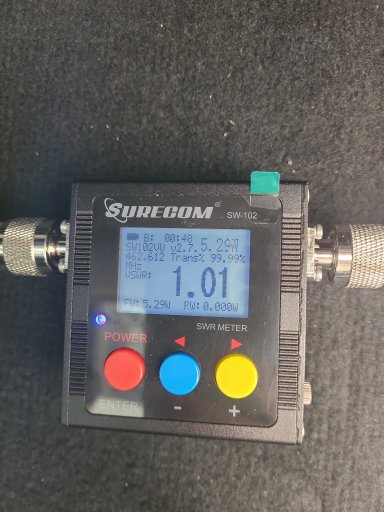

Ok, had to beat my chest a bit. Midland MXT575 to a 3db ghost antennae. Roof top mounted to bars with ground strap from base to rooftop. PL259 and SO239 solder on connections at splice point. I can't really complain about these numbers a bit. Figured the comm gods were smiling today and had to share.


Attachments

  • 85fb5cc0-fc3c-40f1-b31b-7e40b86d6bac.jpg
    3 MB · Views: 20
  • 20250416_104411.jpg
    1.8 MB · Views: 20
  • 20250416_104411.jpg
    1.8 MB · Views: 18
