Has anyone installed a high clearance front 2 inch hitch? I've looked at ones from Mobtown and CBI. I am interested in using it for either a front rack on the beach, portable winching, or recovery point as in the back. Any thoughts or ideas?
Front 2 inch hitch
- Thread starter Big E
- Start date
Advocate II
Have you been pulled with it much either with a strap or winch? Is it strong and secure when you do? I like the idea of being able to put a winch on front or back, and also off when not wheeling.
Advocate II
Have had it now for just over 2 years and have been pulled and winched and have also pulled others with no issues, my XJ is light though in comparison to many. Not sure I would do it again though would probably just fit a standard winch bumper to the front as it rarely ever gets put on the rear.
Advocate III
A good gauge would be to compare your vehicle weight to the rated capacity of the hitch mount. If you're using it as a recovery point you'll want a wide margin between the two to account for resistance.
Advocate II
Influencer II
I use a standard curt 2" front mount hitch on my dodge to house my winch. I did find a company that makes a hitch that mounts from the tow good mounting points in the middle of the front bumper. Had I known that was an option I would have done that to get the winch up higher.
Enthusiast III

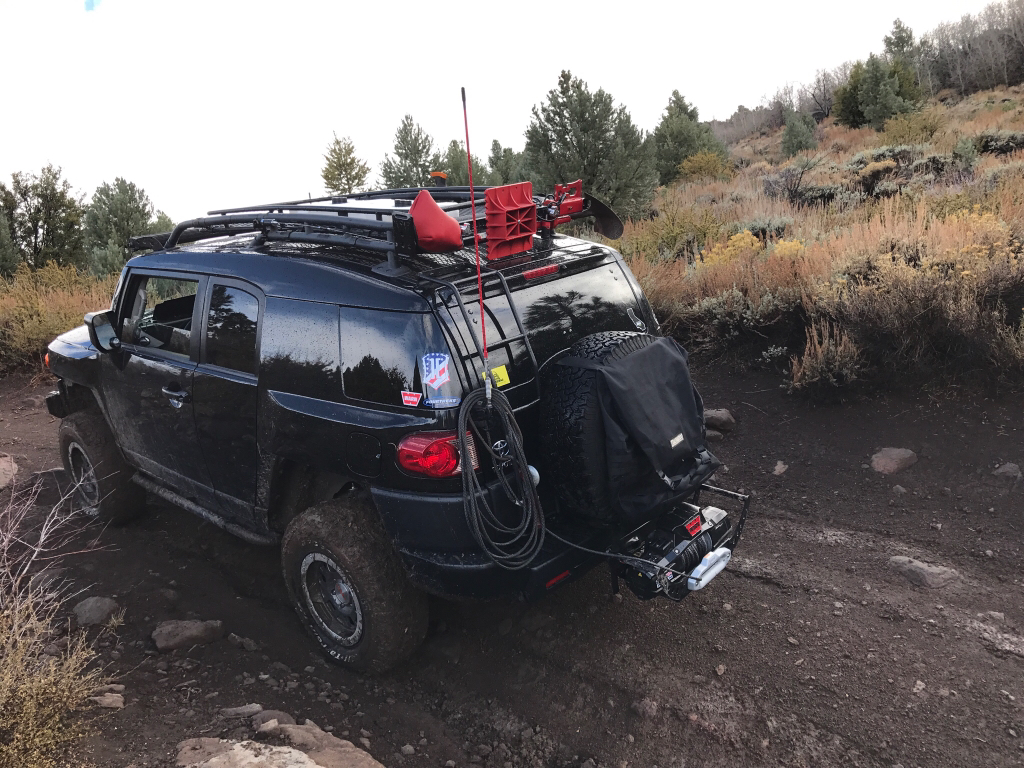

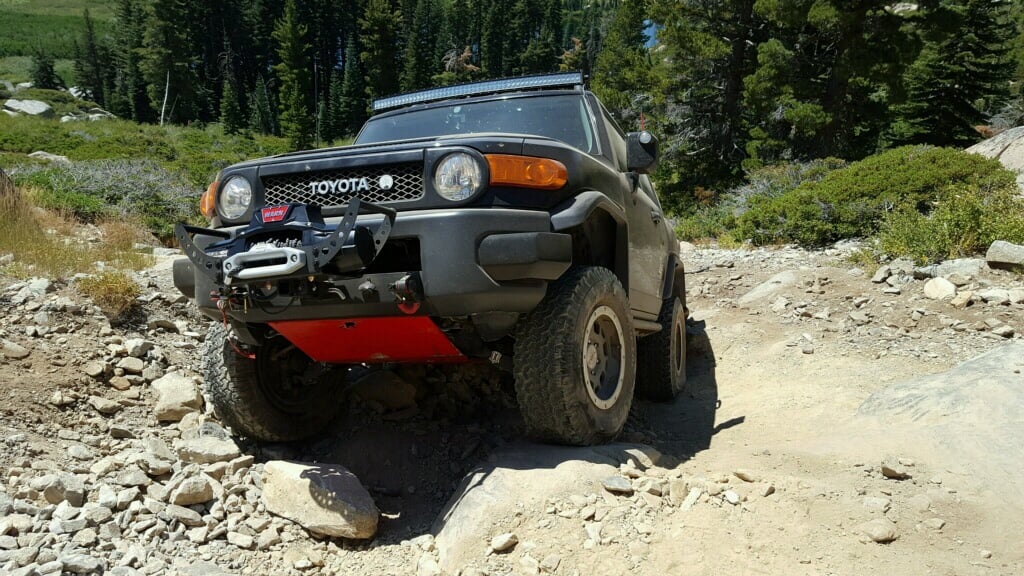

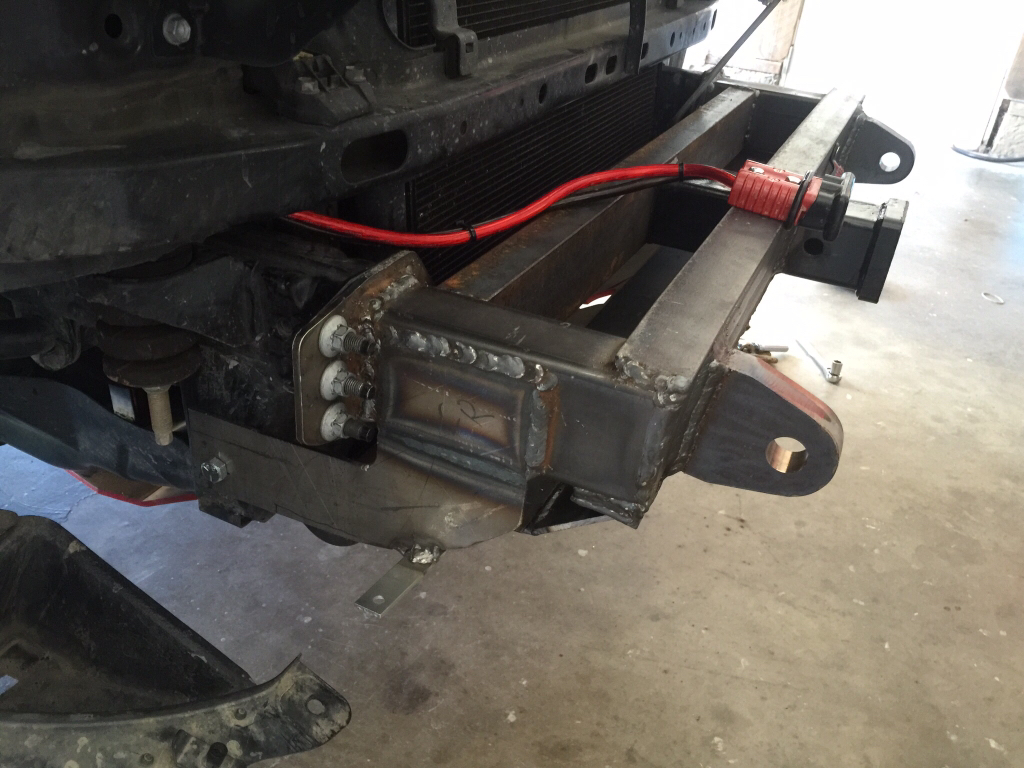

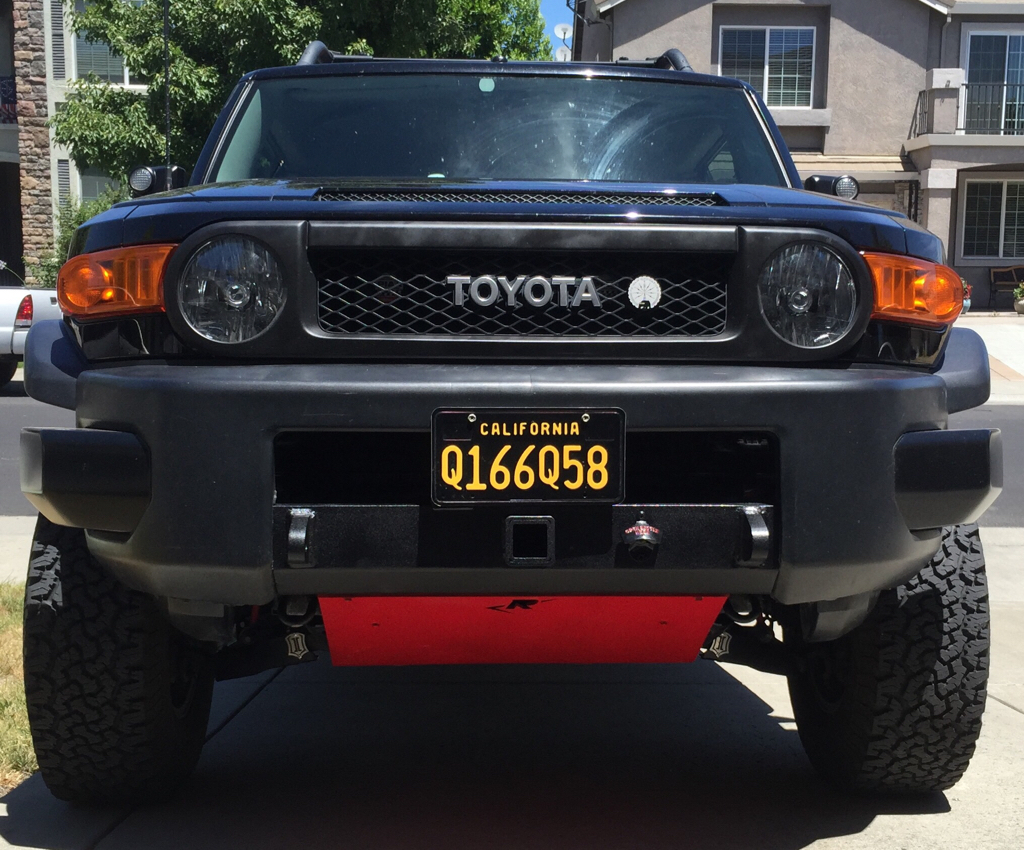

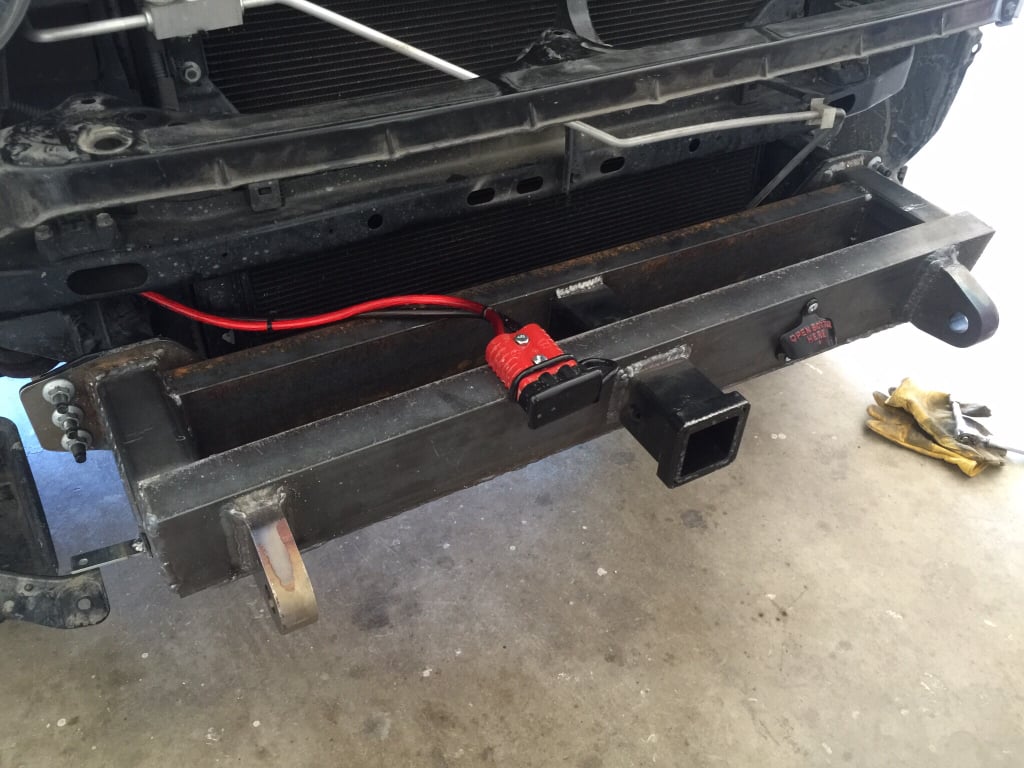

If you have, or know anyone with, a welder and skills you could make one. A friend and I spent about $150-200 in metal and parts and made one for my FJ Cruiser. I love the ability to move my winch to the back and easily rescue friends who get stuck on the trail behind me!
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
I do like that bumper, very nice FJ.If you have, or know anyone with, a welder and skills you could make one. A friend and I spent about $150-200 in metal and parts and made one for my FJ Cruiser. I love the ability to move my winch to the back and easily rescue friends who get stuck on the trail behind me!
Sent from my iPhone using Tapatalk
Enthusiast III
Thanks! It was a lot of fun making the bumper. I love a little creative challenge. ;-)
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Canyon_Cliff
Rank VI
Influencer I
- 3,364
- First Name
- Clifford
- Last Name
- Bennett
- Member #
-
3539
- Ham/GMRS Callsign
- KM6YHU
Hi there! Cliff here.

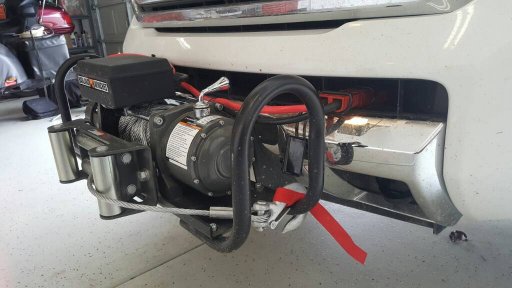

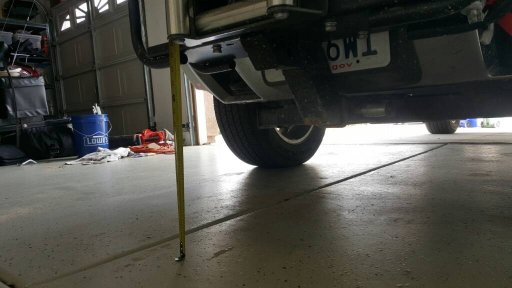

I added a Draw Tite front hitch to my truck to mount my winch. But it was too low, so I modified the winch mount by cutting off the hitch tube and welded it back onto the mount with 3/16 thick plates and raised it up 4 inches. Now the winch is 16 inches off the ground. I will be adding a 5 inch lift and larger tires to the truck as soon as I can afford to; then the winch will be 22 inches off the ground, which should be good.
After I run battery power to the rear of the truck, I will be able to use the winch at the rear.
Attached are some photos.
Good luck with your project.
View attachment 15586View attachment 15587View attachment 15588View attachment 15589View attachment 15590View attachment 15591
Sent from my SAMSUNG-SM-G920A using OB Talk mobile app
I added a Draw Tite front hitch to my truck to mount my winch. But it was too low, so I modified the winch mount by cutting off the hitch tube and welded it back onto the mount with 3/16 thick plates and raised it up 4 inches. Now the winch is 16 inches off the ground. I will be adding a 5 inch lift and larger tires to the truck as soon as I can afford to; then the winch will be 22 inches off the ground, which should be good.
After I run battery power to the rear of the truck, I will be able to use the winch at the rear.
Attached are some photos.
Good luck with your project.
View attachment 15586View attachment 15587View attachment 15588View attachment 15589View attachment 15590View attachment 15591
Sent from my SAMSUNG-SM-G920A using OB Talk mobile app
