I have been looking at fridge drop slides for my rig but what is available are pretty expensive and most of those would also have to ship from Australia so that adds to the cost. Have thought about trying to build my own but have limited fab tools and or experience. Anybody here have a drop slide for their fridge either purchased or DIY? Looking for ideas and input.

  • Like
Reactions: kaikandojo

Nomad

Rank III

Advocate II

626
going to fab my own cost for parts $20 bucks sliders/screws/plywood I have large enough bits kicking around....
I just dont see how these things go for $500 and up I just have to shake my head at people who would pay for it....

  • Like
Reactions: RavenRam

BEAR

Rank V
Founder 500
Member

Influencer II

2,335
Concord CA
Member #

0032

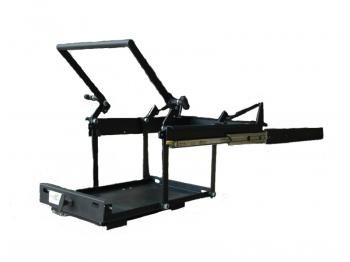

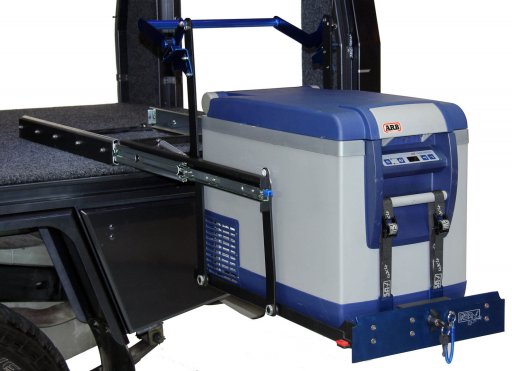

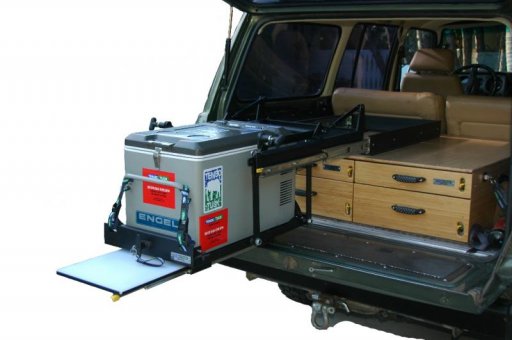

$1195. I'd buy one if it was cheaper because my drawers are too tall and I have a hard time opening the lid due to the hatch and reaching in. I took out one of my rear seats and put the fridge there but now I'm down a seat. With a new baby on the way and since its my daily driver I'm going to have to put the fridge in the back again. This slide makes it a lot more functional for set ups like mine. http://tembotusk.flyingcart.com/index.php?p=detail&pid=30&cat_id=


Attachments

Robert OB 33/48

Mid Europe Region Director
Founder 500
Member
Supporter

Pathfinder II

4,387
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Very expensive, think I could do for less, but not as beautiful.


MarkW

Rank V
Member

Advocate II

2,566
Member #

773

I have looked at the Tembo and the MSA, just can't justify the money they want. Maybe that will be my next project.


Magic Mike

US Full-time Member Rep
Member

Protector III

4,986
Auburn, CA, USA
First Name
Michael
Last Name
Lee
Member #

13728

Ham Callsign
KM6YKV
I have been looking at fridge drop slides for my rig but what is available are pretty expensive and most of those would also have to ship from Australia so that adds to the cost. Have thought about trying to build my own but have limited fab tools and or experience. Anybody here have a drop slide for their fridge either purchased or DIY? Looking for ideas and input.

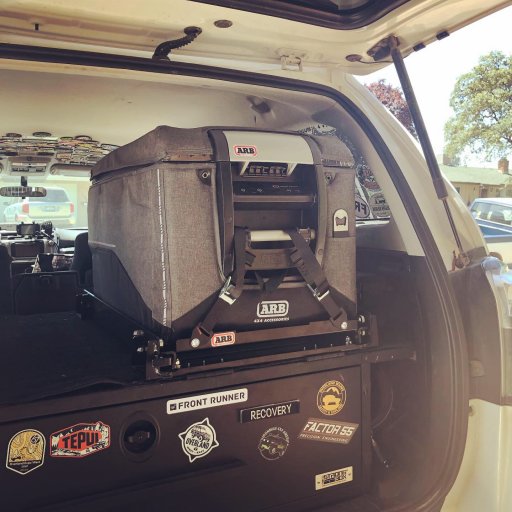

The wife an I purchased an ARB fridge, Slider and Transit bag at Overland Expo West, last year... What I didn't think about was how tall my drawer system was, so we looked at the Alucab tilt slide $500+, the Clearview drop slide $759.00 and the MSA drop slide $899.00.. Sorry as much as I liked the idea of getting something like this, I can't spend the money on it.

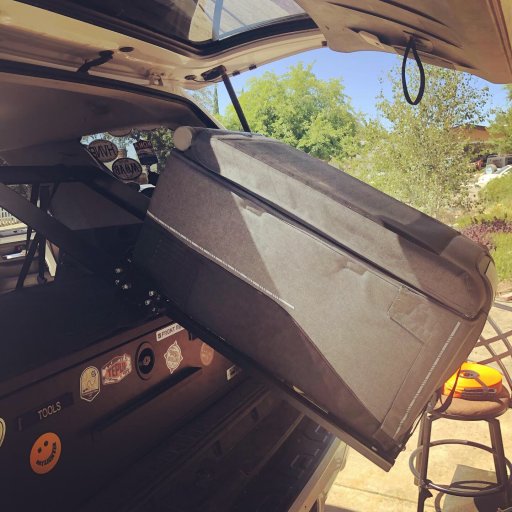

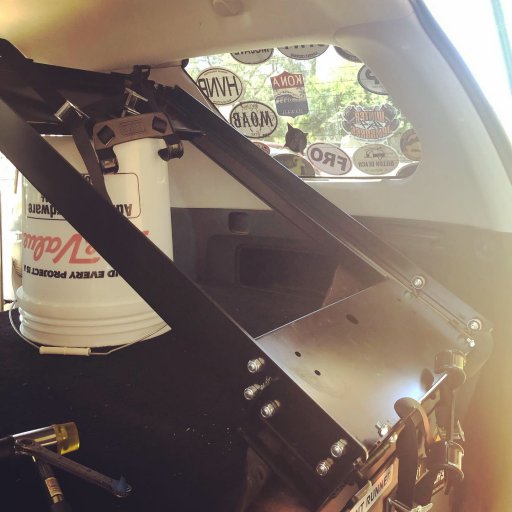

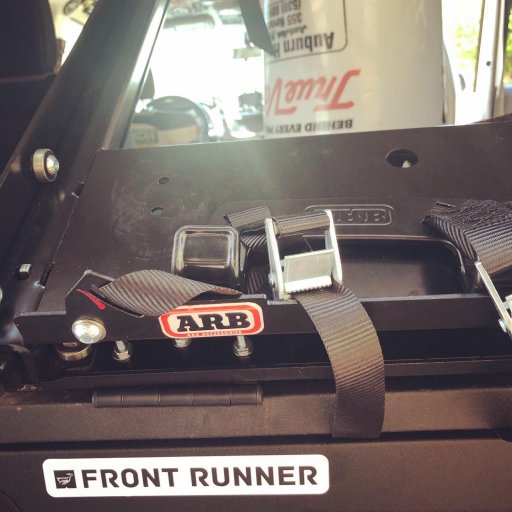

As I thought about it I figured alls I needed was a way to create a pivot point for the slider frame, a way to limit how far it tilted and away to keep the cords out of the way... Here is what I came up with:

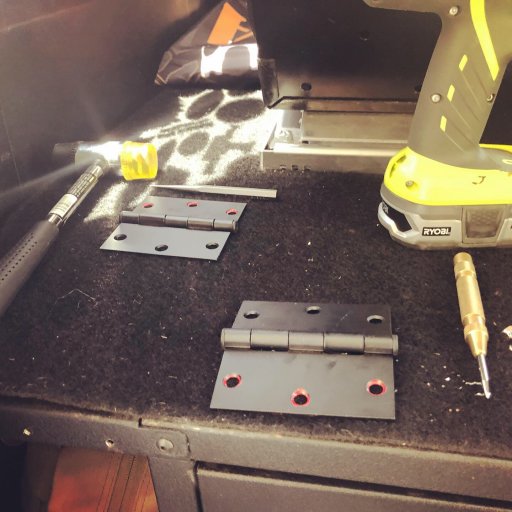

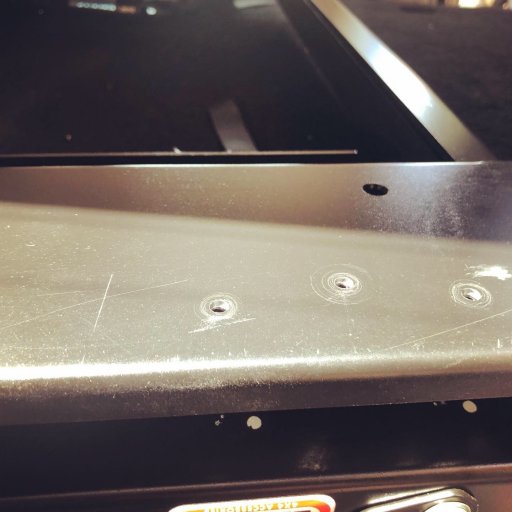

Home Depot HD hinges as a pivot point
A ratchets strap to limit how far it tilted
a simp retracting ID card holder to keep the cord out of the way.

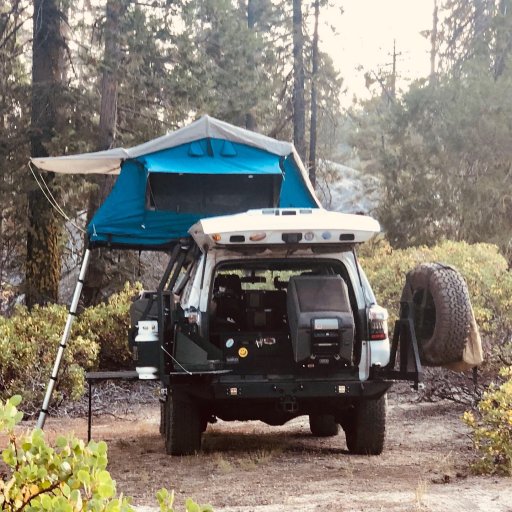

I've been running it this way for a long time, through about 20 trip and on some early trails and it has held up beautifully..

15B0ADB5-FFB8-4EBB-BBD5-76D1D278E6AE.jpeg87E5F7C0-FBB8-4E81-909D-33FF5999AC69.jpeg0B0EA807-B539-4241-8F6B-D8FBDA49DD46.jpeg382341BD-5B9D-44D3-BA43-258356EAD4F8.jpegB91763BD-5E20-44B3-A096-9D5134268C05.jpeg45AA24C1-E171-42E7-9BAC-9F234DDBF287.jpeg30994AD6-F9EB-4F82-817B-6A7908BBC51D.jpeg939CEF8B-FDAA-4D8F-8F21-659E43140E93.jpeg9D3AF44A-6C01-4B8F-96D7-83F6EDB9824F.jpeg


Attachments

MOAK

Rank V
Member

Member II

2,835
Wernersville, PA, USA
First Name
Donald
Last Name
Diehl
Member #

0745

The wife an I purchased an ARB fridge, Slider and Transit bag at Overland Expo West, last year... What I didn't think about was how tall my drawer system was, so we looked at the Alucab tilt slide $500+, the Clearview drop slide $759.00 and the MSA drop slide $899.00.. Sorry as much as I liked the idea of getting something like this, I can't spend the money on it.

As I thought about it I figured alls I needed was a way to create a pivot point for the slider frame, a way to limit how far it tilted and away to keep the cords out of the way... Here is what I came up with:

Home Depot HD hinges as a pivot point
A ratchets strap to limit how far it tilted
a simp retracting ID card holder to keep the cord out of the way.

I've been running it this way for a long time, through about 20 trip and on some early trails and it has held up beautifully..

View attachment 158101View attachment 158103View attachment 158104View attachment 158105View attachment 158106View attachment 158107View attachment 158110View attachment 158113View attachment 158112
Nice job. I believe Alu-cab stole your idea. We have the 63qt ARB and the profile is low enough that I can get in and out of it without having to tilt it. But your idea is spot on. I’ll copy it if you don’t mind if I ever decide ours is too high

  • Like
Reactions: Magic Mike

Magic Mike

US Full-time Member Rep
Member

Protector III

4,986
Auburn, CA, USA
First Name
Michael
Last Name
Lee
Member #

13728

Ham Callsign
KM6YKV
Nice job. I believe Alu-cab stole your idea. We have the 63qt ARB and the profile is low enough that I can get in and out of it without having to tilt it. But your idea is spot on. I’ll copy it if you don’t mind if I ever decide ours is too high
Absolutely, feel free. Oh and thanks for the compliment.
