Finally got some time to complete this project.

1. Picked up a dual led light bar off Amazon, just a bit more than 25" long
3 lightbar.jpg
2. With the included mount brackets plus some additional hardware, I was able to mount the light bar just behind the upper part of the grille
8 loosely mount the bracket.jpg
11 bar mounted front.jpg

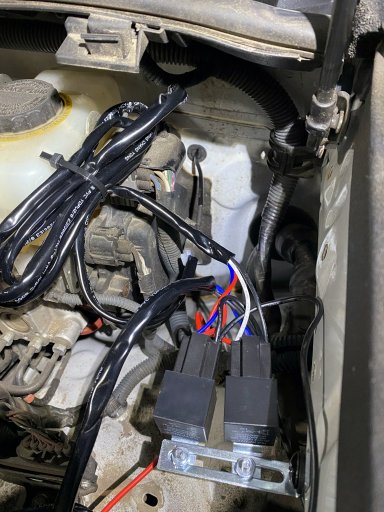

3. Mounted the two relays to the inner fender and zip tied the wiring harness
15 tidy up cables.jpg
4. Final result!
16 final both.jpg
