I drew up a little mounting tab. these will be used with the 80/20 extrusion on the rack(s), to help secure zip ties for bundling future wiring for both my roof rack and the bed rack.

they will be laser cut from 18 gauge (.040) Aluminum

View attachment 124619

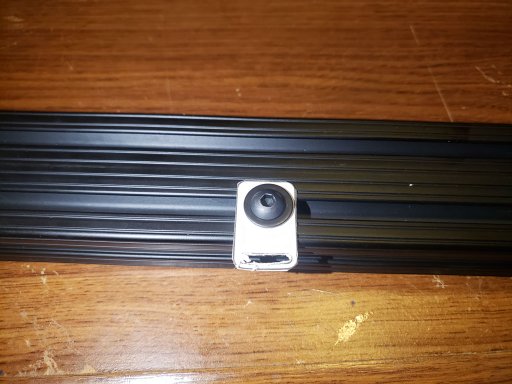

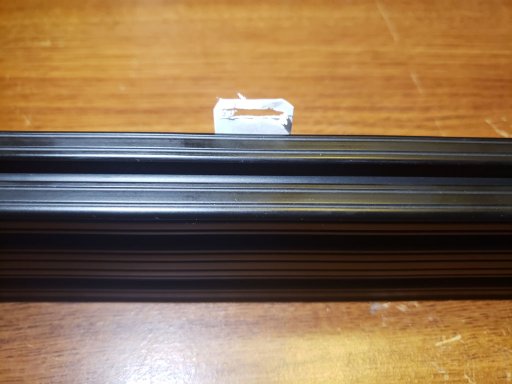

Did a rough cardboard mockup of the zip tie tabs. but this should give a general idea of how it will look once the aluminum version comes back from the laser cutter


View attachment 124625

View attachment 124623

View attachment 124624

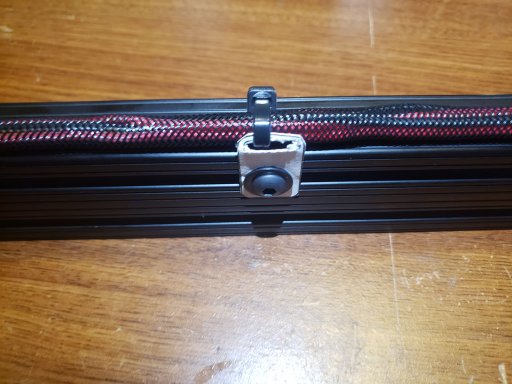

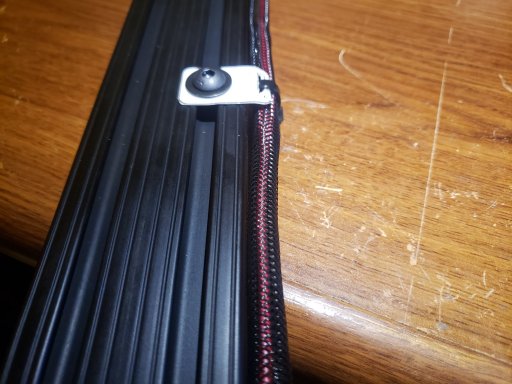

and with a bundle of 6 16g wires in a braided sleeve.

View attachment 124620

View attachment 124621

View attachment 124622



[Luinil Explorations]

Nice solution.



[PapaDave]

Very clean, I like it!



[Pyrotech]

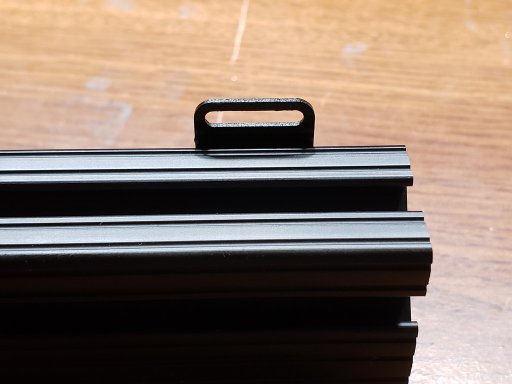

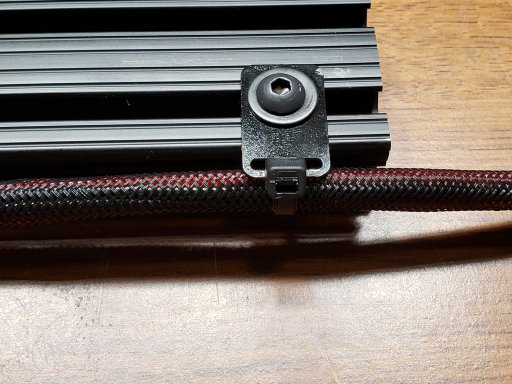

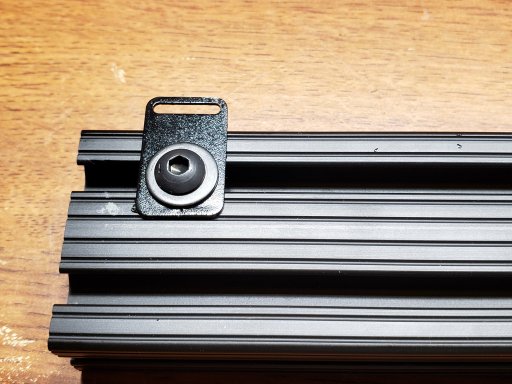

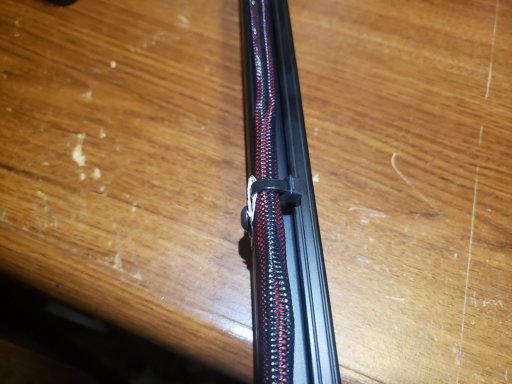

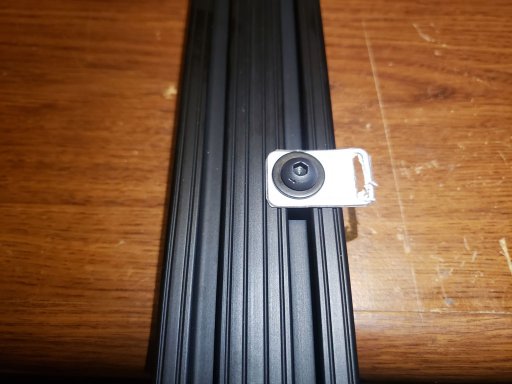

Finished tabs arrived today..

I painted a few for short term use until I can get the rest powder coated..
