FYI Elementary Wiring Diagram

DignTRDoffRoad

Rank III
Launch Member

Member III

703
Alabama
Member #

14450

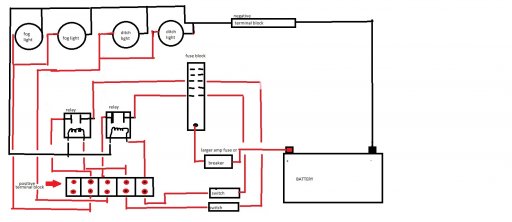

Don't have fancy drawing programs, just messing around with painter, might help someone who's interested, there are different ways to put together a schematic this is just a simple one liner. Black line is negative, Red line is positive. I would suggest using small fuses for your switches, say 5amp or so and larger fuses for the load side of your relay, and that all depends, Volts x amps = watts and fuse accordingly. and also wiring and relay should equal or exceed the total amps, preferably exceed just to be safe.

View attachment 70323
