Super heavy duty offroad camper / overland trailer.
Brand new.
Design:
TUB:
Heavy duty steel frame utilizing 3”T x 2”W .120 wall mild steel rectangular tubing, tongue section has 3”x3” - .120 mild steel square tubing.
720 Degree Awning
Dometi CFX3 55IM Refrigerator
Tongue Box and Electronics
Previously inspected.
Clear title
Only used once on a checkout ride.
This thing can go anywhere.
No lowball offers. I do not need to sell this at a loss.
$11,500
Brand new.
Design:
TUB:

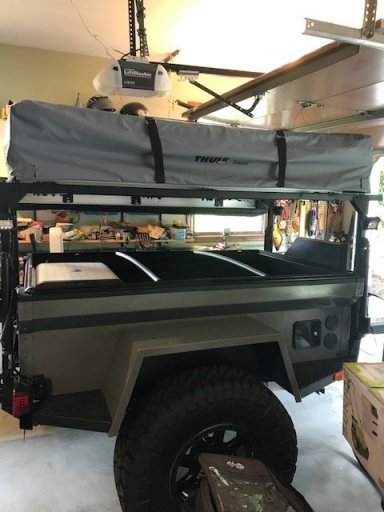

- Dinoot M416 Tub kit from Compact Camping Concepts.
- 4x6
- Jeep style tailgate with cables.
- Marine ¾” plywood floor.
- Exterior primed and painted with automotive grade paint and clear coat.
- Frame, underside of fenders, inside of tub, and exposed exterior metal finished with two coats of Raptor bedliner.
- All metal prepped with Xylene, Prep & Ready, 2 coats of POR-15, 2 coats of chassis black and 2 coats of raptor badliner.
- Fiberglass prepped with 220 grit block sanding until no shine left, cleaned with Xylene, sprayed with adhesion promoter, automotive paint, and automotive grade clear.
Heavy duty steel frame utilizing 3”T x 2”W .120 wall mild steel rectangular tubing, tongue section has 3”x3” - .120 mild steel square tubing.
- Extended tongue and frame up front to accommodate a utility box on top.
- 2” Receiver in back for bike rack
- Welded frame includes side steps.
- 31” leaf springs
- Heavy duty shocks
- Steel, telescoping frame for the roof top tent. Four linear actuators on each corner which raise/lower the tent and rack.
- LED brake/turn/marker lights.
- 3500 lb axle, 5 x 5 bolt pattern hubs.
- Axle mounted under springs to accommodate 35” tires.

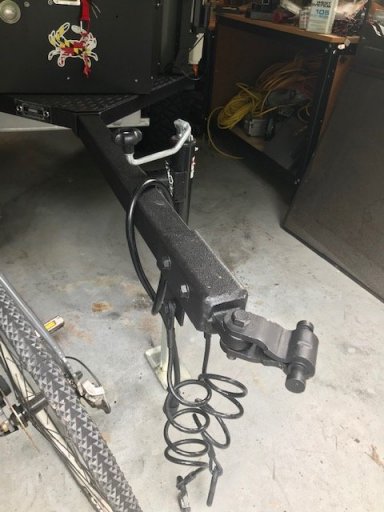

- Lock'N'Roll 3-axis coupler
- Rear stabilizers
- Tongue jack
- Nitto Ridge Grappler 35x12.5 R17 tires.
- Fuel Trophy 17x8.5 wheels
- Oversize steel trailer fenders for the 35” tires

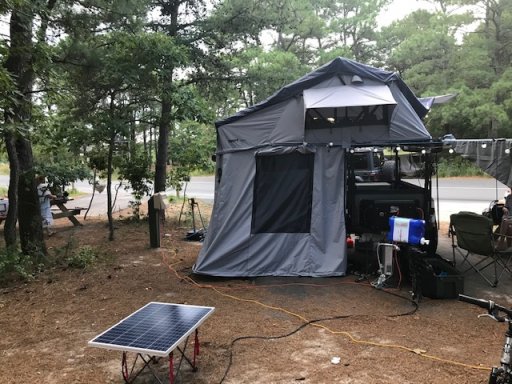

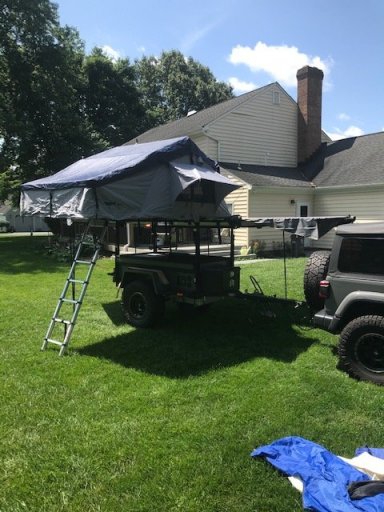

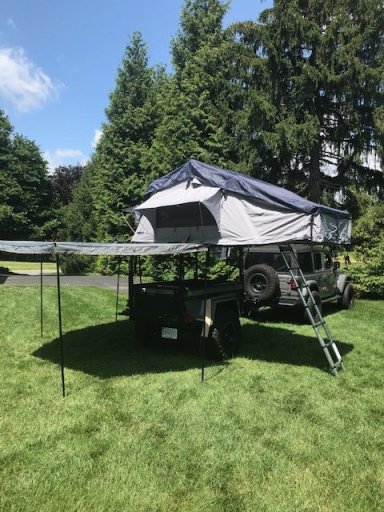

- Tepui Autana 4 person roof top tent.
- Can accommodate up to four people
- Includes an extended private canopy entrance with removable annex and floor.
- Constructed from coated 600 denier and a 260g poly-cotton blend made to withstand the elements of any season
- Tent fabric is both UV and mold resistant to withstand the elements of any season
- Mesh panels offer plenty of ventilation and open for more airflow
- Four, large internal pockets for storing gear and camping accessories
- Includes a high-density foam mattress for added comfort
- Sleeping capacity 4 person
- Dimensions (Open) 122 x 72 x 52 in
- Dimensions (Closed) 48 x 72 x 12 in
- Sleeping footprint 96 x 72 in

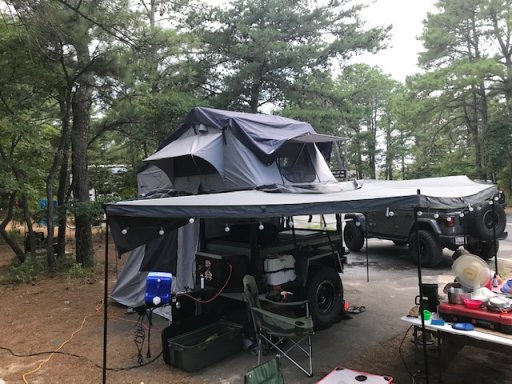

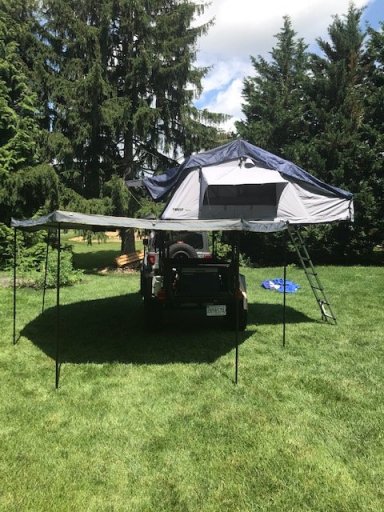

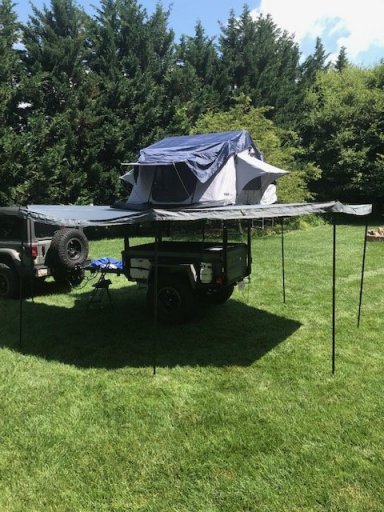

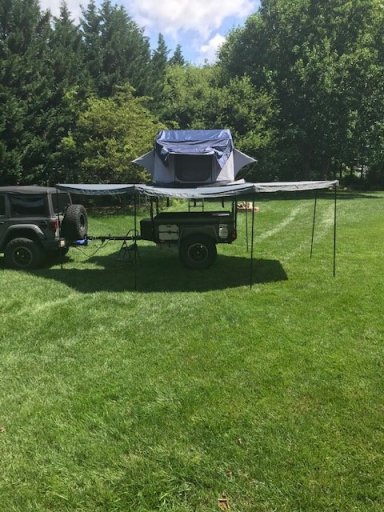

720 Degree Awning

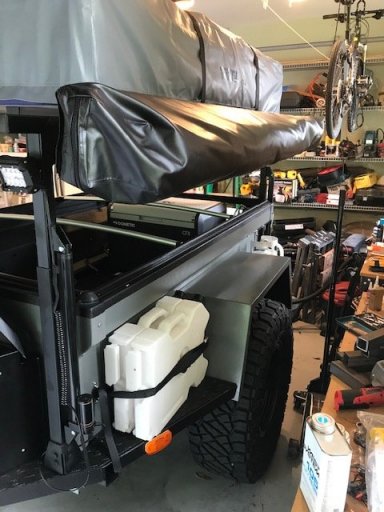

- Overland Vehicle Systems Nomadic 720 degree awning
- 129 Square Feet of Freestanding Covered Shelter
- 600D Poly Cotton Rip-Stop Cover
- Boxed Aluminum Rafters
- Pivoting Aluminum Adjustable Poles
- Tie Down Points for Securing Poles and Water Run Off
- 1000G PVC Travel Cover With #10 Zipper
- Ballistic Nylon Tie Downs With S Connects and Buckle
- Shock Cord With Retention
- Zippers To Secure Enclosed Shelter
- Heavy Duty Oversized Stakes
- Opened: 240" x 157" x 88.5" Closed: 88” x 7” x 6”

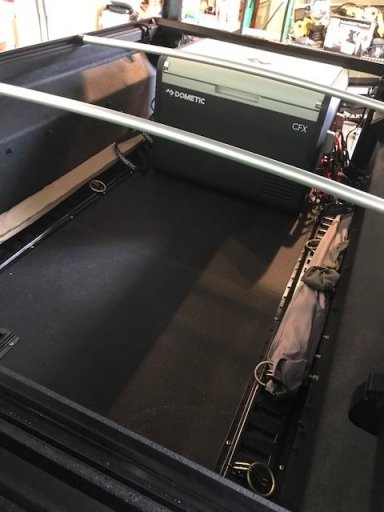

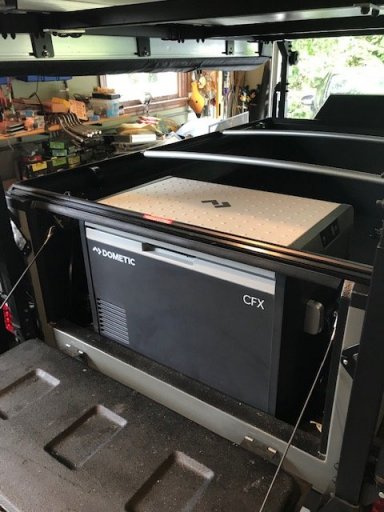

Dometi CFX3 55IM Refrigerator
- Storage capacity of 53L to fit 83 cans
- Rapid Freeze Plate produces ice in a matter of hours
- Refrigerates and deep-freezes to –7 °F
- Input voltage (AC): 120 V
- Input voltage (DC): 12/24 V
- Energy Consumption 12VDC (Ambient@90F, Internal@39F): 1.11 Ah/h
- Temperature Range: -7°F to +50°F
- USB Port: 5V, 2A
- Connectivity: Bluetooth, WiFi

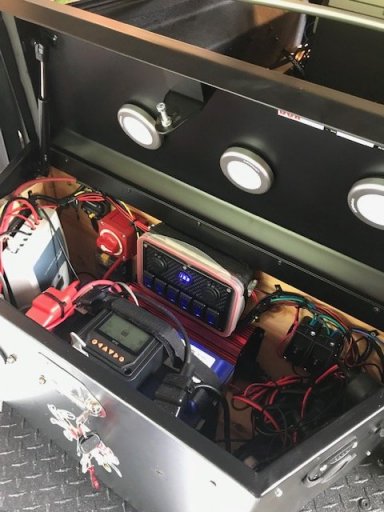

Tongue Box and Electronics
- Aluminum tongue box with LED lighting for electronics
- Battleborn Lithium iron phosphate, 100 amp-hour battery
- Main circuit breaker
- Battery monitor
- USB charge ports and 12v outlets
- AC battery charger with exterior inlet for AC
- 1500 watt pure sine wave inverter for on board AC
- Fuse panel for individual circuits
- Switch panel for individual circuits
- 100 watt monocrystalline solar panel to charge the lithium iron phosphate batter
- Multi Point Power Tracking solar charge controller
- Heavy gauge wiring used throughout, taped, soldered, wire looms, and exterior tape covering.
- Backup lights, license plate light
- Turn signals, brake lights, side marker lights and reflectors.
- Tongue box and steps mounted on diamond plate aluminum
- LED flood lights on each corner of rack, off road lights triple row waterproof spot flood combo beam LED cubes
- Exterior 5 gallon propane tank
- 2 Rotopax water cans
- 4 undermounted red/green/blue/white LED lights with Bluetooth control
- 2, 11 gallon tanks for board fresh water
- Water pump and accumulator
- Exterior ports for hose hookups (1 input and 2 output)
- Coiled Safety cables
- Adjustable height Lock'nRoll off-road coupler
- Tonneau Cover
- 7 way trailer plug
- Two E Track tie-down rails, powder-coated steel
- Power distribution box in the rear with USB, 12v DC, and 110v AC power
Previously inspected.
Clear title
Only used once on a checkout ride.
This thing can go anywhere.
No lowball offers. I do not need to sell this at a loss.
$11,500
