I'll be planning on getting an air compressor for my rig in the 4th quarter of 2016. Anyone have suggestions on what to look for, or experiences with the products or install?


Rig- 2010 Xterra

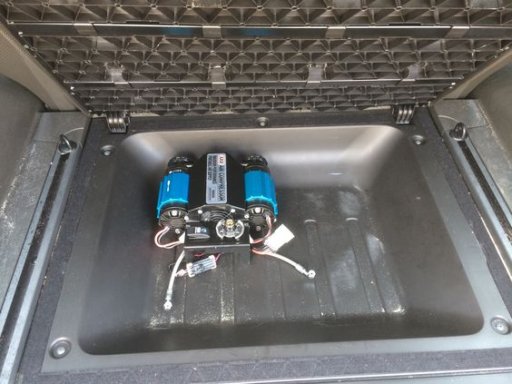

So it's time to start doing some research on set up design and specifics. After a minute or three of using my Google-fu skills, I have the idea to mount the compressor inside the SUV trunk 'hidden' area. (Photo was a random one I found on pintrest)

I would also like to mount air duct lines under the body, this way I can connect air lines in front and rear as needed for use.
I haven't looked into mounting the air tank, but I presume I can find somewhere under the body I can find a safe place to tuck it away.

Any experiences or suggestions for the gang?


Attachments

Mad Garden Gnome

Rank V
Member

Off-Road Ranger I

2,771
Templeton, Ca
First Name
Ryan
Last Name
Marlett
Member #

661

Ham Callsign
W6ORV
What is the experience with airflow requirements for cooling the head of the compressor when mounted in the "basement"?

I see things getting hot.

:openmouth:


4xFar Adventures

Rank VI
Founder 500
Member

Benefactor

4,826
San Francisco,CA
First Name
Brenton
Last Name
Corns
Member #

0070

That "basement" is not a good place to mount any compressor, unless you plan to unload your gear and open the hatch everytime you want to run it.

These compressors are designed to intake a sizable volume of air so you want as much open space around it. This is why the mounting location is key. You need a place that won't get covered by gear, is bolted in place, and yet easily accessible. Ideally, the intake/surrounding air would be as cool as possible, so avoid the engine bay whenever possible. Or remember to raise the hood when you run the compressor.

If you're dead set on that location, you'll need to run some sort of intake line that is suitable for the needs of the compressor. If you want to run line to the front and rear (assuming from the location in the picture), an air intake line should be pretty straight forward. But, there's still lack of ventilation and it seems like another location may be your best bet.

If there's no other mounting location, consider getting a mobile kit. Most of the bigger manufacturers these days sell one that comes with the compressor, cables, hose, gauge, etc. all in a kit that stores pretty well. They cost a bit more, but might be cheaper in the end if there's no viable permanent mounting point.


chacon.jmc

Rank V
Member

Pathfinder I

1,431
Corte Madera, California 94925, United States
First Name
J
Last Name
C
Member #

1502

I recently went through the same decision and research. I looked at building and on board air system with a 2-5 gallon tank and it just didn't seem convenient enough. So I went with the portable dual arb with the 1 gallon storage since I know myself and will eventually get a different vehicle. I don't like to have many permanent mods that are not easily reversible.


Overland-Indiana

Overland Bound - Midwest Regional Ambassador
Member

Influencer II

3,316
Kokomo
Member #

0750

I run a portable ViAir 400P compressor. Been very happy with it! It has been through 3 different rigs and performed flawlessly from 29.5in tires up to 33's.


Maxterra

Rank V
Founder 500
Member

Pathfinder I

1,798
West Haven, Utah
Member #

0366

On my 06' xterra, with a rear tire carrier bumper, I had a ton of space up under the back, so I installed my Viair Ultra 200psi compressor up in front of the bumper, as high as I could mount the compressor, and a 2.5 gal tank in front of that. Compressor intake line & filter is behind the LH tail light, up out of the water.
No problems with this over 2 years of use now. Air chuck in the rear bumper for the air hose. Line ran to the front for the front locker and air horn. Might add a second air chuck up there too at some point.







OldH1

Rank V
Member

Advocate III

1,774
Saint Simons Island GA
Member #

1570

I would look into using Nitrogen vs. Compressor. The Power Tank (powertank.com) will handle large tires and on the larger tank can run air wrenches while still having plenty remaining to air up.


Mad Garden Gnome

Rank V
Member

Off-Road Ranger I

2,771
Templeton, Ca
First Name
Ryan
Last Name
Marlett
Member #

661

Ham Callsign
W6ORV
On my 06' xterra, with a rear tire carrier bumper, I had a ton of space up under the back, so I installed my Viair Ultra 200psi compressor up in front of the bumper, as high as I could mount the compressor, and a 2.5 gal tank in front of that. Compressor intake line & filter is behind the LH tail light, up out of the water.
No problems with this over 2 years of use now. Air chuck in the rear bumper for the air hose. Line ran to the front for the front locker and air horn. Might add a second air chuck up there too at some point.





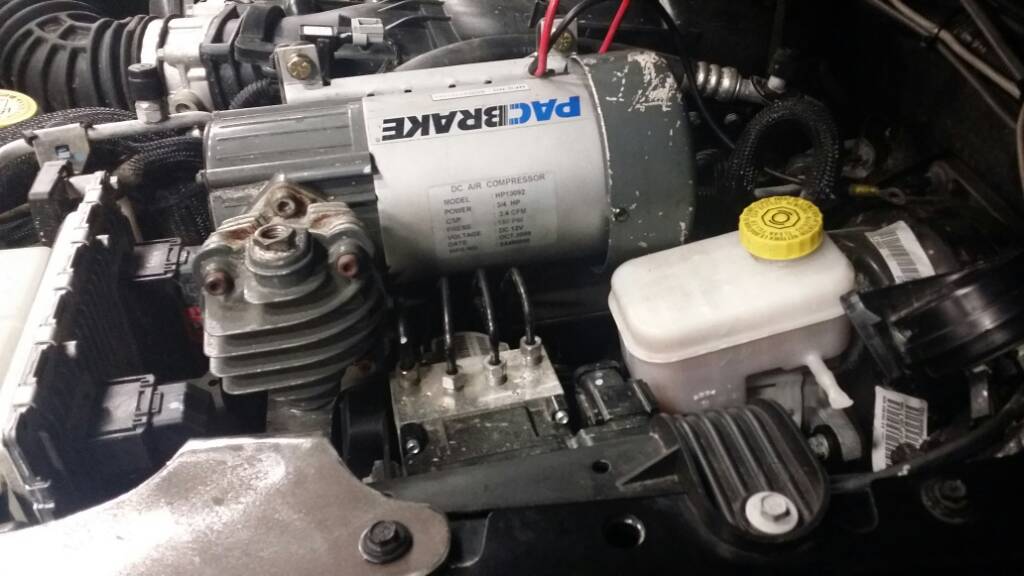

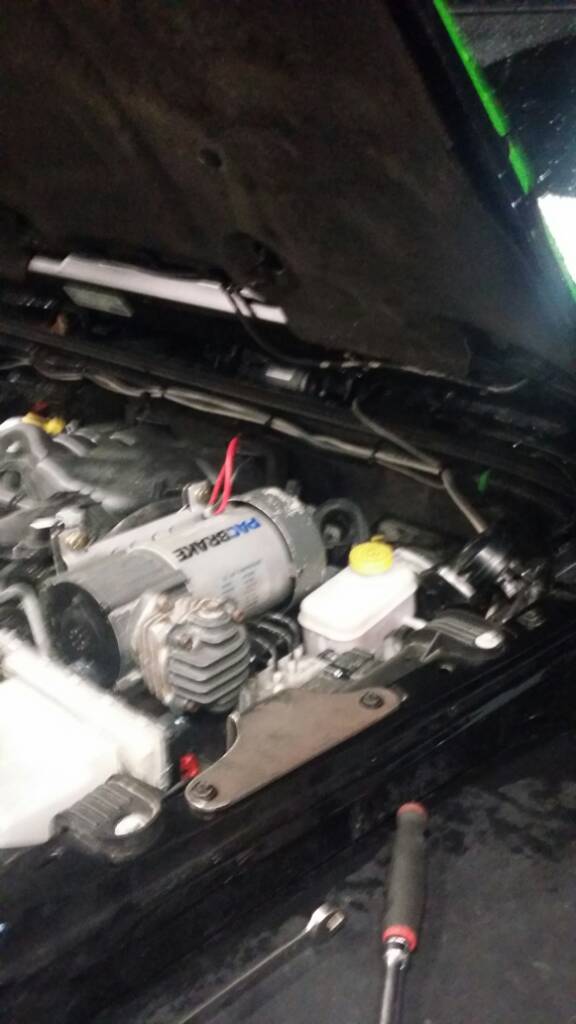

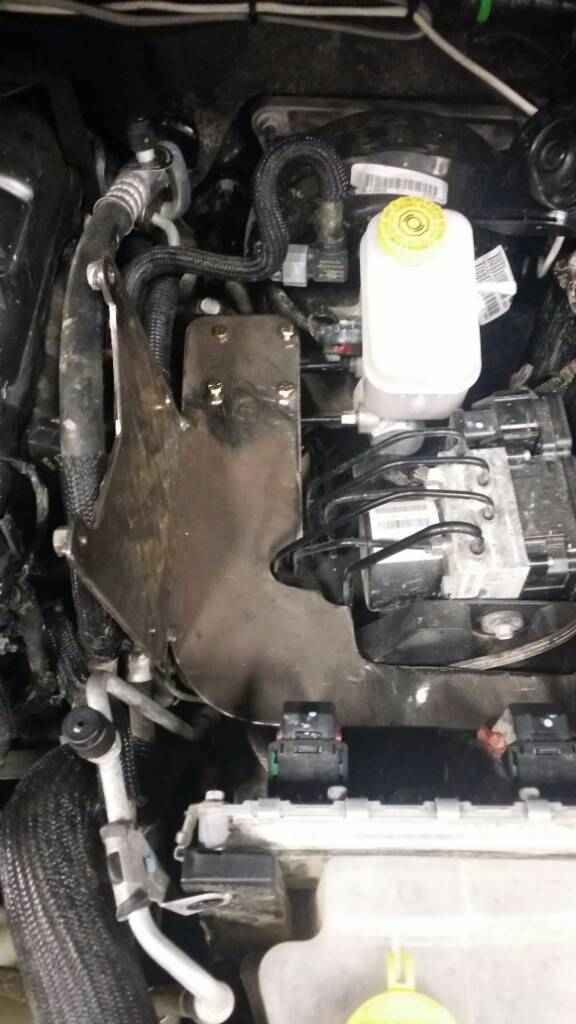

Yeeeeeezzz

My air tank is integrated into my rear bumper. The pump will mount there too.

J

Jonovision

Guest

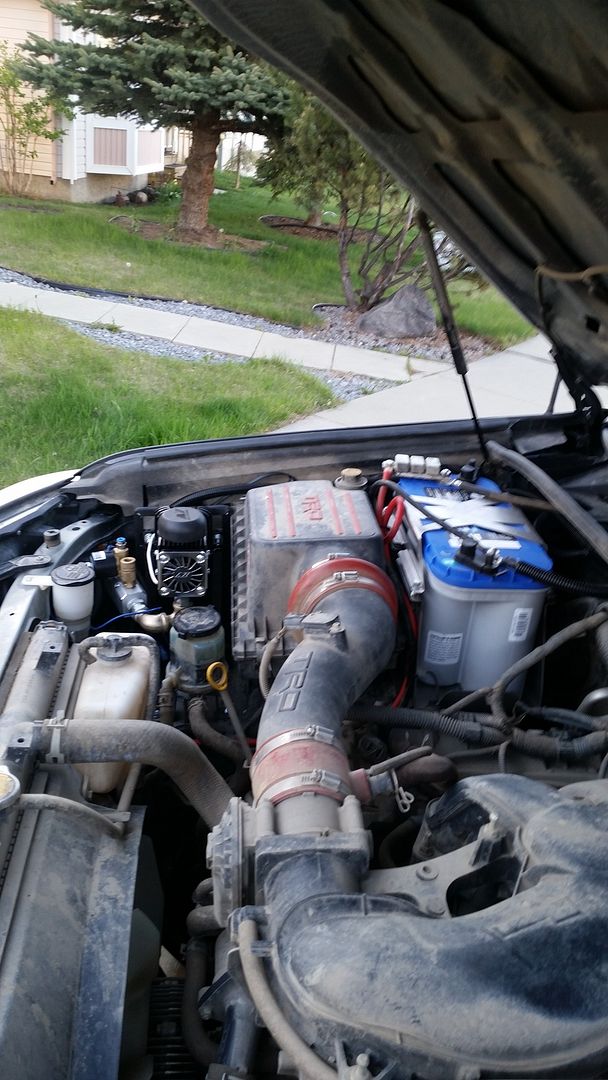

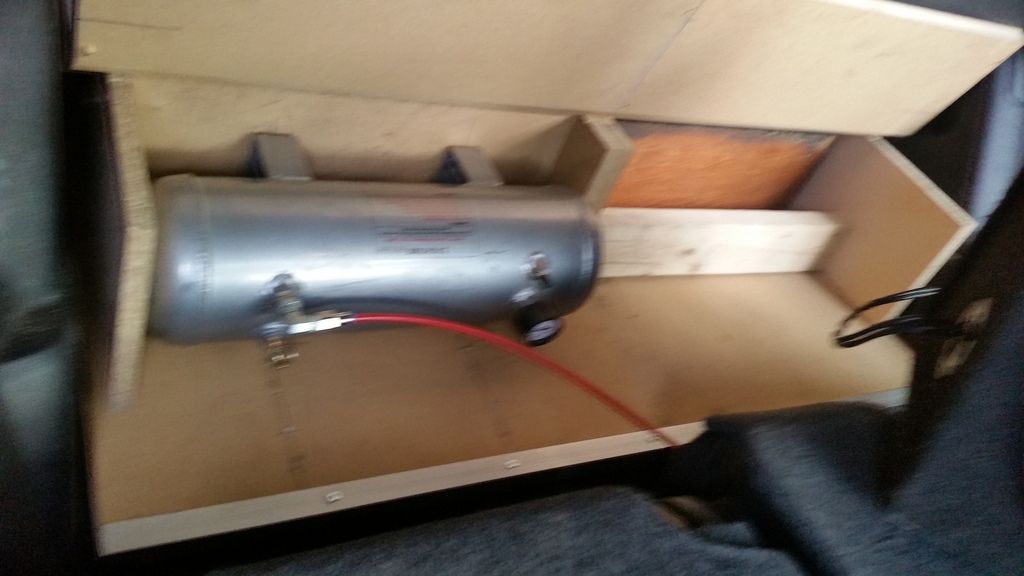

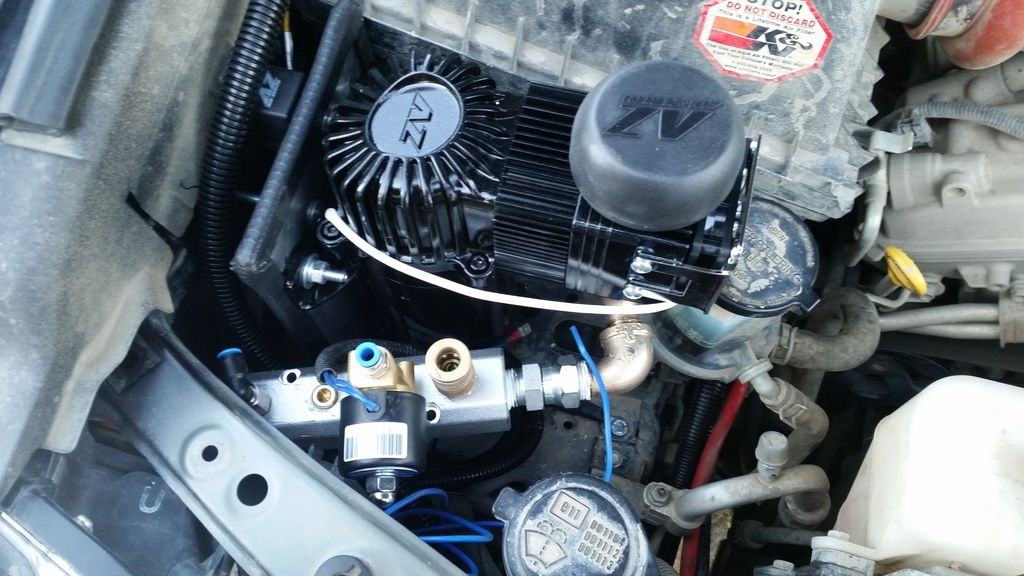

I have an Air Zenith OB2 under the hood and a 2 gal tank in the back integrated into my drawers. the compressor was a little on the spendy side, but it is fast, rated to 200 psi, and rebuildable

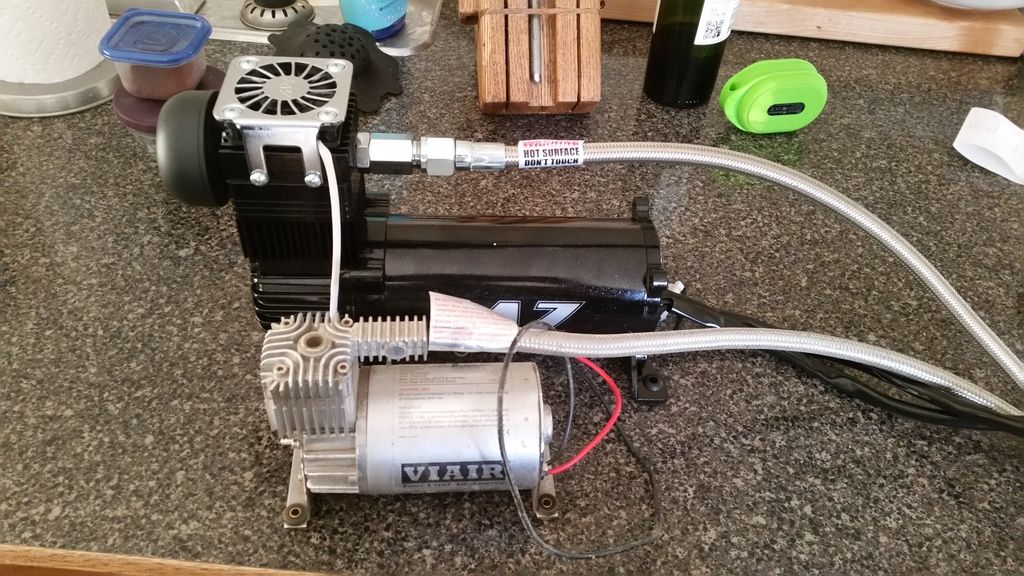

next to my old 275c for scale

  • Like
Reactions: Pippinized
E

expeditionnorth

Guest
I have the MF1050 & last weekend after 5 years of very little use I think its on its last leg
I say get an ARB if you have the funds


VCeXpedition

Rank V
Member

Off-Road Ranger I

2,932
Torrance, L.A., Cal., Earth
First Name
Dan
Last Name
Rich
Member #

0582

Ham Callsign
K6DHR
If you haven't happened upon the Puma compressor, search around for that. It's a larger unit, one version includes a 1.5 gal tank. I'm transitioning from a smittybilt compressor to the Puma. Hope to have a write-up soon. Pretty big install change.

  • Like
Reactions: shoredreamer

shoredreamer

Rank V
Member

Off-Road Ranger I

2,339
Santa Cruz
First Name
Chris
Last Name
Rodriguez
Member #

2117

Ham Callsign
KM6AZV
I kept it pretty simple since I just need air to fill tires.

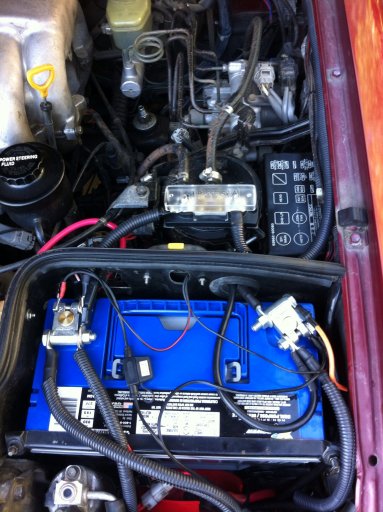

I just hard wired my Smittybilt compressor and mounted it in the rear on a LCP mount. The Smitty has worked surprisingly well and kept up with my buddies' ARB duals at trails end, I just hated digging it out and popping the hood to connect it. I used Anderson SB50 connectors in the back and ran 4awg all the way to the battery fused with a 100A Maxifuse. I can always take it out if need be or upgrade it very easily with just a few mounting bolts and new SB50 disconnect. I tend to build pretty low impact with flexibility in mind I've noticed. image.jpeg image.jpeg


Michael

Rank VII
Staff member
Founder 500
Member

Pioneer I

7,970
Dublin, CA
First Name
Michael
Last Name
Murguia
Member #

0000

Ham Callsign
KM6YSL
I recently went through the same decision and research. I looked at building and on board air system with a 2-5 gallon tank and it just didn't seem convenient enough. So I went with the portable dual arb with the 1 gallon storage since I know myself and will eventually get a different vehicle. I don't like to have many permanent mods that are not easily reversible.

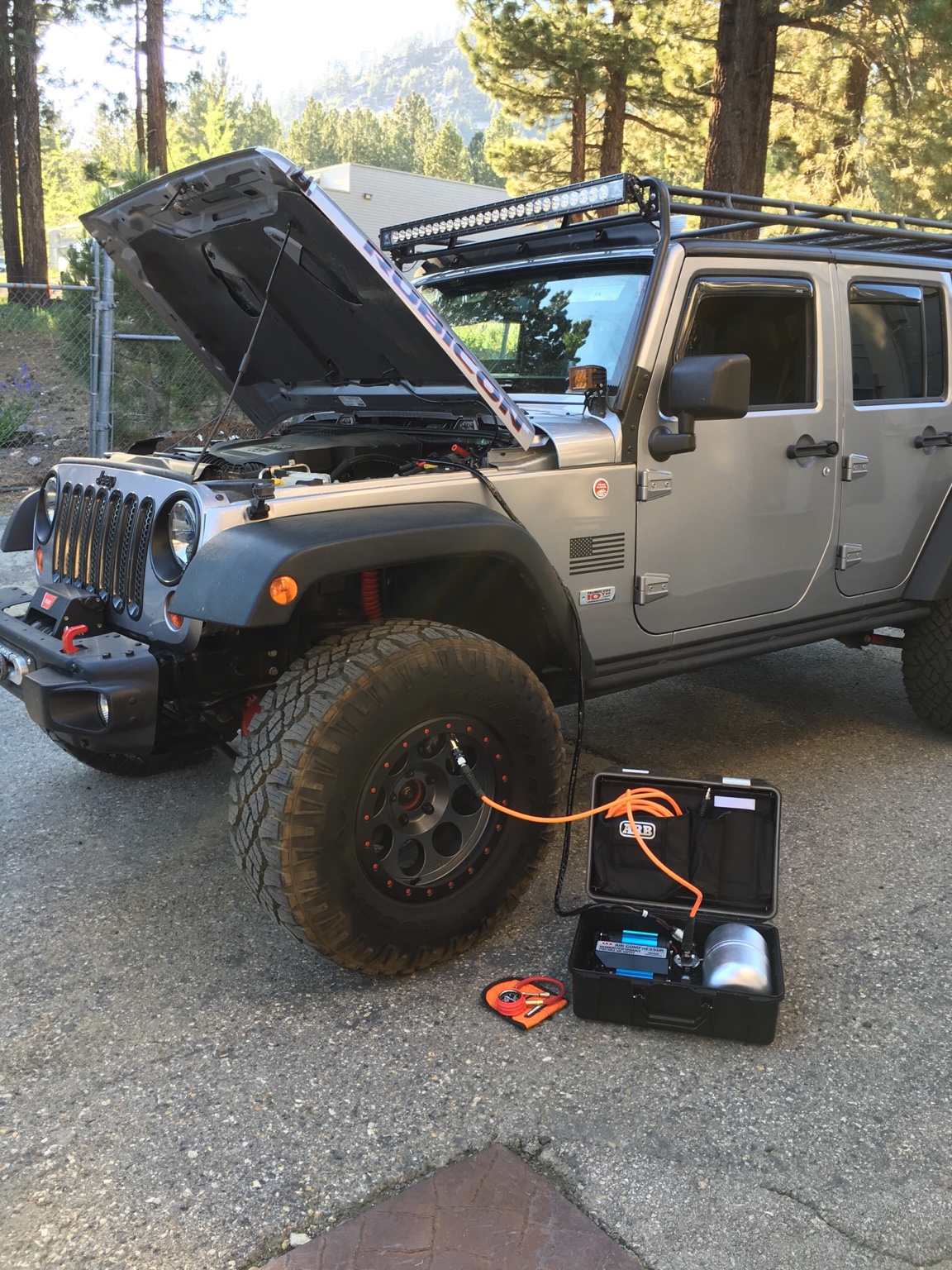

Hi @chacon.jmc ! I am going to publish an article about air compressors and CO2 Air written by @Disco2Guy (with credit of course!) and I LOVE this picture. Do you mind if I use it for the cover?
