toyota factory diff lock mod

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

Jet_Pack_Jesus

Rank IV
Member

Contributor III

1,184
Bremerton, WA
Member #

5242

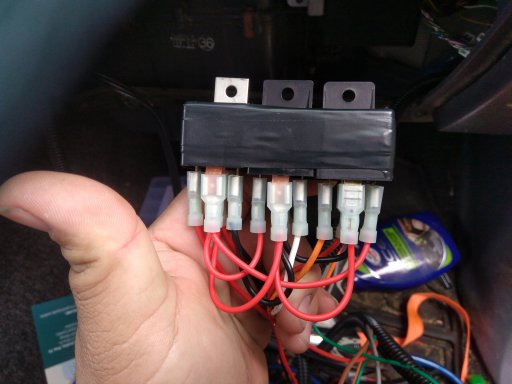

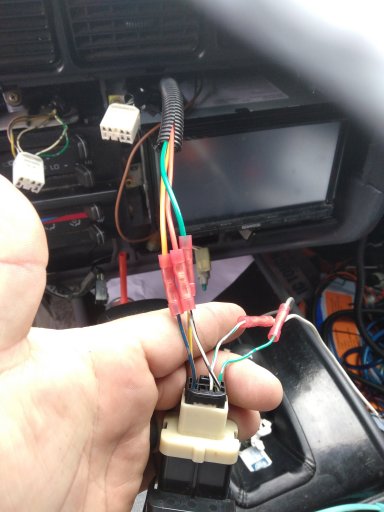

Hey guys I put factory lockers in my 91 fj80. These trucks have curved dashes so I did not want to use some after market switch. I found a factory rear defog switch on ebay that fits the curved dash winning. it took 3 relays and some brain power. Then I got it working here are a few pic feel free to ask any questions for more detailed info. The wire colors in the diagram are from a harness I made not factory colors. The best part is i don't need to be in 4 low to make it work and I can choose to lock the front and rear independently from each other. instead of locking the rear then front. this mod was fairly easy and took me about 2 hours to complete after working out the wiring diagram. IMG_20170518_092850347.jpg IMG_20170518_092824200.jpg IMG_20170518_092937978.jpg IMG_20170518_092920018.jpg IMG_20170518_092828842.jpg


Jet_Pack_Jesus

Rank IV
Member

Contributor III

1,184
Bremerton, WA
Member #

5242

Yep thanks it was the only thing I could think of that was cheaper then the center diff lock switch. Those are like 80 bucks on eBay for one
