Hello all just picked this up today. I am going to build out for moderate off road travel. I’m looking for advice, opinions, ideas and technical assistance from the OB community.

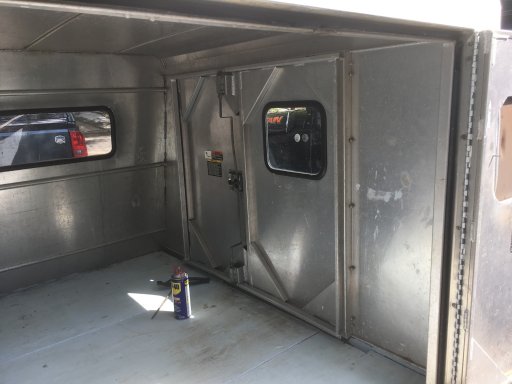

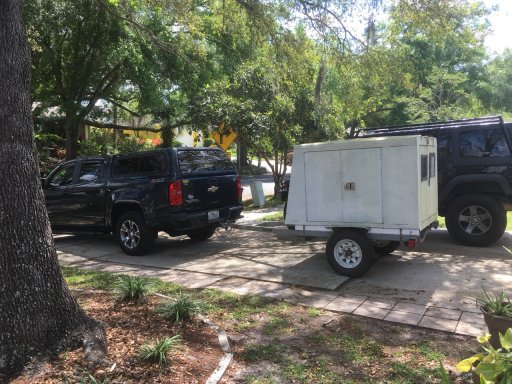

Here are the first day pics.
Dimensions of trailer 10’3” hitch to back
Box size:63” long x 50” wide x 43” tall
Trailer width is 60” outside tires

  • Like
Reactions: Jku Ben

Farmjeepwrangler

Rank VI
Member

Enthusiast I

3,443
Brandon
Member #

11914

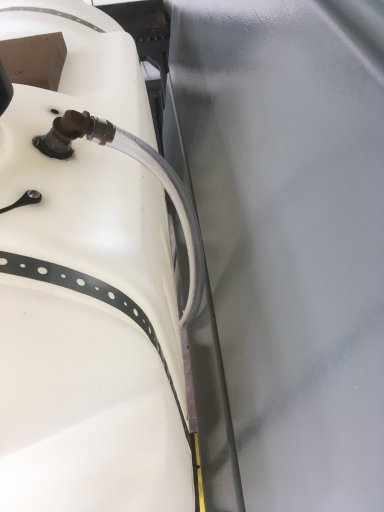

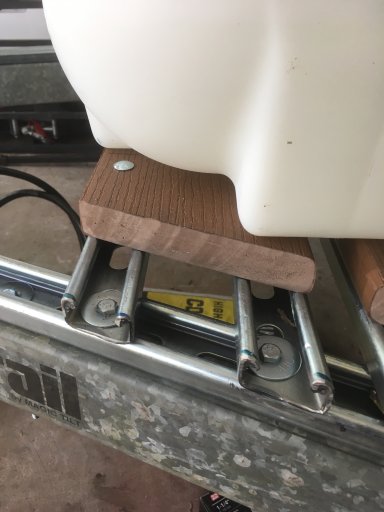

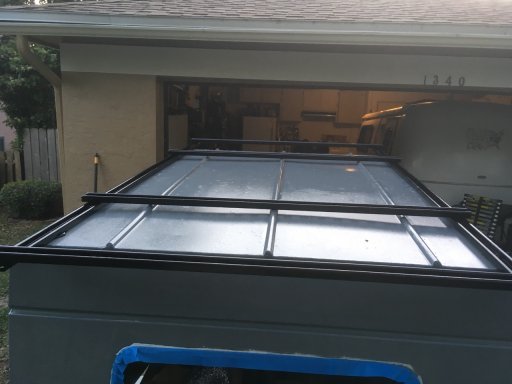

Day two: roof rack that fits kampright cot tent perfectly. First coat of paint. Purchased 26 gallon water tank and 7 blade trailer connection to charge battery bank while driving. To be continued....


Farmjeepwrangler

Rank VI
Member

Enthusiast I

3,443
Brandon
Member #

11914

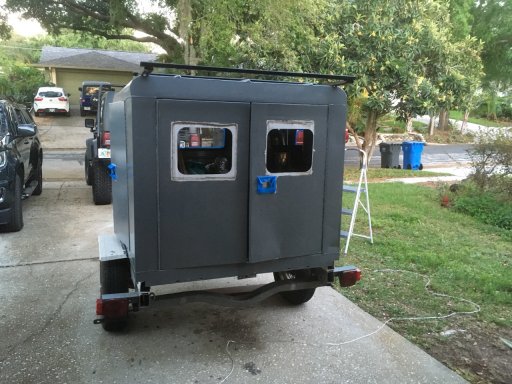

Day 4-5:
Welded a ladder

And finished paintingIMG_0047.JPG

Now waiting on amazon to deliver:
RV water pump
Fuse box
Solar charger
DC to DC converter
1000 Watt inverter

Last edited:

Farmjeepwrangler

Rank VI
Member

Enthusiast I

3,443
Brandon
Member #

11914

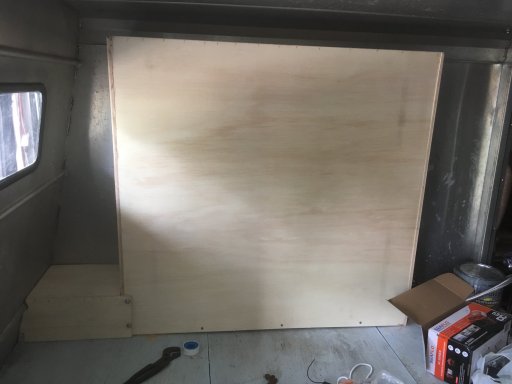

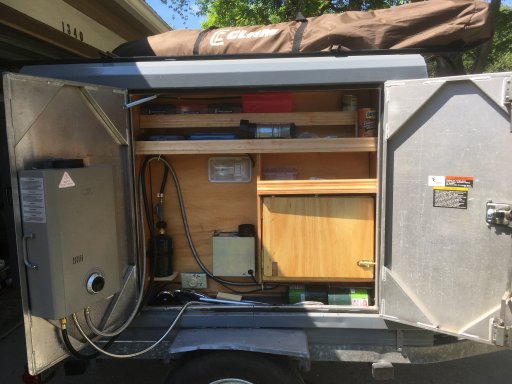

Day 7: Started to build the kitchen:IMG_0047.JPGview from outside.

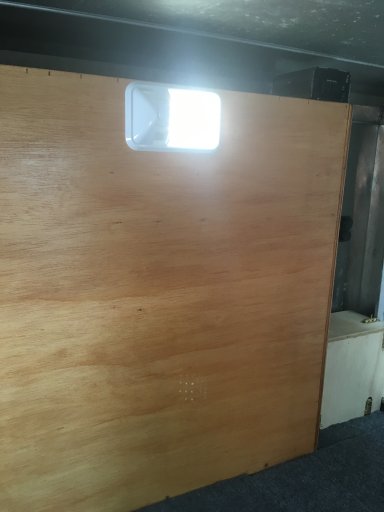

Inside view. The lower left is the box where the water pump is located.

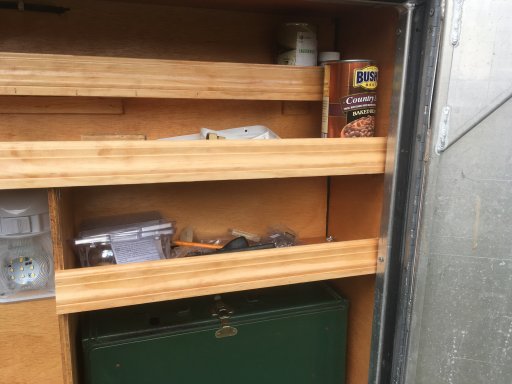

Looking for ideas of how to lay out shelves/drawers. Something to store; stove, spices, dry goods, 1# propane tanks,utensils, pans.


Farmjeepwrangler

Rank VI
Member

Enthusiast I

3,443
Brandon
Member #

11914

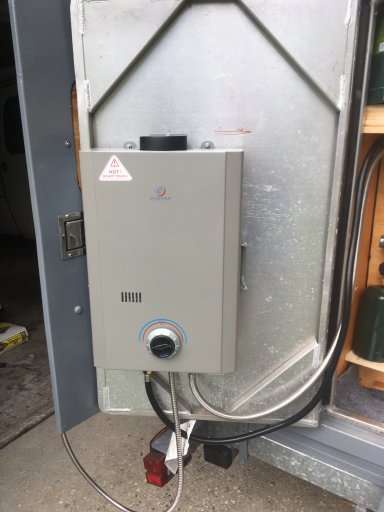

Day: 11-12IMG_0047.JPG
Almost done with kitchen
IMG_0047.JPGused spring as door stays.IMG_0047.JPG

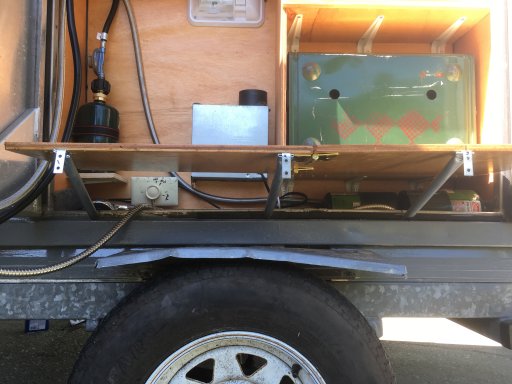

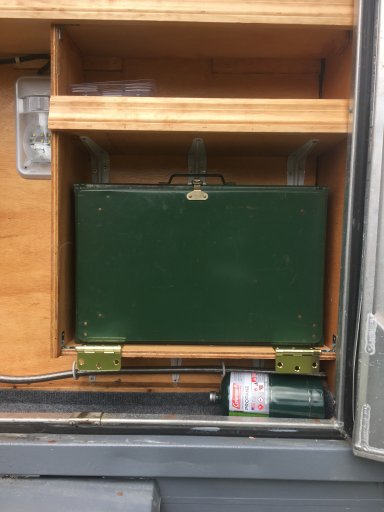

Fold out stove table and work area.
My first attempt at graphics.
