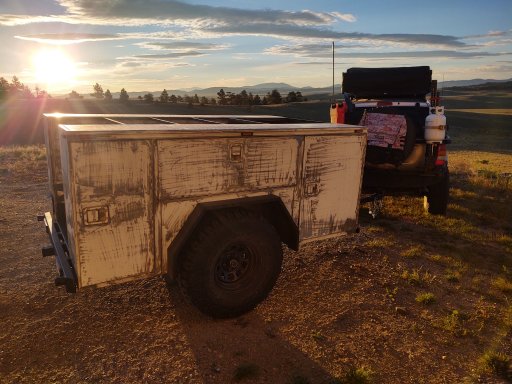

Hello, thought I would share a build I have been working on for about 10 months.

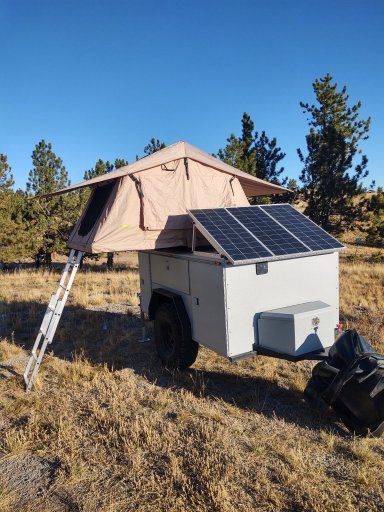

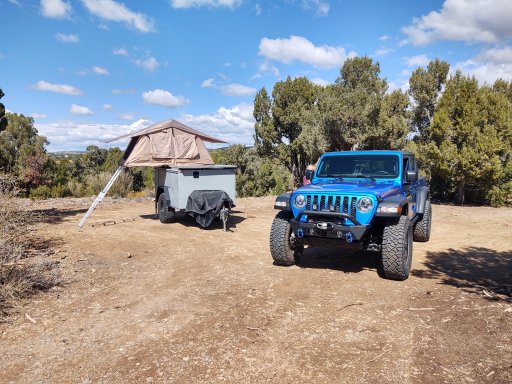

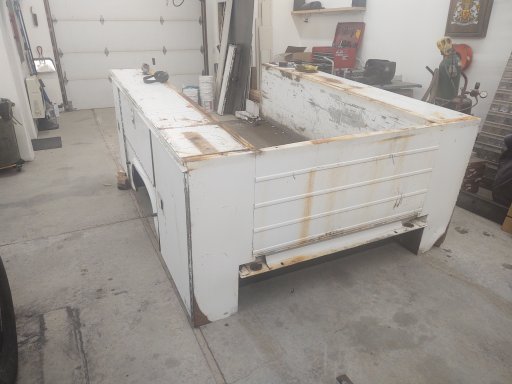

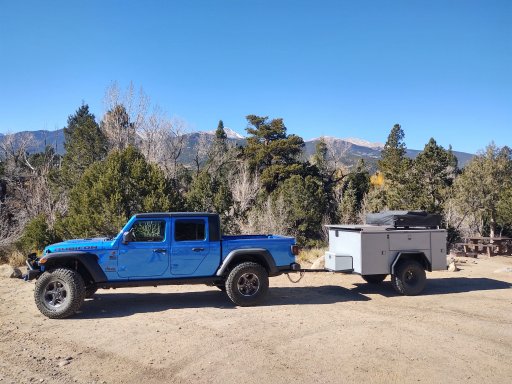

Started life as a 8' service bed . Currently includes RTT, 300 watts solar, 200 amp/hrs battery storage, 1000 watt inverter, 25 gallons water, on demand hot water heater, sink, shower, 20 lbs propane/manifold distribution system, under trailer LED lights, cabinet LED lights, leveling jacks, timbren axles with 35" tires. Rear receiver hitch.
I will post pics of the build up til now.
Thanks.


Attachments

WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

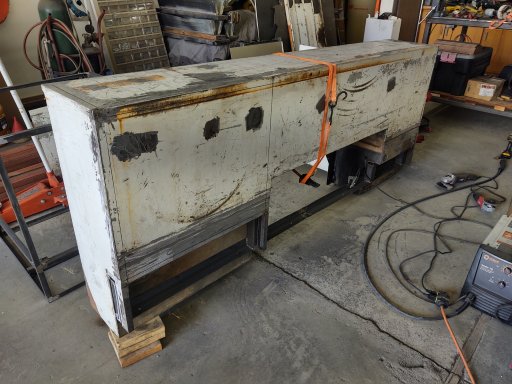

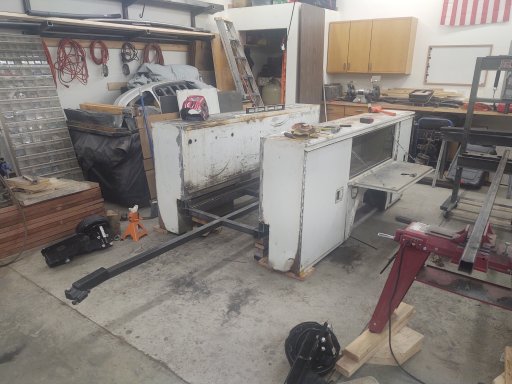

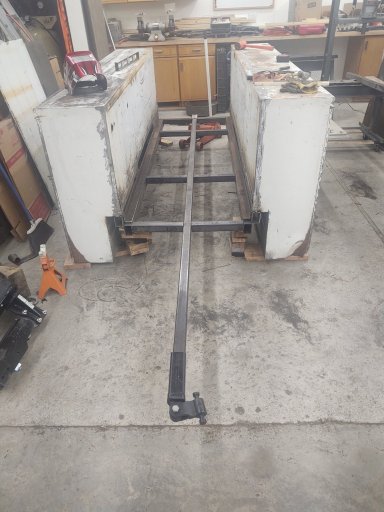

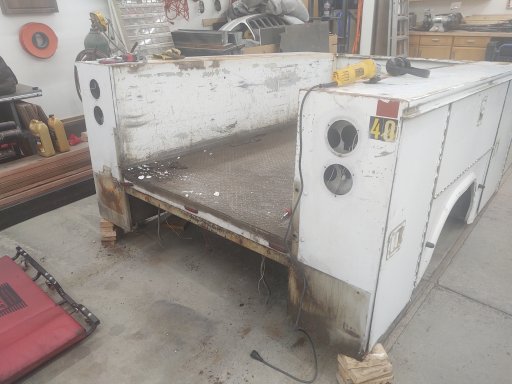

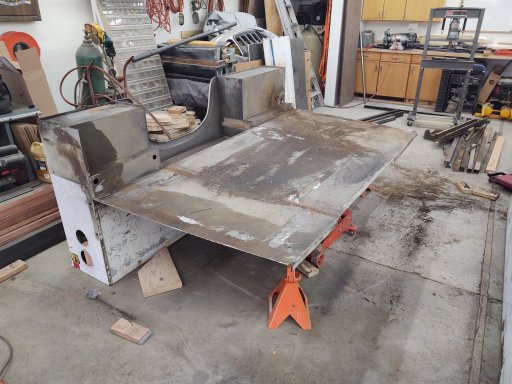

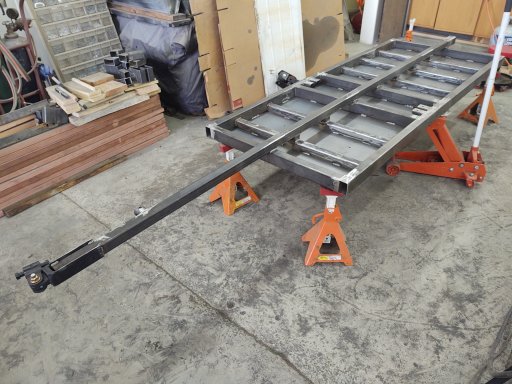

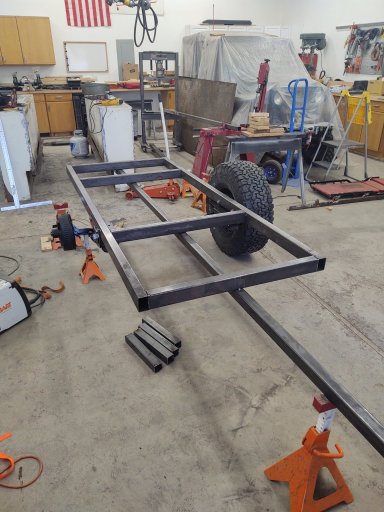

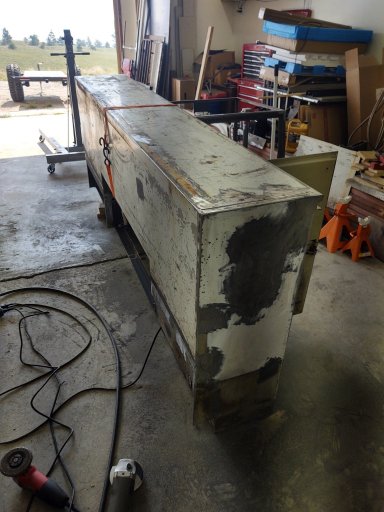

Dismantled the service bed in order to make it narrower. Frame is 2x2 with spine all the way through for a receiver hitch in the rear.


Attachments

trail_runn4r

US Rocky Mtn. Local Expert. Colorado: Denver Area
Member

Pathfinder III

4,815
Denver, CO, USA
First Name
Carlo
Last Name
Donzelli
Member #

16845

Hello, thought I would share a build I have been working on for about 10 months.
Started life as a 8' service bed . Currently includes RTT, 300 watts solar, 200 amp/hrs battery storage, 1000 watt inverter, 25 gallons water, on demand hot water heater, sink, shower, 20 lbs propane/manifold distribution system, under trailer LED lights, cabinet LED lights, leveling jacks, timbren axles with 35" tires. Rear receiver hitch.
I will post pics of the build up til now.
Thanks.
Such a great idea! thanks for sharing the process with us!

  • Like
Reactions: WJ Overland

WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

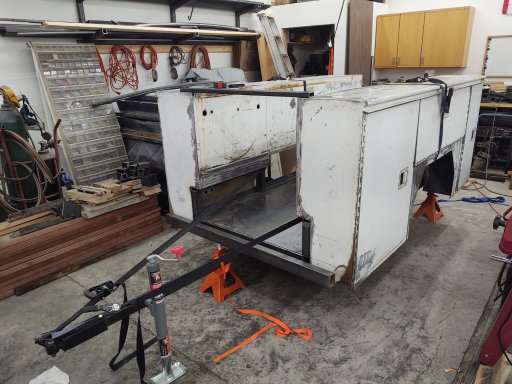

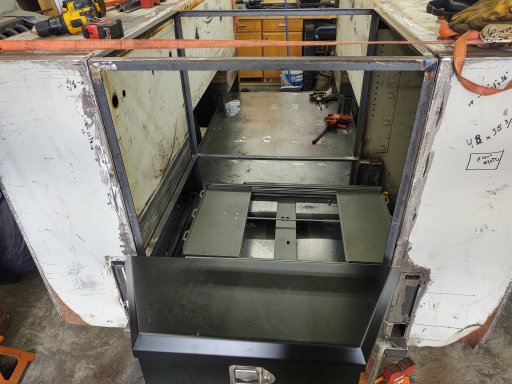

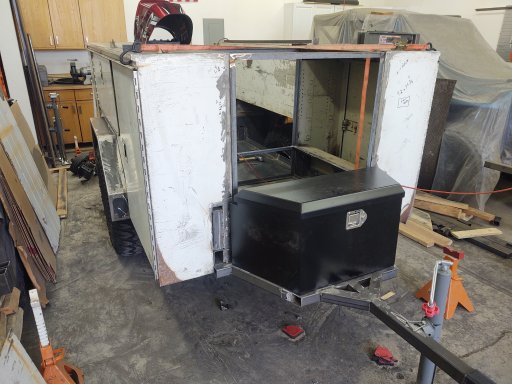

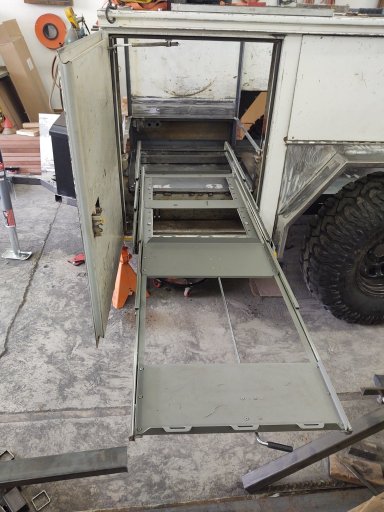

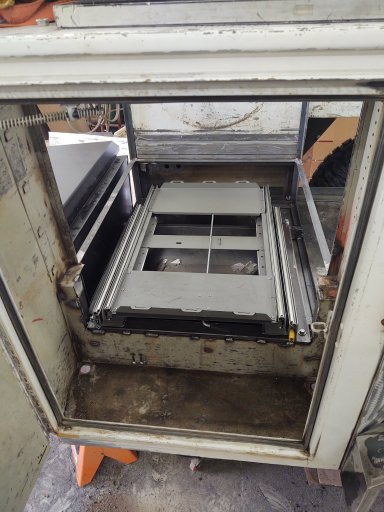

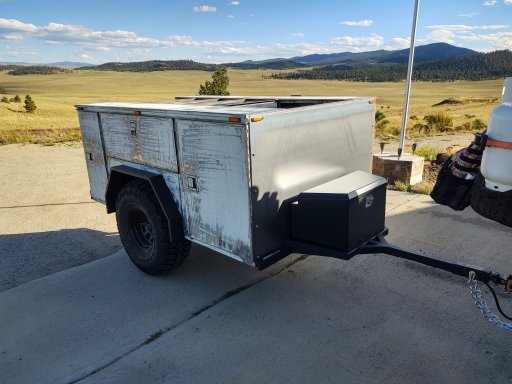

Cut out the wheel wells, built fenders and installed tongue box for solar chargers and battery. Needed to figure out a double slide to get the Iceco refrigerator to mount all the way in the back and slide out far enough to be able to open the lids. Took a bit, but has handled the refrig and weight good.


Attachments

Billiebob

Rank V
Launch Member

Member III

2,835
earth
First Name
Bill
Last Name
William
Member #

18893

Nice build.
The cross box tray is impressive.

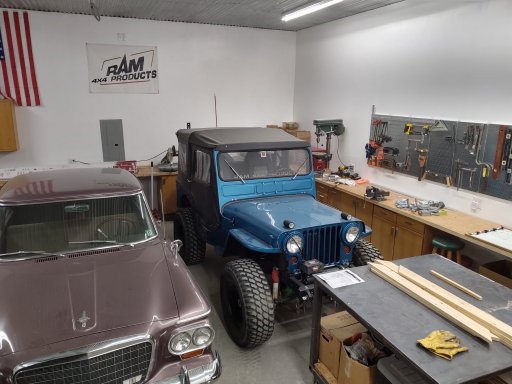

Now need some pics of the CJ3....

  • Like
Reactions: WJ Overland

WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

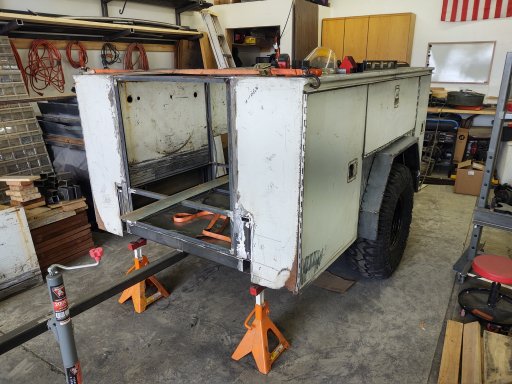

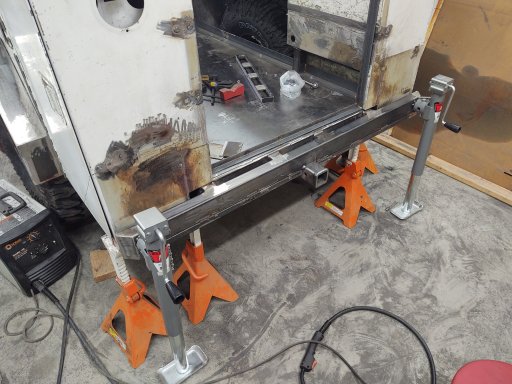

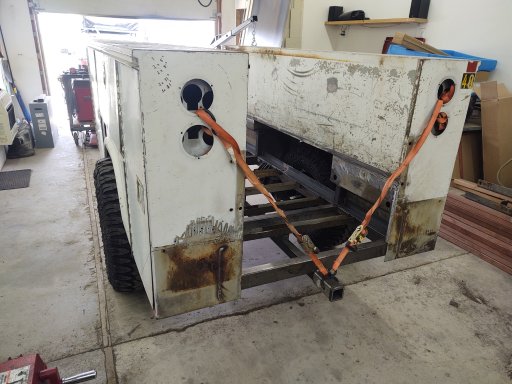

Added rear bumper and 2"receiver. Receiver is the main spine of the frame that connects the tow vehicle to the rear receiver. Also time to start filling holes including the original rear turn/brake lights.


Attachments

North American Sojourner

Rank VI
Member

Influencer I

3,240
Mid-Missouri, MO, USA
First Name
Dave
Last Name
Zimmer
Member #

30139

Service Branch
USN (ret)
Hello, thought I would share a build I have been working on for about 10 months.
Started life as a 8' service bed . Currently includes RTT, 300 watts solar, 200 amp/hrs battery storage, 1000 watt inverter, 25 gallons water, on demand hot water heater, sink, shower, 20 lbs propane/manifold distribution system, under trailer LED lights, cabinet LED lights, leveling jacks, timbren axles with 35" tires. Rear receiver hitch.
I will post pics of the build up til now.
Thanks.
Epic build. I'm thinking of making a trailer for my Tacoma shell I made to sit on. I'll have to do some widening and other dance arounds but your's is a inspiration.
Thanks for sharing'
Zim

  • Like
Reactions: WJ Overland

WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

Hello, thought I would share a build I have been working on for about 10 months.
Started life as a 8' service bed . Currently includes RTT, 300 watts solar, 200 amp/hrs battery storage, 1000 watt inverter, 25 gallons water, on demand hot water heater, sink, shower, 20 lbs propane/manifold distribution system, under trailer LED lights, cabinet LED lights, leveling jacks, timbren axles with 35" tires. Rear receiver hitch.
I will post pics of the build up til now.
Thanks.
Epic build. I'm thinking of making a trailer for my Tacoma shell I made to sit on. I'll have to do some widening and other dance arounds but your's is a inspiration.
Thanks for sharing'
Zim
Thank you. It has been a fun and fulfilling project.


WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

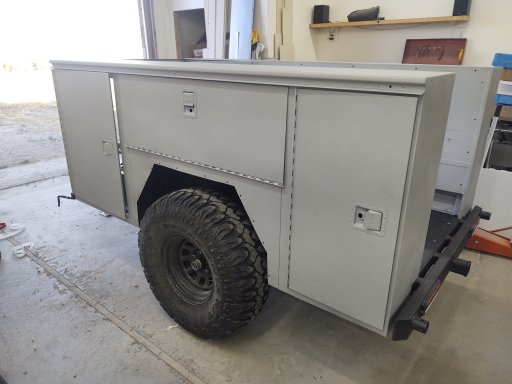

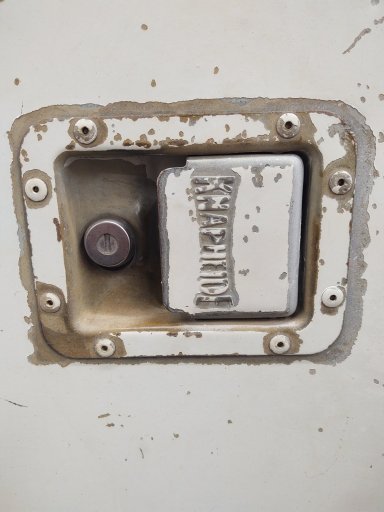

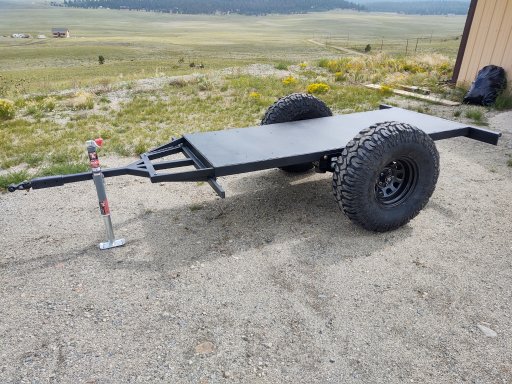

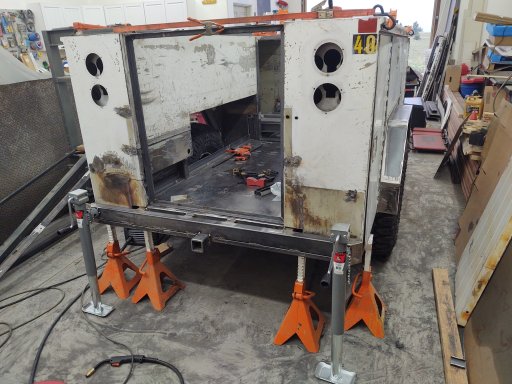

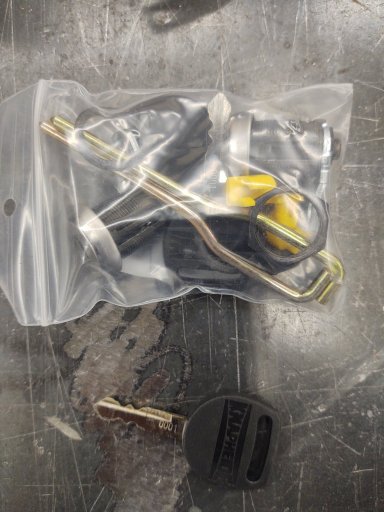

When I bought the service bed, the keys were lost and several of the door latch/locking mechanisms we're broke. Ordered them up and they were delivered very quickly. Knapheide was wonderful to purchase from. Great customer service. Side boxes are mounted, squared and plumb. They way I designed and built this was so I could completely assemble/disassemble everything by nuts and bolts down to the flatbed frame. There were a couple reasons for this. First, I don't have a car lift to pick up the assembled side boxes as one unit. Second, I wanted to completely Raptor line the frame/flatbed and cover all surfaces black and Raptor line the boxes gray. Third, if I ever just needed a small flatbed trailer, I could disassemble and take the boxes off and even build some side rails for just the trailer.


Attachments

WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

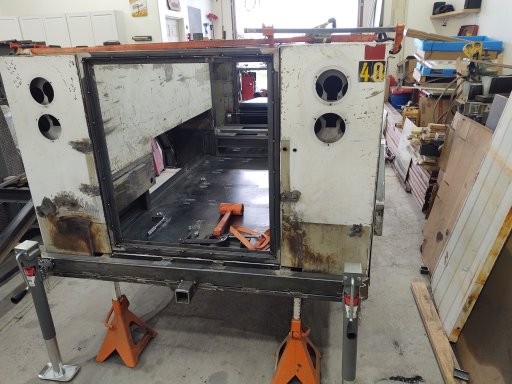

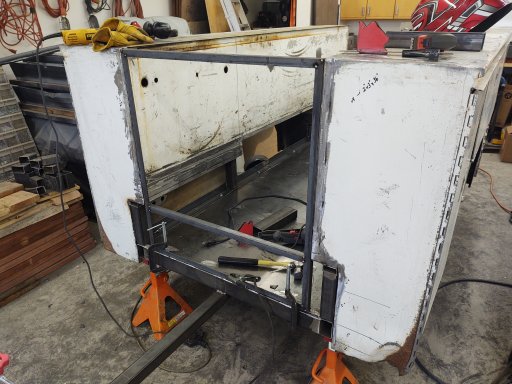

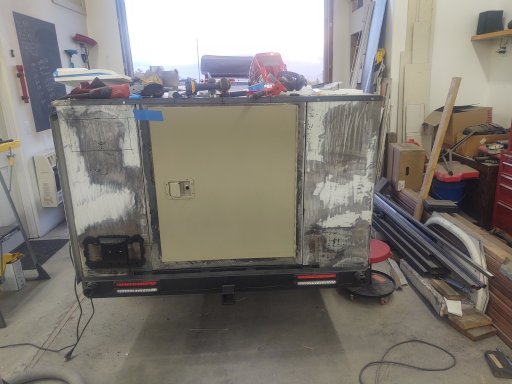

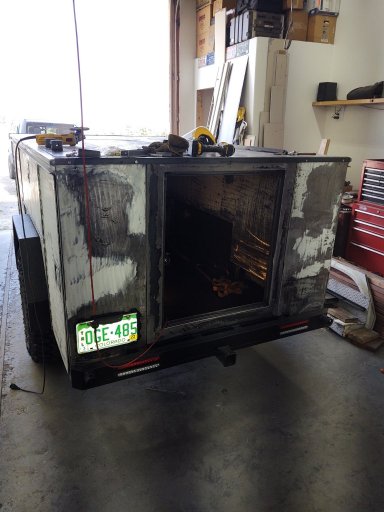

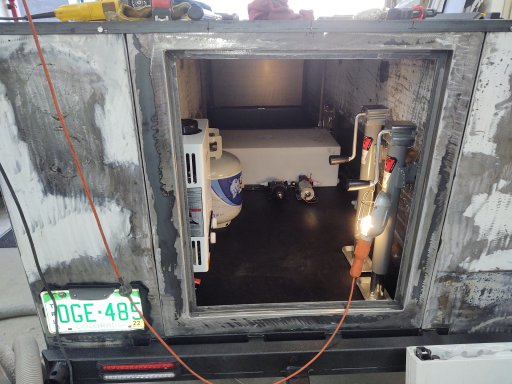

Now on to the back door frame. Since this was a service bed. It was open in the back and on top, (not completely enclosed). So I had to make there rear frame for a door. I found a new door from Knapheide that would fit in the opening. Saved me the work of making a door as well. Sometimes it's easier to buy a few things for simplicity and time savings.

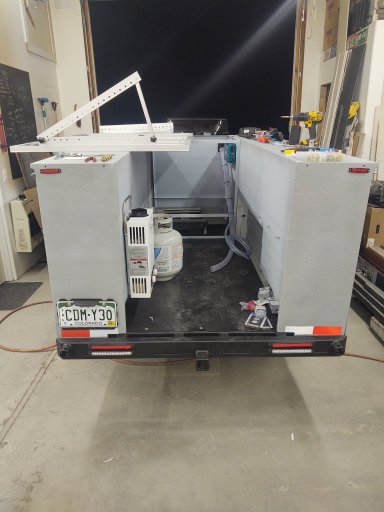

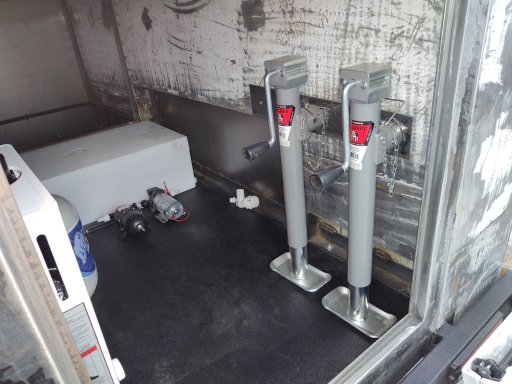

Started to lay out the inside for the water tank, on demand water heater, propane and leveling jack mounts.


Attachments

  • Like
Reactions: Shahn

WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

Love your build man. We are gathering parts to do the same. How are you planning on venting the hot water heater?
Thanks. It has been a lot of fun designing and building the trailer.

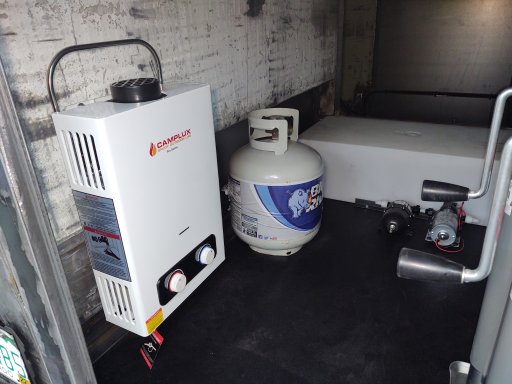

There is about 12-14" above the heater vent. I have tested it by running 20 gallons through it with no problem of heat. The rear door would of course be open when the heater is running. With it being a on demand heater, and with limited water storage, the heater should only be on for short times.
If it would become an issue, I have thought of installing a metal heat shield that would be angled towards the door to help evacuate any heat build up or even making a flue and venting it through that.

  • Like
Reactions: Arkantex

WJ Overland

Rank V
Member

Member III

1,764
Hartsel, Colorado, United States
First Name
Rich
Last Name
Mumm
Member #

30439

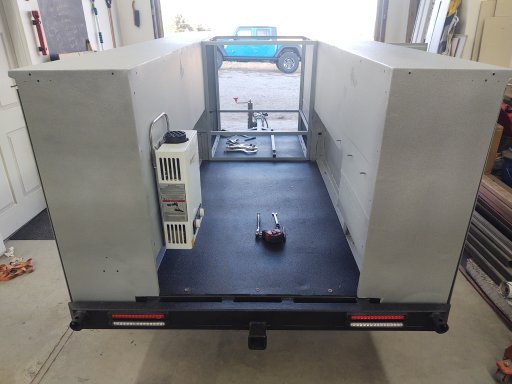

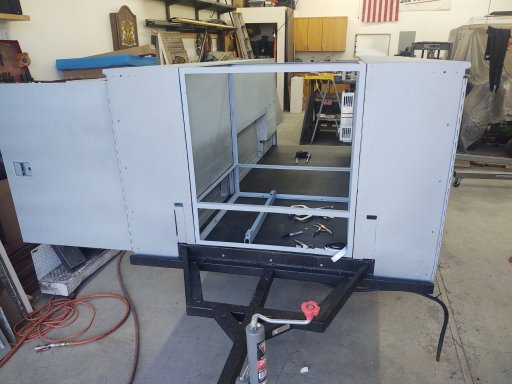

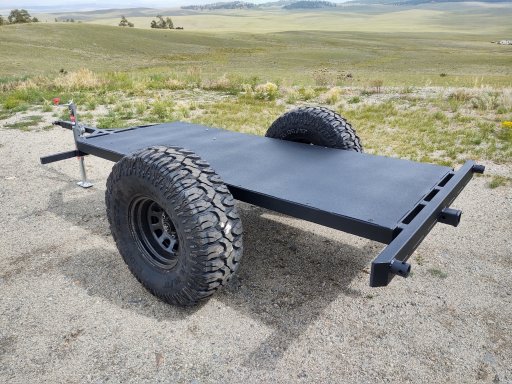

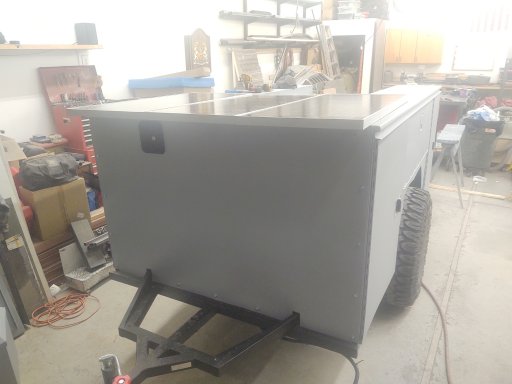

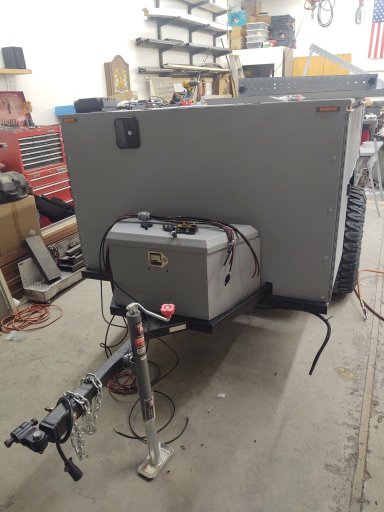

Finally got it Raptor lined. So. Now on to the final assembly. Since everything has already been built, modified and pre-assembled, everything went together pretty easy. That was a good thing because we only had about two weeks to get it together before a trip to Moab via the Rimrocker trail.


Attachments
