Here it is kids, my wife and mine pop up trailer build. I figured this was a good spot for this as we are literally touching and improving every single part of this trailer, essentially the original Palomino Colt was a template from which we started work.
The whole thing started like most rebuild projects with the statement, lets just go through it and make sure it is good to go. Well things that needed to be replaced quickly combined with the things that we may as well do while we are here to create an avalanche, you'll see what I mean soon enough.
First things first, lets get it rolled into the shop and get it popped up...
Once hound dog inspection was complete, work began...


Dilldog

Rank V
Member

Influencer I

2,358
Spokane, WA.
First Name
Dillon
Last Name
Wilke
Member #

20298

Ham Callsign
KJ7LVO
Service Branch
USAF

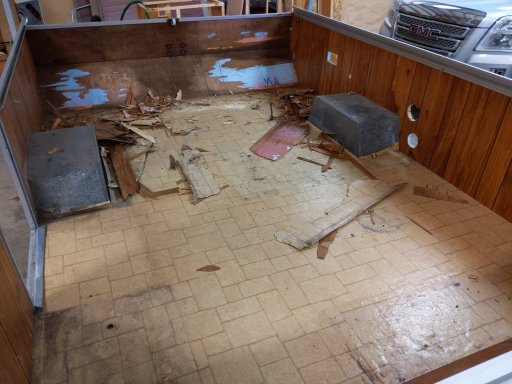

The tear down went quite quickly. My wife put her old house restoration skills to good use here...


Dilldog

Rank V
Member

Influencer I

2,358
Spokane, WA.
First Name
Dillon
Last Name
Wilke
Member #

20298

Ham Callsign
KJ7LVO
Service Branch
USAF
Now that tear down was complete my wife began focusing on rebuilding the interior and I started focusing on the chassis. The plan here was to rebuild all of the cabinets making them stronger but also by using redwood and cedar we would make them more resilient should they ever get wet, and naturally bug resistant. Install floor insulation and install new floor.

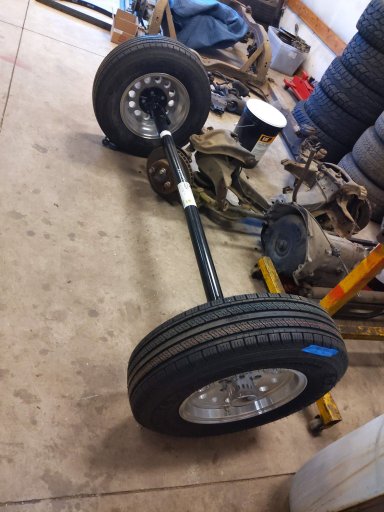

Meanwhile I would remove the original axle and build a spring box to mount traditional leaf springs and a new 3500# axle with the biggest tires I could reasonable make fit.


Dilldog

Rank V
Member

Influencer I

2,358
Spokane, WA.
First Name
Dillon
Last Name
Wilke
Member #

20298

Ham Callsign
KJ7LVO
Service Branch
USAF
We are also stretching the tongue slightly to allow the trailer to go a full 90* to the Escape which will be the tow rig and also allow for some storage on the trailer tongue. The idea here is camp latrine storage. In order to make sure it is strong enough I started boxing in the trailer frame forward of the front bulkhead. While I was doing this my wife started sewing new seat cushions, and making a decorative insert for the door.
Next up, rebuilding the roof...


Dilldog

Rank V
Member

Influencer I

2,358
Spokane, WA.
First Name
Dillon
Last Name
Wilke
Member #

20298

Ham Callsign
KJ7LVO
Service Branch
USAF
Did a little more work, got lights wired in and the tongue extension with battery box welded up. License plat is mounted on a hinge so it can swing flat to make sure if we drag the bumper it wont get torn off.
Also my wife installed the cool art. Next step is getting the stabilizer jacks installed and the rear spare tire carrier figured out. After that I will paint the steel parts, then my wife will paint the body work and Ruby will finally look like her namesake!
