I have always had a memory of the old bubble compass screwed to the dash on the FJ40 that my father drove me around in as a kid. Funny thing is I still have the Land Cruiser but not the compass, go figure. That compass is something that I have missed for some time, especially as a product of the tech revolution. So for a Monday night project I installed a traditional compass in the old Rover. A slight step up from dad's but still true to tradition.


nickburt

Rank VII
Launch Member

Creator III

5,613
Wallasey, Wirral. UK
First Name
Nick
Last Name
Burt
Member #

2714

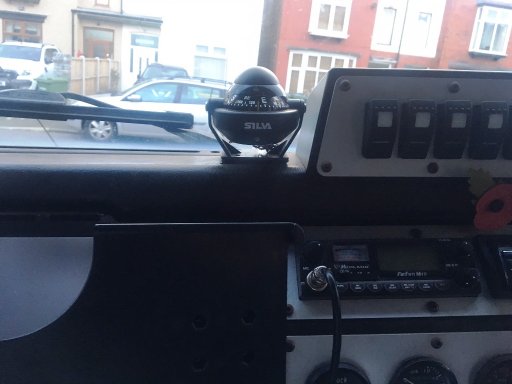

Ditto, and spent ages adjusting the compensators to get it somewhere near - too many electronic devices in the rig don't help .....IMG_6396.JPG

  • Like
Reactions: 64Trvlr

Bodge Garage

Rank V
Member
Investor

Enthusiast III

2,307
Millwood WA
First Name
Kris
Last Name
Sss
Member #

11737

Ham/GMRS Callsign
KI7YI
Service Branch
Firefighter/EMT
I was really worried about interference but the accuracy out of the box on this one is stellar. It might be off enough if I were making an Atlantic crossing but it as dead on as I can figure.

  • Like
Reactions: nickburt

nickburt

Rank VII
Launch Member

Creator III

5,613
Wallasey, Wirral. UK
First Name
Nick
Last Name
Burt
Member #

2714

I was really worried about interference but the accuracy out of the box on this one is stellar. It might be off enough if I were making an Atlantic crossing but it as dead on as I can figure.
What make/model is it. My Silva is still off, no matter how much I try adjusting. Not sure if it's the compass, or interference, but it is better out of the rig, than in.


JimInBC

Rank V
Launch Member

Pathfinder I

1,798
Southern Vancouver Island
First Name
Jim
Last Name
Freer
Member #

10955

What make/model is it. My Silva is still off, no matter how much I try adjusting. Not sure if it's the compass, or interference, but it is better out of the rig, than in.
Have you tried a different location in the cab? Getting it farther from the electronics might help?


nickburt

Rank VII
Launch Member

Creator III

5,613
Wallasey, Wirral. UK
First Name
Nick
Last Name
Burt
Member #

2714

Have you tried a different location in the cab? Getting it farther from the electronics might help?
Yes, but then I end up with it somewhere where I can't see it too well, I'd like it to be central so we can both make use of it. Will keep trying different locations. But, I beginning to wonder if it really isn't suited to being used in a tin box.


Bodge Garage

Rank V
Member
Investor

Enthusiast III

2,307
Millwood WA
First Name
Kris
Last Name
Sss
Member #

11737

Ham/GMRS Callsign
KI7YI
Service Branch
Firefighter/EMT
Mine is just a cheap Ritche, nothing special. Out of the truck it reads only about a degree different. The variance is also very static so easy to compensate for. Maybe my aluminium body helps? When I turn the truck on it will move the needle just a hair but always zeros back out on its own in short order. I might just be lucky with placement.


Bodge Garage

Rank V
Member
Investor

Enthusiast III

2,307
Millwood WA
First Name
Kris
Last Name
Sss
Member #

11737

Ham/GMRS Callsign
KI7YI
Service Branch
Firefighter/EMT
Yes, but then I end up with it somewhere where I can't see it too well, I'd like it to be central so we can both make use of it. Will keep trying different locations. But, I beginning to wonder if it really isn't suited to being used in a tin box.
I just had a thought. Maybe you could rig up a little faraday screen and see if there is a certain source of interference that could be blocked. You could try different aspects and see where you get some needle movement. Mind you I am no engineer.


Bodge Garage

Rank V
Member
Investor

Enthusiast III

2,307
Millwood WA
First Name
Kris
Last Name
Sss
Member #

11737

Ham/GMRS Callsign
KI7YI
Service Branch
Firefighter/EMT
I just had a thought. Maybe you could rig up a little faraday screen and see if there is a certain source of interference that could be blocked. You could try different aspects and see where you get some needle movement. Mind you I am no engineer.
Ummm yeah strike my last thought there. After a bit of deeper pondering I realized why that won't work. Duh.:wink:
