Just wanted to share my progress on my Trailer build.
I went through a lot of websites to get this started and I opted to make it myself:)
Hope you all enjoy and hopefully get inspired to create your own build !

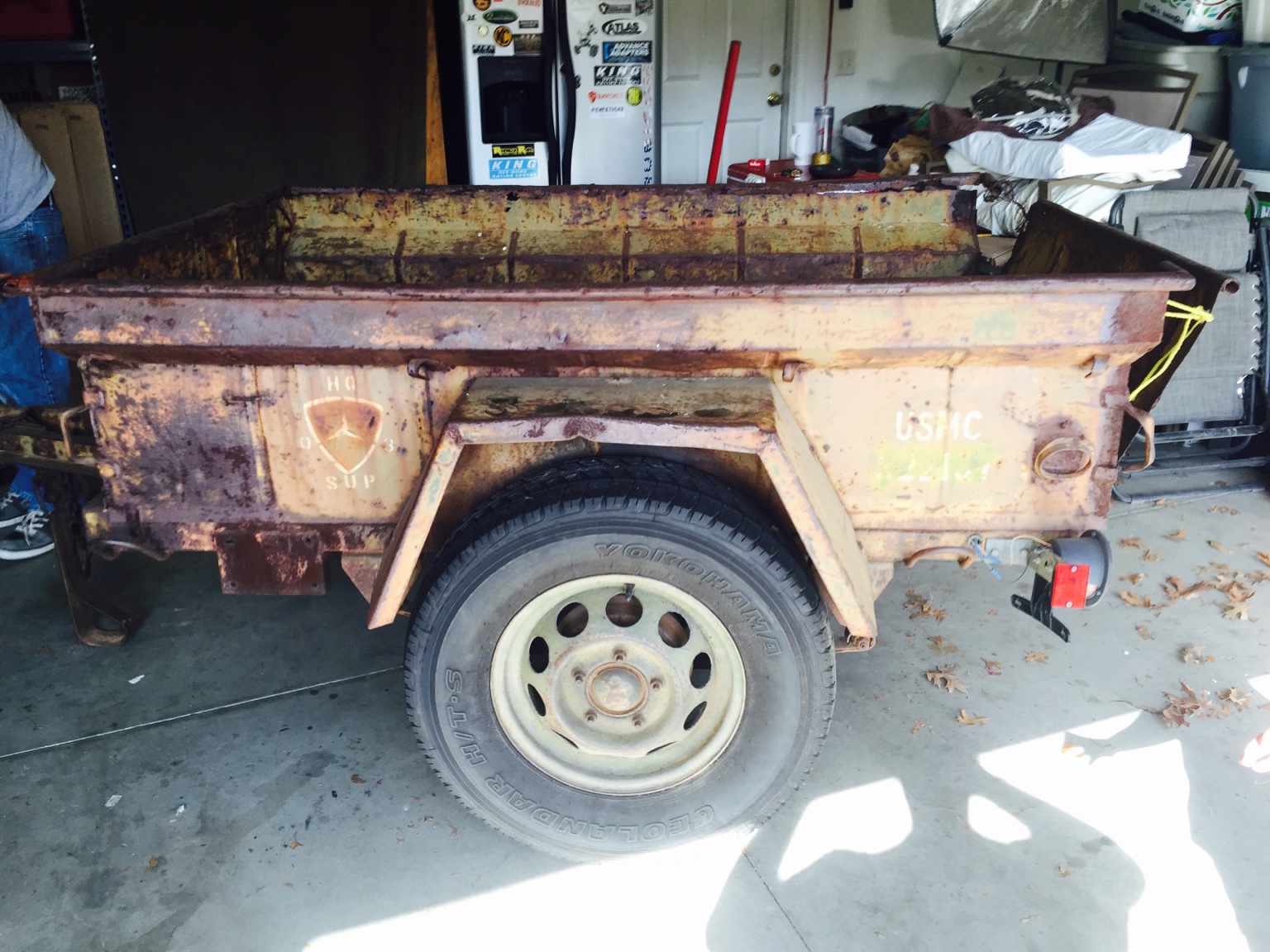

Before pic


And the start of the after pics

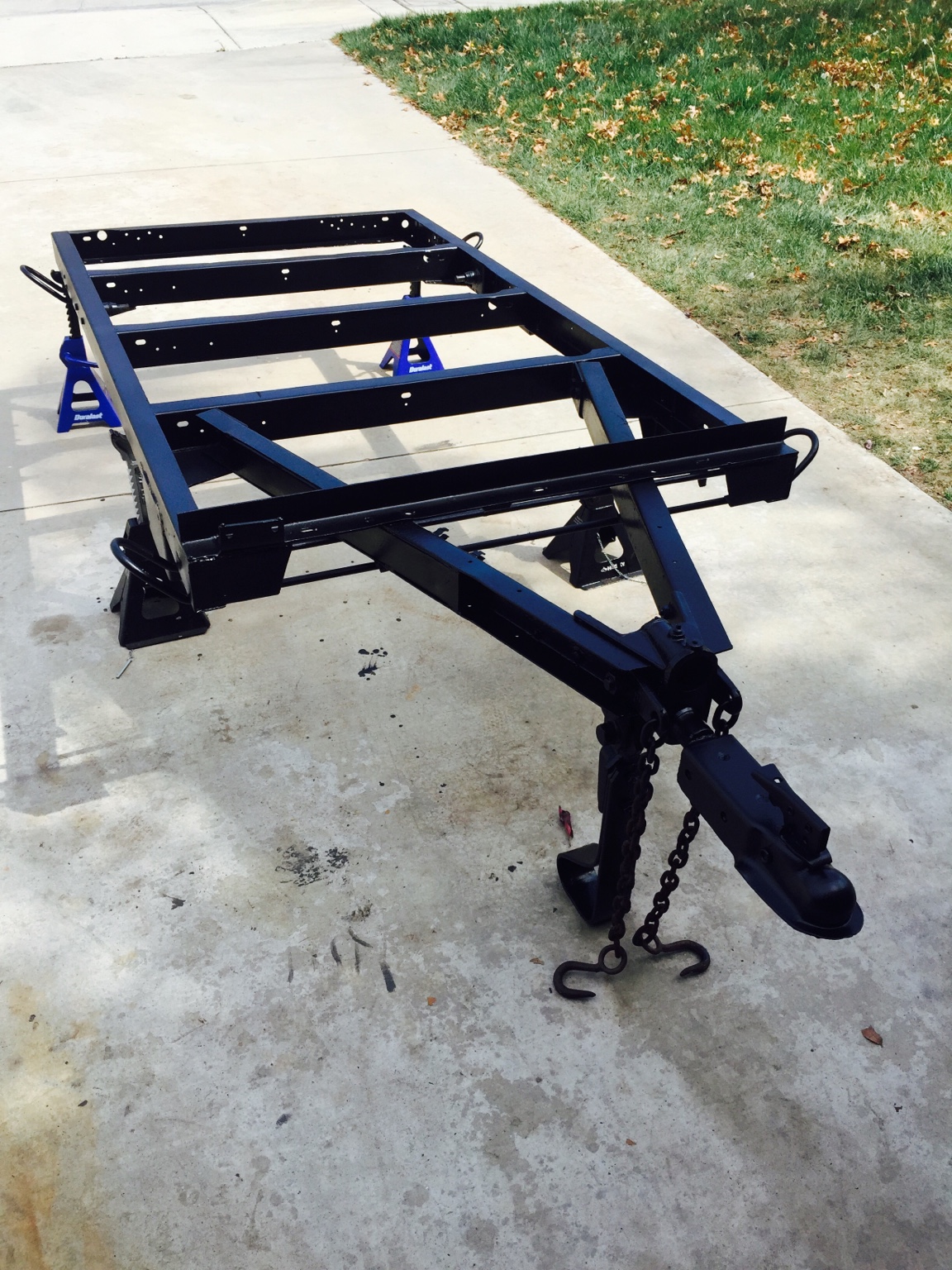

Frame all sanded and A few coats of Chassis Saver.

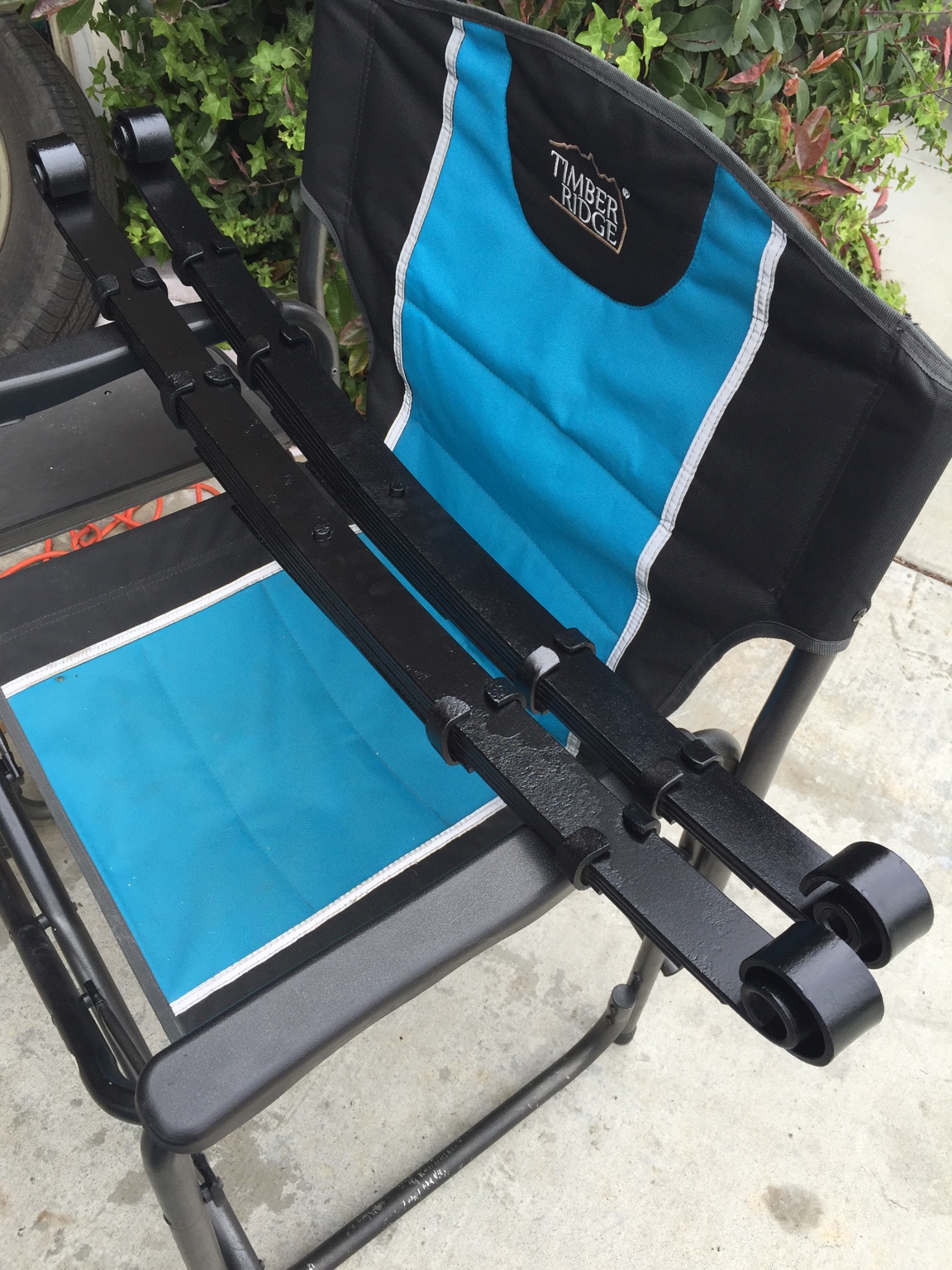

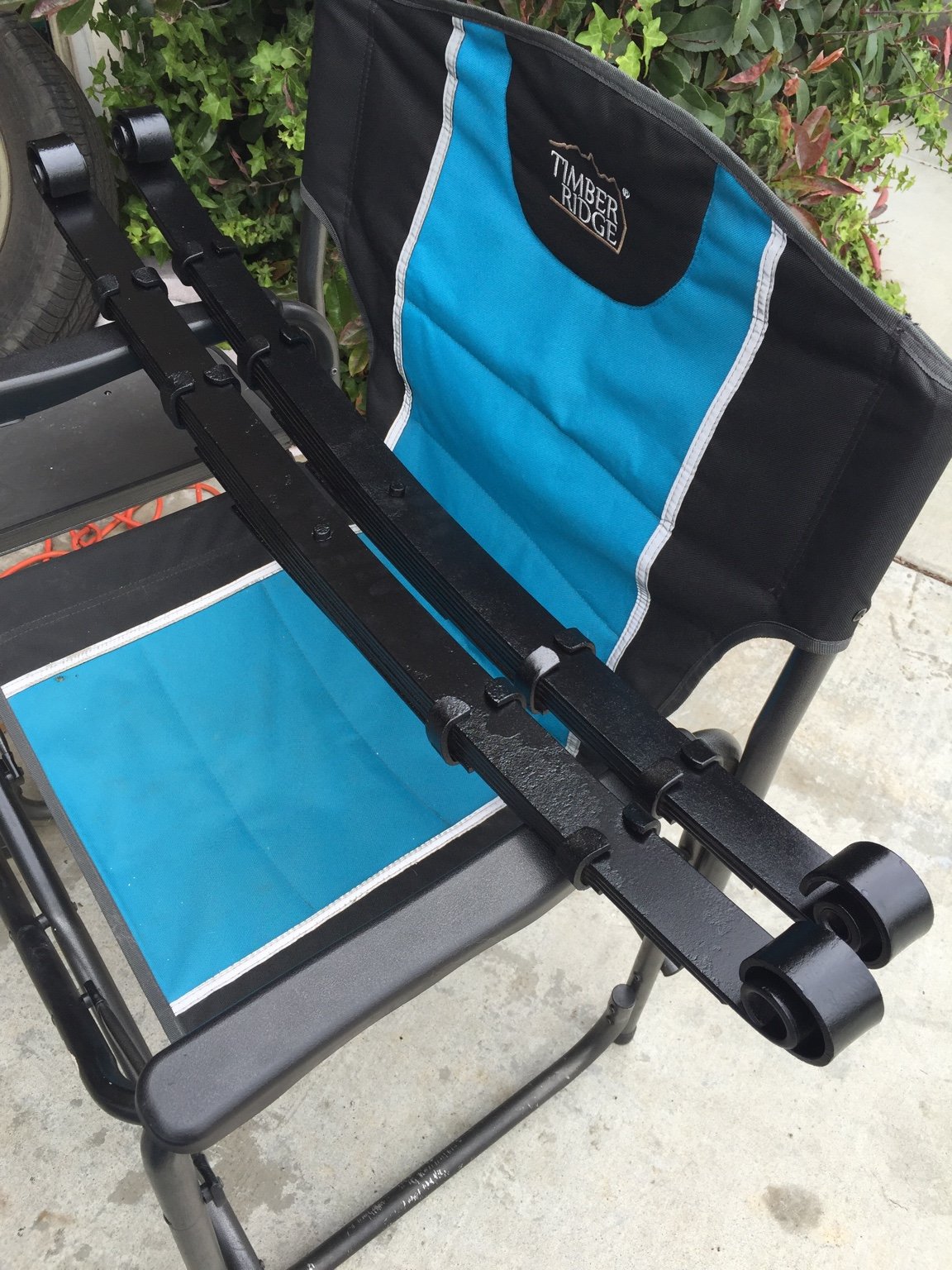

New Leaf Springs

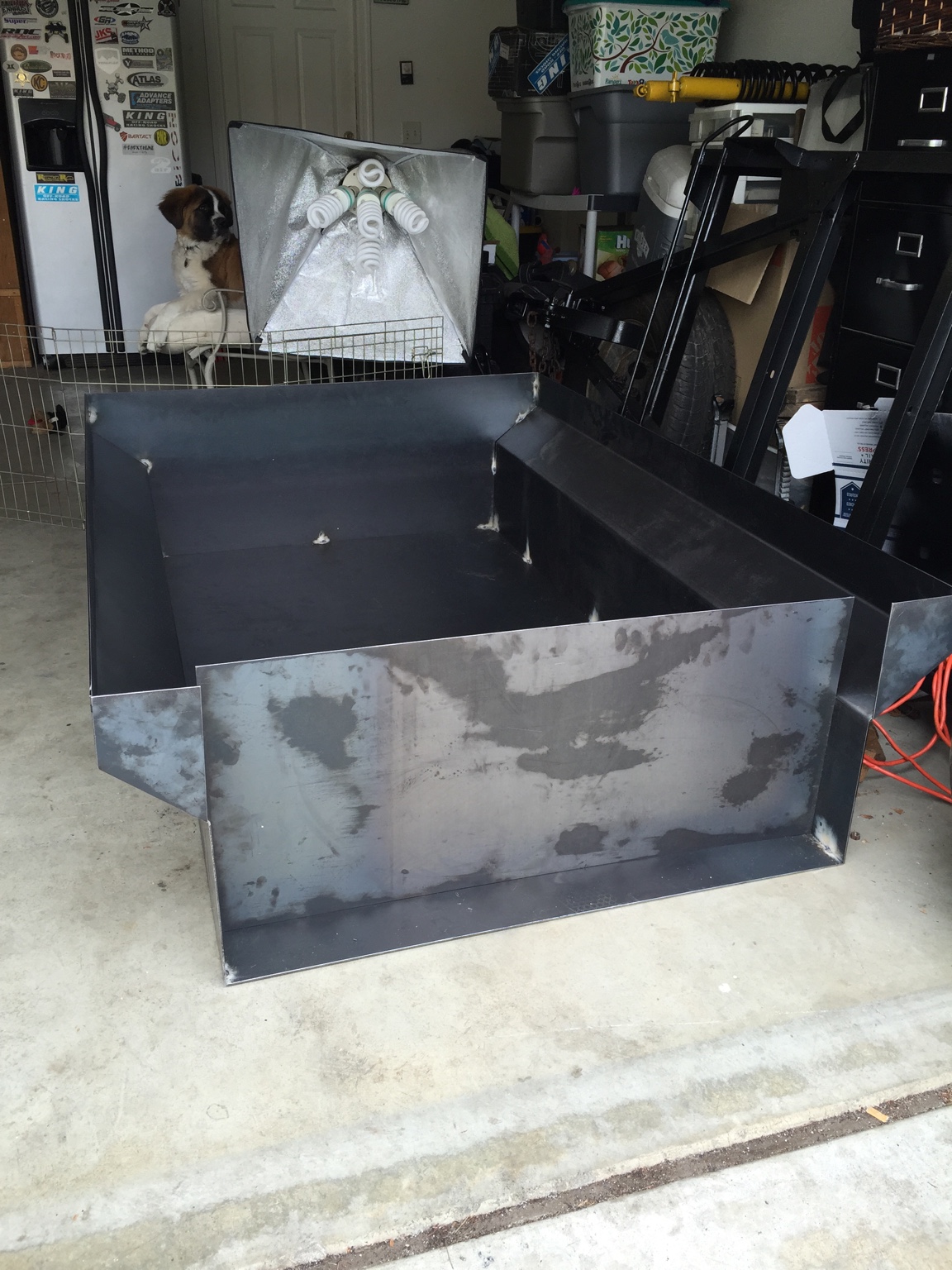

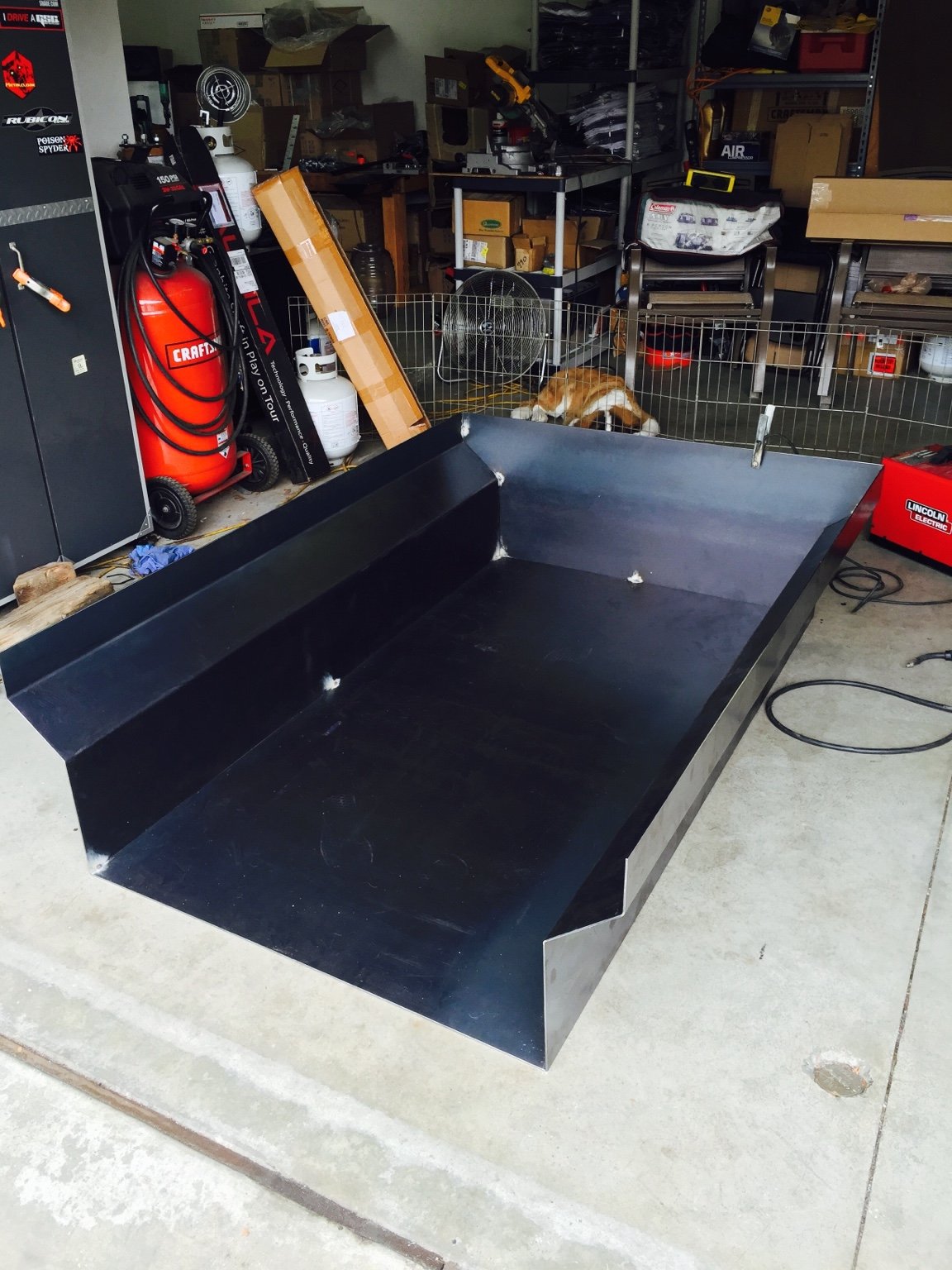

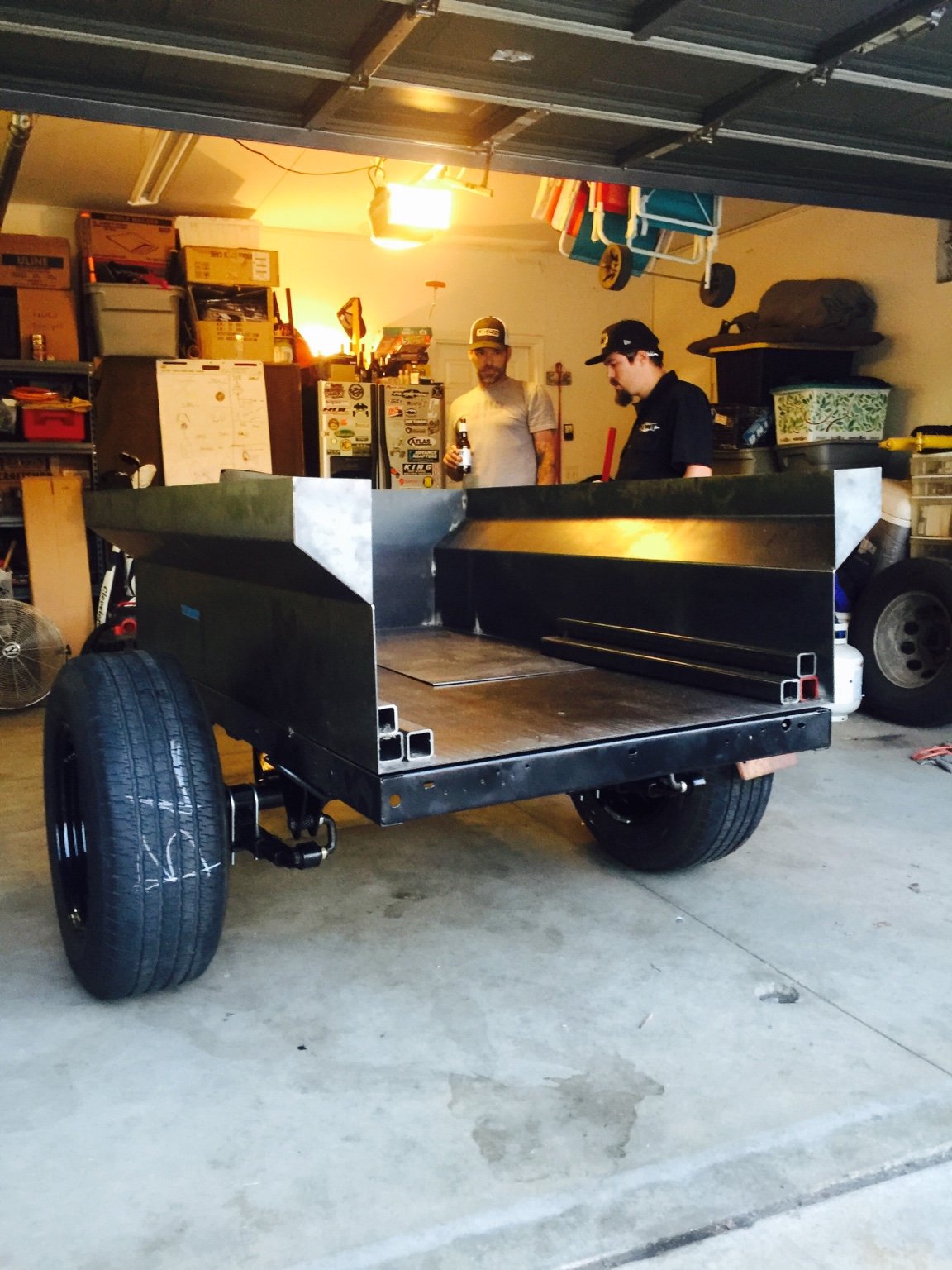

Bed all Tacked up for squaring



Measuring out for the Tailgate placement.

More picks to follow, I have to get the square bar for the Tent mount this week.
I'll post more updates in the thread as I go along, and if it is ok with Michael I will include all the links for the parts as it progresses.
Hope you enjoy !



Sent from my iPhone using Tapatalk


rixham

Rank V
Member

Off-Road Ranger I

2,898
Frederick, MD
First Name
Robert
Last Name
Rixham
Member #

1093

Ham Callsign
KC3NAZ
I can't wait to see the this progress. I need to start looking for a trailer, I can only get so much in the 4Runner with my daughter (80lb Rottie mix) in the back seat.

Last edited:
  • Like
Reactions: steven_cochran

stoney126

Rank VI
Founder 500
Member
Supporter

Influencer II

3,278
Napa Ca
First Name
Robert
Last Name
Stoner
Member #

0408

I shouldn't follow this. It's going to make me think I can do this too. Shout where am I gonna put a trailer

  • Like
Reactions: Lifestyle Overland

ShawnR

Rank VI
Member

Influencer II

3,316
Davenport, Iowa
Member #

0782

Looking forward to the finished product. I've been watching for a decent M416 for a few months now. Not a lot available in my area on Craigslist. Hope to find one soon and build it th my liking.


Influencer II

1,749
Riverside,CA
First Name
Steven
Last Name
Cochran
Member #

0577

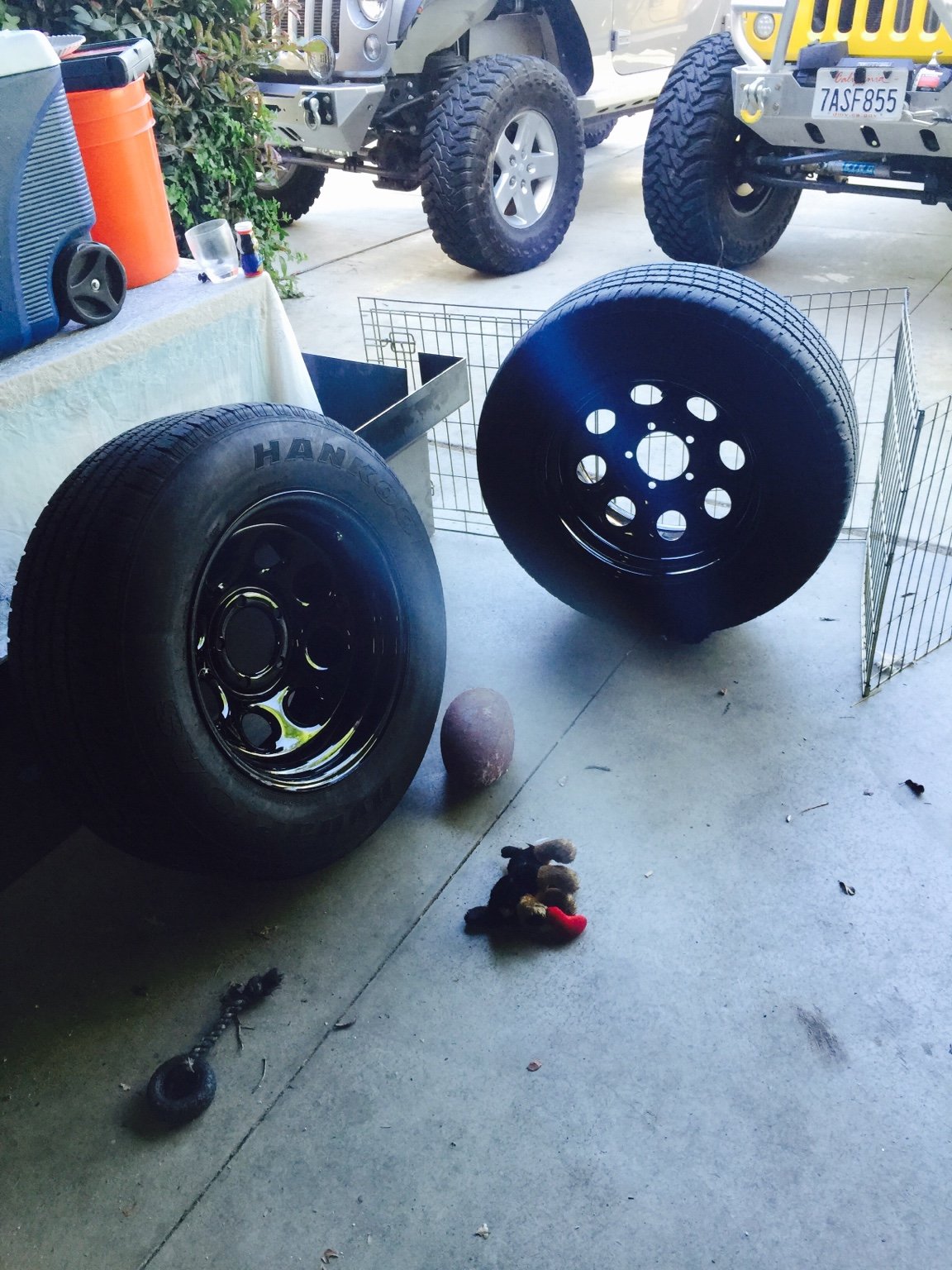

Got some Steelies today, eventually I'll put 33's on them. But these tires will be good to put it all together



Sent from my iPhone using Tapatalk

  • Like
Reactions: mellowdave

Influencer II

1,749
Riverside,CA
First Name
Steven
Last Name
Cochran
Member #

0577

A little more progress .....

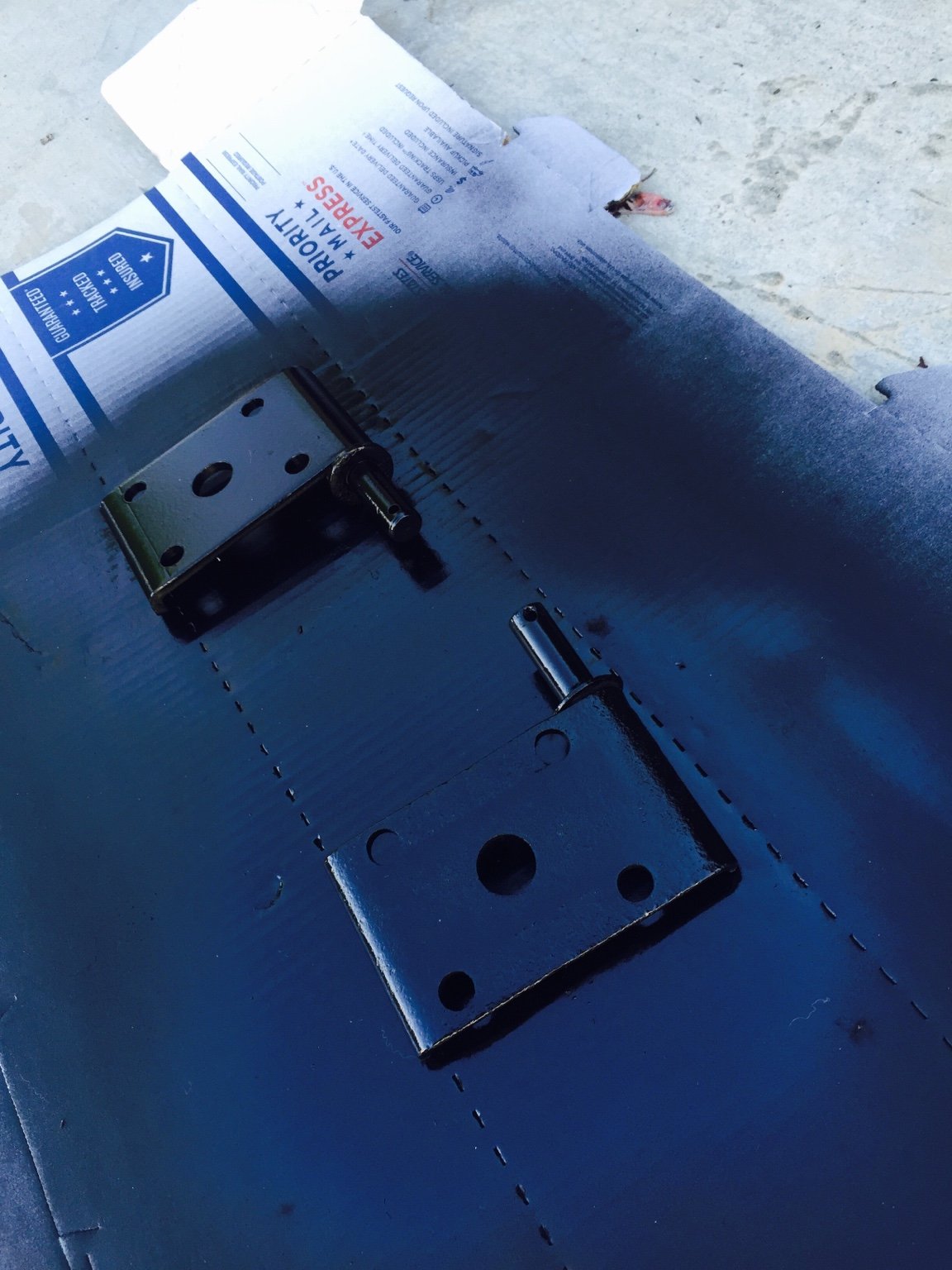

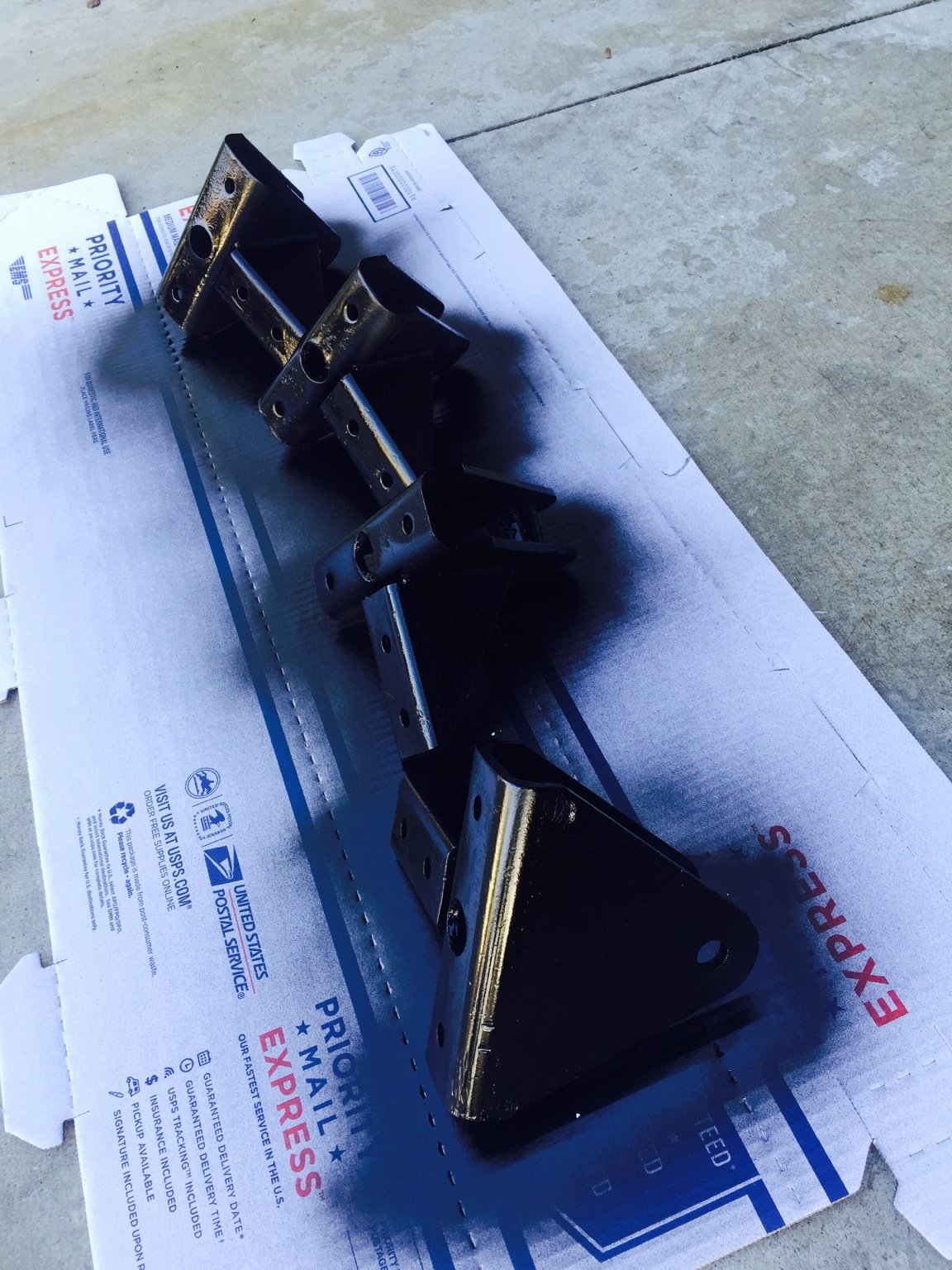

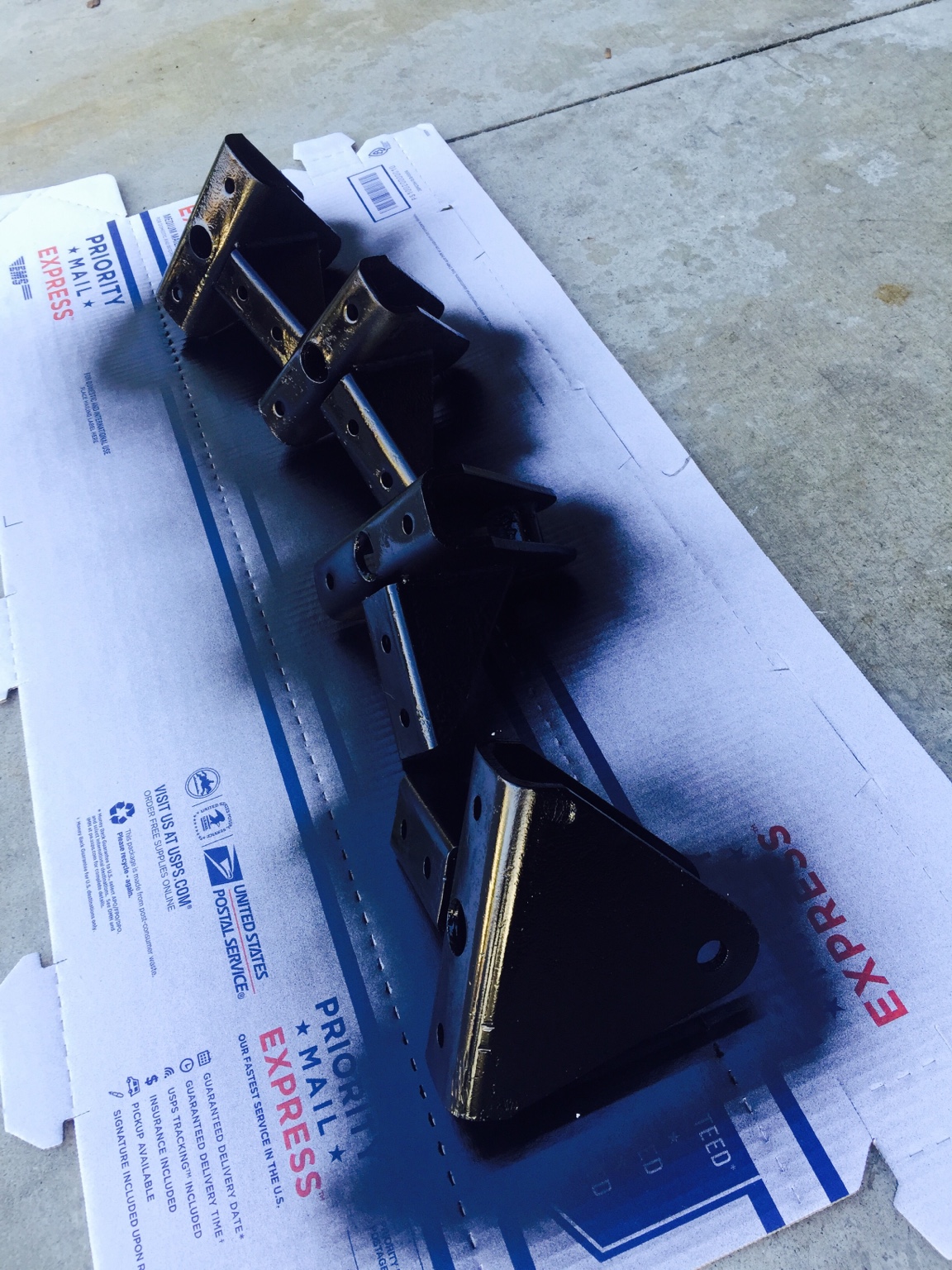

Leaf brackets all painted and ready for mounting...

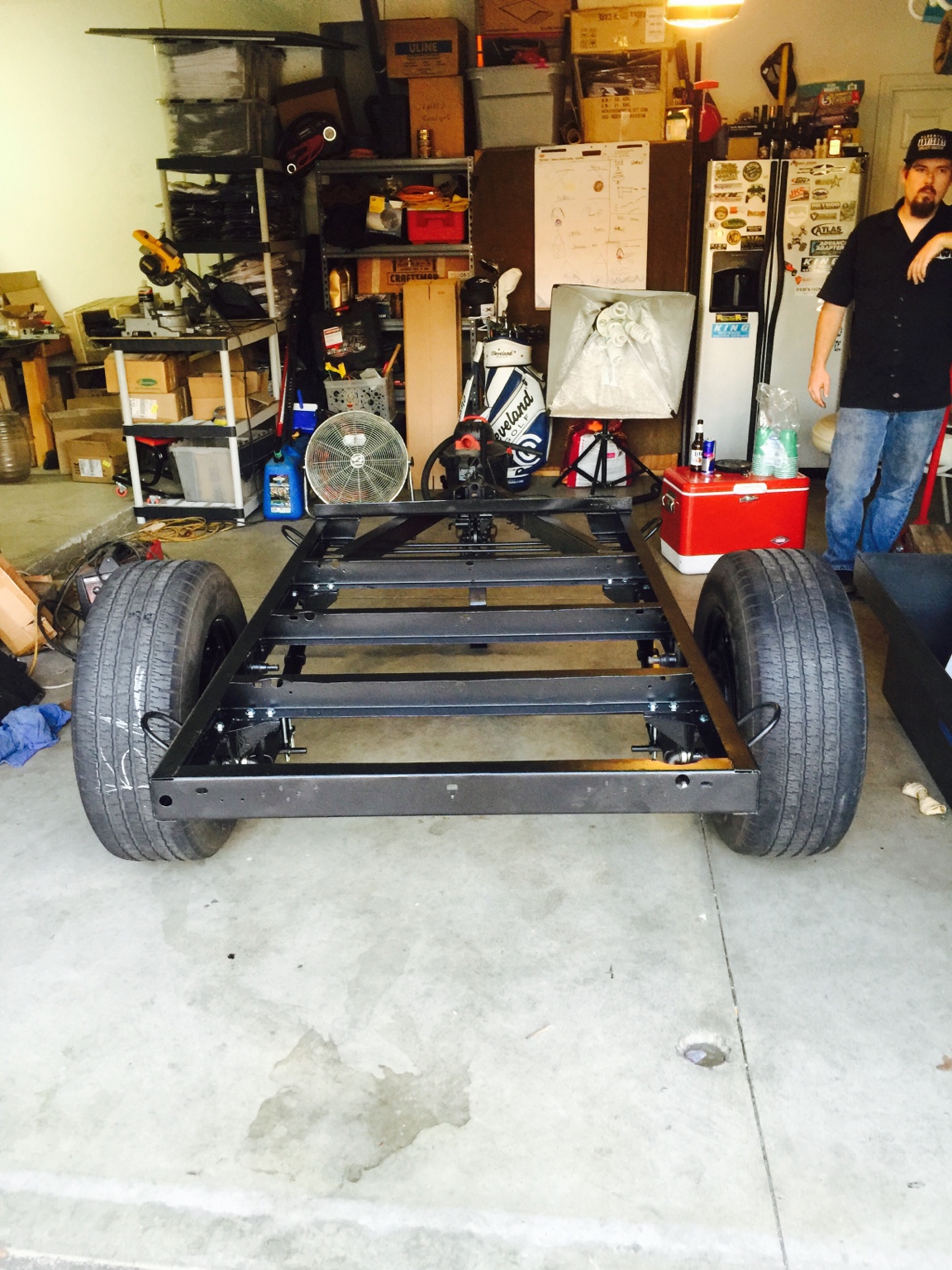

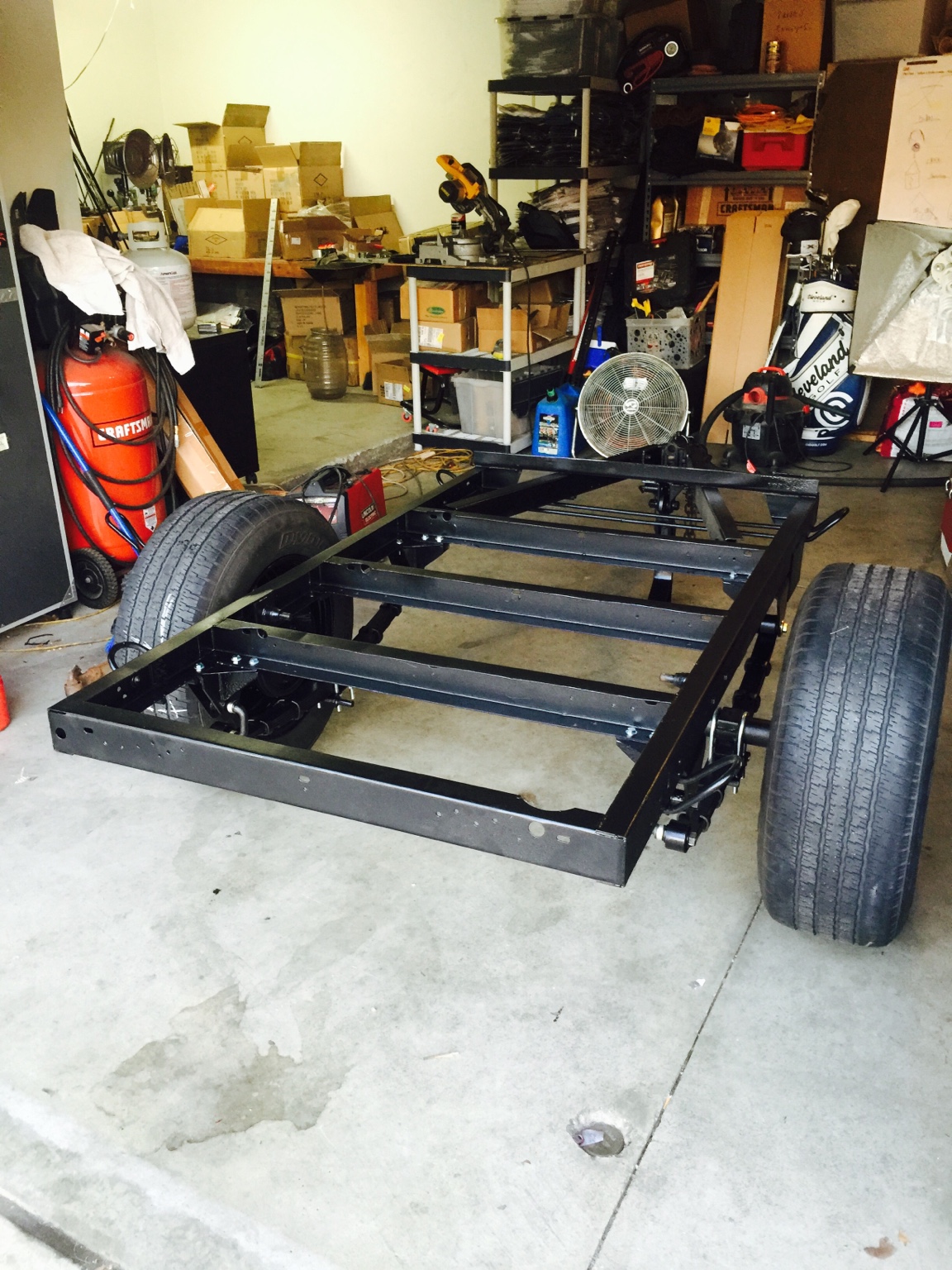

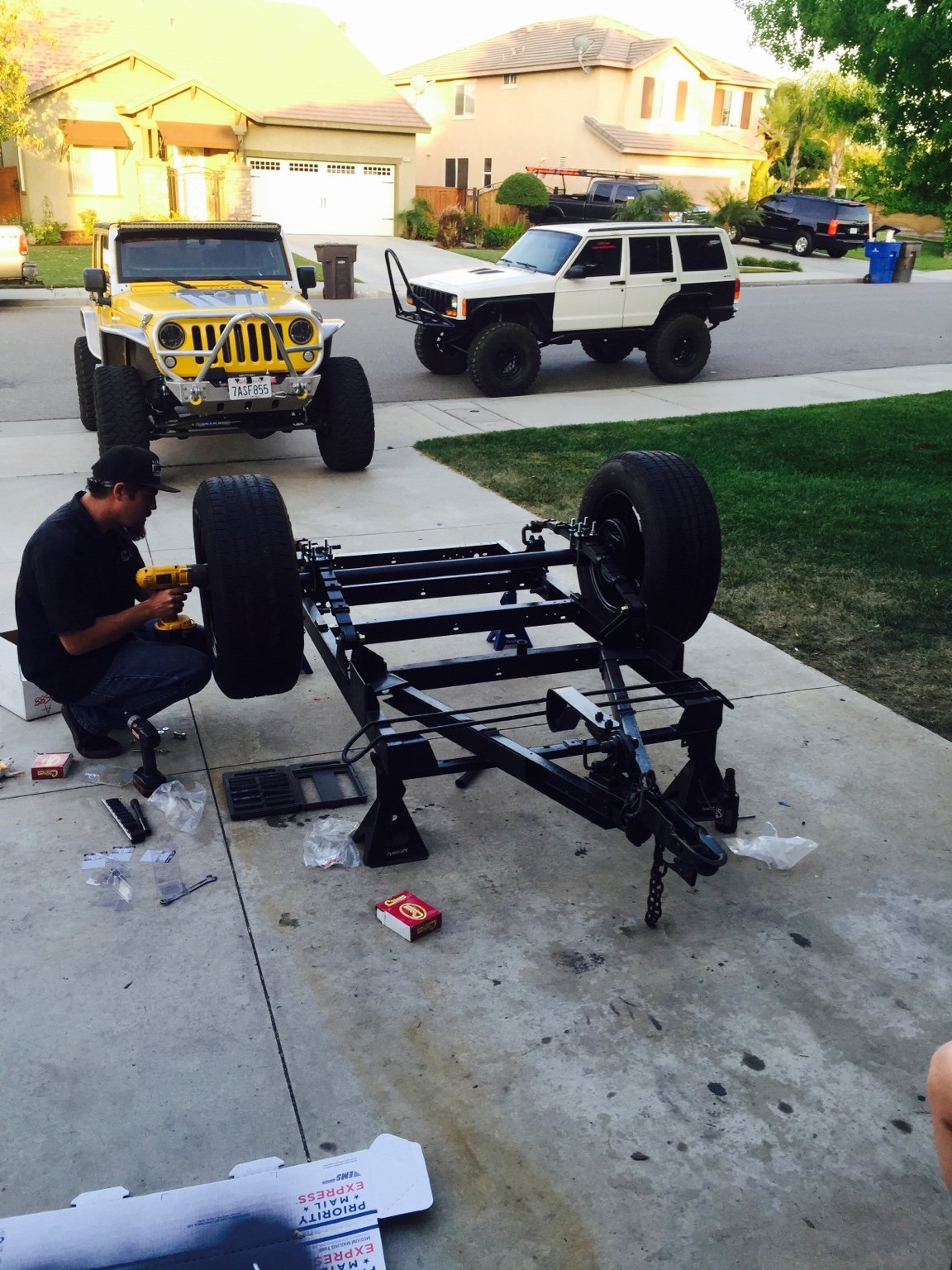

Rims and tires going on next...

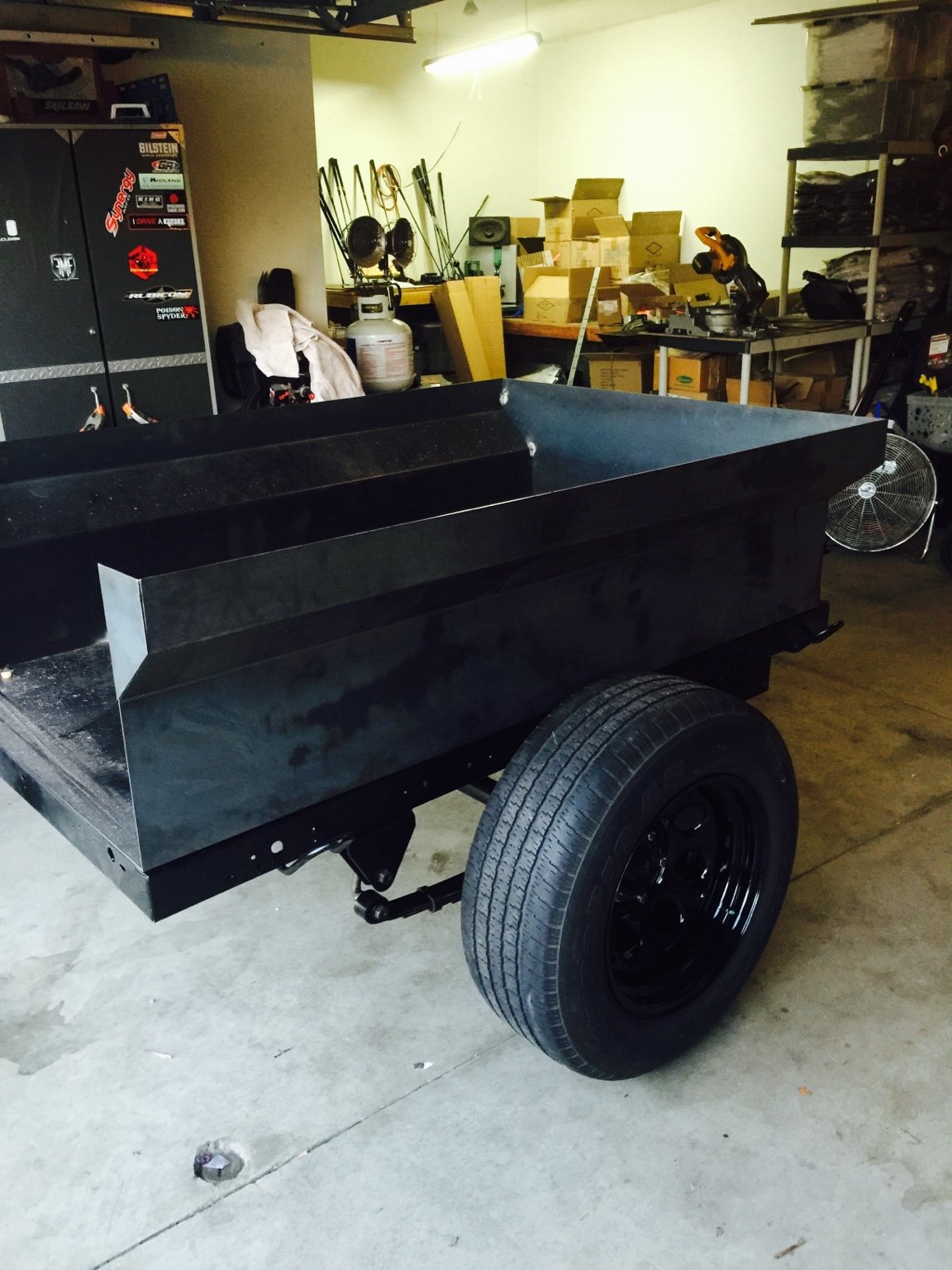

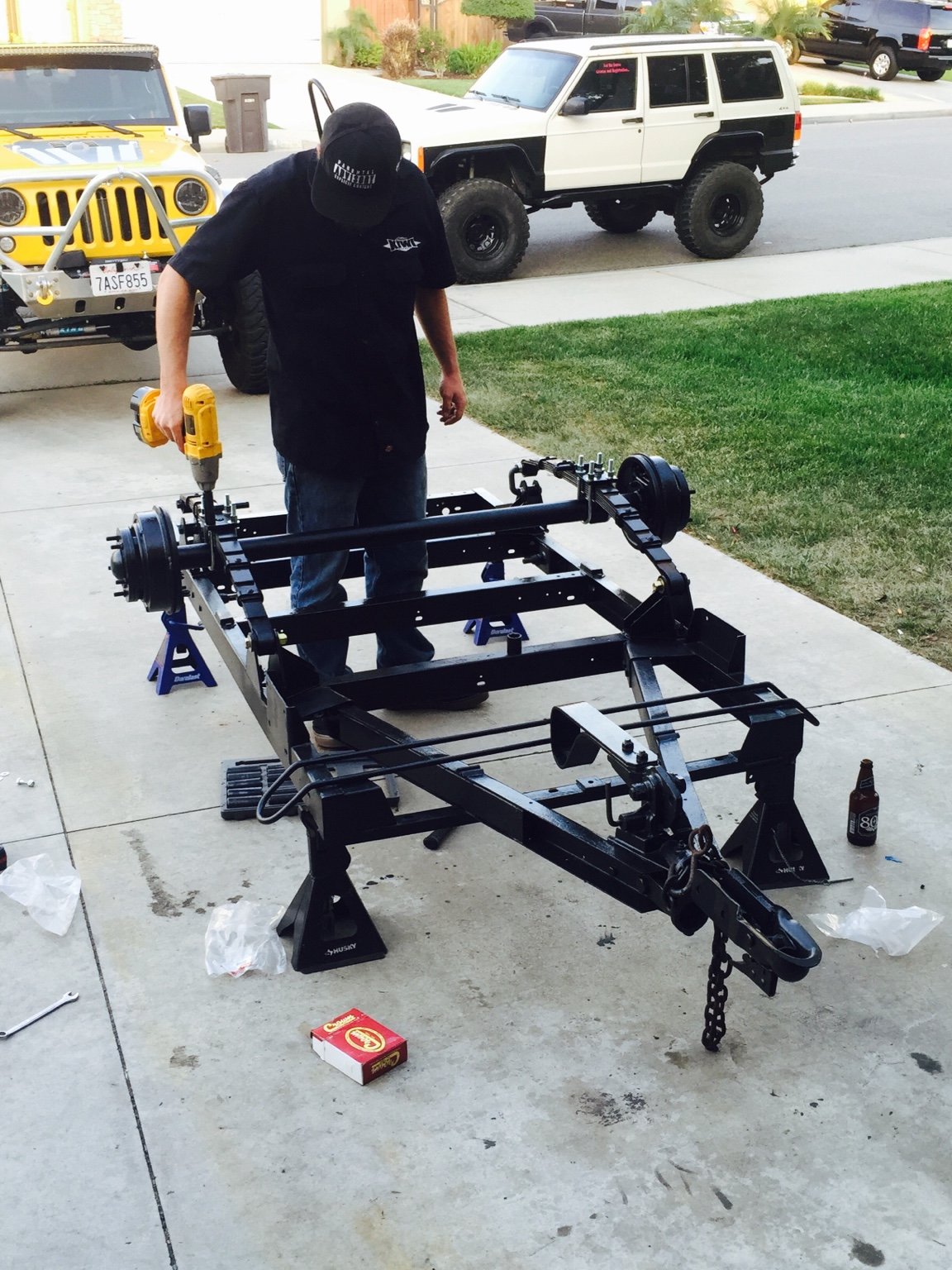

Now the next part is mounting the Bed or at least making sure it is all square...

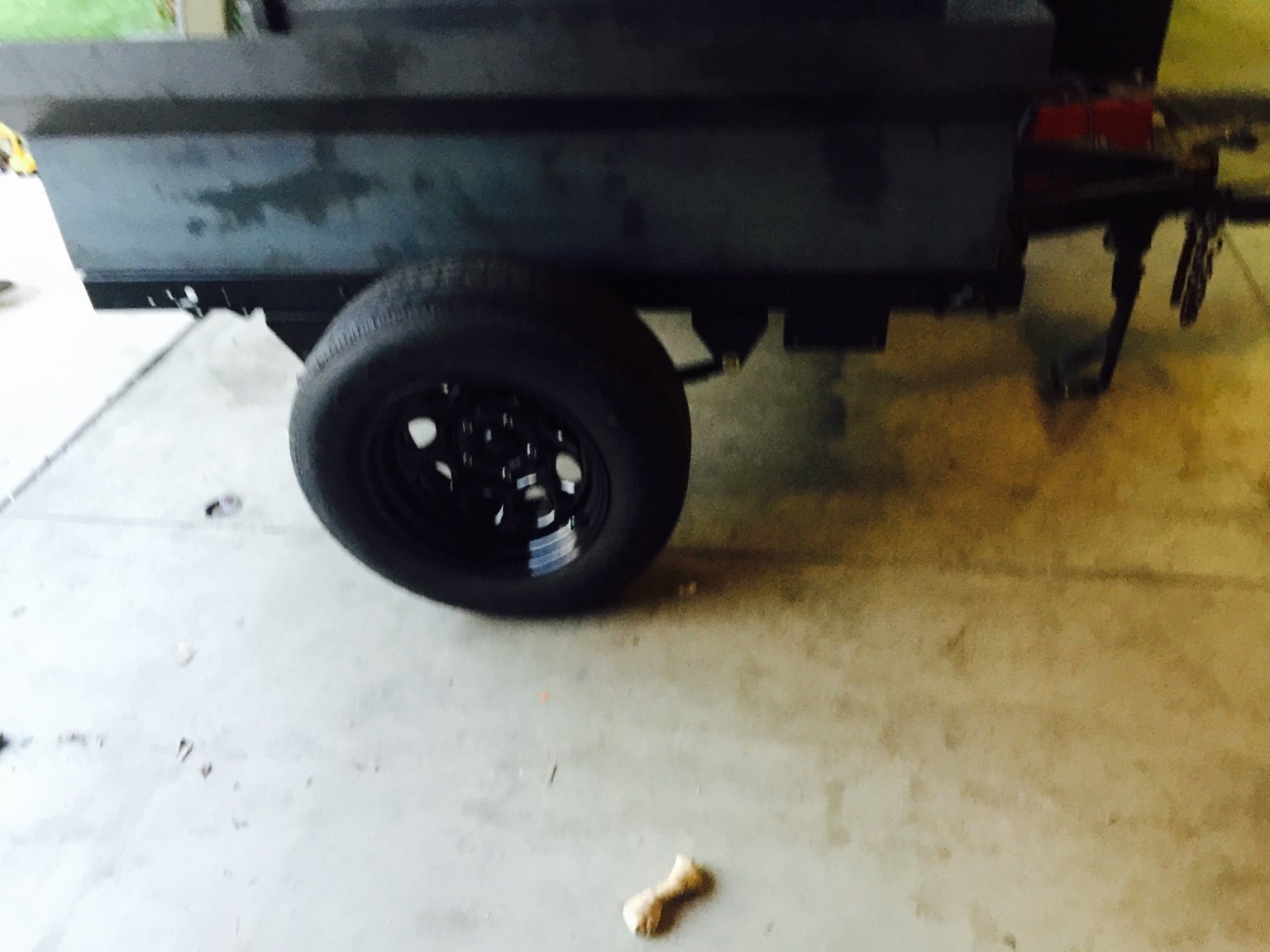

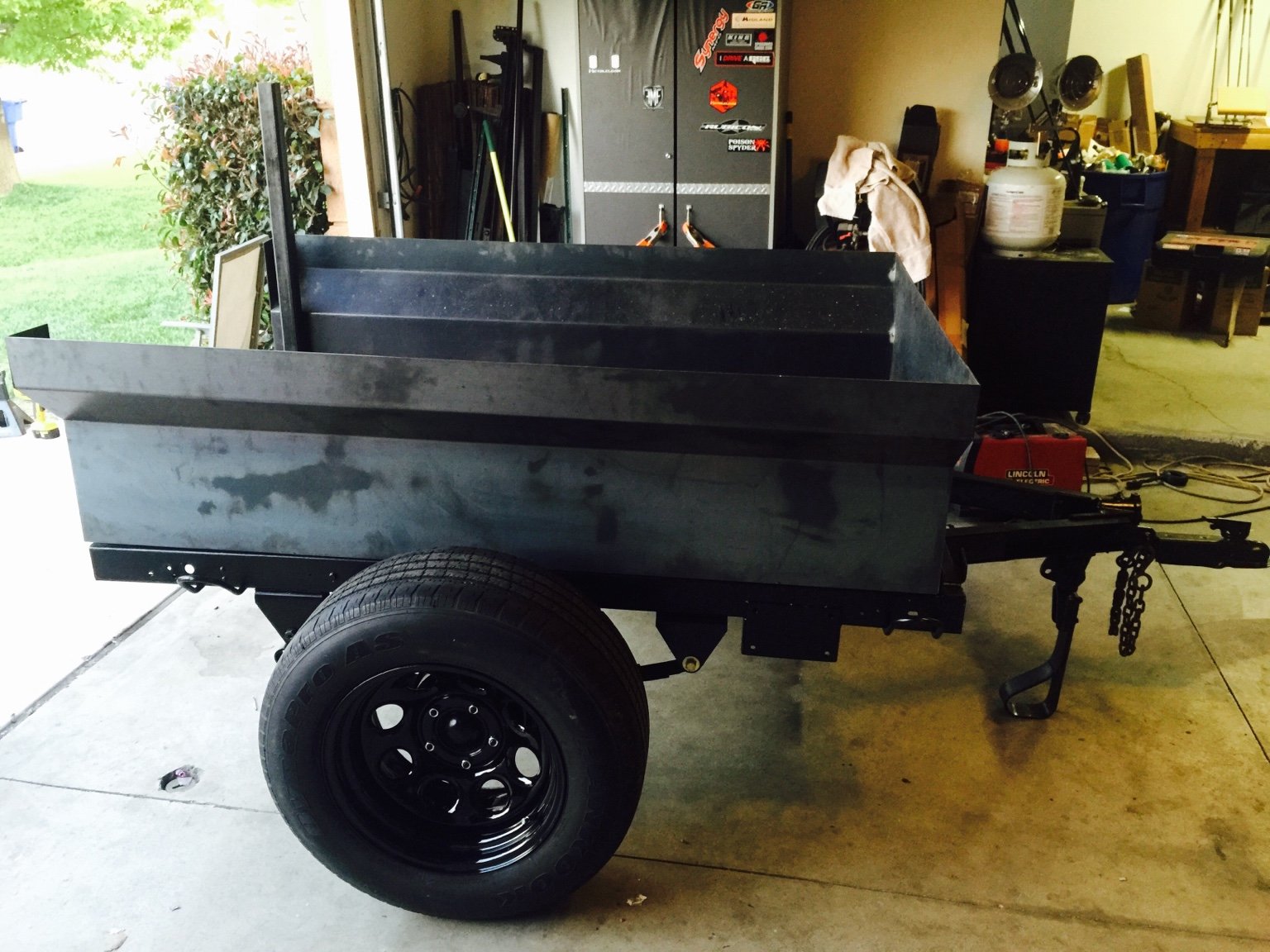

Everything lined up perfect, now the real stuff begins lol.

More to come [emoji16]


Sent from my iPhone using Tapatalk


Influencer II

1,749
Riverside,CA
First Name
Steven
Last Name
Cochran
Member #

0577

So far I have been really lucky on my search. I found a website called armyjeepparts.com that has a lot of parts I needed .
Are you doing a similar build ?
