I would like to present my project I work on it for quite some time , some will appreciate and others will see few negative points about the project. The project is to make a vehicle Overland Jeep Patriot 4x4 2011 4cyl 2.4L 172hp ( 7l/100km) .
as the vehicle was purchased in 2013 with 23 000km on the speedo. The project goal is to be able to browse De Montreal has newfoundland and Labrador ( 2 trucks ). for my part personal experience and not have my first project I realized. I will be happy to share with you the project.

christ.sauvageau@gmail.com
For question or contact.
National Géo -- link for photography

__________________________________________________________

mods:


Tire 245/65R17 Firestone Destination A/T
Wheel Spacer 1 1/4''
Cb Cobra Wxst 75
Antenna 3/8 3'
Spotlight Navigator Cover + KC Hillit 130w
Roof rack Mopar
Front Tow How 3500lbs
Hitch 1'' 1/4
Trailer Wiring Reese
Full Size Spare With Hitch Rear Carrier opening ( Custom )
Daily light boost 40%
Rear light boost 35%
2 locations for Jerry Cans On Hitch Rear carrier
extinguisher installed at the rear of the vehicle within
Cargo Cover Mopar
Cargo net back to fronts seat ( custom )
Jerry Cans Plastic 20l
black antenna
Custom cb antenna mount
______________________
Mechanical mods:

lift Kit 2'' 1/8 Rocky Road Outfitted
Control Arm adjustable
Tow Link adjustable moog
Disconnect Link kit
______________________
Ground Clearance 15''

_____________________________________________________________

Picture:

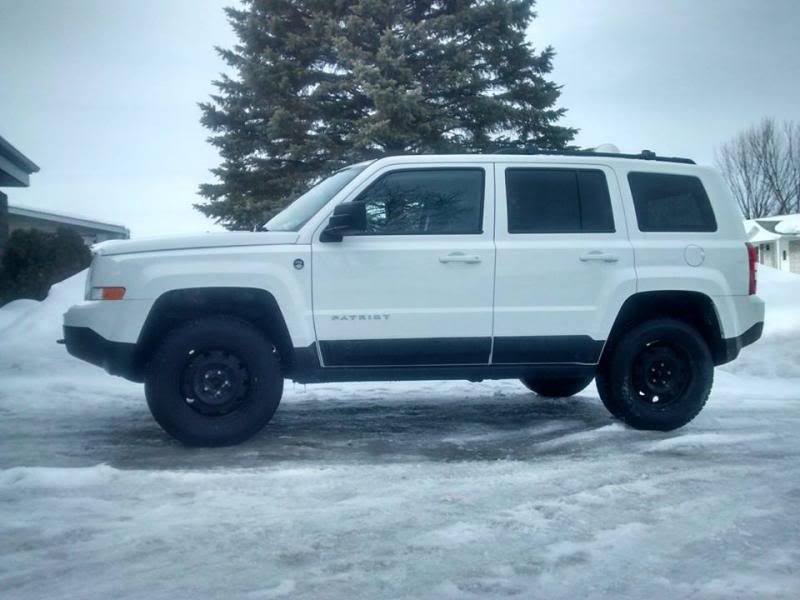

The photos just the latest evolution of the vehicle as of December 26, 2015

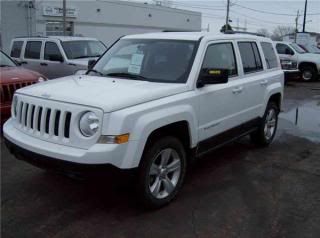

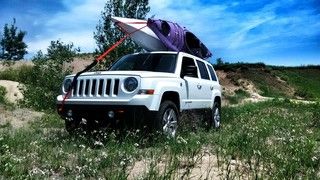

from dealer!

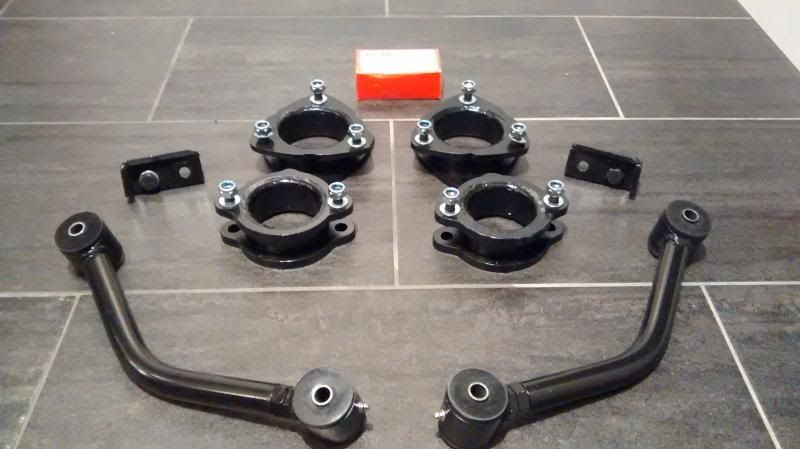

Lift Kit Rocky Road Mountain 2'' 1/8

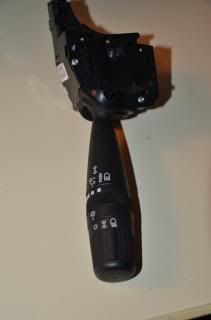

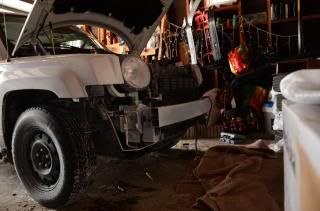

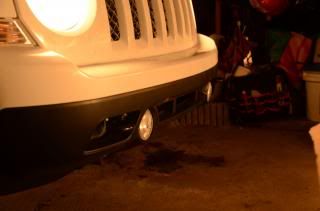

Instal the Tow hook and new fashia with Hole for tow how and fog light Oem and new arm with all light option.

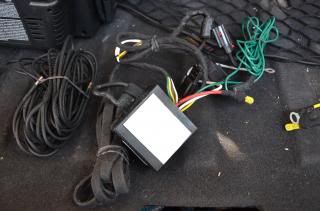

Trailer Wiring Reese

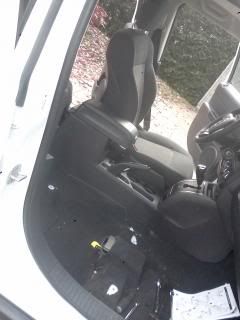

The based is mount under the passager seat. Cobra 75 WxSt, i rebuilt the modul and go instal under seat. Used on internet and rebuilt



before and after instal Cb.

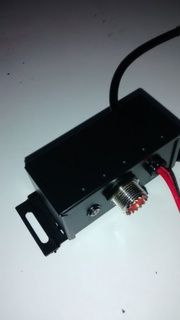

Cb Antenna Mount


wheel Spacer 1'' 1/4




Ebay 2$ just for fun



Daily light boost 40%


red Tow hook with Spot light KC 130w hillit with cover white and black navigator




Sticker OverlandBound ! , Rear carrier and antenna CB with Jerry Cans

Last edited:

stoney126

Rank VI
Founder 500
Member
Supporter

Influencer II

3,278
Napa Ca
First Name
Robert
Last Name
Stoner
Member #

0408

Wow very cool. Does this have the cvt transmission?


stoney126

Rank VI
Founder 500
Member
Supporter

Influencer II

3,278
Napa Ca
First Name
Robert
Last Name
Stoner
Member #

0408

Hahaha. Was wondering how it like the different tire size. Guessing it doesnt. Still pretty cool rig though


murps

Rank V
Member

Advocate II

2,309
Denver, CO, USA
First Name
d
Last Name
m
Member #

0711

Welcome! I too have a Patriot and always love seeing builds for it. Keep those photos coming


RescueRangers

Rank V
Member

Pathfinder I

2,055
Fleming Island, Fl
Member #

0675

Not exactly my cup of tea but I have to give you respect for daring to be different. Looks good and sounds like you are on the way to a very respectable rig. Keep us posted on your progress.


ShawnR

Rank VI
Member

Influencer II

3,316
Davenport, Iowa
Member #

0782

Nice rig. I like how "clean" the KC's on the front look. Keep posting your progress. I always enjoy watching vehicles evolve, and what creative ideas people come up with.


expeditioncvs

Rank 0

Traveler I

60
I decided to be discreet with my hillit Kc without getting caugh in parking .... haha!

since the beginning of the changes I try to stay with the most original look as possible


  • Like
Reactions: murps

expeditioncvs

Rank 0

Traveler I

60
Cool rig! I am starting to see these growing in popularity and people modifying them! Keep it up and keep us informed as it progresses..
the big problem , the price of the parts , there is a lift kit 3 years was costing $ 700 Canadian

Last edited:

murps

Rank V
Member

Advocate II

2,309
Denver, CO, USA
First Name
d
Last Name
m
Member #

0711

the big problem , the price of the parts , there is a lift kit 3 years was costing US $ 700
There are a few options for the riots now. RRO Lift for $400 or Springs. There are a couple of spring options, this will be the one I go with when my wallet allows for $386 (give or take due to currency exchange).

Either way, aftermarket parts for the riots is far more limited than other Jeep models.

*updated the spring total, I checked the currency rate
