How to wire a winch

  • HTML tutorial

sea_ledford

Rank III
Launch Member

Enthusiast II

509
Galveston, TX, USA
First Name
Chris
Last Name
Ledford
Member #

19121

I just mounted up my new slimline bumper and winch and I'm trying to figure out the propper/safe way to wire the winch up. I know I can just attach the cables to the positive and negative posts on the battery, but I'm seeing a lot about isolators, fuses, disconnects, dual batteries, etc.

I have a 2019 4runner, with stock battery. No dual battery, or plans to get one. I'm running a warn evo 10s winch.

Do I need an isolator or fuse or something? Can I just leave either the positive or negative disconnected until I go on a trip and might need it? All the official instructions I've found are notably vague about the whole process.

Thanks!

-Chris




MidOH

Rank IV

Off-Road Ranger I

1,298
Mid Ohio
First Name
John
Last Name
Clark
Ham/GMRS Callsign
YourHighness
Yep, wire it straight up. No fuse.

I've always just disconnected the positive on mine, carefully.


The other Sean

Rank V
Launch Member

Pathfinder I

2,271
Minneapolis
Member #

2292

I have mine wired straight to the battery, I never disconnect it. I do keep a cable cutter in the driver's door pocket in case something goes wonky, then I can simply cut the power cable.

  • Like
Reactions: 64Trvlr

Lindenwood

Rank V
Launch Member

Member III

2,779
New Mexico
First Name
Jay
Last Name
M
Member #

2636

I wouldnt stress too much about wiring it straight to the battery, especially since this will provide the best performance. However, first, make sure you at least wrap the wires in a couple layers of electrical tape to helo prevent rubbing through and shorting out. Secondly, though, leaving the positive disconnected is also among the safest options, as is wiring in a heavy-duty manual switch to the positive side near the terminal.


Matoolie

Rank III
Launch Member

Enthusiast III

646
Virginia
First Name
Michael
Last Name
Allen
Member #

20828

I am planning my winch install on my 2014 4runner and I bought a Blue Sea e-series shutoff switch for power lead.

  • Like
Reactions: TexasGMG

Dilldog

Rank V
Launch Member
Investor

Influencer I

2,358
Spokane, WA.
First Name
Dillon
Last Name
Wilke
Member #

20298

Ham/GMRS Callsign
KJ7LVO/ WRQL275
Service Branch
USAF
When I wired up my winch I did a switch in the cab that ran a 250amp relay to disconnect the power from the winch, then ran a 250amp maxi fuse to protect from shorts during use. Having watched a truck burn down on the trail due to a shorted out winch motor Im a big fan of fusing the winch.
To add: There were a lot of other failures that lead to this; continued overload of winch, not paying attention to warning signs of shorts, not having a fire extinguisher. But I still encourage the use of at least a large high current fuse, just in case you are in a position where you need to focus on the recovery and not on the subtleties of potential issues with the winch, wiring, and vehicle battery.

  • Like
Reactions: M Rose

PonoAdventures

Rank IV
Launch Member

Advocate I

1,308
Orange County, CA
First Name
Jason
Last Name
Nguyen
Member #

22713

you could also get something like the warn battery disconnect:



OVRLNDER

US East Region Member Rep, NY
Launch Member

Enthusiast III

2,172
Orchard Park, NY, USA
First Name
Roland
Last Name
Pigeon
Member #

14821

I put one of these warn power interrupt kits in and wired the switch to my apollointech switches. The winch will only have power when I flip the switch. I never like having that big of a wire always hot when not in use. With me being a volunteer firefighter and a career in auto body, I've seen my far share of fires caused my a shorted wire.


MOAK

Rank V
Launch Member

Off-Road Ranger I

2,865
Wernersville Public Library, North Reber Street, Wernersville, PA, USA
First Name
Donald
Last Name
Diehl
Member #

0745

Ham/GMRS Callsign
WRPN 506

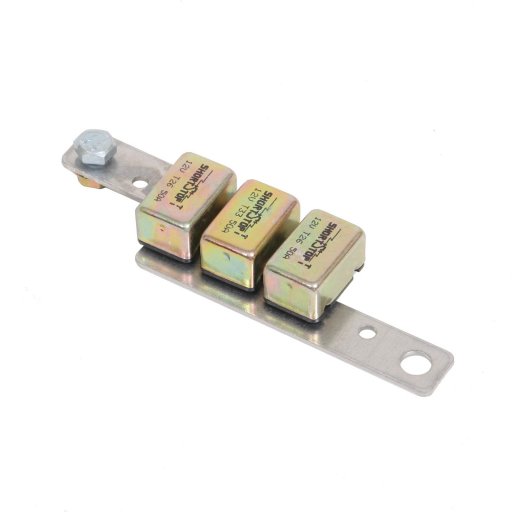

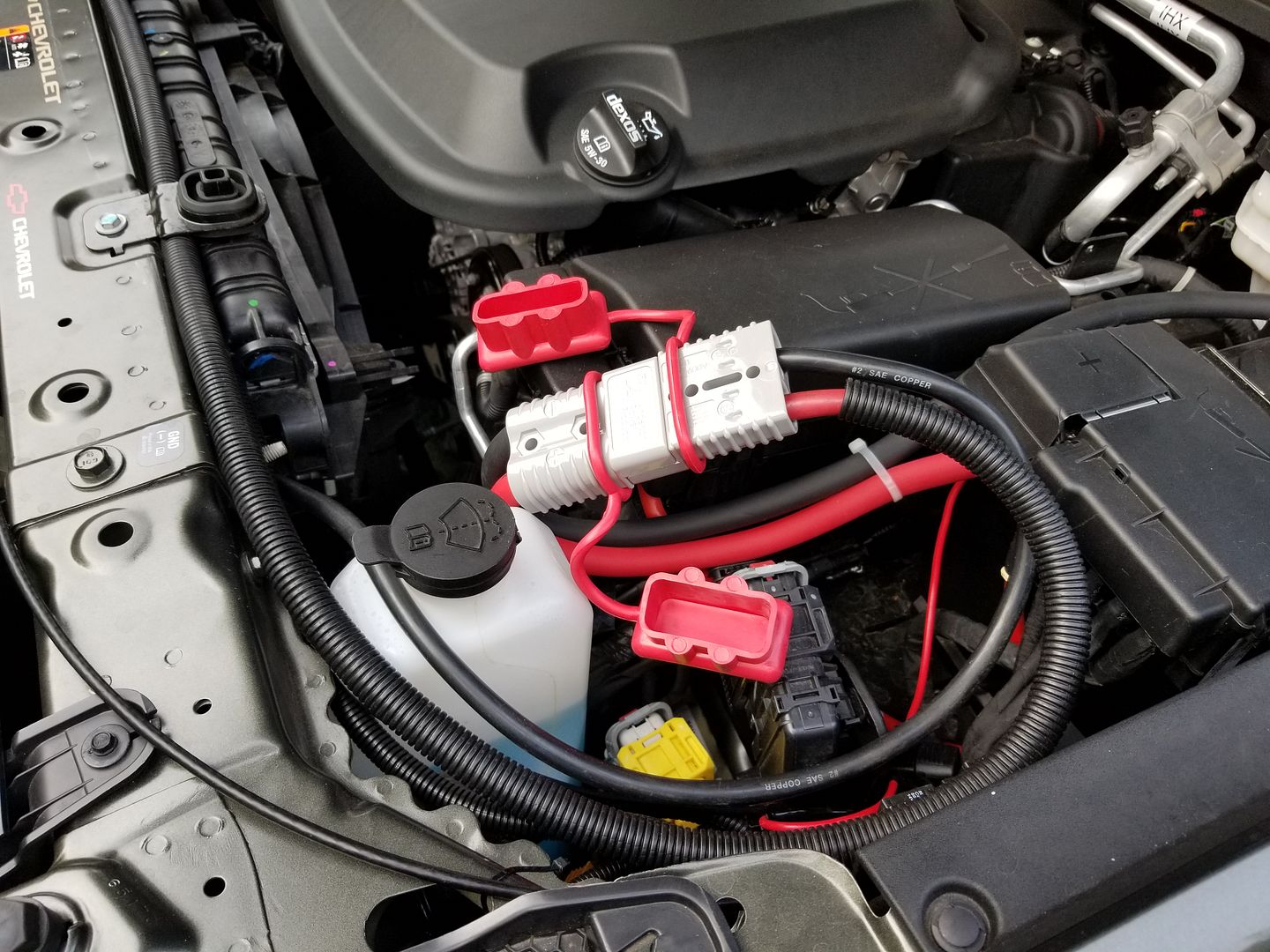

Ok, here are three things I have always used when wiring up my winches. I use Heavy rubber hose anywhere there is even the slightest chance of rubbing the wire. I cut the hose to length, slice it, wrap it around the wire and fasten it with tie straps. I use the slotted plastic stuff on all wire runs. I use the breakers as well. In fact any aftermarket wiring on my cruiser is wrapped the same way. I may be a bit anal about it, however, since I started doing this I’ve never had any wiring wear through and short out. 261656D7-3439-418F-962B-594A8AEA8C9E.jpeg2B6E7DA0-1D1C-410B-BAD1-AB6DE45C0861.jpegEA6EC0B8-F036-4815-A47A-1AEEF18C20B2.jpeg


Dilldog

Rank V
Launch Member
Investor

Influencer I

2,358
Spokane, WA.
First Name
Dillon
Last Name
Wilke
Member #

20298

Ham/GMRS Callsign
KJ7LVO/ WRQL275
Service Branch
USAF
I put one of these warn power interrupt kits in and wired the switch to my apollointech switches. The winch will only have power when I flip the switch. I never like having that big of a wire always hot when not in use. With me being a volunteer firefighter and a career in auto body, I've seen my far share of fires caused my a shorted wire.
Thats the same way I relayed I my old winch. But $85!? You can literally make that exact set up for $50-$60 in parts from a Napa. Or if youre willing to go wrecking yard hopping for parts (like I did) you can make a set up identical to that for $10.


OVRLNDER

US East Region Member Rep, NY
Launch Member

Enthusiast III

2,172
Orchard Park, NY, USA
First Name
Roland
Last Name
Pigeon
Member #

14821

Thats the same way I relayed I my old winch. But $85!? You can literally make that exact set up for $50-$60 in parts from a Napa. Or if youre willing to go wrecking yard hopping for parts (like I did) you can make a set up identical to that for $10.
When I bought it, the price was $50, so I went with it. I didn't even realize the price jumped up.

  • Like
Reactions: Dilldog

Dilldog

Rank V
Launch Member
Investor

Influencer I

2,358
Spokane, WA.
First Name
Dillon
Last Name
Wilke
Member #

20298

Ham/GMRS Callsign
KJ7LVO/ WRQL275
Service Branch
USAF
When I bought it, the price was $50, so I went with it. I didn't even realize the price jumped up.
How long ago was That? I bet the price jump is in keeping with the cost of things currently. Had I bought all the parts new when I built my set up about 12 years ago it would have cost around 30 or 40. I figure at current prices you can piece that kit together for 50 or 60.


OVRLNDER

US East Region Member Rep, NY
Launch Member

Enthusiast III

2,172
Orchard Park, NY, USA
First Name
Roland
Last Name
Pigeon
Member #

14821

How long ago was That? I bet the price jump is in keeping with the cost of things currently. Had I bought all the parts new when I built my set up about 12 years ago it would have cost around 30 or 40. I figure at current prices you can piece that kit together for 50 or 60.
Just about 2 years ago.

  • Like
Reactions: Dilldog

Redbear

Rank IV
Launch Member

Enthusiast III

1,213
Bayville, NJ
First Name
Kenneth
Last Name
Murdoch
Member #

19981

Ham/GMRS Callsign
KD2TQO GMRS: WREQ743
What size fuse do you run with a 10k lb winch?
