Anyone running an integrated system for mapping? I am about to embark on an Epic Road Trip and wondered if there was a way I could integrate my iPad as a GPS/Topo Mapping system. Any descriptions and pictures would be greatly appreciated


El Solis

Rank V
Member

Off-Road Ranger I

1,884
Livermore, CA, USA
Member #

7100

Ham Callsign
KK6CQE

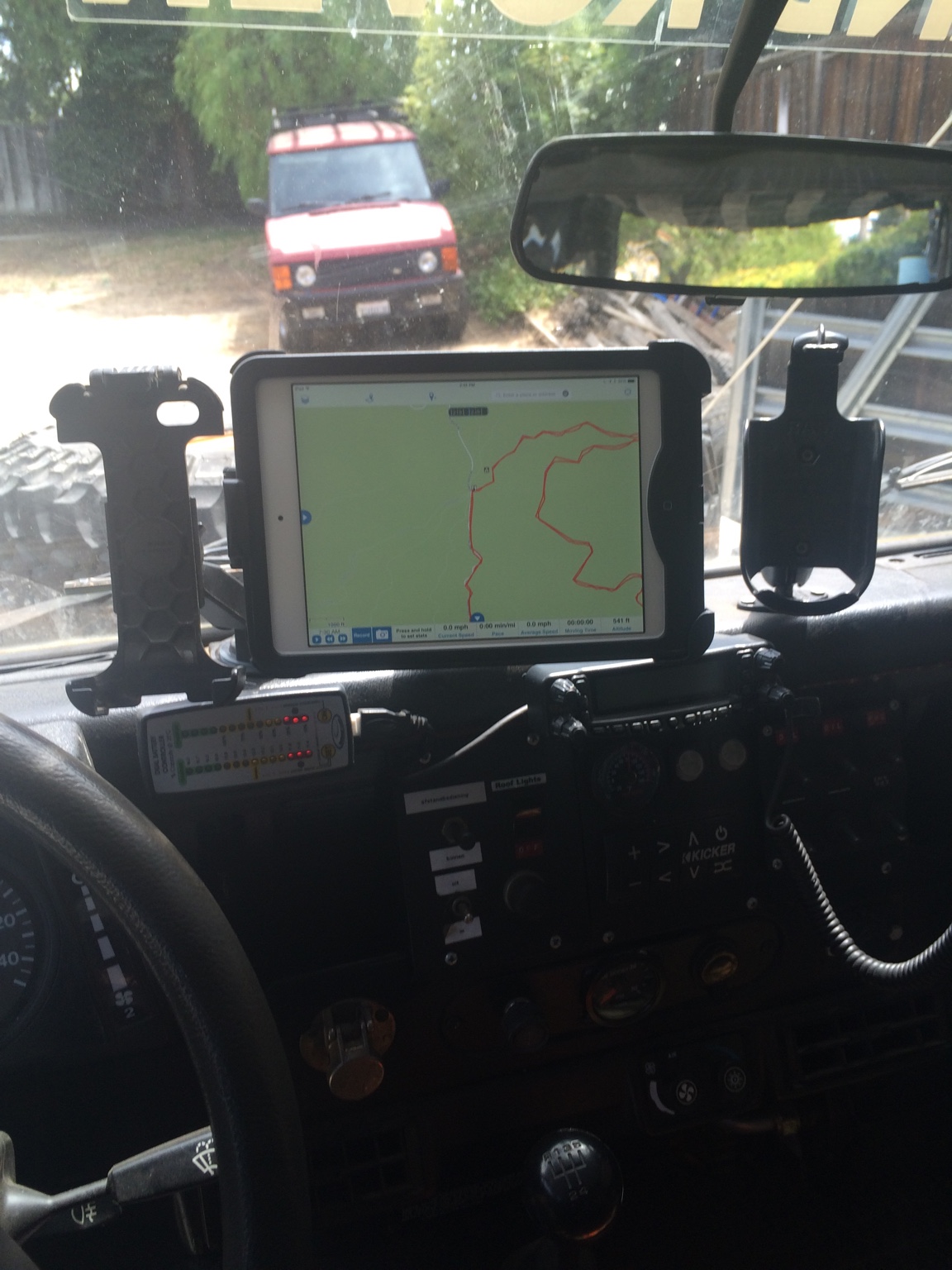

Gaia GPS is the way to go as long as your iPad has a GPS chip (if you can get cellular data it has a GPS chip). If not and it has Bluetooth you can get a GPS puck (like bad elf unit). Here's a screen shot from my iPhone from one of my trips. I use my iPad in the truck.

  • Like
Reactions: Matt92101

1Louder

Rank VI
Member

Member II

4,187
AZ
First Name
Chris
Last Name
K
Member #

1437

Ham Callsign
K1LDR
Another vote for Gaia. I have been using it for years. There is a "new" Hema app but it is just a clone of Gaia. At least for the time being.


Gunnermoose

Rank V
Member

Advocate II

2,741
Mesa, Arizona
Member #

1599

I run Gaia and Earthmate on my iPad air2. I do not rely on the internal GPS of the iPad. I use a Delorme InReach Explorer and Bluetooth the signal into my iPad. The explorer also provides me with some additional service when there is no cell link. Depending on the InReach plan you use you can have weather, SMS text capability, mapping functionality and an SOS/evac options. If you plan to be by yourself a lot I highly recommend. I have never used the SOS function, but there is piece of mind knowing I have it. http://www.inreachdelorme.com/product-info/inreach-explorer.php


Raul B

Rank VI
Member

Influencer II

4,521
simi valley
First Name
Raul
Last Name
Banuelos
Member #

2957

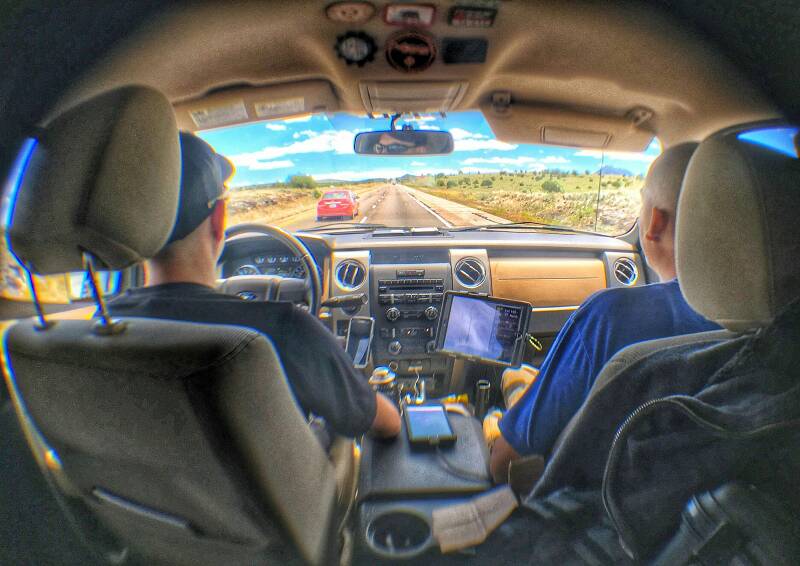

Im running an Ipad Air 2 mounted with mob armor mounts. I also run a external bluetooth gps (dual skypro gps). as far as software goes i use co pilot for street driving and a combanation of gia, backcountry and leadnav... so far i have found leadnav far superior but its also a paid subscription...

  • Like
Reactions: Gunnermoose

SonOfNeptune

Rank V
Founder 500
Member

Advocate II

2,011
Springfield MO
Member #

0222

Thanks for the heads up Guys. I downloaded Gaia and I already had MotionX... Im going to play around with them both more on the trip to see which one I prefer. That being said, does anyone use a Garmin hand held as their GPS data collector. Is there a way to link the handheld and have it work as the interface/data collector (in real time). I presume you can use a Garmin hand held as a hiking platform and upload the data to Gaia on the iPad and Computer... can anyone confirm?


1Louder

Rank VI
Member

Member II

4,187
AZ
First Name
Chris
Last Name
K
Member #

1437

Ham Callsign
K1LDR
Thanks for the heads up Guys. I downloaded Gaia and I already had MotionX... Im going to play around with them both more on the trip to see which one I prefer. That being said, does anyone use a Garmin hand held as their GPS data collector. Is there a way to link the handheld and have it work as the interface/data collector (in real time). I presume you can use a Garmin hand held as a hiking platform and upload the data to Gaia on the iPad and Computer... can anyone confirm?
I believe Garmin has software to extract the files and make them GPX files. I don't own a Garmin device. I use my phone or Delorme InReach for tracks when outside the vehicle.


Gunnermoose

Rank V
Member

Advocate II

2,741
Mesa, Arizona
Member #

1599

Garmin GPS devices do run a proprietary data stream. With that said, depending on the software you use, you can change the settings to run real-time off of a Garmin device. At one time (6 years ago), I had a laptop in my truck that I used for as my navigation platform. I had ESRI's ArcMap loaded on the laptop and used a Garmin GPS Map 76 as my GPS device. I had to go into the ESRI software setting and select the Garmin interface. Additionally, I had to set the output on the Garmin device to a different setting also. Once completed I had tracking/logging capability on my laptop. I would have to go back into the settings to see what they were.

I have never had a problem importing a Garmin track into any other navigation app/software.

  • Like
Reactions: SonOfNeptune

SonOfNeptune

Rank V
Founder 500
Member

Advocate II

2,011
Springfield MO
Member #

0222

Garmin GPS devices do run a proprietary data stream. With that said, depending on the software you use, you can change the settings to run real-time off of a Garmin device. At one time (6 years ago), I had a laptop in my truck that I used for as my navigation platform. I had ESRI's ArcMap loaded on the laptop and used a Garmin GPS Map 76 as my GPS device. I had to go into the ESRI software setting and select the Garmin interface. Additionally, I had to set the output on the Garmin device to a different setting also. Once completed I had tracking/logging capability on my laptop. I would have to go back into the settings to see what they were.

I have never had a problem importing a Garmin track into any other navigation app/software.
Thanks Man!
