I saw a picture online of a tacoma that had a dual battery system mounted in the toolbox. It was strictly for auxiliary "house" needs. Im wanting to do a setup like it in my toolbox to blow up mattresses, charge phones, computers, etc. Anyone have a clue how one could set this up and what I would need to run a system like it. Cant find the picture anymore but some of y'all gotta know how to set it up. Electrical systems confuse me so I'm puzzled as where to start. All help is appreciated! I should add that since my truck is an SR5 it didn't come with the inverter from the factory. Shoot!

  • Like
Reactions: Kyle (SR5_Tacoma)

Flipper

Rank V
Member

Member III

2,865
Florida
First Name
John
Last Name
F
Member #

5021

It's a pretty simple system, Blue Seas Systems make a product called a battery link, this is connected to the positive post on the trucks battery, this has to be fused, they also make cool fuses that mount on the battery . This goes to the battery link, the links output will go to your house battery positive post. The negative on your house battery goes to the frame Of the truck (ground) these wires should be at least 4 ga, 2 ga would be better. What this does is when you start your truck the link sences the "charge" from the alt. It's connects the house batt to the truck batt. When you turn the truck off it disconnects the house batt, so you don't have to worry about a dead start batt. Then your inverter connects plus and negative to the house batt. I would recommend a pure sine wave inverter which produces the same electricity that is in a house, a square wave inverter can damage chargers and electronics, a good place to buy the inverter is a online co called Don Rowe Inverters. To mount the house batt. Marine battery boxes or tray will secure it. Boom! Your finished. Any questions give me a shout. You can find the link on amazon for $100 , the hardware, fuse holders , lugs , West Marine or Defender catalog, do not skimp on the wire gauge. The fuse at truck batt 75A. Fuse size going to inverter will depend on the size of the inverter. If you want solar also the solar panel will go to a controller, the regulates the charge coming from the panel and dosent let the batt to backfeed back to the panel a night. The output of the controller goes to the house battery, don't waste your money on a small panel, an 85 W panel will give you around an 7A charge, a 125W panel will give you a 10A charge.


overlandozzy

Rank 0

Traveler I

It's a pretty simple system, Blue Seas Systems make a product called a battery link, this is connected to the positive post on the trucks battery, this has to be fused, they also make cool fuses that mount on the battery . This goes to the battery link, the links output will go to your house battery positive post. The negative on your house battery goes to the frame Of the truck (ground) these wires should be at least 4 ga, 2 ga would be better. What this does is when you start your truck the link sences the "charge" from the alt. It's connects the house batt to the truck batt. When you turn the truck off it disconnects the house batt, so you don't have to worry about a dead start batt. Then your inverter connects plus and negative to the house batt. I would recommend a pure sine wave inverter which produces the same electricity that is in a house, a square wave inverter can damage chargers and electronics, a good place to buy the inverter is a online co called Don Rowe Inverters. To mount the house batt. Marine battery boxes or tray will secure it. Boom! Your finished. Any questions give me a shout. You can find the link on amazon for $100 , the hardware, fuse holders , lugs , West Marine or Defender catalog, do not skimp on the wire gauge. The fuse at truck batt 75A. Fuse size going to inverter will depend on the size of the inverter. If you want solar also the solar panel will go to a controller, the regulates the charge coming from the panel and dosent let the batt to backfeed back to the panel a night. The output of the controller goes to the house battery, don't waste your money on a small panel, an 85 W panel will give you around an 7A charge, a 125W panel will give you a 10A charge.
Would this setup work if I wanted tor un 2 aux batteries in the toolbox?


1Louder

Rank VI
Member

Member II

4,187
AZ
First Name
Chris
Last Name
K
Member #

1437

Ham Callsign
K1LDR
YouTube is your friend. Lots of DIY videos. Look for Power Box or similar keywords. Some call them Solar Generators.


Flipper

Rank V
Member

Member III

2,865
Florida
First Name
John
Last Name
F
Member #

5021

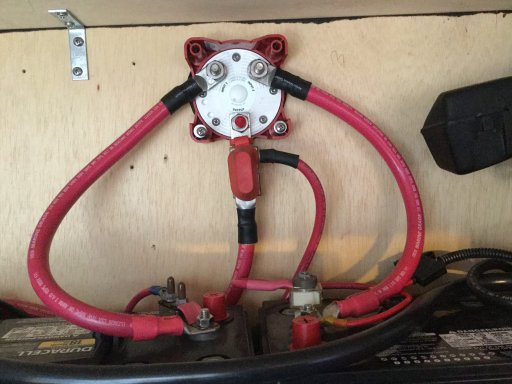

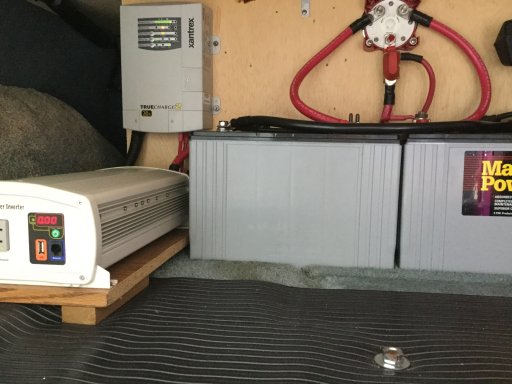

IMG_0697.JPG IMG_0707.JPG
