I just made one for myself based off of this guys video! It's awesome.....just have to figure out my permanent mounting method.


Ultragoat

Rank II
Member

Traveler I

490
Boone, NC
First Name
Joshua
Last Name
Hamilton
Member #

8446

Perhaps a few pics of your build would be cool!

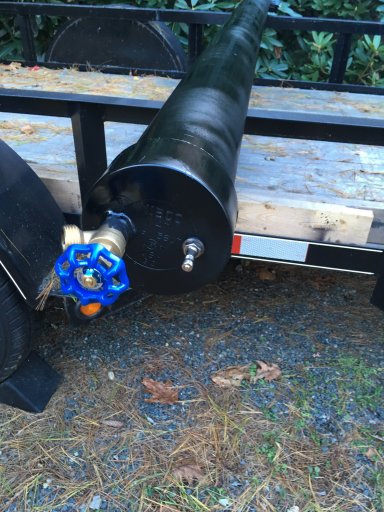

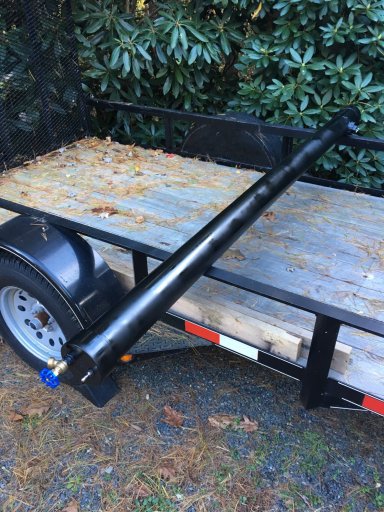

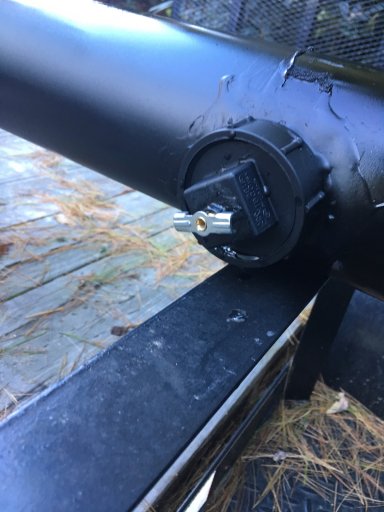

file-1.jpegfile2.jpeg file1.jpeg I am still working on a permanent mounting solution. It holds pressure at 50psi with no issues and works great. You definitely need a pipe wrench handy to open and close the fill cap as that seemed to be the only place it would leak if it wasn't tightened enough. My ABS glue technique was a bit messy but I am otherwise very happy with the 60 bucks I spent on the project! I hope this helps!


Jku Ben

Rank V
Member

Advocate I

2,309
Alpine, CA
Member #

10566

Just started working on mine today. I am using 2 4” pvc pipes to be connected by tubing which will allow me twice the capacity as I have wife & 11 year old daughter so I’ll need that extra water. Can’t figure out if it’s getting mounted on the Jeep or trailer will post pictures next week when completed. Thanks for the info & video.

  • Like
Reactions: Rubicajon

HeliSniper

Rank VI
Benefactor
Member

Influencer I

3,341
Dallas, Texas
First Name
Brad
Last Name
S
Member #

5697

This a great alternative to buying pre-made, and looks like a fun project that can be modified as you go......


JersT4R

Rank V
Member

Influencer II

1,939
Norfolk, VA
Member #

8880

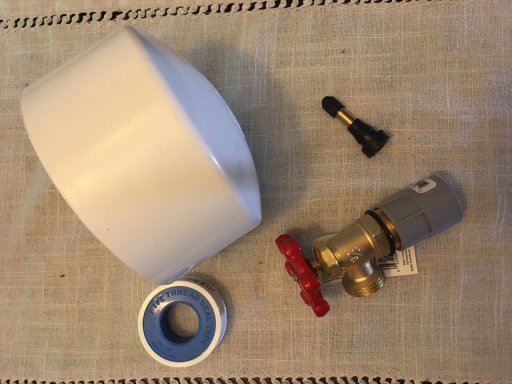

I bought the 4" PVC Schedule 40 pipe and T-Connector with threaded cap. However, I need a flat end cap for the back so I can add the Valve and Hose Spigot. I also need to order the Metal Valve Stem, to replace the rubber seal one I got from a tire store - not sure the one I have will correctly seal.

@Jku Ben - what did you use for the end cap - what brand, any issues?



JersT4R

Rank V
Member

Influencer II

1,939
Norfolk, VA
Member #

8880

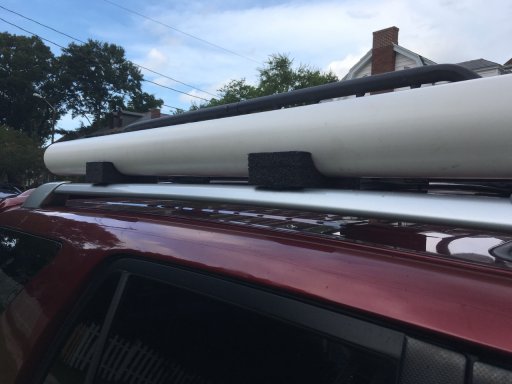

Got some foam blocks from a neighbor, and cut them to fit my stock roof rack.

Where do I find a 4” flat end cap for the valve and hose spigot? Anyone?



Ditcherman

Rank IV
Member

Advocate III

1,402
Sheridan, IN, USA
Member #

3743

Got some foam blocks from a neighbor, and cut them to fit my stock roof rack.

Where do I find a 4” flat end cap for the valve and hose spigot? Anyone?

View attachment 64655
Got some foam blocks from a neighbor, and cut them to fit my stock roof rack.

Where do I find a 4” flat end cap for the valve and hose spigot? Anyone?

View attachment 64655
Check out pvc40.com, can’t seem to copy and paste their pics, what I would do is buy a reducing tee that is 4”slip x 3/4”FPT X 4” slip, and use a normal end cap, avoid trying to tap (thread) the end cap that you may pressurize, looks like a weak spot to me. You want a valve stem with a nut on the inside (aluminum wheel type I believe). I’m assuming the conduit fitting you have there is just to back up the threaded part, could be tough to glue conduit and pvc.


JersT4R

Rank V
Member

Influencer II

1,939
Norfolk, VA
Member #

8880

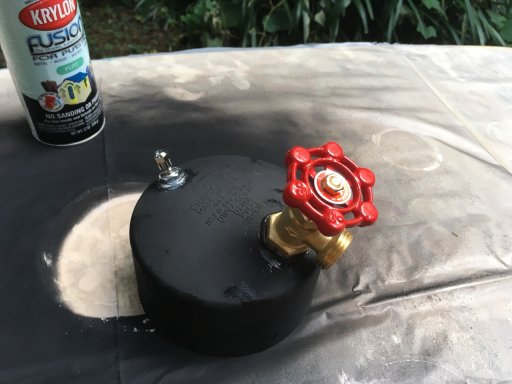

@Ditcherman I ended up using the rounded cap. Drilled the holes and test fitted the hose spigot and metal valve stem (found 4 pack on Amazon), and painted. Done!

With pressure it leaked, but I sealed up the caps and connectors with the Silicon. Should be good.


  • Like
Reactions: Ditcherman

great08

Rank V
Member

Member III

2,741
Elizabeth City, NC, USA
First Name
Martin
Last Name
Mitchell
Looks like a very neat and possibly very handy project.

However, I have explosive concerns. As in... it may explode and hurt someone. What kind of pressure do you pressurize it to... and what pressure does it end up being after it heats up?

Kind of reminds me of the spud guns from back in the day. lol


Jku Ben

Rank V
Member

Advocate I

2,309
Alpine, CA
Member #

10566

I bought the 4" PVC Schedule 40 pipe and T-Connector with threaded cap. However, I need a flat end cap for the back so I can add the Valve and Hose Spigot. I also need to order the Metal Valve Stem, to replace the rubber seal one I got from a tire store - not sure the one I have will correctly seal.

@Jku Ben - what did you use for the end cap - what brand, any issues?

View attachment 64612
ABS 4” end cap. Abs is used as a drain not pressurized but it is rated for 80 psi & im only going 30 to 40 psi so figured I’d be good. The cap you have in the picture is the correct one & it is rated up to 160 psi I believe.
