Can anyone identify this suspension setup on (not my) DIY trailer?

  • HTML tutorial

gr33nmachin3

Rank I

Enthusiast I

145
Indiana, USA
First Name
Jon
Last Name
Dawes
Hello!

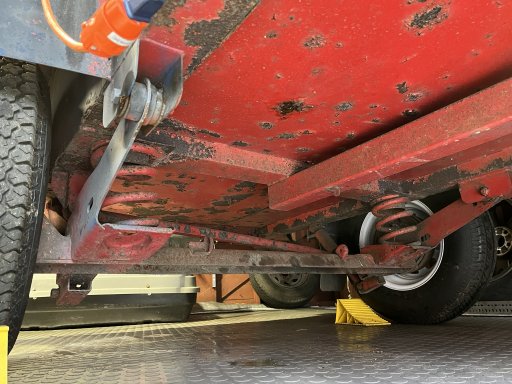

I purchased a diy overlanding trailer with roof tent last year and have traveled around with it a bit.

Anyone recognize the suspension on my trailer?

I did not build the trailer (an unknown previous owner did) but was told it is a Ford auto suspension (Escort perhaps?)

I'm researching so I can refresh bushings, shocks, springs, hubs etc. as necessary when the time comes.

Thank you!


Attachments

smritte

Rank V
Launch Member

Member III

2,827
Ontario California
First Name
Scott
Last Name
SMR
Member #

8846

Ham/GMRS Callsign
KO6BI
It does look like someone pulled a rear suspension out of a front wheel drive car. The trailing arm design looks very old. Easy pre 90's and possibly pre 80's. I say that because of the stamped arms and the way the lower spring buckets sit. I would be very surprised if it was newer.

Bushing wise, its going to take a bit of searching. You need all the dimensions first, which means disassembly. Once there I would start with ford and cross reference the dimensions. I've found odd bushings and bearings that way. You may want to start with the bearing dimensions and see what car you end up with. I've had better luck with those. Be aware, quite a few of those suspensions didn't have replaceable bushings.

Shock's are easier. Extended length, collapsed and mount design. You find shocks with the length numbers then look up mount type. Its possible your shocks are not from the same car. Most of my shock lengths (for trailers) end up being old lowered bug front.

Springs, if they hold up the weight and you don't see damage, just repaint them.

  • Like
Reactions: gr33nmachin3

gr33nmachin3

Rank I

Enthusiast I

145
Indiana, USA
First Name
Jon
Last Name
Dawes
Thank you!

Ford for sure. 5x114.3 bolt pattern.

I found the shocks previously by using the name on the sticker...not sure where that went but will be able to find again!


eriefisher

Rank III

Advocate I

778
Southern Ontario, Canada
First Name
Dan
Last Name
LaForme
Many of the Fords were a multi link system. Escort, Tempo etc. I'm going to guess some sort of Chrysler product. K-car, Lebaron, 600. Maybe Omni or Horizon. The vans were leaf sprung.


HaveeBear2

Rank II
Member
Investor

Enthusiast I

434
Maryland
First Name
Javi
Last Name
Armendariz
Member #

27524

Ham/GMRS Callsign
W3JAV
Looks like just a trailing arm suspension with springs. Are you trying to update, fix, replace...?


socal geek guy

Rank IV
Launch Member

Enthusiast III

1,116
San Diego, CA, USA
First Name
Chris
Last Name
Walker
Member #

19531

if you can pop out the bushings and get measurements, i think energy suspension may still have a good selection of car suspension bushings.
