Where is everyone mounting their Compressors? I just picked up an ARB CKMTA12 and I'm not sure where the best place to mount it would be. Its going on a daily driven 2015 Silverado. I know the second battery tray would be the easiest but I want to go dual battery eventually.


Daryl 32

Rank V
Member

Member III

2,741
Corona, Ca
Member #

5546

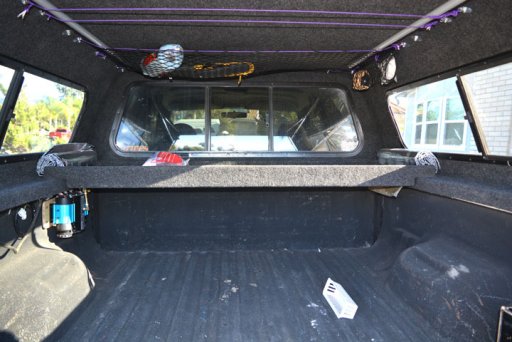

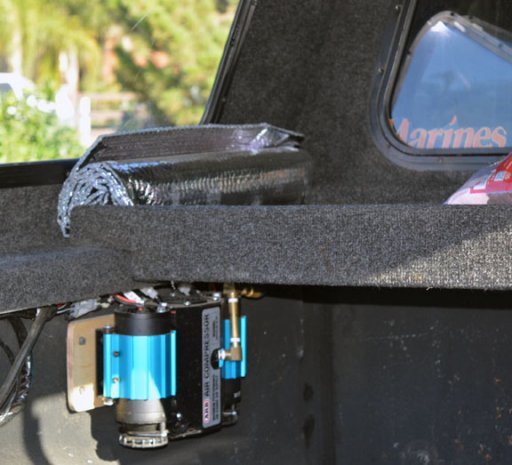

Mine is in the bed on the inner side wall - no room under the hoop in my F250. We have a shell on the truck so it is out of sight, you could put a steel box around it with key locked opening. ?

storage 11.jpg

storage 8.jpg


Natchez

Rank V
Member

Pathfinder I

1,556
Chesapeake, VA, USA
Member #

6817

I thought about that but I have a Decked drawer system. I might actually be able to cut out one of the corner “ammo” boxes and put it under the platform.


Pierre37

Rank I
Member

Traveler I

233
Perth, WA, Australia
Member #

11609

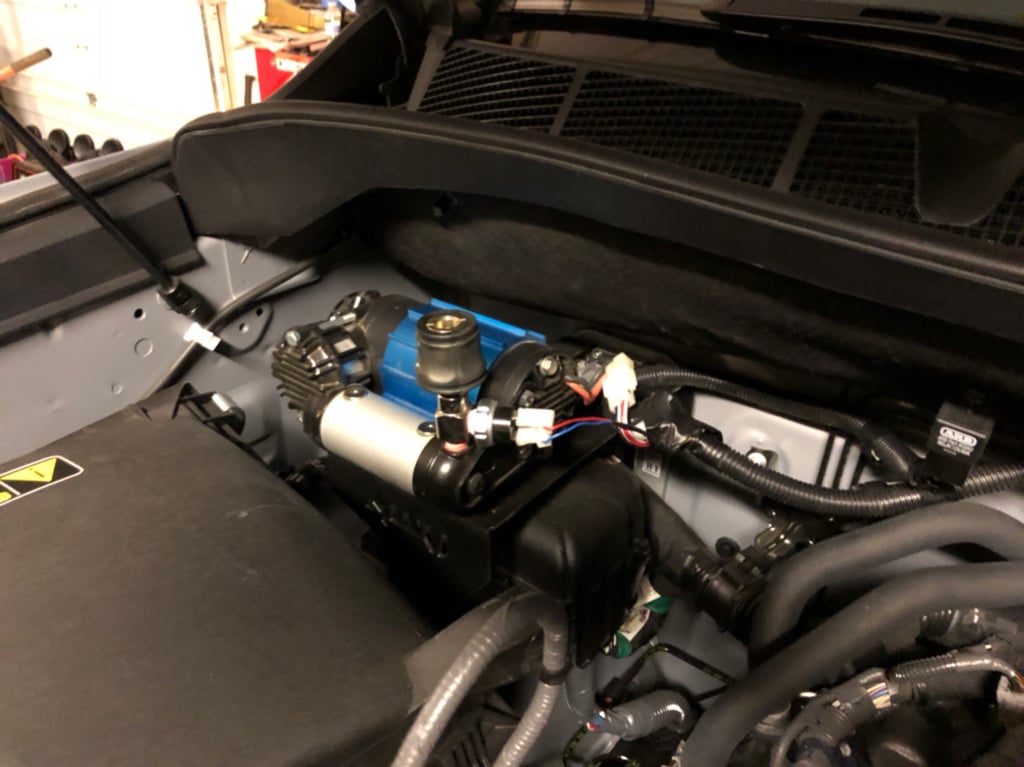

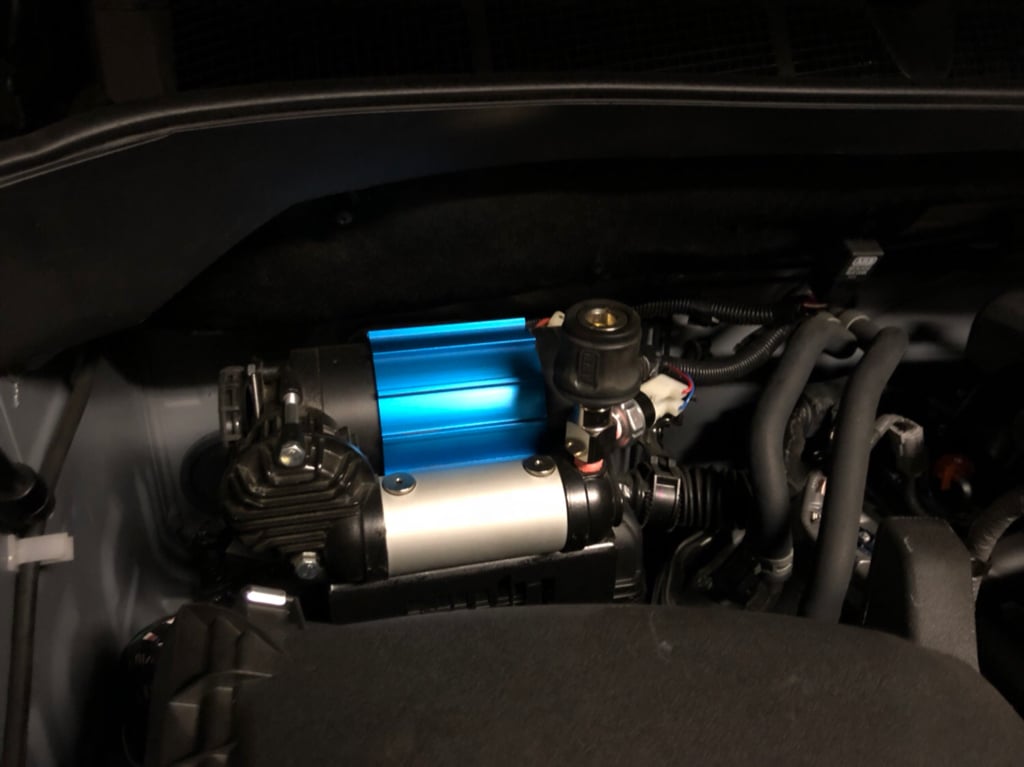

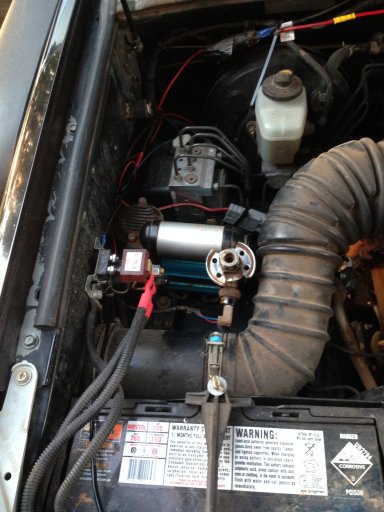

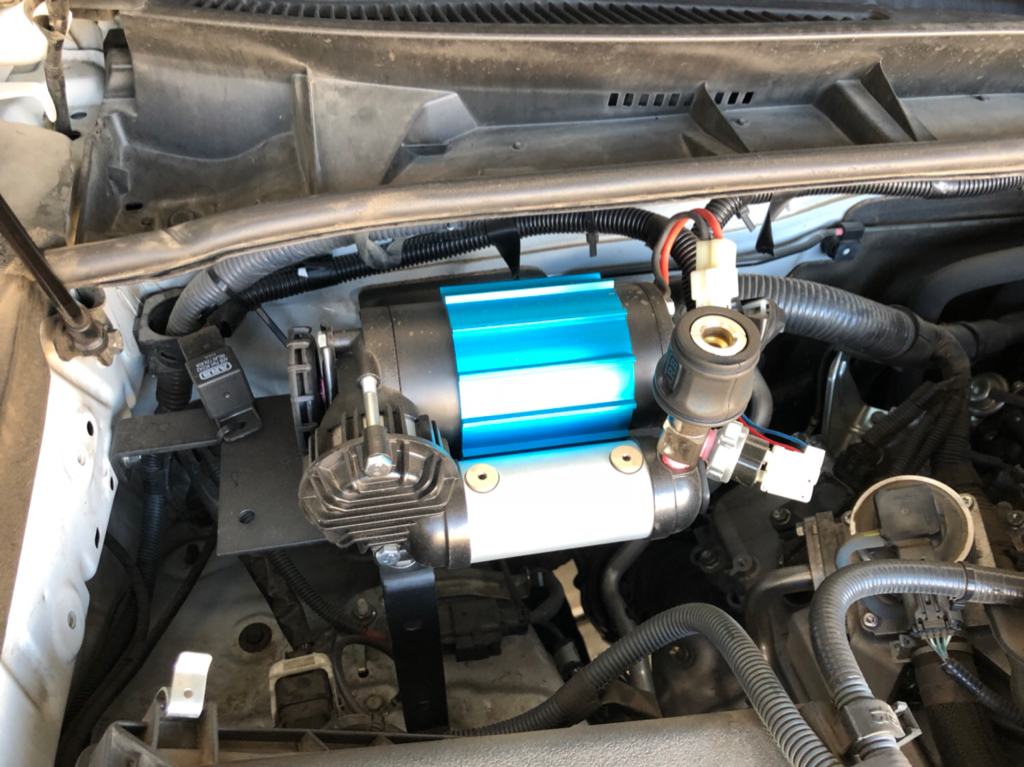

I've mounted mine under the bonnet, not were the aux battery tray is, but closer to where the air intake is. There was just enough space for it there.
I highly recommend to put it under the bonnet, it's out of the way (save space inside the car), and you limit the wire length which is always a bonus.
Car is a Toyota Prado 120 series (Petrol).
