86 Jeep wagoneer ex forest service build. W/ diesel swap

  • HTML tutorial

Natecr

Rank 0

Traveler I

Hey there! Some details on my build

Originally bought about two years ago. Had a cracked frame separated tires and a 360 that “ran” and a 727 that appeared to have motor oil in it. [emoji15]


View attachment 77441



Got the 6.5 diesel test fitted,


View attachment 77440

Ended up finding a mv4500 and np241c set up. Little did I know the 241c was gonna require plenty of mods to get the mechanical speedo to work as well as a front drive shaft, the Chevy has a odd front output that requires milling out 1/4” of splines to get a dodge flange to work.

View attachment 77442

Current mods
3” rough country lift
1”body lift
Crappy 31” hankook at’s
Gm 6.5 diesel
Nv4500
Modded 241c
Dual battries
Dana 44’s w/2.72

Next up:

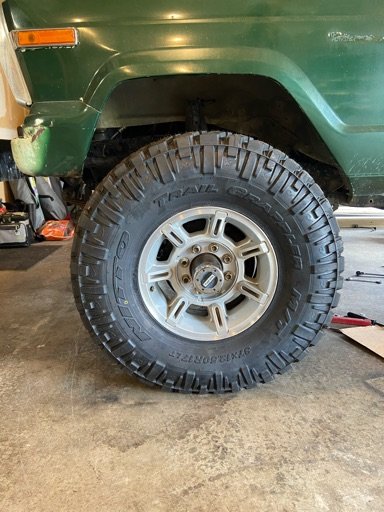

33x10.50’s
4.10’s
Locker(s)

Took it out in the snow after thanksgiving

View attachment 77443

Last edited:

Natecr

Rank 0

Traveler I

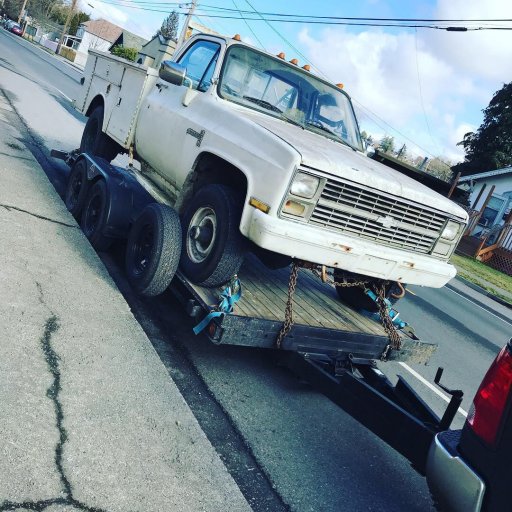

Welp I picked up this Chevy k30 for 600$

Has a sbc
Th400
No205
Dana 60 front
14bolt rear


So now I’m debating on how I’m approaching my build.

Do I install my gears and lockers I’ve acquired and buy/install 33’s

Or for a wash in money (after I part the truck and my axles lift, lockers ect) do I adapt the 205 install the one tons and put 37’s on this?


Billiebob

Rank V
Launch Member

Member III

2,835
earth
First Name
Bill
Last Name
William
Member #

18893

As an overlander I'd go the 33s route.
The bigger the tire the worse the gas milage, shorter the range.

Gorgeous truck tho.
Wheres the Wagoneer ?
