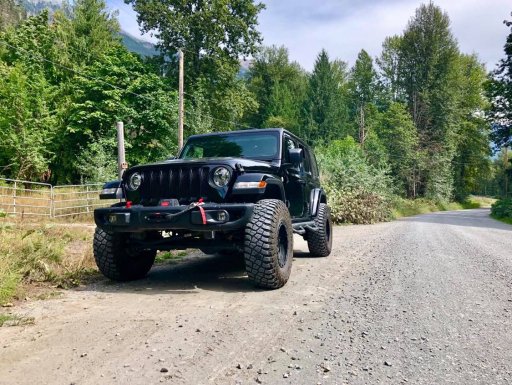

2018 Jeep Wrangler (JLU) Build
3.6L, 8-Speed Automatic

233456409_3844849532285679_3744045139013323426_n.jpg233722935_348869303617006_6056242310098971036_n.jpg


DRIVETRAIN

TIRES // 37x12.5R17 BFG KM3 Mud Terrain
WHEELS // 17" KMC RG2
SHOCKS // Fox 2.5 Series Monotube

SUSPENSION // Fox 2.5 Series Monotube

STEERING // Rancho Front Adjustable Trackbar
ARMOR & BODY

SLIDERS // NFAB Nerf Side Step
BUMPERS // Mopar Front and Rear Steel
TIRE CARRIER // Mopar Heavy Duty Reinforcement w/ Rough Country Relocation Bracket
ELECTRICAL

AUX BATTERY // Odyssey PC1100
BRACKET // American Adventure Lab Battery Mount
CHARGER // Renogy 12A 12v DCDC

MISC // Dometic Wiring Kit
RECOVERY

WINCH // Warn VR Evo 8S

WINCH BRACKET // Rugged Ridge Spartacus
RECOVERY KIT
//
Factor 55 Pulley, Freedom Recovery Shackles/Straps
COMS

RADIO // UNIDEN PRO 505XL
MOUNT // Magnetic Mic
Antenna // Firestik 4'
MISC

FRIDGE // DOMETIC CFX3 45L
WATER STORAGE // Rotopax 2 Gallon
SAFETY // Marine Fire Extinguisher (ABC),
Trauma
Kit and First Aid Kit

Last edited:
  • Like
Reactions: boudain and Haust

boehml

Rank VI
Member

Member III

3,316
British Columbia
First Name
Liam
Last Name
-
Member #

2489

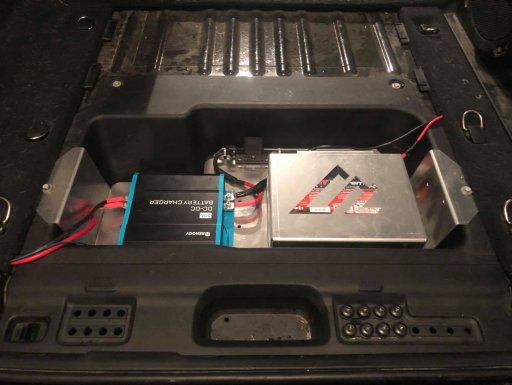

Wired up a dual battery to power the newly acquired Dometic fridge, and boy, what a game changer. Odyssey 45AH AGM battery, which can safely cycle 80%, giving a usable ~33AH. American Adventure Labs has a great mounting solution for the unused storage space under the rear cargo area.

Ran 6GA AWG wire with 40 AMP fuses to a Renogy 20A DCDC charger. Being that I only run the fridge off this setup, I haven't added a fuse box, but probably will in the future. Much like the Redarc 1225, the Renogy requires an ignition wire, which I ran to the rear 12V cargo plug. On the JL, you can swap the fuse position one slot to the left (or right) to change the rear 12V from ignition to always hot. This is how it looks all buttoned up.


And, with the fridge in place. It can be ran on either side, the 12V cord supplied by Dometic is long enough to reach the Dometic wiring kit, which I installed on the rear sub housing. It fits perfectly between the rear seat and the sub and looks
almost factory.


The other thing I installed was a magnetic mic holder. Seeing as my CB is mounted in the centre console, I wanted to avoid any hanging mics and I didn't want to have to look down to clip the mic on. Mounted it under the latch to the centre console (offset to avoid the mic getting in the way of opening). This magnetic is incredibly strong, it didn't fall off over many many hundreds of kilometers on washboard roads. Honestly, the perfect solution.
