Hey all!

So I made a 2000 mile round trip a few weeks ago to scoop up this 1965 International Travelall Panel (D1200).
The D1200 is a 3/4 ton 4x4 delivery truck, and seem to be a fairly rare rig. Currently has a V8 304ci gas motor with a 4 speed floor shift manual trans (t-19..I think). The 4 wheel spinny box is a divorced np201 (i think?). Front Dana 44 with closed knuckles and not to sure of the rear axle. It does run and drive, but doesn't stop very well at all.

I will do my best to document the progress of the build here. Here is the vision....

Short term goals...

- Get it fully drivable.
- Clean Fuel tank.
- Replace brake master cylinder.
- Replace Driveshaft U-joints (all 6).
- Replace leaky diff pinion seals.
- Replace leaky Trans output shaft seal.
- figure out wiring mess to make lights work.
This "should" get her on the road, I hope!

Long term Vision...

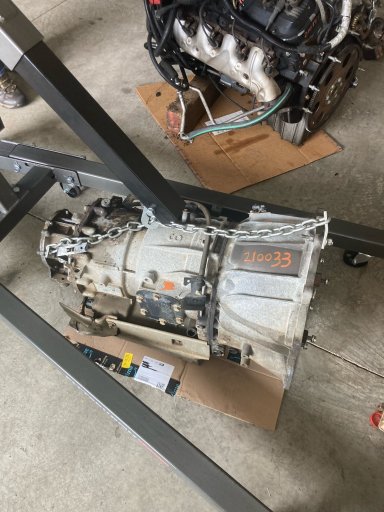

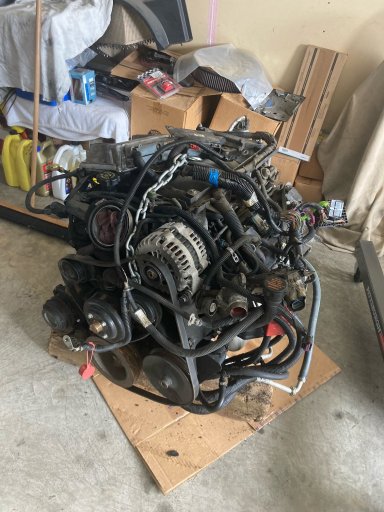

- Possible 12v Cummins/NV4500 swap.
- 1 Ton axles
- 4-6" lift allowing 37" tires at a minimum.
- DIY Custom built bumpers.

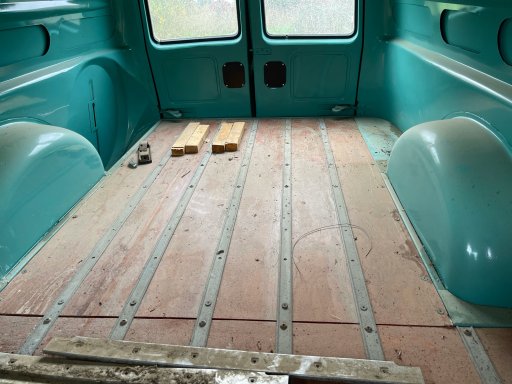

- Build out cargo area to allow for Vehicle dependent travel.

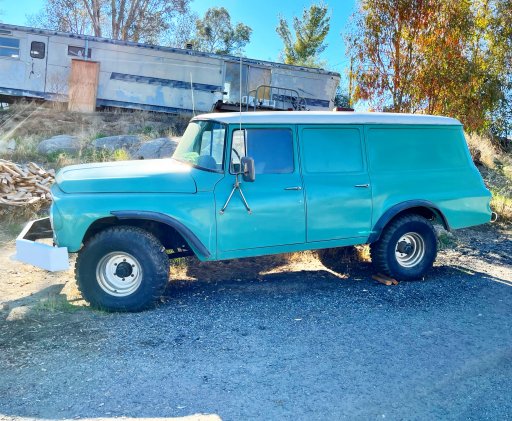

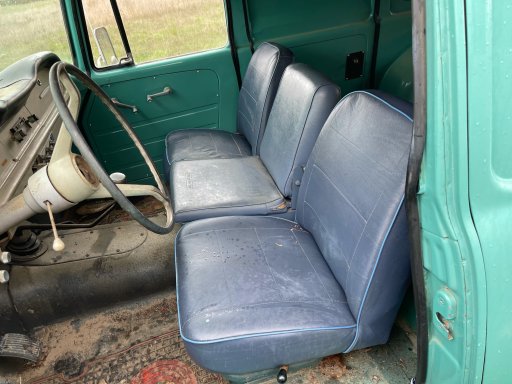

And here she is,







PNW EXPLR

NorthWest Region Member Rep Southeast Washington
Member
Supporter +

Explorer I

4,285
Kennewick, WA, USA
First Name
Michael
Last Name
Denniston
Member #

3030

Ham Callsign
KJ7LYZ
So over the last few weeks i have moved the rig into a dry storage. I am working in Oregon so i have it here with me so that I can take care of the needed issues to get it back on the road.

Currently I have the fuel tank pulled, I removed all 3 drive shafts, and will pick up the master cylinder tomorrow. U-joints will be here tomorrow. I have also ordered a Yoke puller that is needed to replace the pinion seals.

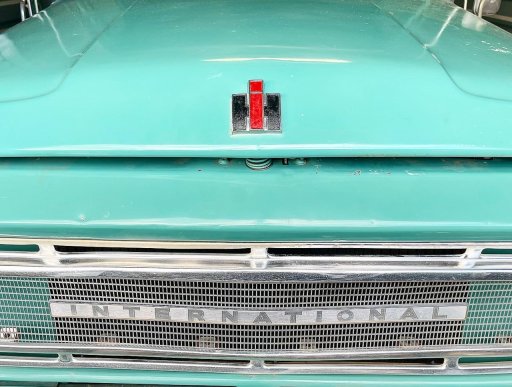

So in the meantime while waiting on stuff to arrive I decided to refurb the hood badge.

image0 (1).jpeg


PCO6

Rank V
Member

Member III

2,268
Newmarket, Ontario
Member #

12534

I love this era of IH trucks. My Dad had a 1966 IH tow truck that I spent a lot of time in. Another place I worked at had a slightly newer one in the same colour as yours. They were a lot fun and a great learning experience.

You got a nice one! I've always liked the Travelalls.

  • Like
Reactions: PNW EXPLR

North American Sojourner

Rank IV
Member
Adventure

Contributor III

1,202
Mid-Missouri, MO, USA
First Name
Dave
Last Name
Zimmer
Member #

30139

Service Branch
USN (ret)
Wow. Amazing find. If it were mine, I'd pull the entire wiring harness and replace it. Painless makes a kit. Otherwise, create a good ground, forward, middle and rear and make sure all the existing grounds go to those "secure" grounds. 90% of electrical failures are grounds. (especially with that new paint job) They disconnected grounds, painted the truck, and put the grounds back over the new paint.....LOL.
Nice project.
Zim


PNW EXPLR

NorthWest Region Member Rep Southeast Washington
Member
Supporter +

Explorer I

4,285
Kennewick, WA, USA
First Name
Michael
Last Name
Denniston
Member #

3030

Ham Callsign
KJ7LYZ
I love this era of IH trucks. My Dad had a 1966 IH tow truck that I spent a lot of time in. Another place I worked at had a slightly newer one in the same colour as yours. They were a lot fun and a great learning experience.

You got a nice one! I've always liked the Travelalls.
This is my second International. I had a Scout II that unfortunately I wrecked in 2015. I always knew that I would get another International. They were so ahead of the times.

I am looking forward to getting it out on the road.

  • Like
Reactions: PCO6

PNW EXPLR

NorthWest Region Member Rep Southeast Washington
Member
Supporter +

Explorer I

4,285
Kennewick, WA, USA
First Name
Michael
Last Name
Denniston
Member #

3030

Ham Callsign
KJ7LYZ
Wow. Amazing find. If it were mine, I'd pull the entire wiring harness and replace it. Painless makes a kit. Otherwise, create a good ground, forward, middle and rear and make sure all the existing grounds go to those "secure" grounds. 90% of electrical failures are grounds. (especially with that new paint job) They disconnected grounds, painted the truck, and put the grounds back over the new paint.....LOL.
Nice project.
Zim
Yeah, I definitely plan to do a full rewire. I did that to my old scout using all weatherpac (GM style) connections. As soon as all of the mechanical issues are done I will focus on the electrical. I did notice a section of household extension cord running from under the dash to the rear of the rig….thinking it not factory!?


M Rose

US Northwest Region Director
Benefactor
Member
Expedition

Advocate III

5,584
La Grande, Oregon, USA
First Name
Michael
Last Name
Rose
Member #

20990

Ham Callsign
KJ7MFV
Service Branch
US ARMY Retired
Yeah, I definitely plan to do a full rewire. I did that to my old scout using all weatherpac (GM style) connections. As soon as all of the mechanical issues are done I will focus on the electrical. I did notice a section of household extension cord running from under the dash to the rear of the rig….thinking it not factory!?
If it’s yellow it’s stock LMAO


GLOCKer

Rank IV

Pathfinder II

1,209
Marietta, Georgia, USA
First Name
John
Last Name
Battersby
Oh wow! This is cool and looks like it has so much potential! My mind is racing with ideas of what I'd do with it if it was mine. Can't wait to see how that big thing turns out in your hands!

  • Like
Reactions: PNW EXPLR

Correus

Rank V
Member

Member III

2,741
Belle Plaine, Kansas, 67013
Member #

1184

Okay... question.

The rig is fairly rare, and you see to intend to devote a lot of blood sweat and tears to make it yours. But.... is it going to be a rig you'll actually take on the back roads and use, or more of show piece?

I'm asking because I'm at a cross roads with mine. The intent was to just do a mechanical refurbishment and then use it as a daily driver and to go on adventures along the back roads to the back-of-beyond.

After several years of work and a ton of blood sweat and tears it's drivable, but not finished, trop top still needs to be finished. My 'intent' is still the same, yet I'm getting a lot of flak from family and friends who thinks it should be handled with care. Didn't help my case when it won the 4x4 category of a car show. Insurance company isn't helping either.

So - what are your plans?

  • Like
Reactions: PNW EXPLR

PNW EXPLR

NorthWest Region Member Rep Southeast Washington
Member
Supporter +

Explorer I

4,285
Kennewick, WA, USA
First Name
Michael
Last Name
Denniston
Member #

3030

Ham Callsign
KJ7LYZ
Okay... question.

The rig is fairly rare, and you see to intend to devote a lot of blood sweat and tears to make it yours. But.... is it going to be a rig you'll actually take on the back roads and use, or more of show piece?

I'm asking because I'm at a cross roads with mine. The intent was to just do a mechanical refurbishment and then use it as a daily driver and to go on adventures along the back roads to the back-of-beyond.

After several years of work and a ton of blood sweat and tears it's drivable, but not finished, trop top still needs to be finished. My 'intent' is still the same, yet I'm getting a lot of flak from family and friends who thinks it should be handled with care. Didn't help my case when it won the 4x4 category of a car show. Insurance company isn't helping either.

So - what are your plans?
So my plans are to turn heads……as I bomb down the trail in it!

In my opinion these trucks are meant to be used. Sure, I may take the “go around” trail if it gets to risky, but, I’ll be damned if I put all of that work into a mall crawler show car and don’t use it as it was originally intended.


PNW EXPLR

NorthWest Region Member Rep Southeast Washington
Member
Supporter +

Explorer I

4,285
Kennewick, WA, USA
First Name
Michael
Last Name
Denniston
Member #

3030

Ham Callsign
KJ7LYZ

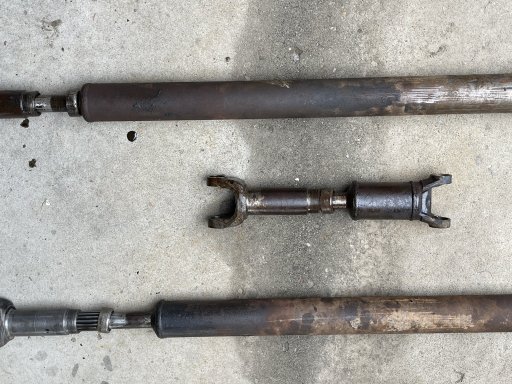

I spent this long weekend rebuilding the driveshafts. Several u-joints were in pretty rough shape, and anybody who really knows me knows that I can’t just replace them without going all the way.
I started by knocking out the old joints and cleaning the shafts to bare metal.

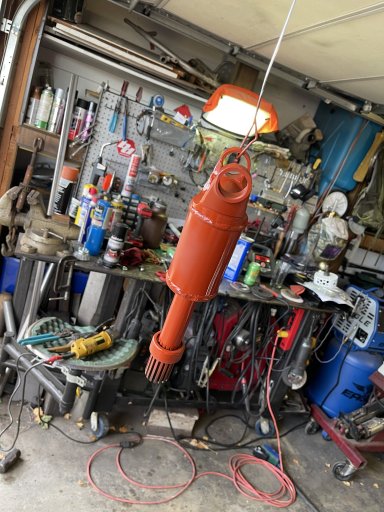

Then a good primer,
Next I spent hours digging out all of the dried up grease from the slip joints. It was so bad that there was really no slip remaining. This could have proved to be a bad issue out on the trail when thedrive lines needed to expand and contract as the suspension cycled.

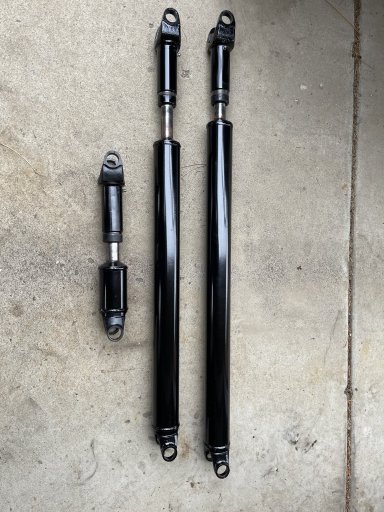

Last a couple good coats of ceramic engine paint.
Next will be to install all new genuine Spicer U-joints.

  • Love
Reactions: M Rose

PNW EXPLR

NorthWest Region Member Rep Southeast Washington
Member
Supporter +

Explorer I

4,285
Kennewick, WA, USA
First Name
Michael
Last Name
Denniston
Member #

3030

Ham Callsign
KJ7LYZ

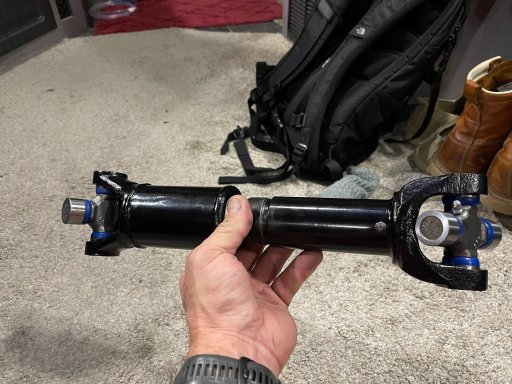

Got all 6 Spicer U-joints pressed in.
I also just ordered all new seals for the front and rear pinions, rear main engine seal, and the front and real transmission seals. Some I can pick up at Napa today after work and a couple will be sent in the mail.
